Front CV Axle & Bearing for Can-Am 705401634, 64" Maverick X3 Turbo R RR, Left or Right, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-227/WB-1751

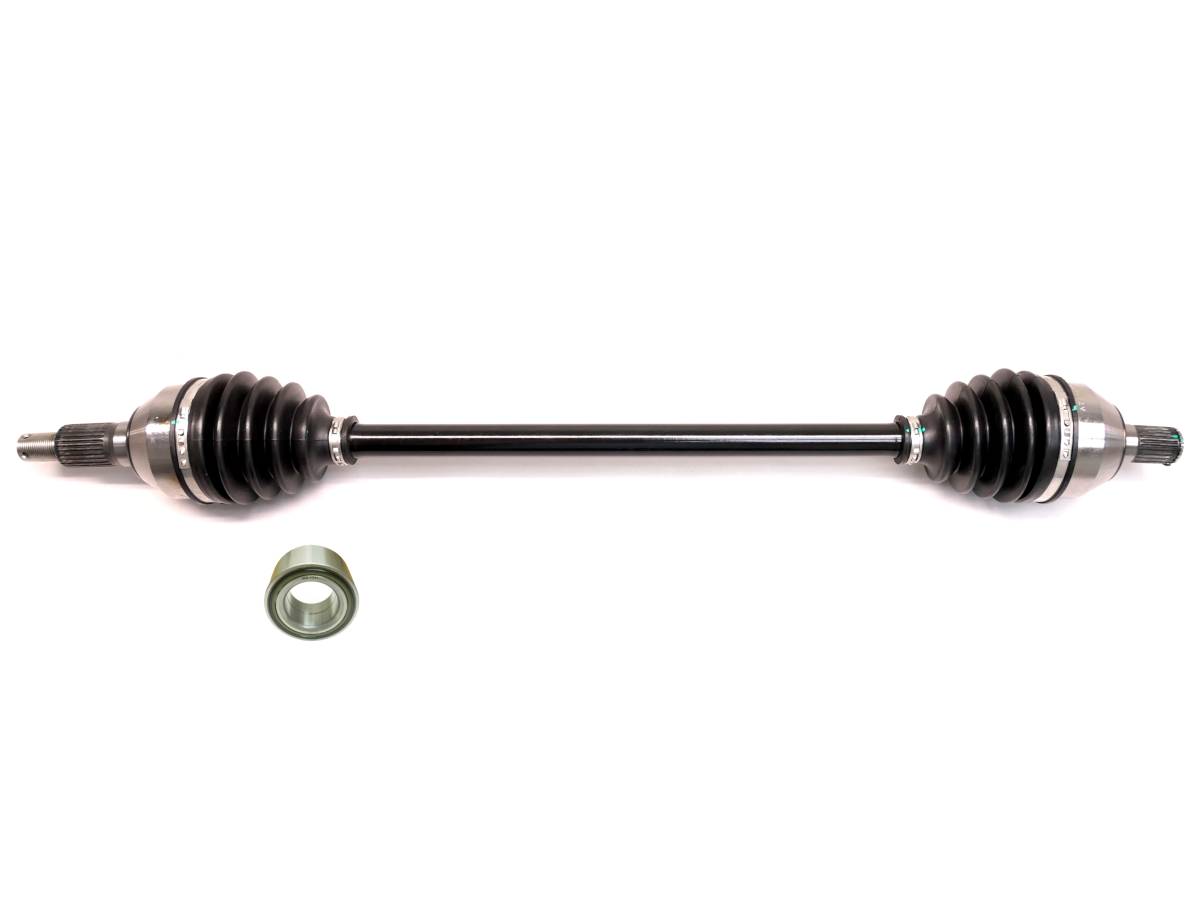

This is a new CV axle with wheel bearing for a Can-Am SXS.

They fit front, left or right on the following Maverick X3 64" models:

2018-2021 ... Turbo XMR/XRC

2022 ... Turbo/Turbo RR - DS

2019-2020 ... Turbo R/MAX Turbo R XDS

2020-2022 ... Turbo RR/MAX Turbo RR XDS

2019 ... MAX Turbo

*made as an OE replacement, and is not intended for lifted/ modified vehicles

*please note this will not fit any 72 inch models

Product features:

  • 4140 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

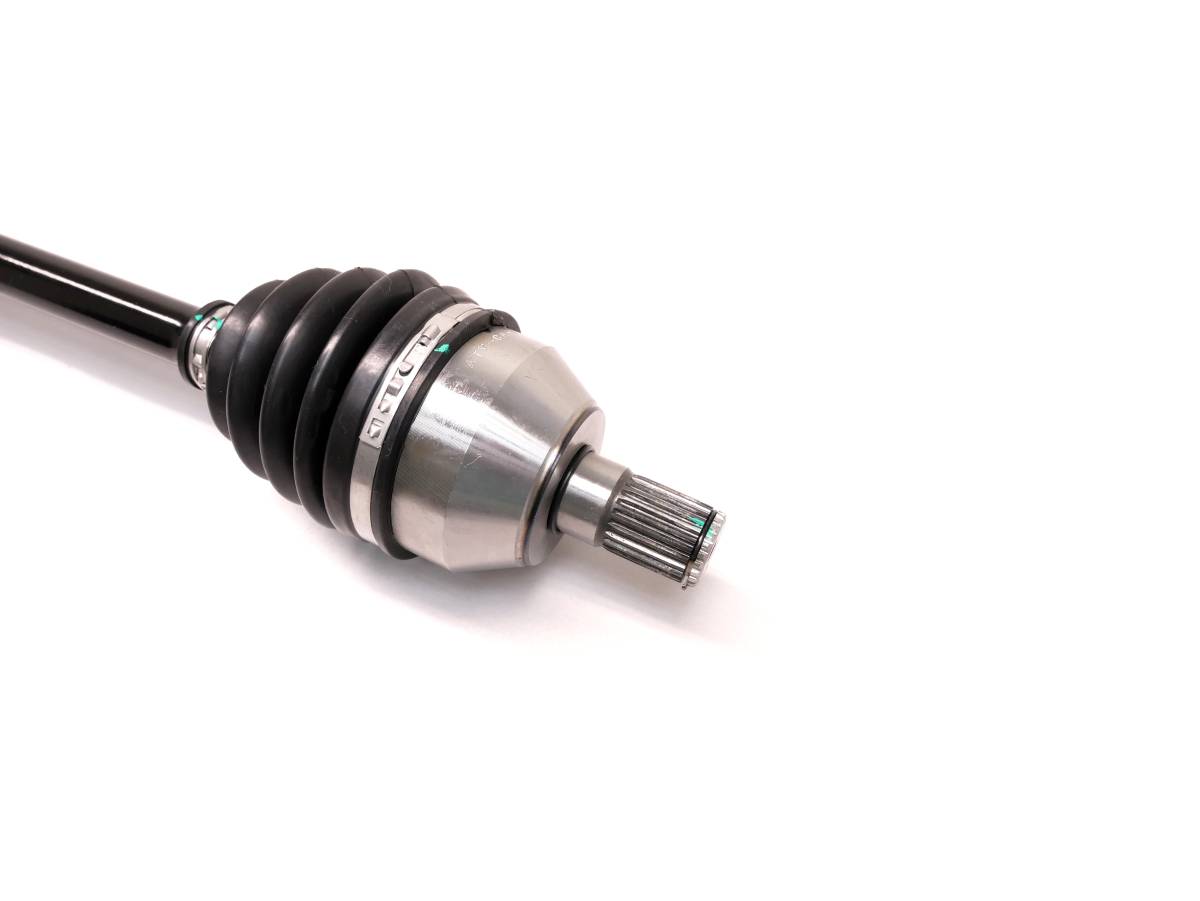

  • inobard CV joint spline count: 24

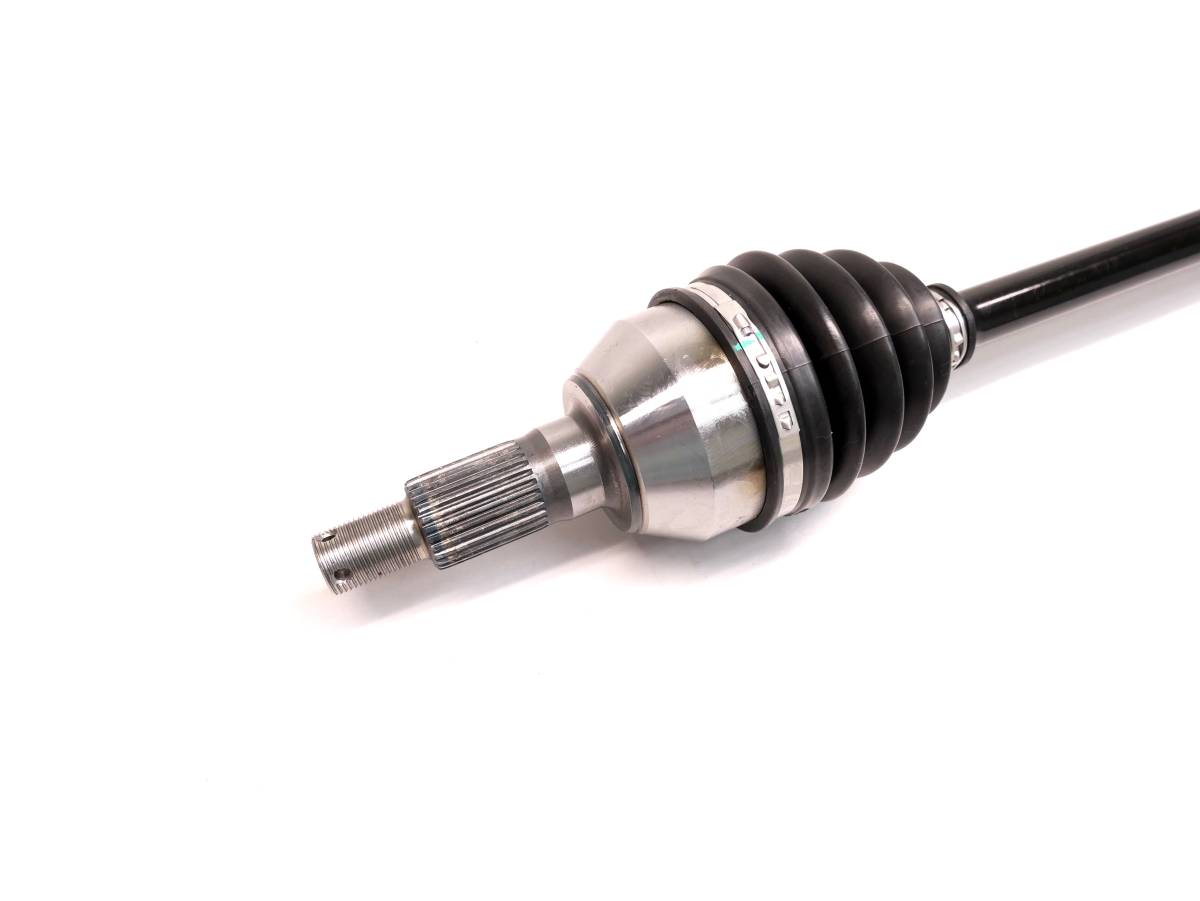

  • outboard CV joint spline count: 29
  • Compressed overall axle length: 745 mm
  • Replaces OEM # 705401634, 293350129, 293350151, 293350109
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $104.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmMaverick X34x4 DS Turbo DPS
2021Can-AmMaverick X34x4 XMR Turbo DPS
2021Can-AmMaverick X34x4 XRC Turbo DPS
2020Can-AmMaverick X34x4 XMR Turbo DPS
2020Can-AmMaverick X34x4 XRC Turbo DPS
2019Can-AmMaverick X34x4 XMR Turbo DPS
2019Can-AmMaverick X34x4 XRC Turbo DPS
2018Can-AmMaverick X34x4 XMR Turbo DPS
2018Can-AmMaverick X34x4 XRC Turbo DPS
2019Can-AmMaverick X3 Max4x4 Turbo DPS
2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2022Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 R4x4 DS Turbo DPS
2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
2022Can-AmMaverick X3 RR4x4 DS Turbo DPS
2022Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS

Product Notes

  • Fits front, left or right on the following Can-Am Maverick X3 64" models: 2018-2021 Turbo XMR/XRC, 2022 Turbo/Turbo RR - DS, 2019-2020 Turbo R/MAX Turbo R XDS, 2020-2022 Turbo RR/MAX Turbo RR XDS, 2019 MAX Turbo.
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 705401634, 293350129, 293350151, 293350109. Please note this is for 64" models only. Compressed axle length: 745.5 mm, Inboard CV joint spline count: 24, Outboard CV joint spline count: 29.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CA-227/WB-1751
    • CA-227/WB-1751
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.8 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
