CV Axle Set for CF-Moto CForce 800 & 1000 2018-2023, Front & Rear, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CF-811/CF-812/CA-813/CF-813

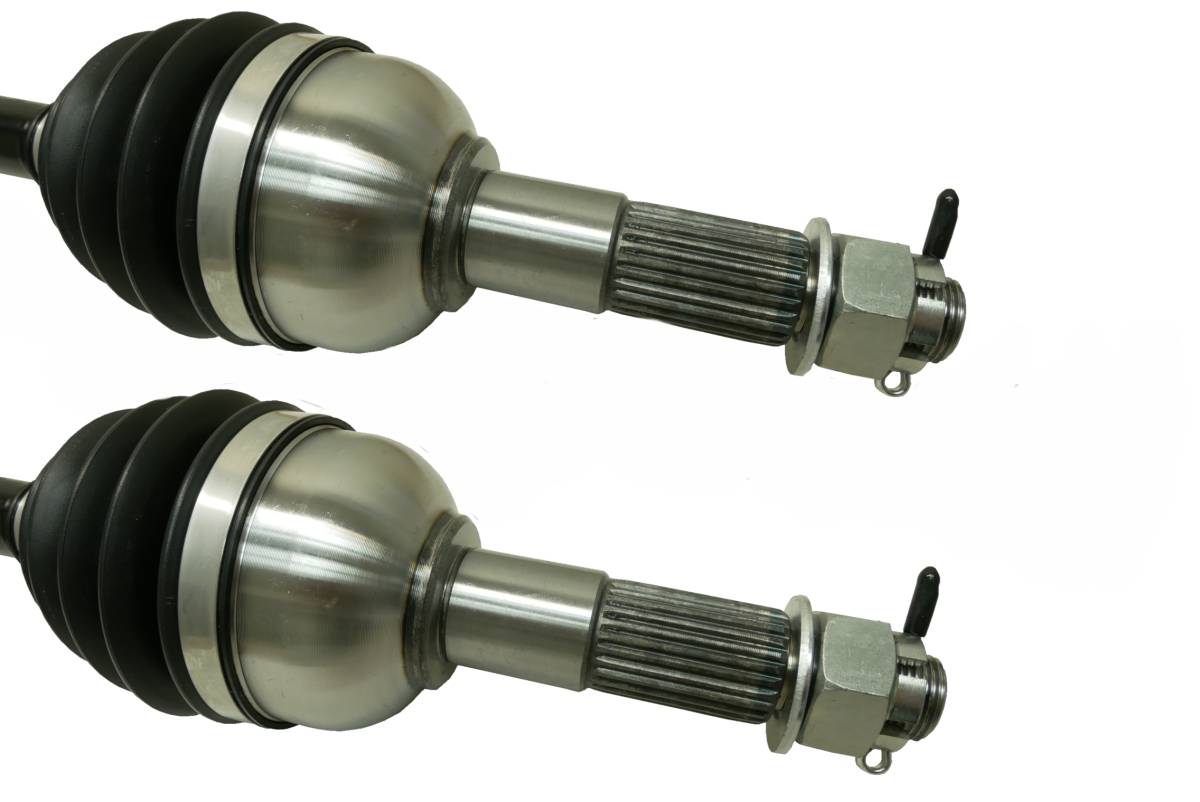

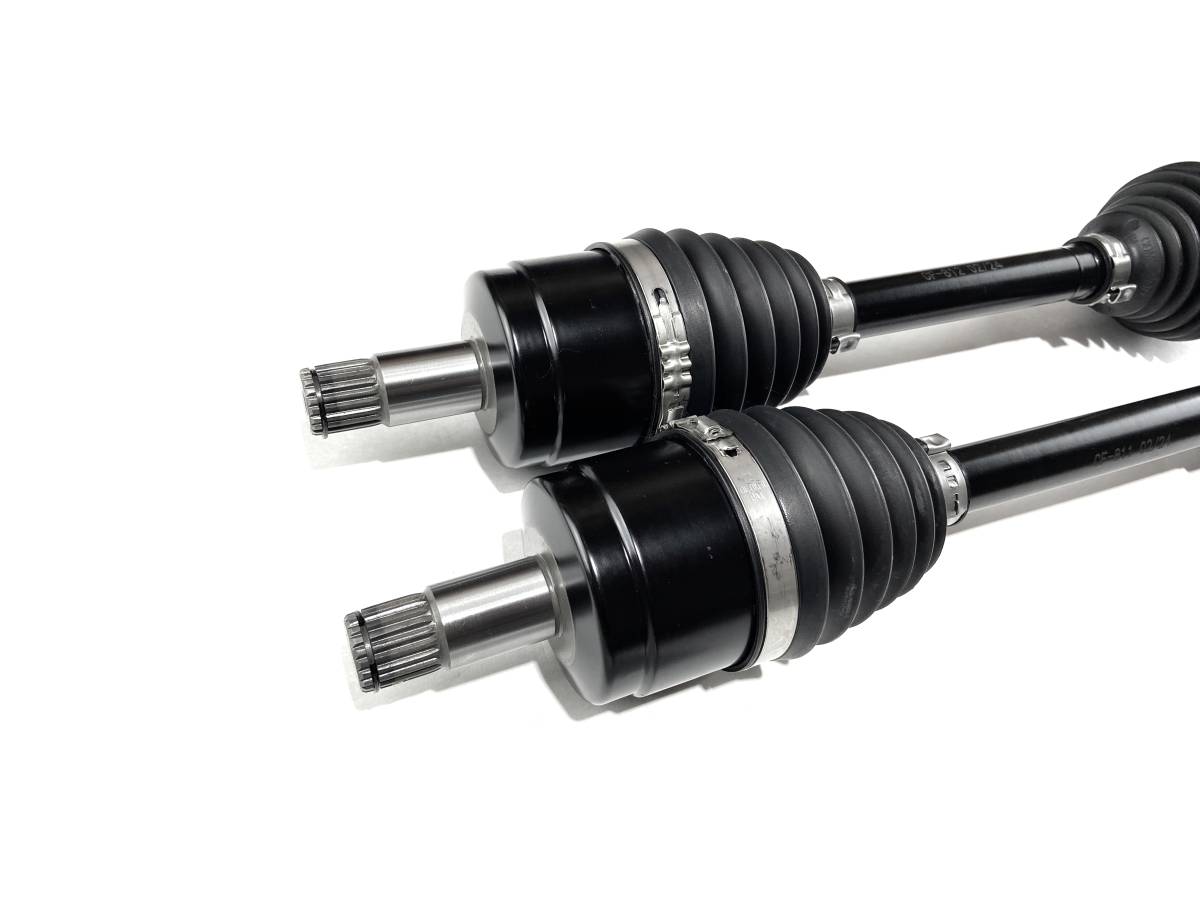

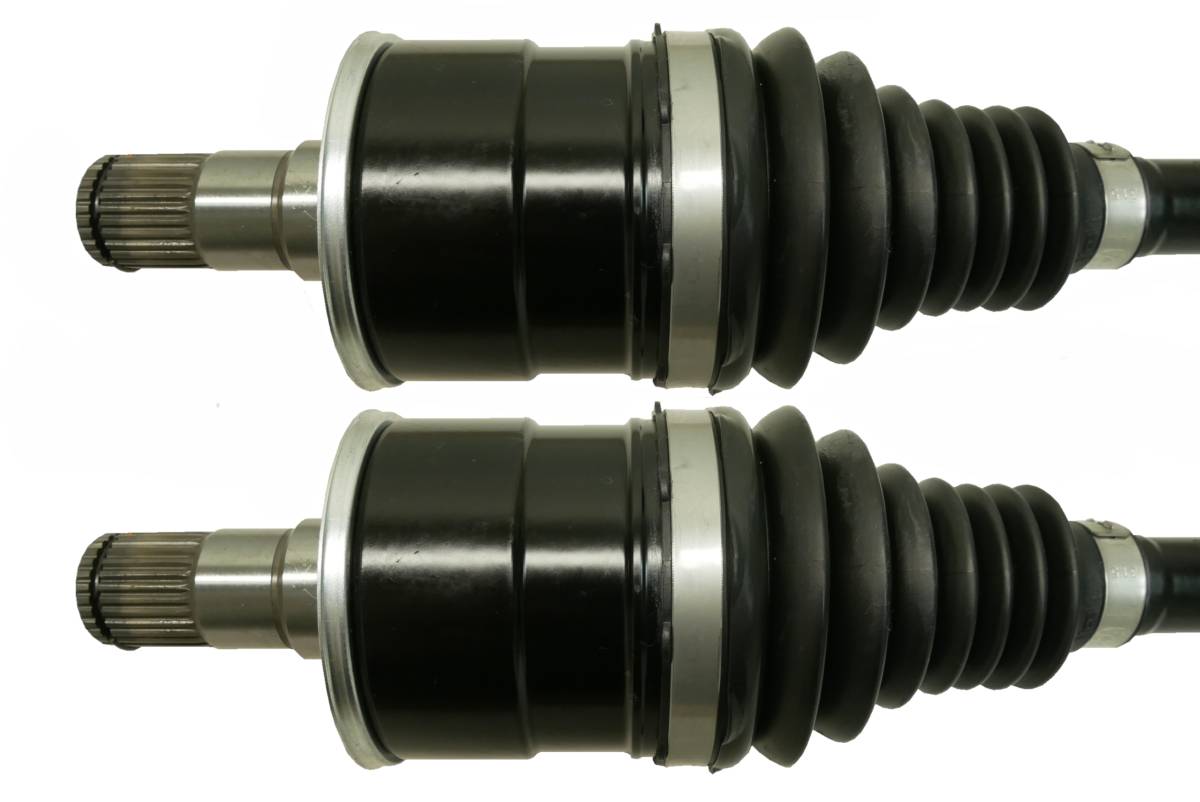

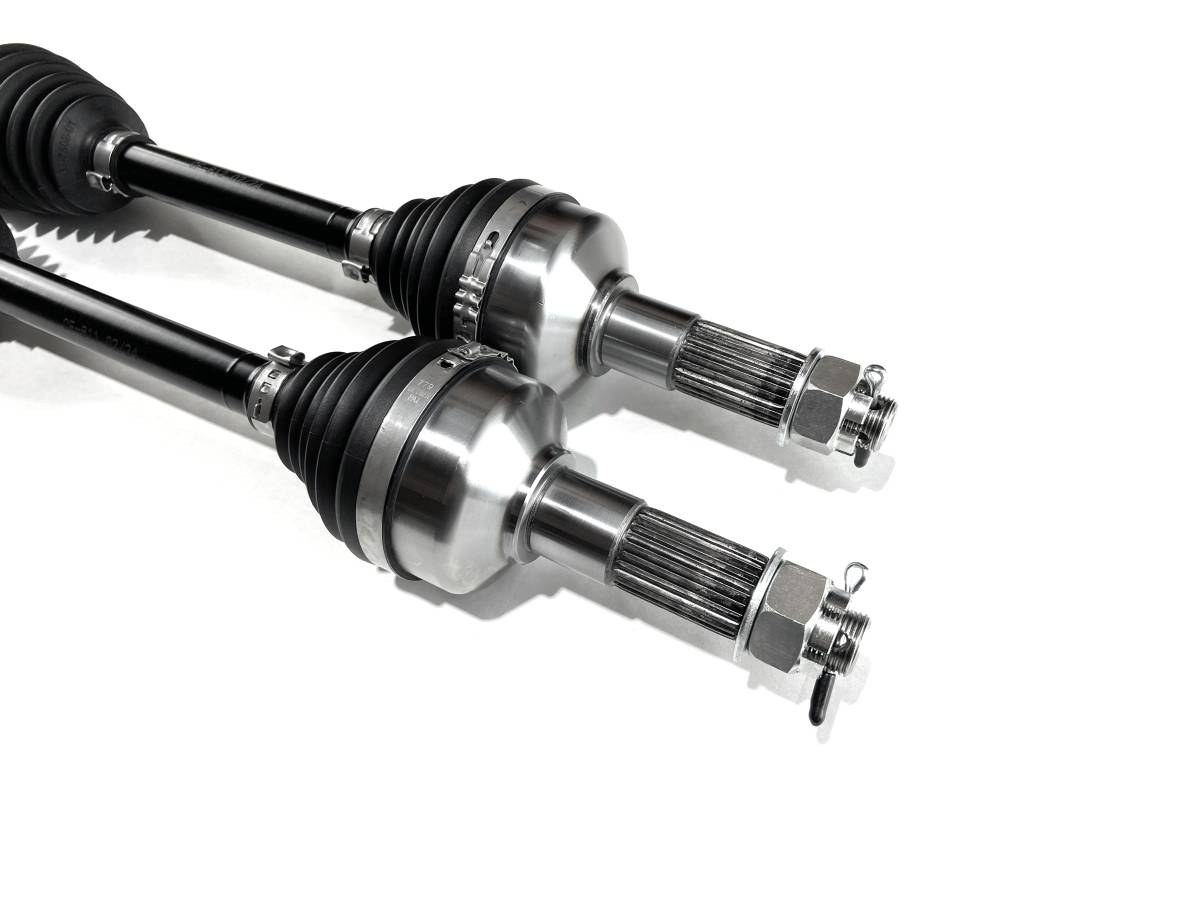

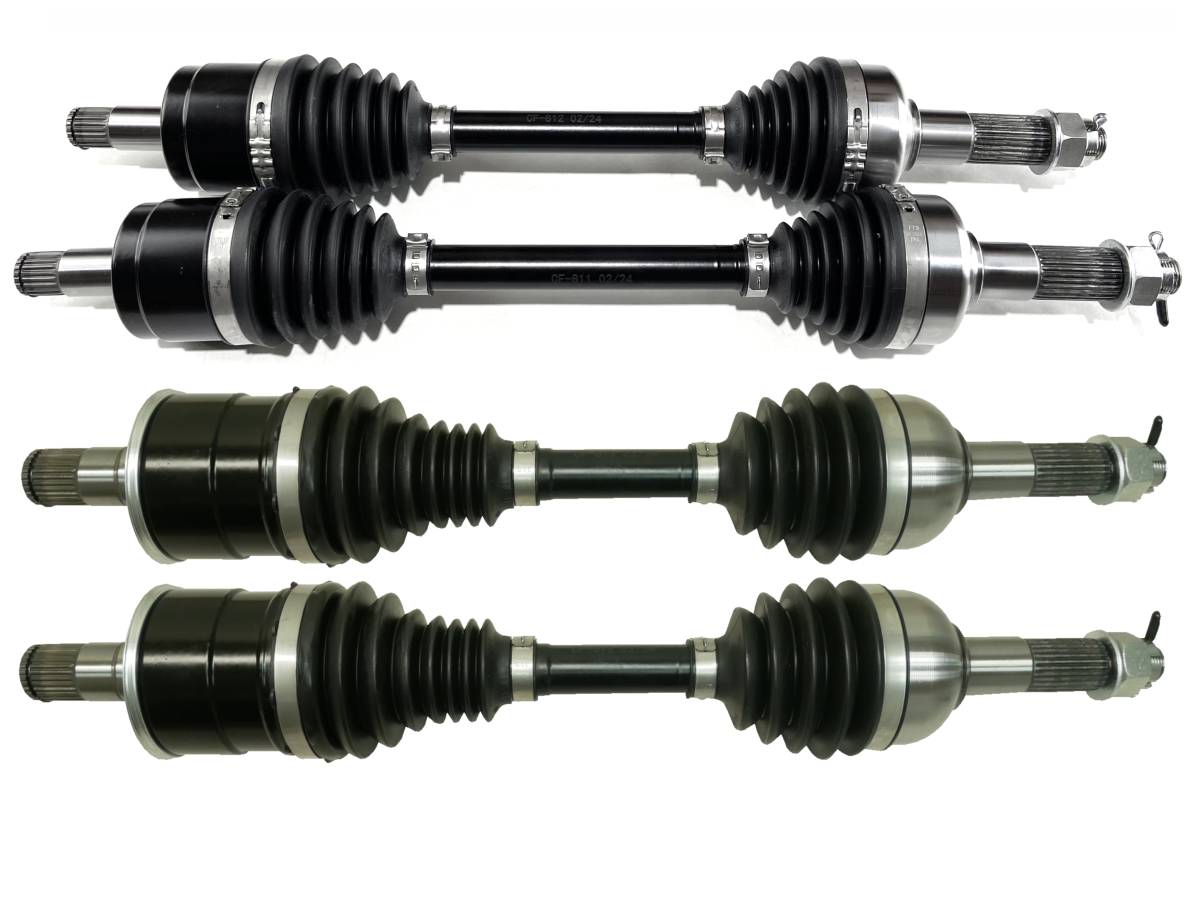

This is a full set of CV axles for a CF-Moto ATV..

They fit the following models:

2018-2023 ... CForce 800

2018-2023 ... CForce 1000

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • 4140 Chromoly steel bars
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Uses high-performance moly grease to keep vital components lubricated
  • Compressed length: FL - 555 mm, FR - 535 mm, BR - 538 mm
  • inobard spline count: fronts - 21, rears - 28
  • outboard spline count: fronts - 27, rears - 27
  • Replaces OEM # 9AY0-270100, 9AY0-270200, 9AY0-280300-00001
Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2023CF-MotoCFORCE 800XC EPS
2022CF-MotoCFORCE 800XC EPS
2021CF-MotoCFORCE 800XC EPS
2020CF-MotoCFORCE 800XC EPS
2019CF-MotoCFORCE 800XC EPS
2018CF-MotoCFORCE 800XC EPS
2023CF-MotoCFORCE 1000--
2023CF-MotoCFORCE 1000Overland
2022CF-MotoCFORCE 1000--
2022CF-MotoCFORCE 1000Overland
2021CF-MotoCFORCE 1000Overland

Product Notes

  • Fits the following CF-Moto models: 2018-2023 CForce 800, 2018-2023 CForce 1000.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 9AY0-270100, 9AY0-270200, 9AY0-280300-00001. Compressed length: FL - 555 mm, FR - 535 mm, BR - 538 mm, Inboard spline count: fronts - 21, rears - 28, Outboard spline count: fronts - 27, rears - 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CF-811/CF-812/CA-813/CF-813
    • CF-811/CF-812/CA-813/CF-813
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 49.0 lbs.
    • W12.0000” x H6.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
