Full CV Axle Set for CFMOTO ZFORCE 800 EX 2018-2022, Front & Rear, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CF-814/CF-815/CF-816/CF-816

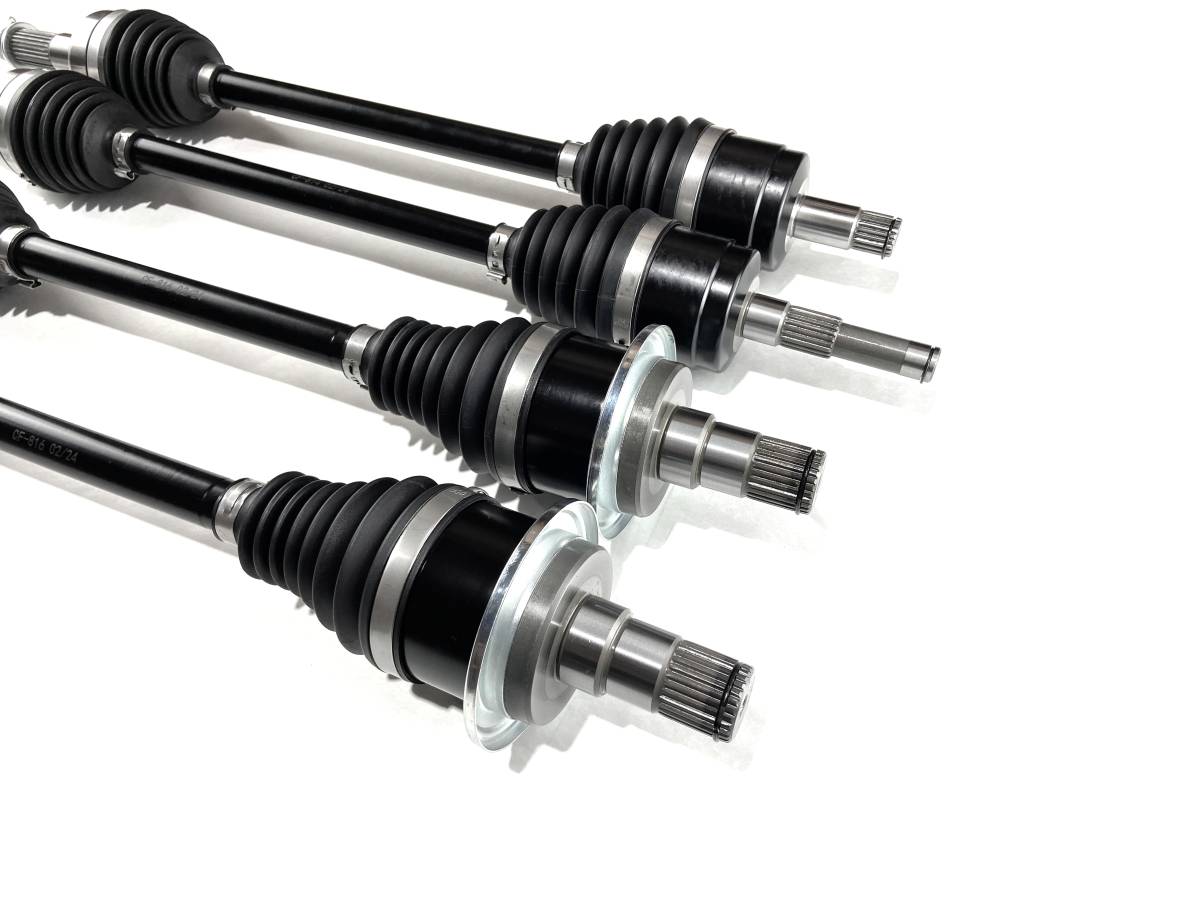

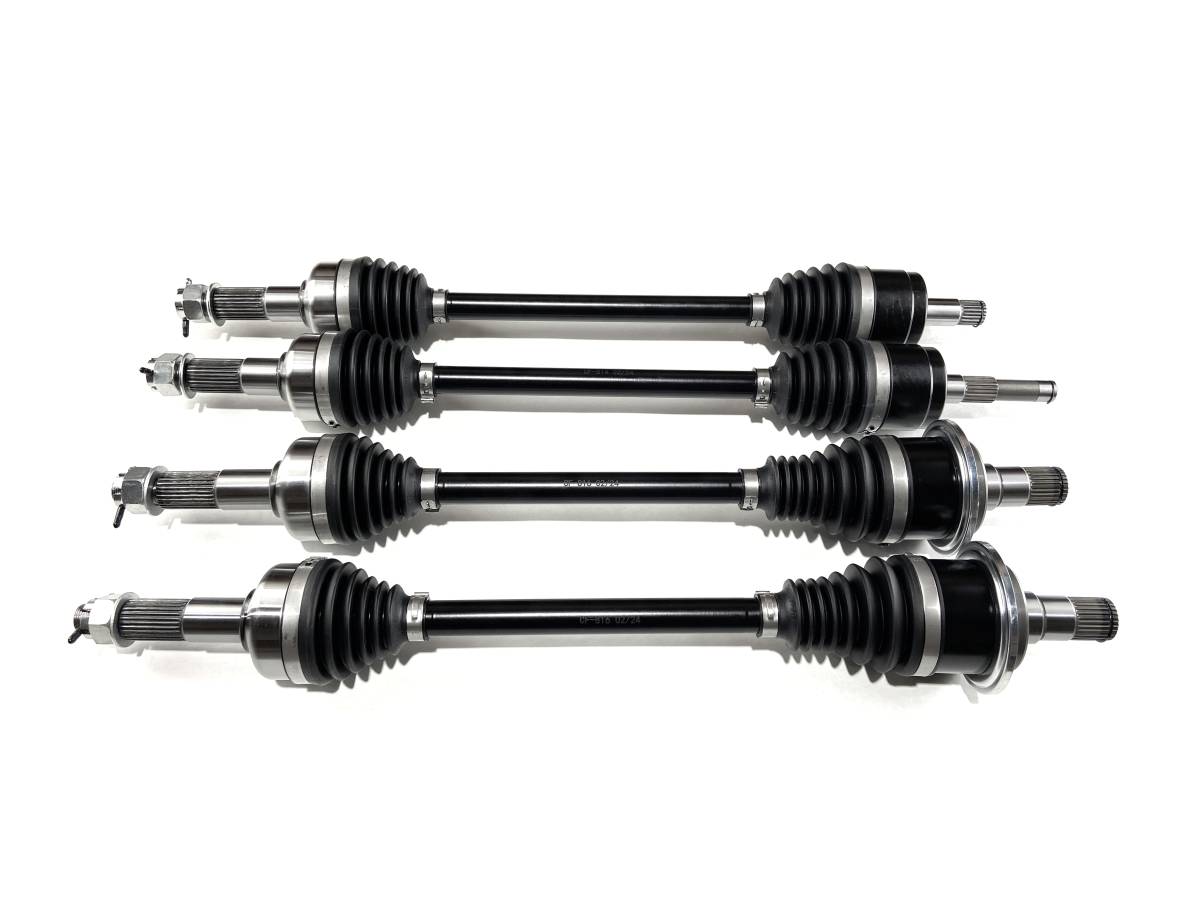

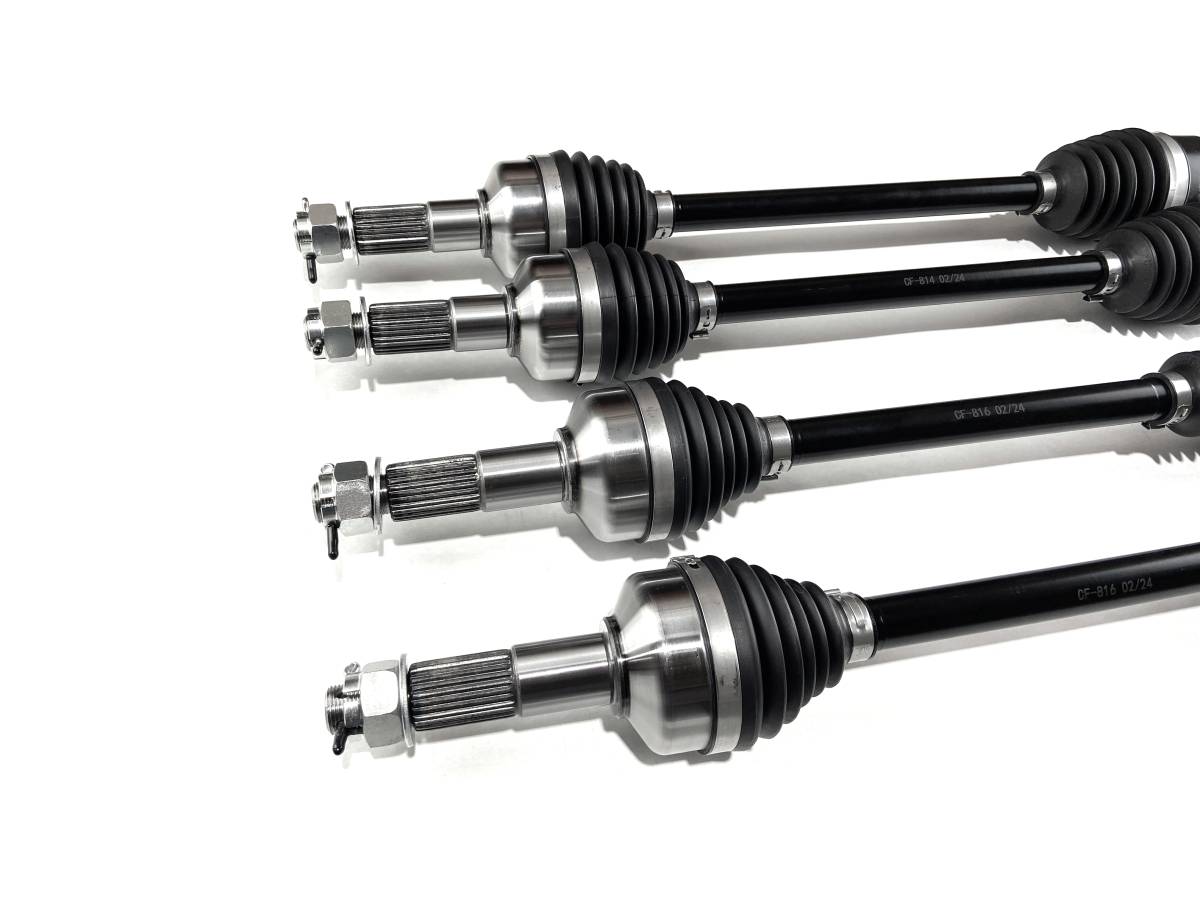

This is a full set of new CV axles for a CFMOTO ZForce.

They will fit the following models:

2018-2022 ... ZForce 800 EX

*please note these will not fit any 'Trail 800' models

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • 4140 Chromoly steel bars
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Uses high-performance moly grease to keep vital components lubricated
  • Compressed length (mm): FL - 706, FR - 655, RL - 664, RR - 664
  • inobard spline count: fronts - 21, rears - 28
  • outboard spline count: fronts - 27, rears - 27
  • Replaces OEM # (fronts) 5BWB-270100, 5BWB-270200, (rears) 5BWB-280300
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $324.99

Application List

YearMakeModelSubmodelNotes
2022CF-MotoZFORCE 800EX EPS
2021CF-MotoZFORCE 800EX EPS
2020CF-MotoZFORCE 800EX EPS
2019CF-MotoZFORCE 800EX EPS
2018CF-MotoZFORCE 800EX EPS

Product Notes

  • Fits the following CFMOTO models: 2018-2022 ZFORCE 800 EX. Please note these will not fit 'Trail 800' models.
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) 5BWB-270100, 5BWB-270200, (rears) 5BWB-280300. Compressed length (mm): FL - 706, FR - 655, RL - 664, RR - 664, Inboard spline count: fronts - 21, rears - 28, Outboard spline count: fronts - 27, rears - 27.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • CF-814/CF-815/CF-816/CF-816
    • CF-814/CF-815/CF-816/CF-816
    • CUSTOM
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
