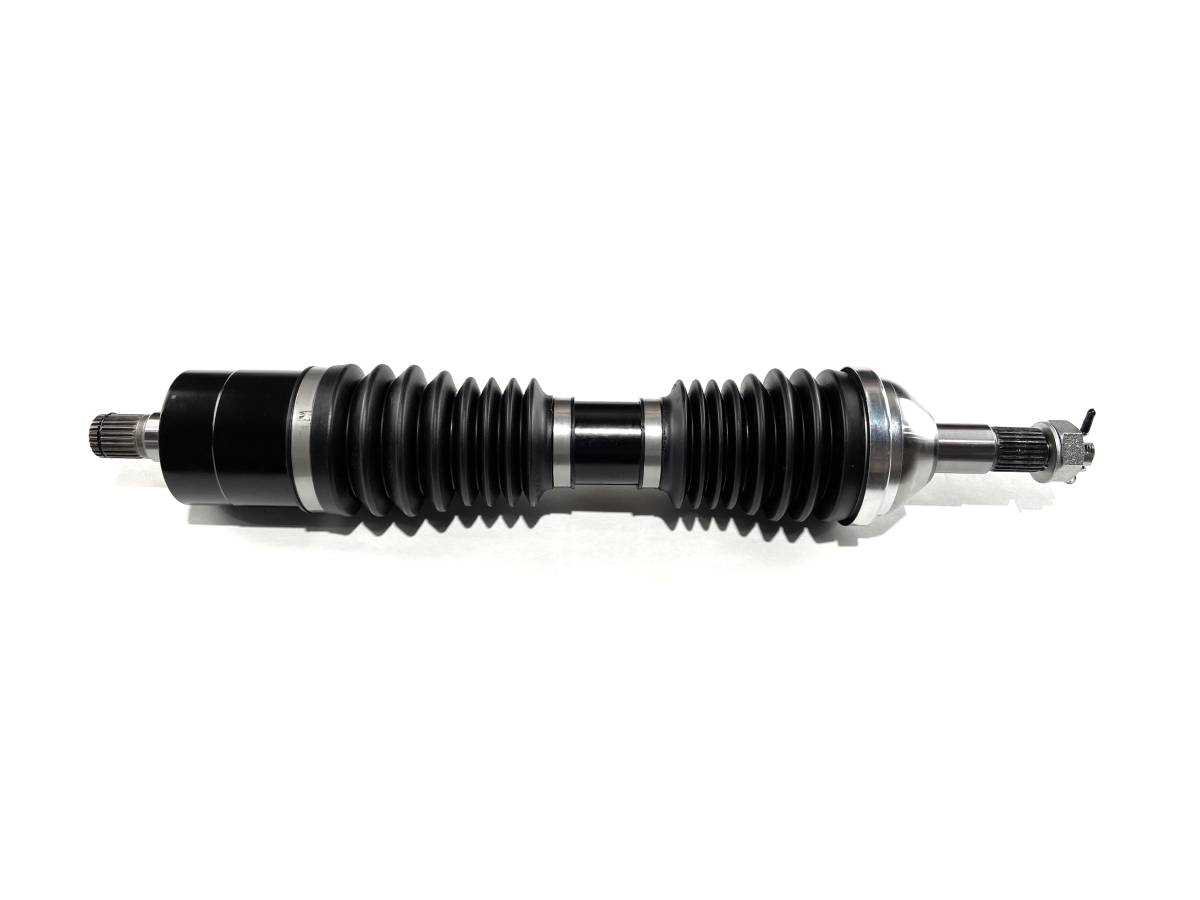

Monster Axles Rear Right Axle for Can-Am XMR ATV, 705503024, XP Series

Location on vehicle: Rear,Right

CA-309XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits REAR, RIGHT (passenger side) on the following Can-Am XMR (purpose built mud racer) models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2020-2021 Renegade XMR 570, 2020-2023 Renegade XMR 1000.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

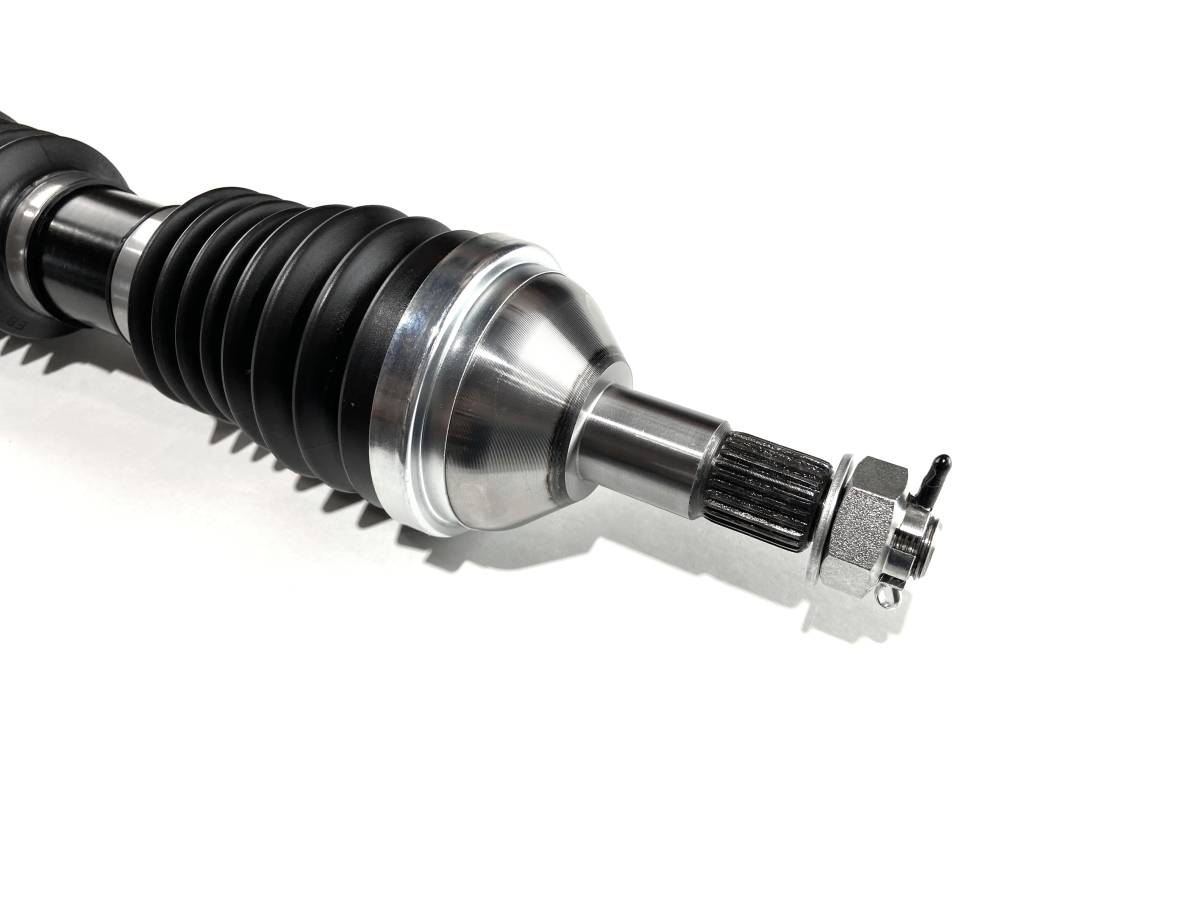

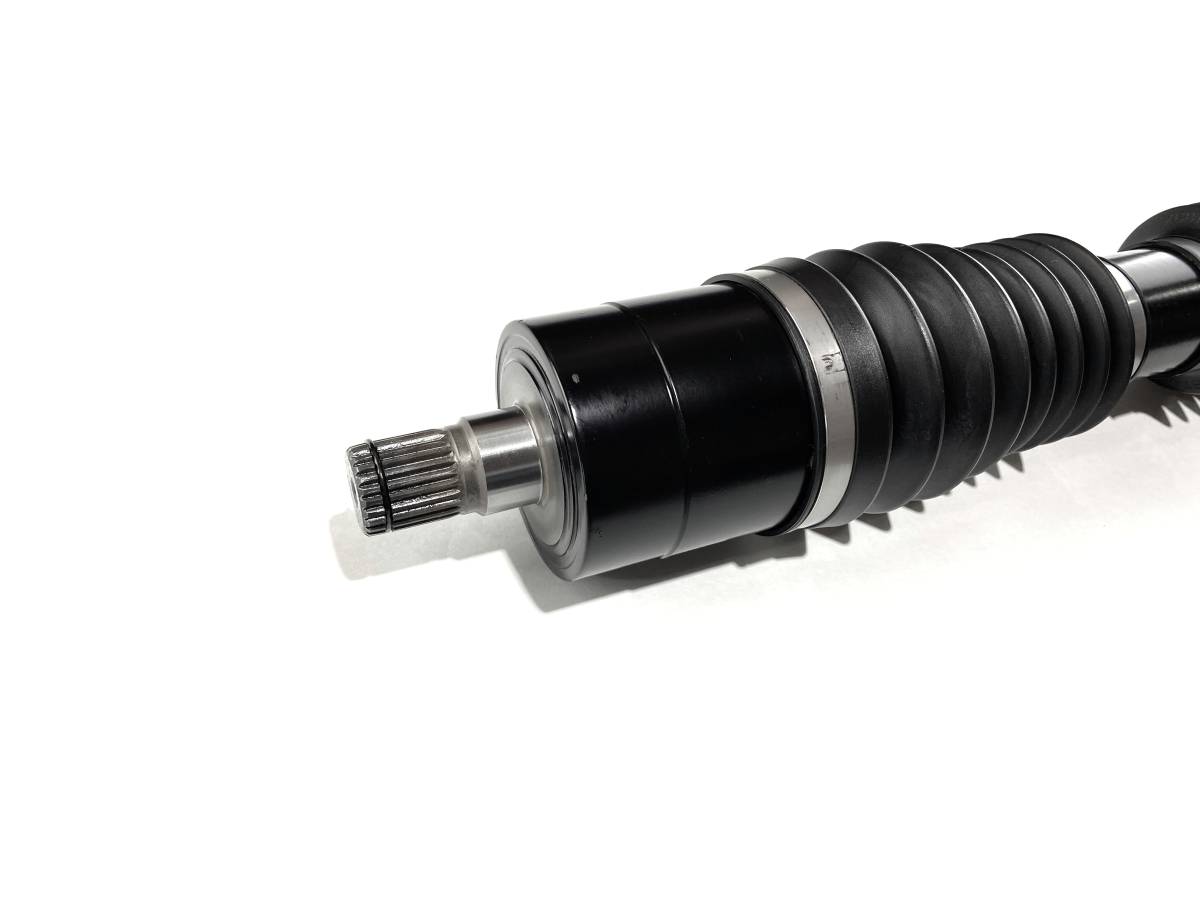

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022Can-AmOutlander 6504x4 XMR DPS
2021Can-AmOutlander 6504x4 XMR DPS
2020Can-AmOutlander 6504x4 XMR DPS
2019Can-AmOutlander 6504x4 XMR DPS
2023Can-AmOutlander 8504x4 XMR DPS
2022Can-AmOutlander 8504x4 XMR DPS
2021Can-AmOutlander 8504x4 XMR DPS
2020Can-AmOutlander 8504x4 XMR DPS
2019Can-AmOutlander 8504x4 XMR DPS
2023Can-AmOutlander 1000R4x4 XMR DPS
2022Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmOutlander 1000R4x4 XMR DPS
2020Can-AmOutlander 1000R4x4 XMR DPS
2019Can-AmOutlander 1000R4x4 XMR DPS
2021Can-AmRenegade 5704x4 XMR DPS
2020Can-AmRenegade 5704x4 XMR DPS
2023Can-AmRenegade 1000R4x4 XMR DPS
2022Can-AmRenegade 1000R4x4 XMR DPS
2021Can-AmRenegade 1000R4x4 XMR DPS
2020Can-AmRenegade 1000R4x4 XMR DPS

Product Notes

  • Fits REAR, RIGHT (passenger side) on the following Can-Am XMR (purpose built mud racer) models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2020-2021 Renegade XMR 570, 2020-2023 Renegade XMR 1000.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 705503024, 705502713. Compressed Length: 535 mm, Inner Splines: 24, Outer Splines: 26. Comes with a 2 year limited warranty (excluding torn boots).

  • What's In The Box

  • 1 axle
  • Warranty

    Comes with a 2 year limited warranty (excluding torn boots)

    Details

    • CA-309XP
    • CA-309XP
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
