Rear CV Axle Pair for John Deere Gator XUV 550 560 590 S4

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
JD-301/JD-397

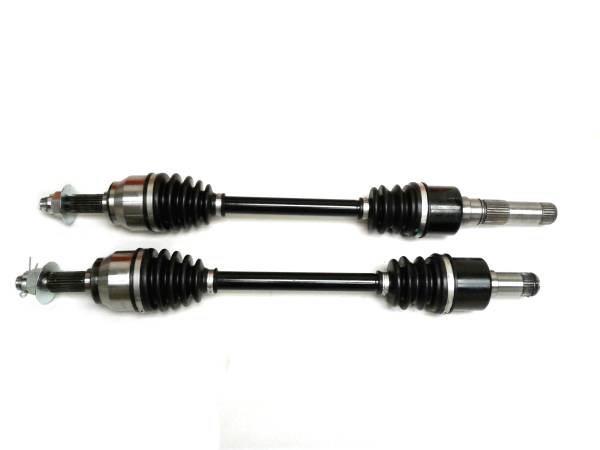

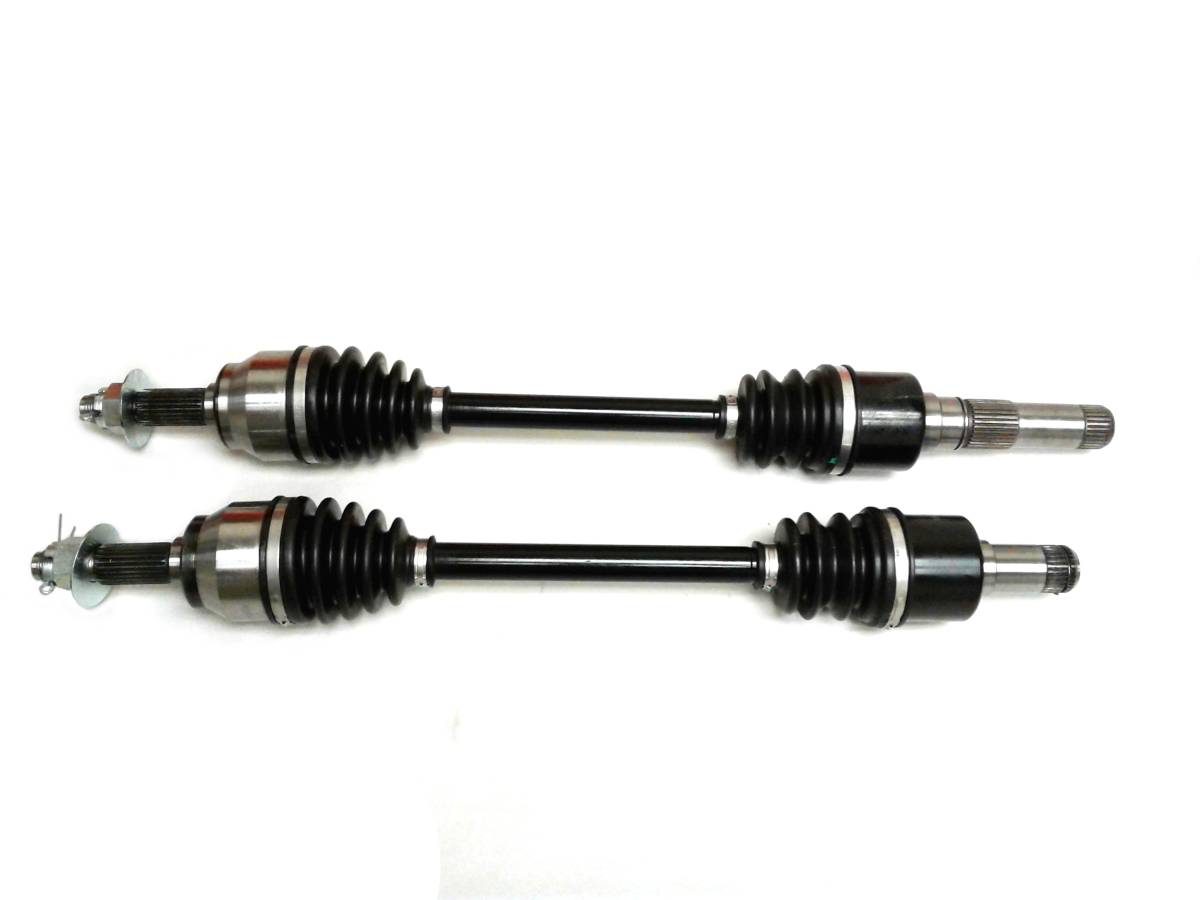

This is a pair of new CV axles for a John Deere XUV.

They fit REAR, LEFT & RIGHT on the following models:

2012-2016 ... Gator 550/550 S4

2016-2020 ... Gator 560/560 S4

2016-2020 ... Gator 590/590 S4

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

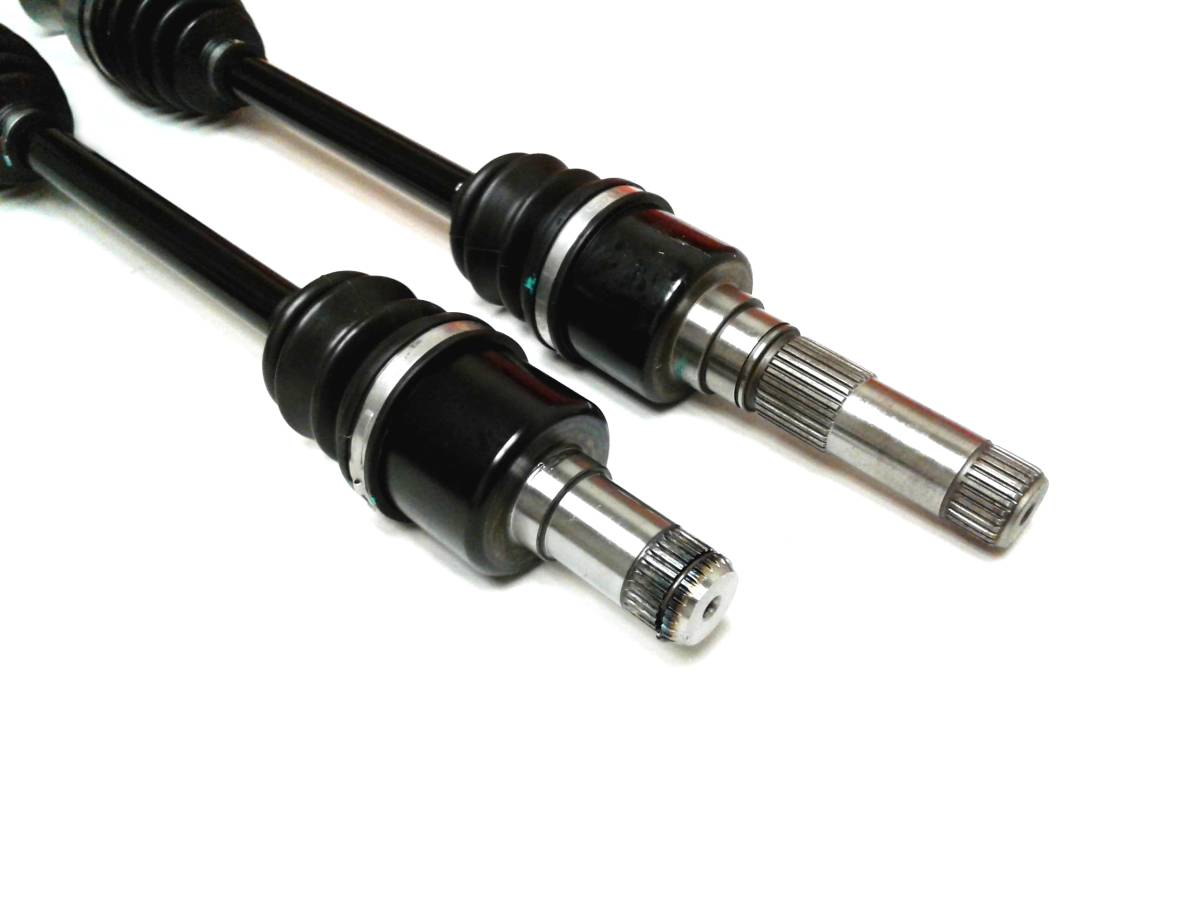

  • Inboard CV joint spline count: 28 (both)

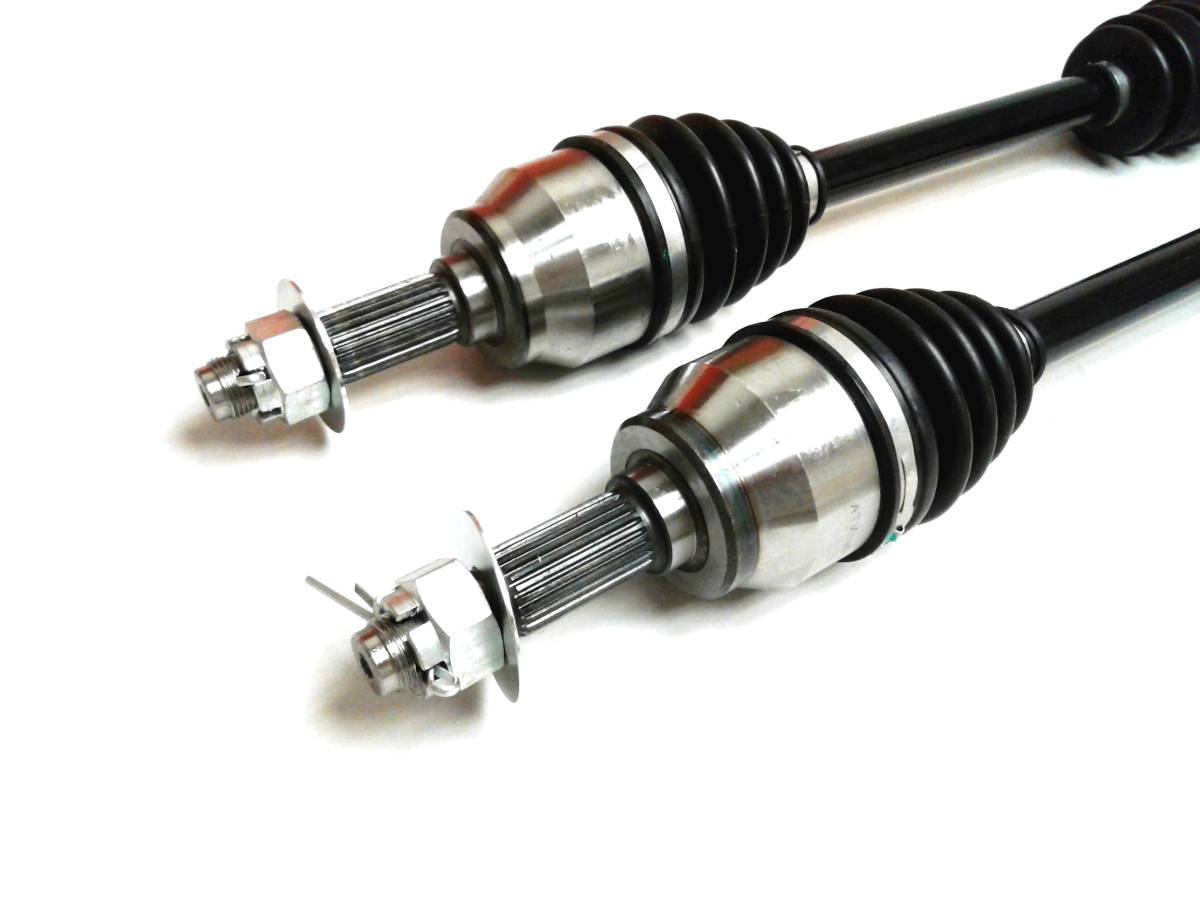

  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: Left - 610 mm, Right - 646.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016John DeereGator XUV 5504X4
2016John DeereGator XUV 5504x4 S4 4 Passenger
2015John DeereGator XUV 5504X4
2015John DeereGator XUV 5504x4 S4 4 Passenger
2014John DeereGator XUV 5504X4
2014John DeereGator XUV 5504x4 S4 4 Passenger
2013John DeereGator XUV 5504X4
2013John DeereGator XUV 5504x4 S4 4 Passenger
2012John DeereGator XUV 5504X4
2012John DeereGator XUV 5504x4 4 Passenger
2018John DeereGator XUV 5604x4 S4 4 Passenger
2017John DeereGator XUV 5604X4
2017John DeereGator XUV 5604x4 S4 4 Passenger
2016John DeereGator XUV 5604X4
2016John DeereGator XUV 5604x4 S4 4 Passenger
2020John DeereGator XUV 560E4X4
2020John DeereGator XUV 560E4x4 S4 4 Passenger
2019John DeereGator XUV 560E4X4
2019John DeereGator XUV 560E4x4 S4 4 Passenger
2018John DeereGator XUV 560E4X4
2018John DeereGator XUV 560E4x4 S4 4 Passenger
2020John DeereGator XUV 590E4X4
2020John DeereGator XUV 590E4x4 S4 4 Passenger
2019John DeereGator XUV 590E4X4
2019John DeereGator XUV 590E4x4 S4 4 Passenger
2018John DeereGator XUV 590E4X4
2018John DeereGator XUV 590E4x4 S4 4 Passenger
2020John DeereGator XUV 590M4x4 EPS
2020John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2019John DeereGator XUV 590M4x4 EPS
2019John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2019John DeereGator XUV 590MSpecial Edition
2018John DeereGator XUV 590M4x4 EPS
2018John DeereGator XUV 590M4x4 EPS S4 4 Passenger
2017John DeereGator XUV 590i4X4
2017John DeereGator XUV 590i4x4 EPS
2017John DeereGator XUV 590i4x4 EPS S4 4 Passenger
2017John DeereGator XUV 590i4x4 S4 4 Passenger
2016John DeereGator XUV 590i4X4
2016John DeereGator XUV 590i4x4 EPS
2016John DeereGator XUV 590i4x4 EPS S4 4 Passenger
2016John DeereGator XUV 590i4x4 S4 4 Passenger

Product Notes

  • Fits REAR, LEFT & RIGHT on the following John Deere XUVs: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4. Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Compressed overall axle length: Left - 610 mm, Right - 646.5 mm, Inboard CV joint spline count: 28 (both), Outboard CV joint spline count: 24 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect warranty

    Details

    • JD-301/JD-397
    • JD-301/JD-397
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
