Rear Right Axle with Wheel Bearing for Honda Pioneer 1000 & 1000-5 4x4 2016-2021

Location on vehicle: Rear,Right

(0) Reviews: Write first review
HO-329/WB-1728

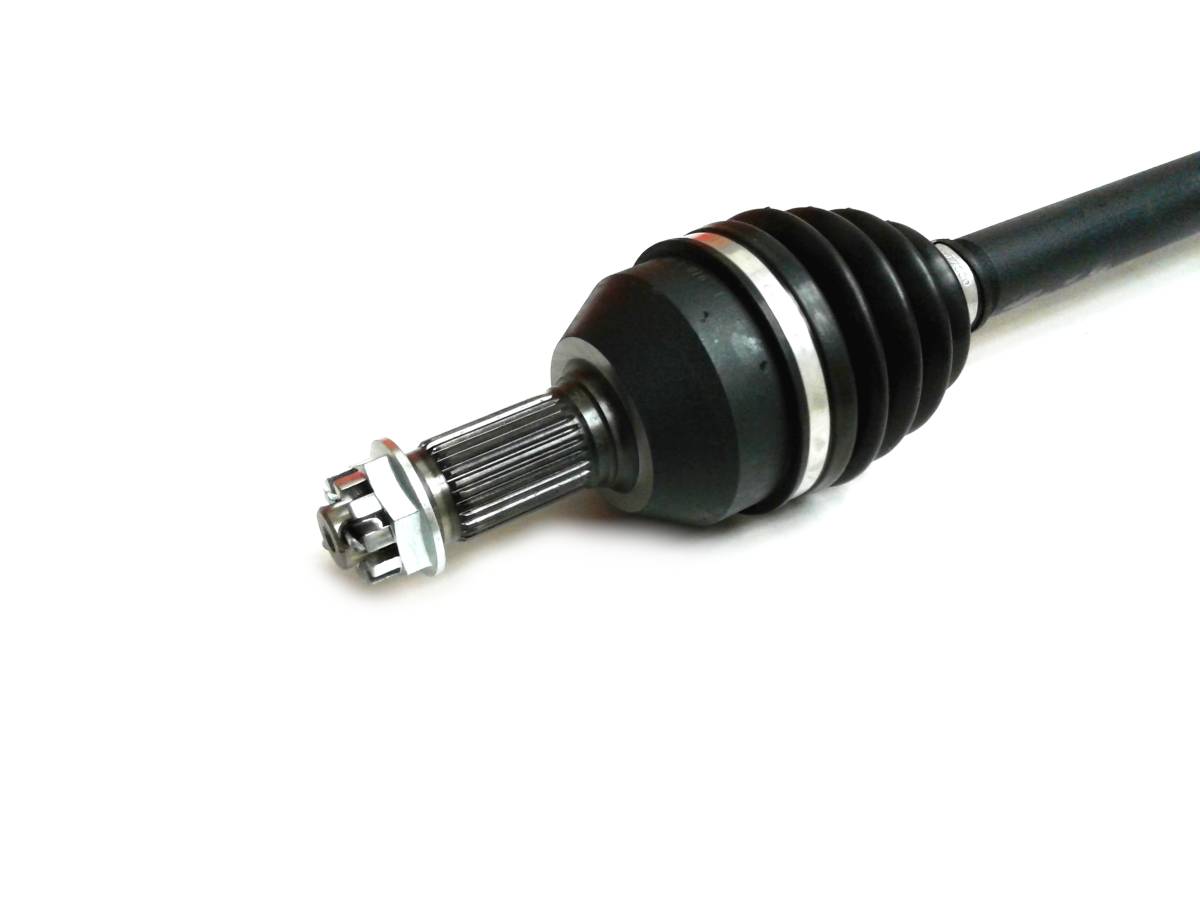

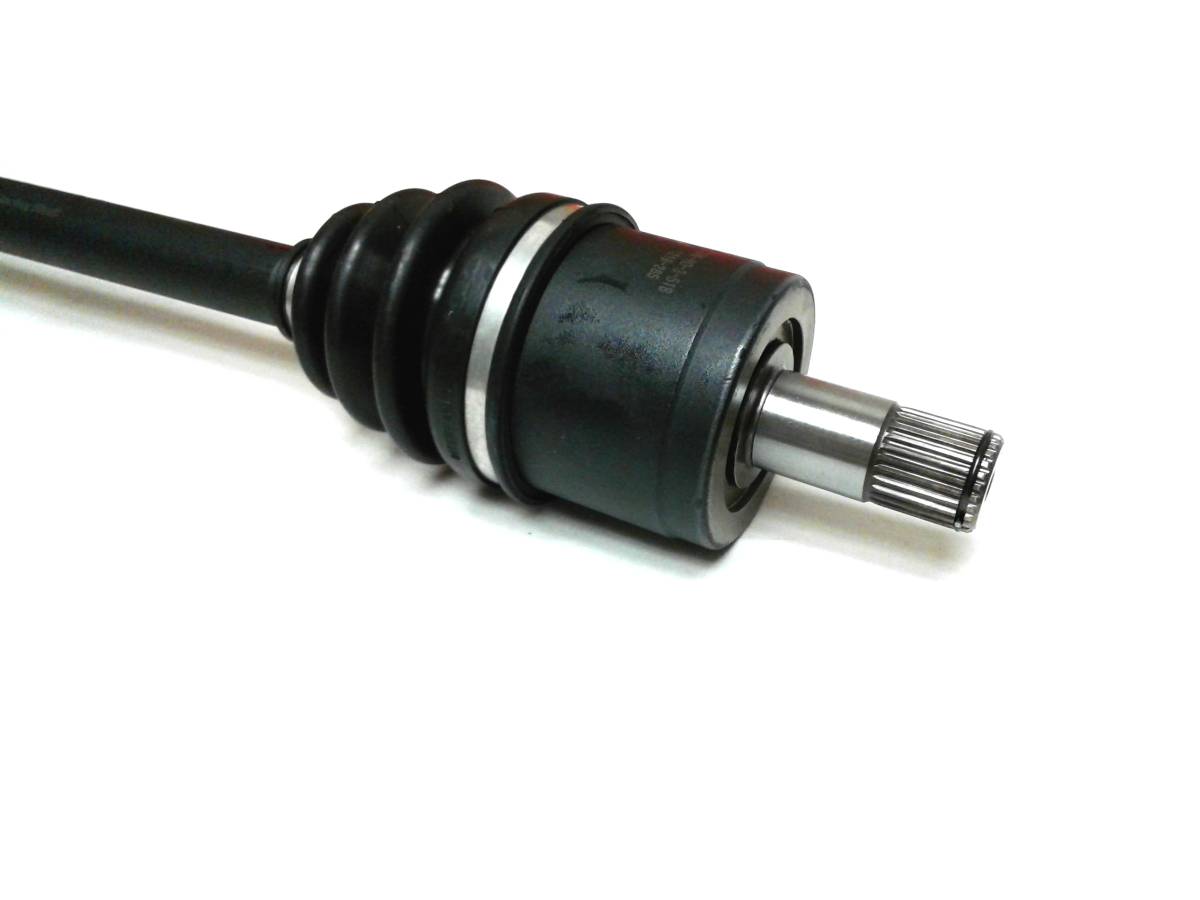

This is a new CV axle & wheel bearing for a Honda UTV

They fit REAR, RIGHT (passenger side) on the following models:

2016-2021 ... Pioneer 1000 (excluding Limited Edition models)

2016-2021 ... Pioneer 1000-5 (excluding Limited Edition models)

*made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 28
  • Compressed overall axle length: 678 mm
  • Replaces OEM # (axle) 42250-HL4-A01, 42220-HL4-A01, (bearing) 91054-HL3-A41
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $97.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

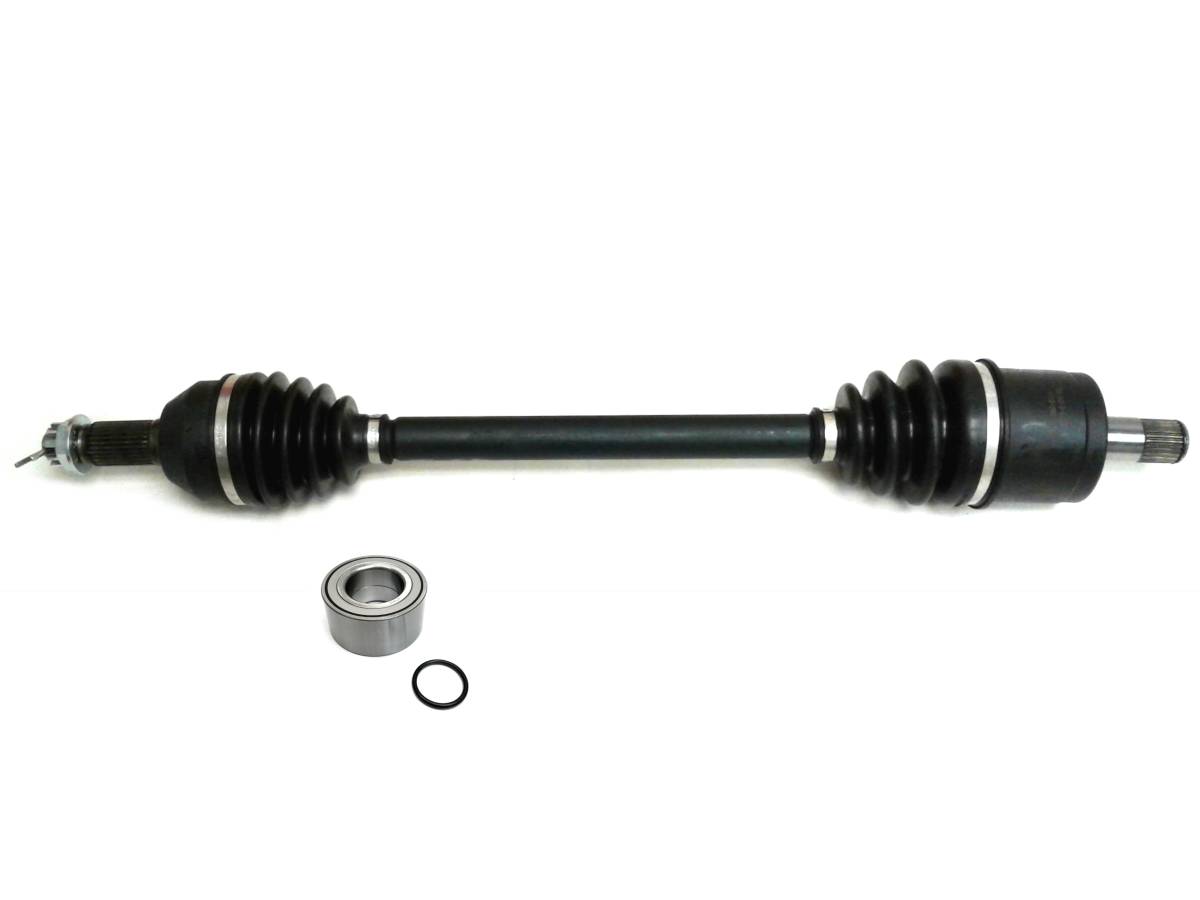

  • Fits REAR, RIGHT (passenger side) on the 2016-2021 Honda Pioneer 1000/1000-5 (excluding Limited Edition models). Set includes 1 axle & 1 wheel bearing.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.

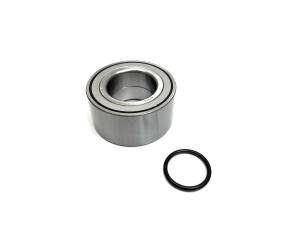

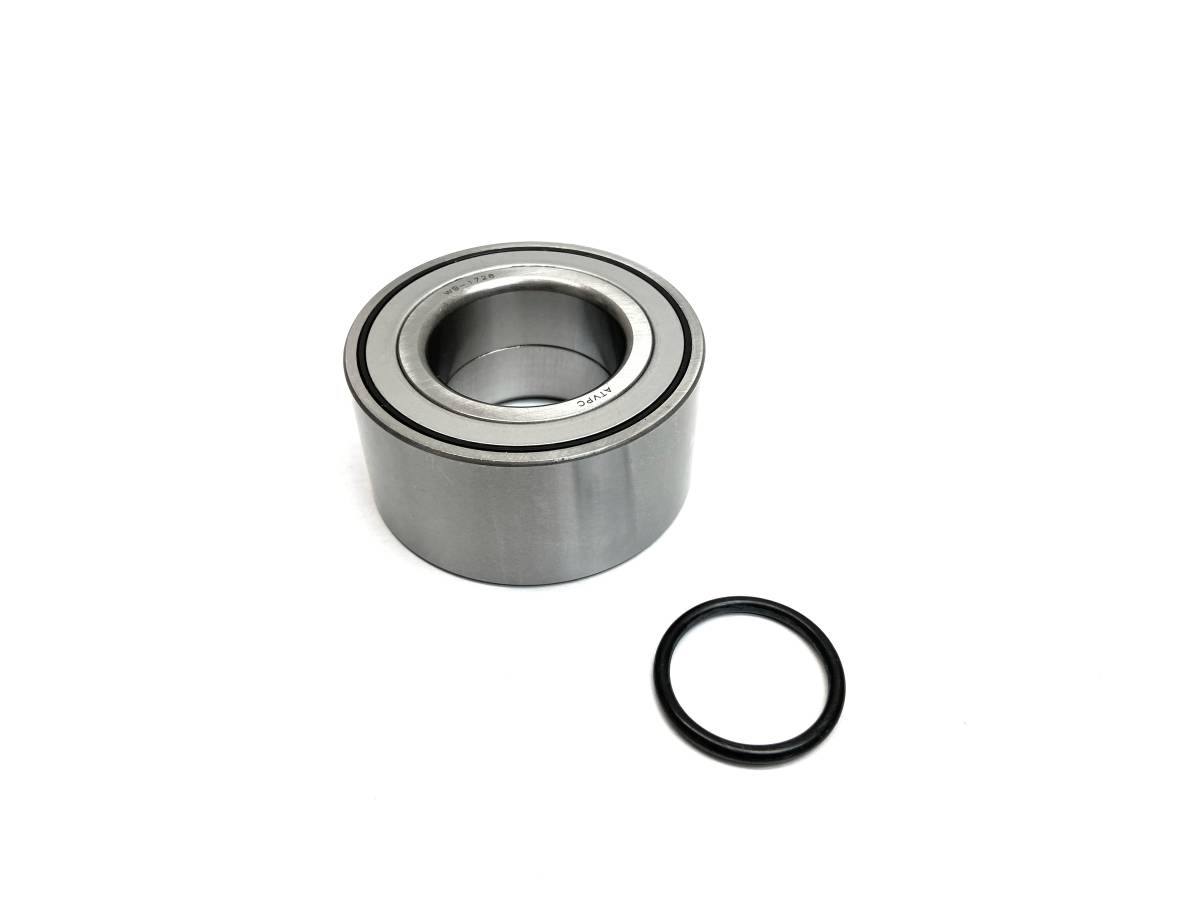

  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # (axle) 42250-HL4-A01, 42220-HL4-A01, (bearing) 91054-HL3-A41. Inner Splines: 27, Outer Splines: 28, Compressed length: 678 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2021HondaPioneer 1000SXS1000M3
    2021HondaPioneer 1000SXS1000M3 Deluxe
    2020HondaPioneer 1000SXS1000M3
    2020HondaPioneer 1000SXS1000M3 Deluxe
    2019HondaPioneer 1000SXS1000M3
    2019HondaPioneer 1000SXS1000M3 EPS
    2018HondaPioneer 1000SXS10M3P EPS
    2018HondaPioneer 1000SXS1000M3
    2018HondaPioneer 1000SXS1000M3 EPS
    2017HondaPioneer 1000SXS1000M3
    2017HondaPioneer 1000SXS1000M3 EPS
    2016HondaPioneer 1000SXS1000M3
    2016HondaPioneer 1000SXS1000M3 EPS
    2021HondaPioneer 1000-5SXS1000M5
    2021HondaPioneer 1000-5SXS1000M5 Deluxe
    2020HondaPioneer 1000-5SXS1000M5
    2020HondaPioneer 1000-5SXS1000M5 Deluxe
    2019HondaPioneer 1000-5SXS1000M5
    2019HondaPioneer 1000-5SXS1000M5 Deluxe
    2018HondaPioneer 1000-5SXS10M5D Deluxe
    2018HondaPioneer 1000-5SXS1000M5
    2018HondaPioneer 1000-5SXS1000M5 Deluxe
    2017HondaPioneer 1000-5SXS1000M5
    2017HondaPioneer 1000-5SXS1000M5 Deluxe
    2016HondaPioneer 1000-5SXS1000M5
    2016HondaPioneer 1000-5SXS1000M5 Deluxe

    Details

    • HO-329/WB-1728
    • HO-329/WB-1728
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.6 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
