Full CV Axle Set for Kubota RTV-X1140R & RTV-X1140W 4x4 2016-2020

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KU-502/KU-502/KU-602/KU-602

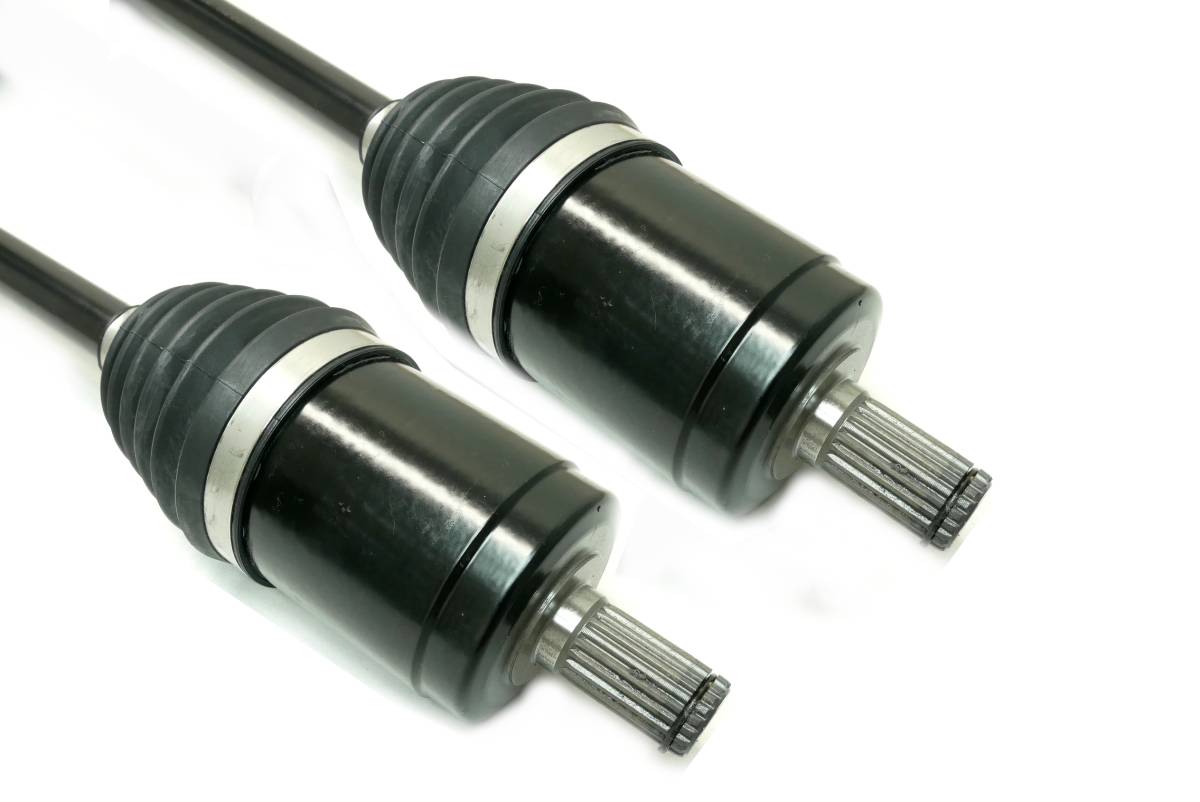

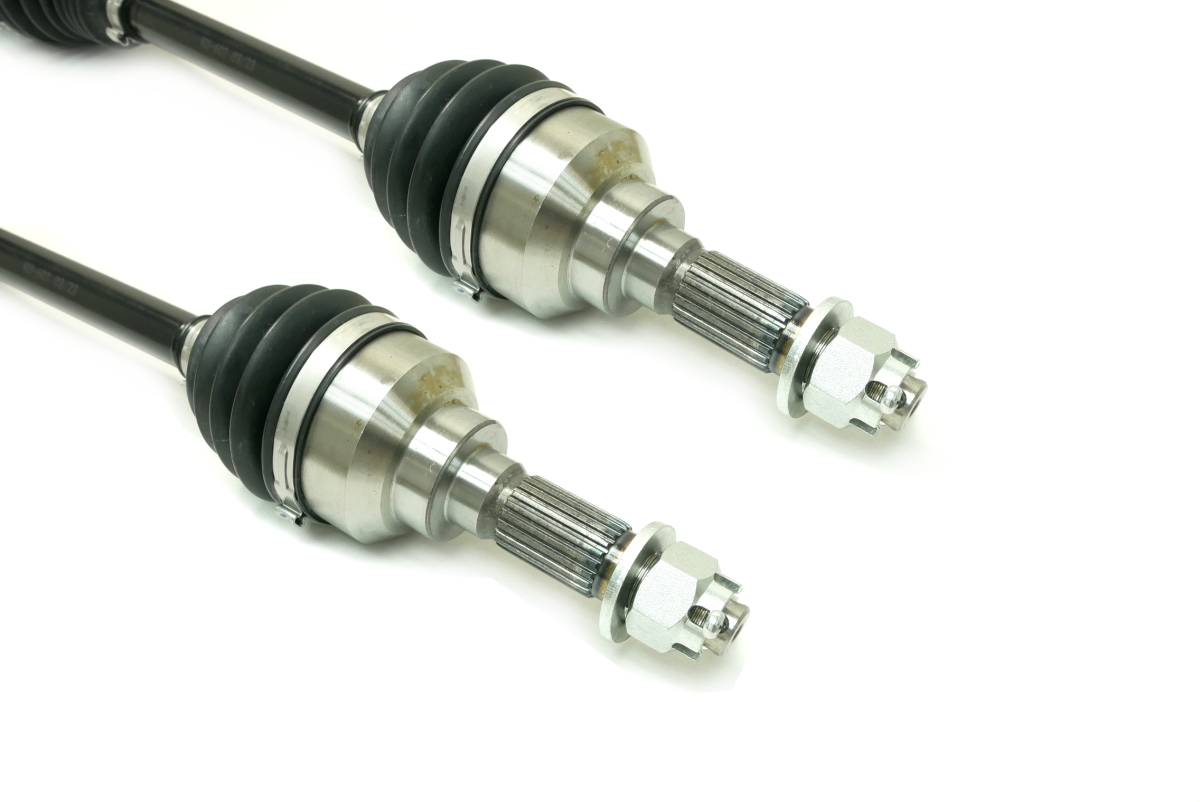

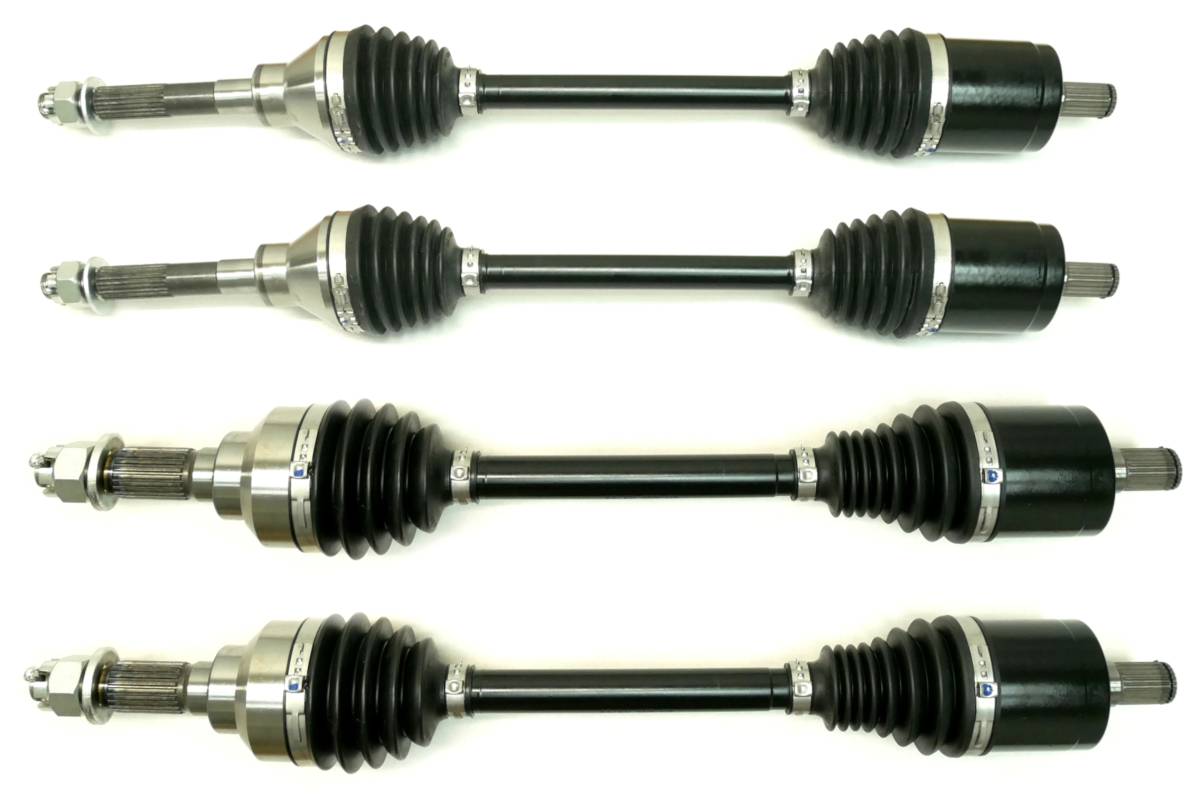

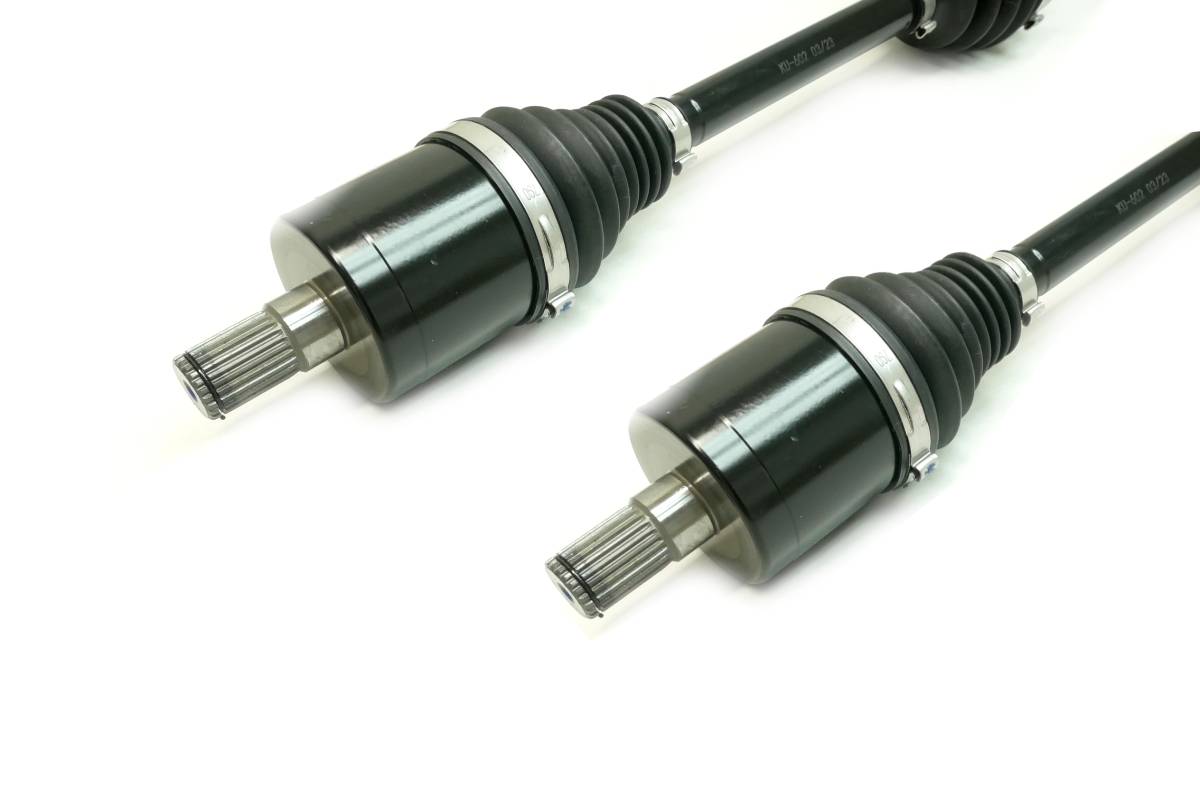

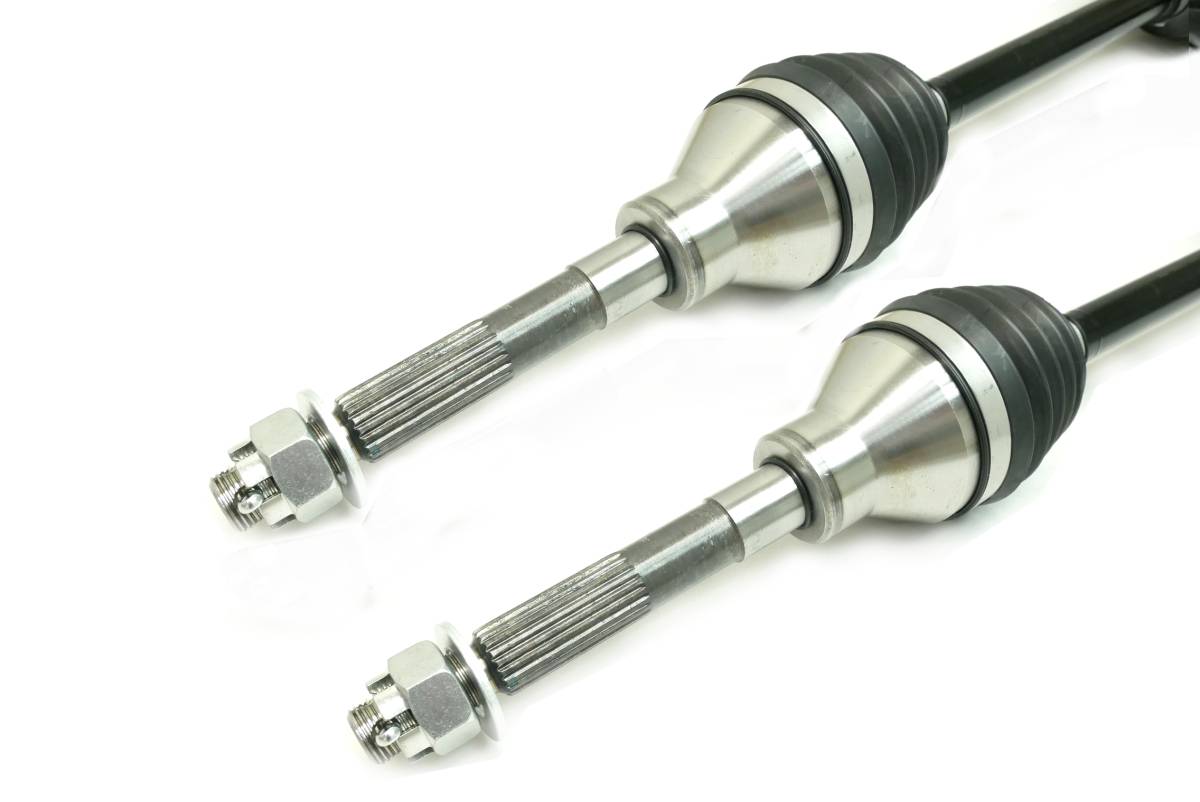

This is full set of CV axles for a Kubota 4x4.

They fit FRONT & REAR on the following RTV-X models (with serial # above 13023):

2016-2020 ... RTV-X1140R

2016-2020 ... RTV-X1140W

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed overall axle length: Fronts - 655 mm, Rears - 631 mm
  • Inboard CV joint spline count: Fronts - 21, Rears - 24
  • Outboard CV joint spline count: Fronts - 21, Rears - 22
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $429.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT & REAR on the following Kubota RTV-X models (with serial # above 13023): 2016-2020 RTV-X1140R, 2016-2020 RTV-X1140W. Features stronger than OEM, 4340 chromoly steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Compressed overall axle length: Fronts - 655 mm, Rears - 631 mm, Inboard CV joint spline count: Fronts - 21, Rears - 24, Outboard CV joint spline count: Fronts - 21, Rears - 22.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2020KubotaRTV-X1140Realtree AP Camouflageonly models with serial number above #13023
    2020KubotaRTV-X1140Worksiteonly models with serial number above #13023
    2019KubotaRTV-X1140Orangeonly models with serial number above #13023
    2019KubotaRTV-X1140Realtree AP Camouflageonly models with serial number above #13023
    2019KubotaRTV-X1140Worksiteonly models with serial number above #13023
    2018KubotaRTV-X1140Orangeonly models with serial number above #13023
    2018KubotaRTV-X1140Realtree AP Camouflageonly models with serial number above #13023
    2017KubotaRTV-X1140Orangeonly models with serial number above #13023
    2017KubotaRTV-X1140Realtree AP Camouflageonly models with serial number above #13023
    2016KubotaRTV-X1140Orangeonly models with serial number above #13023
    2016KubotaRTV-X1140Realtree AP Camouflageonly models with serial number above #13023

    Details

    • KU-502/KU-502/KU-602/KU-602
    • KU-502/KU-502/KU-602/KU-602
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 55.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
