CV Axle Set for Kubota RTV-X1140R & RTV-X1140W 2016-2020, Front & Rear

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review

SKU: KU-502/KU-502/KU-602/KU-602

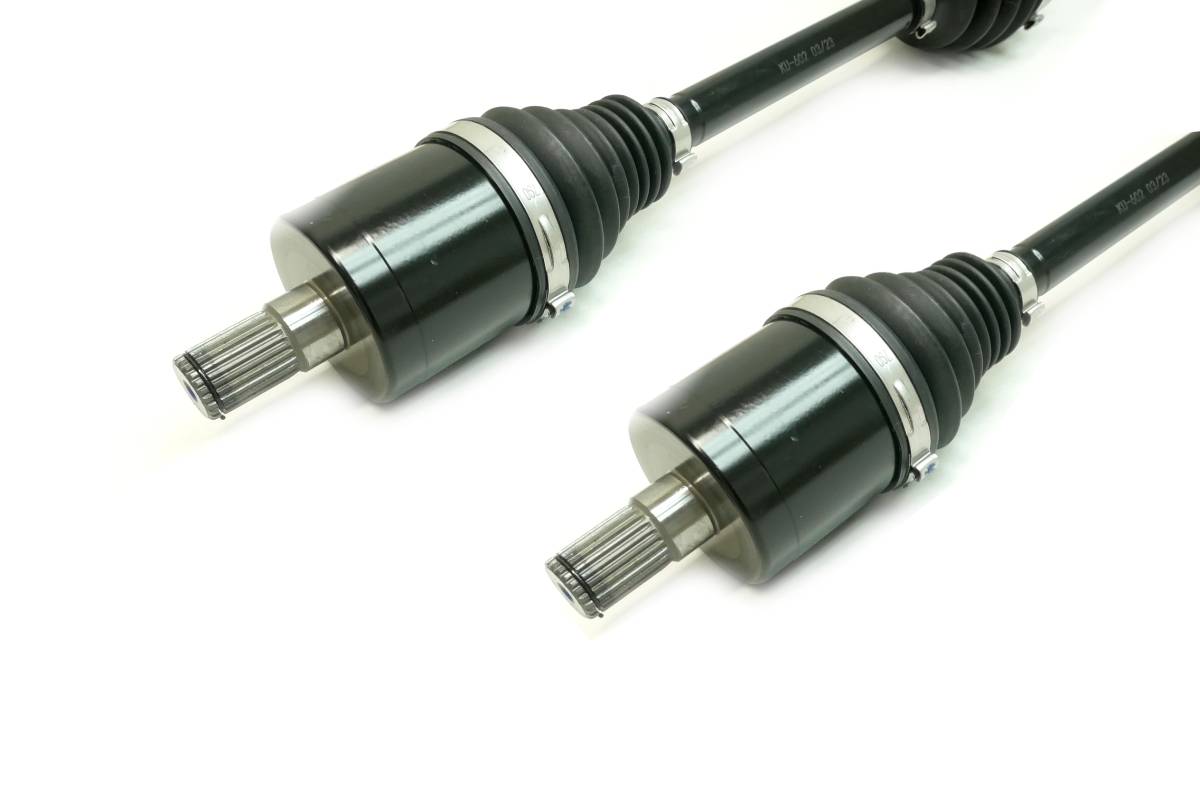

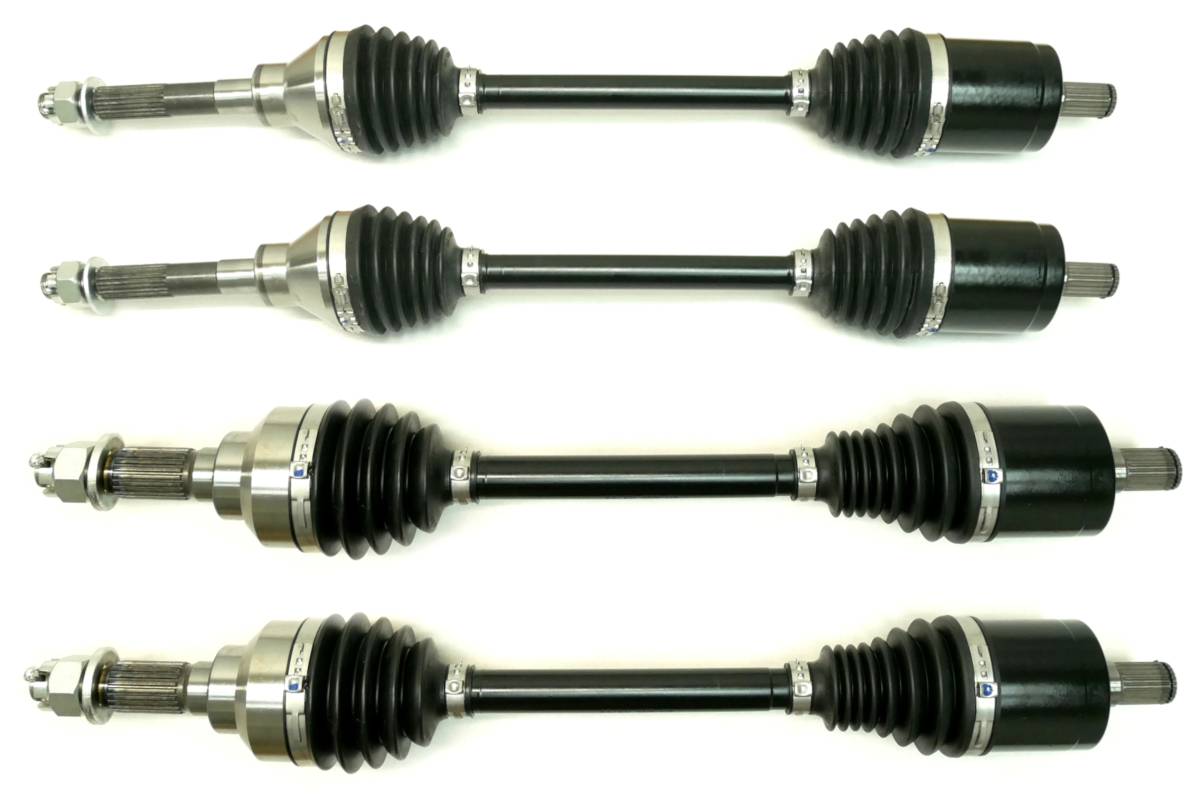

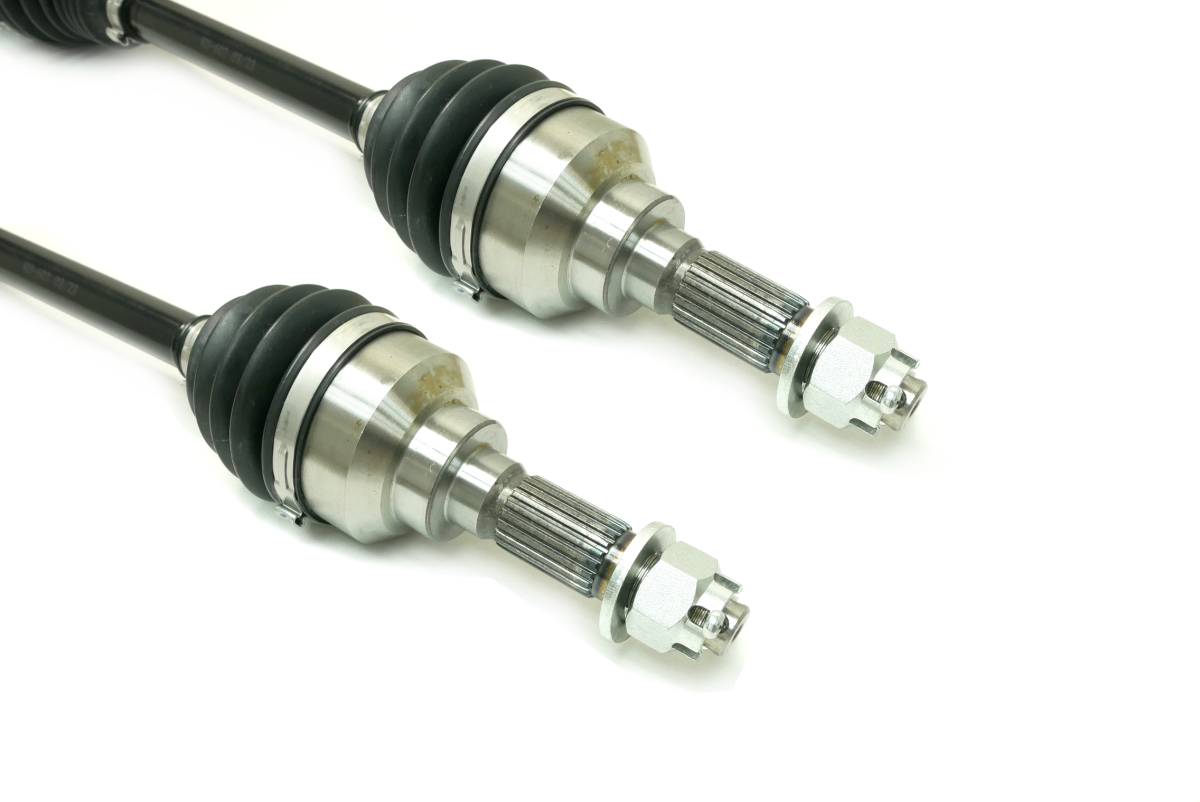

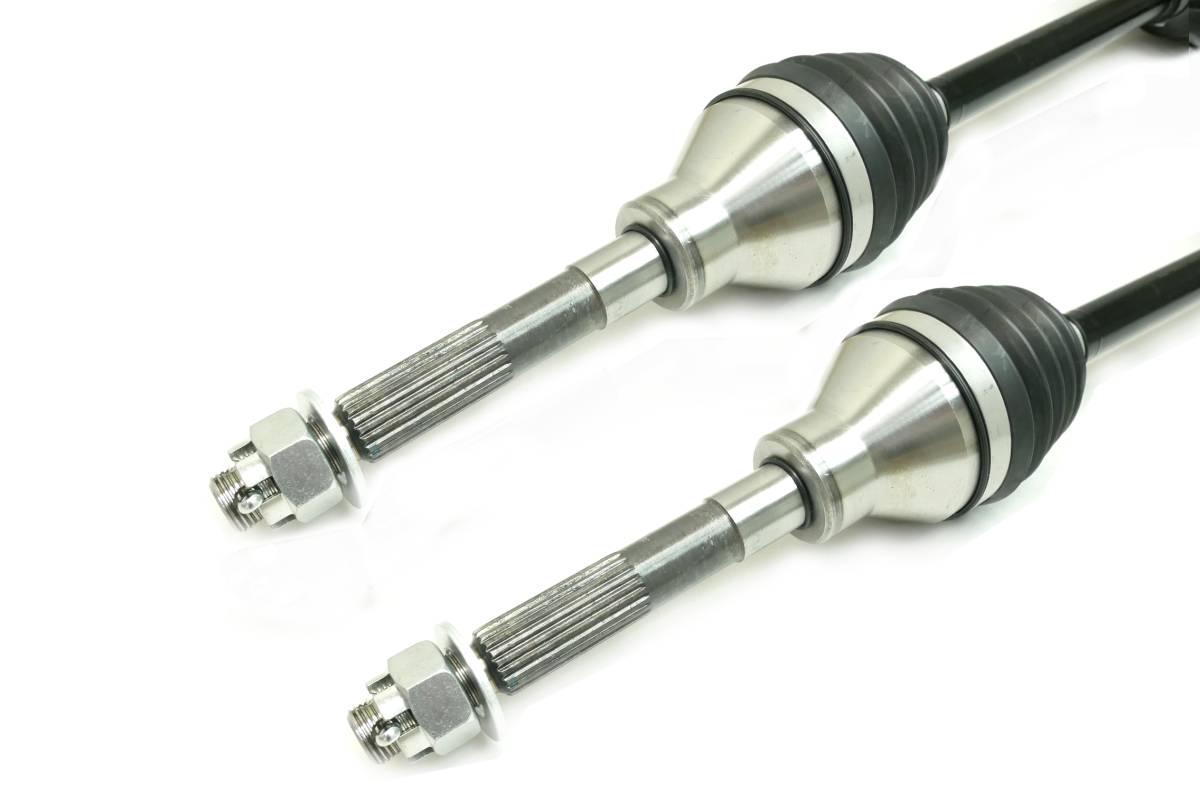

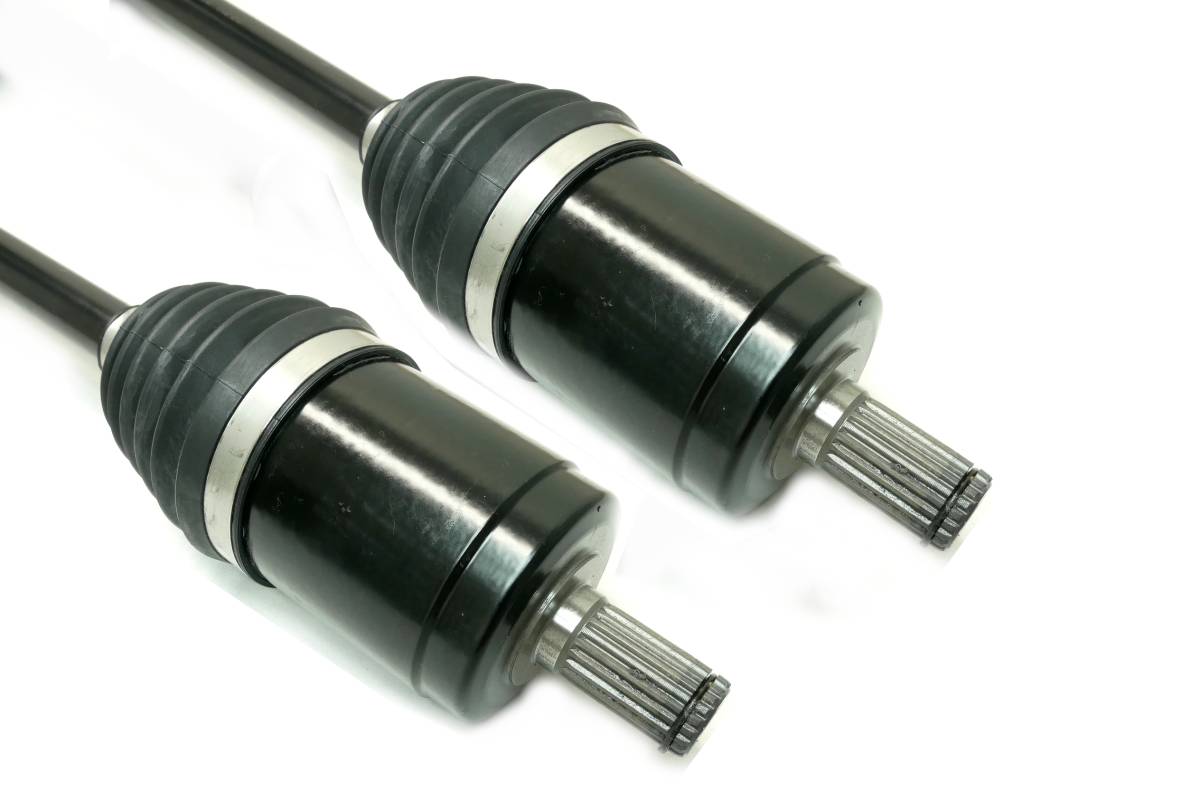

This is full set of CV axles for a Kubota 4x4.

They fit front & rear on the following RTV-X models (with serial # above 13023):

2016-2020 ... RTV-X1140R

2016-2020 ... RTV-X1140W

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

4140 chromoly steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Compressed overall axle length: fronts - 655 mm, rears - 631 mm
inobard CV joint spline count: fronts - 21, rears - 24
outboard CV joint spline count: fronts - 21, rears - 22

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $379.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2020	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2020	Kubota	RTV-X1140	Worksite	only models with serial number above #13023
2019	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2019	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2019	Kubota	RTV-X1140	Worksite	only models with serial number above #13023
2018	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2018	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2017	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2017	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023
2016	Kubota	RTV-X1140	Orange	only models with serial number above #13023
2016	Kubota	RTV-X1140	Realtree AP Camouflage	only models with serial number above #13023

Product Notes

Fits the following Kubota RTV-X models (with serial # above 13023): 2016-2020 RTV-X1140R, 2016-2020 RTV-X1140W.

Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.

Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.

Compressed overall axle length: fronts - 655 mm, rears - 631 mm, Inboard CV joint spline count: fronts - 21, rears - 24, Outboard CV joint spline count: fronts - 21, rears - 22.

Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

What's In The Box

4 axles

Warranty

Limited 2 year, one-time warranty

Details

SKU: KU-502/KU-502/KU-602/KU-602
Item #: KU-502/KU-502/KU-602/KU-602
UPC #: CUSTOM
Brand: ATV Parts Connection

Availability: Available
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 55.0 lbs.
Package Dimensions: W12.0000” x H12.0000” x L32.0000”
Shipping: Free Ground Shipping
Shipping Remarks: Free Shipping - Same Day If Ordered Before 3 EST
