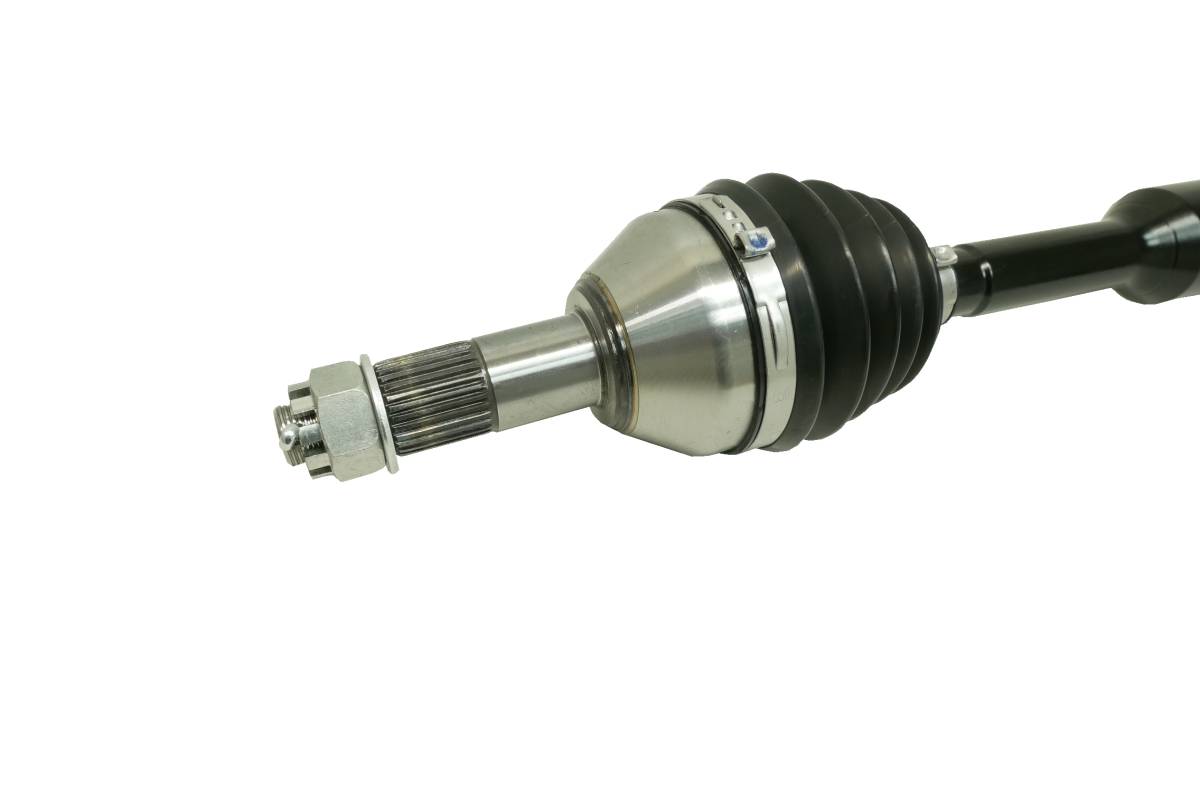

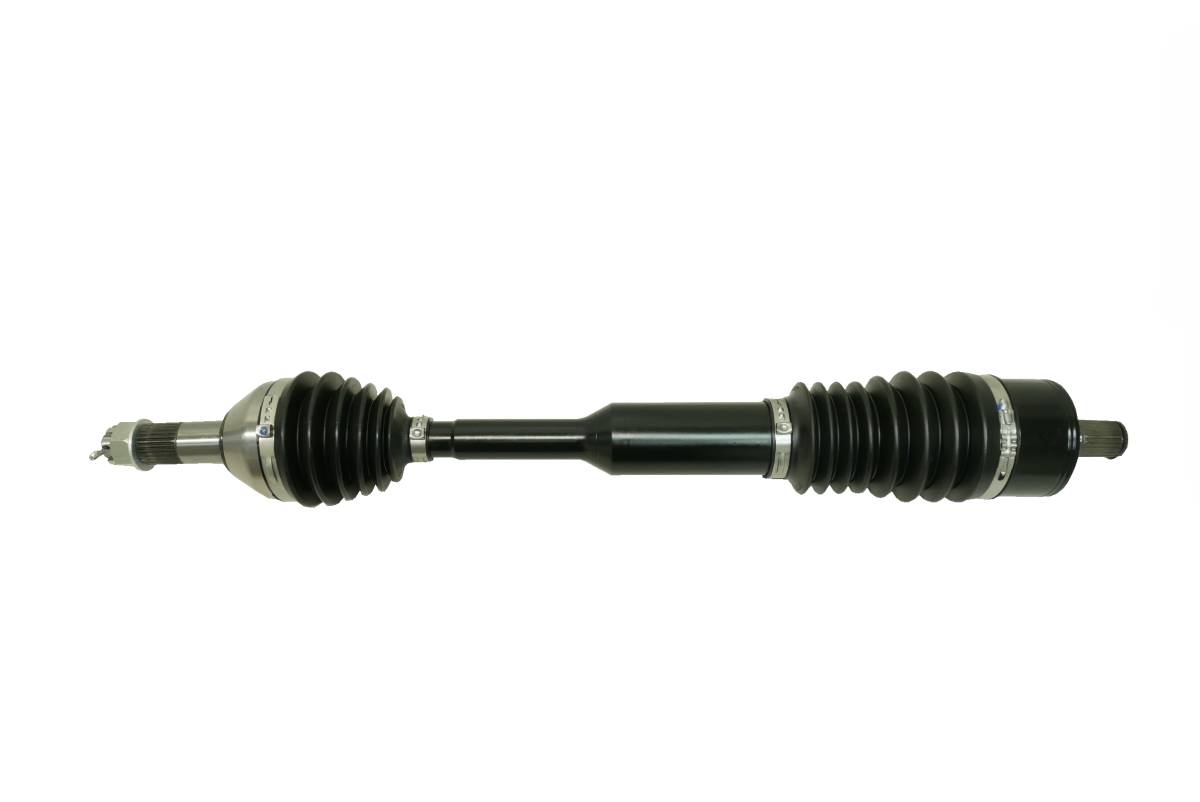

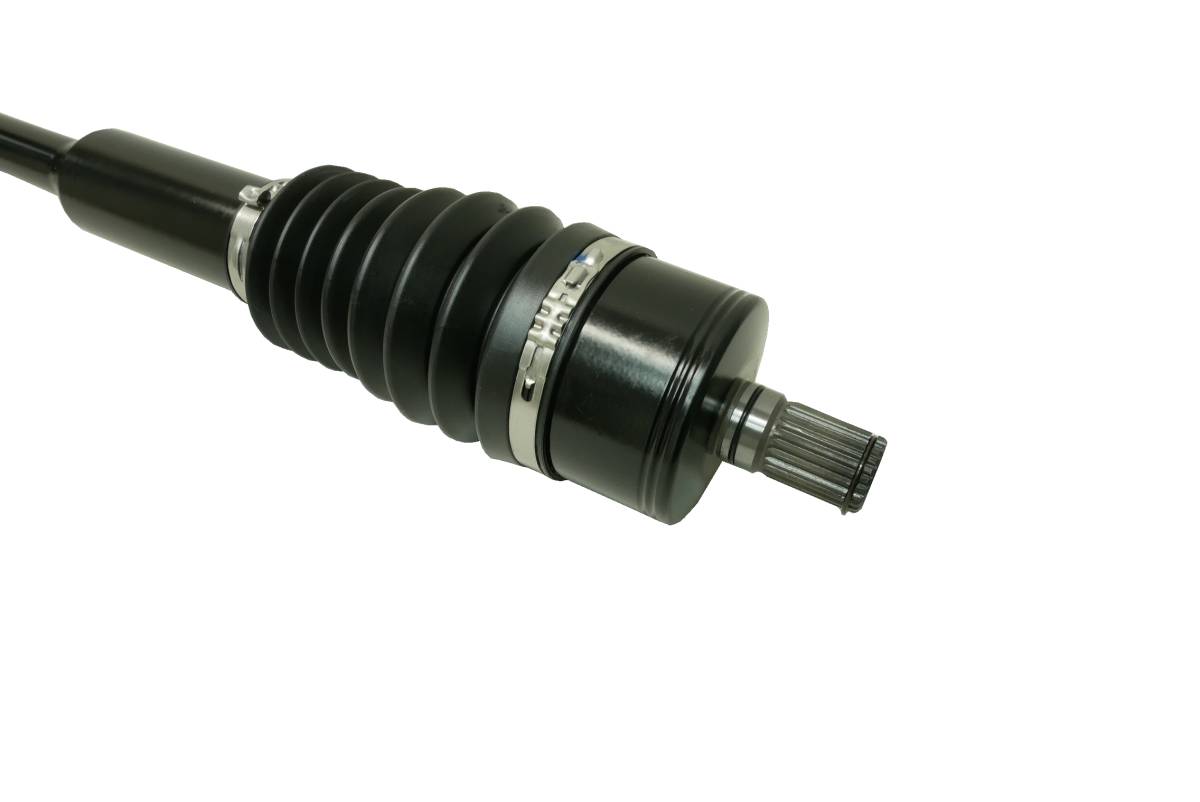

Monster Axles Rear Axle for Can-Am Maverick Sport & Commander, 705502552, XP

Location on vehicle: Rear,Left,Right

CA-334XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits REAR, LEFT or RIGHT on the following Can-Am models: 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC), 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR).

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Fits REAR, LEFT or RIGHT: 2006-2013 Brute Force 650i, 2005-2023 Brute Force 750i.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021-2023Can-AmCommander 1000R4x4 DPS 2021-2023Can-AmCommander Max 1000R4x4 DPS 2022Can-AmCommander Max 1000R4x4 Limited DPS 2019-2022Can-AmMaverick Sport 1000 2019-2023Can-AmMaverick Sport 1000R4x4 DPS

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Can-Am models: 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC), 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR).
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 705502552. Inboard spline count: 24, Outboard spline count: 29, Compressed axle length: 680 mm. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-334XP
    • CA-334XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 19.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
