Full CV Axle Set for Arctic Cat Textron Wildcat XX 2018-2019

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
AC-604/AC-604/AC-605XP/AC-605XP

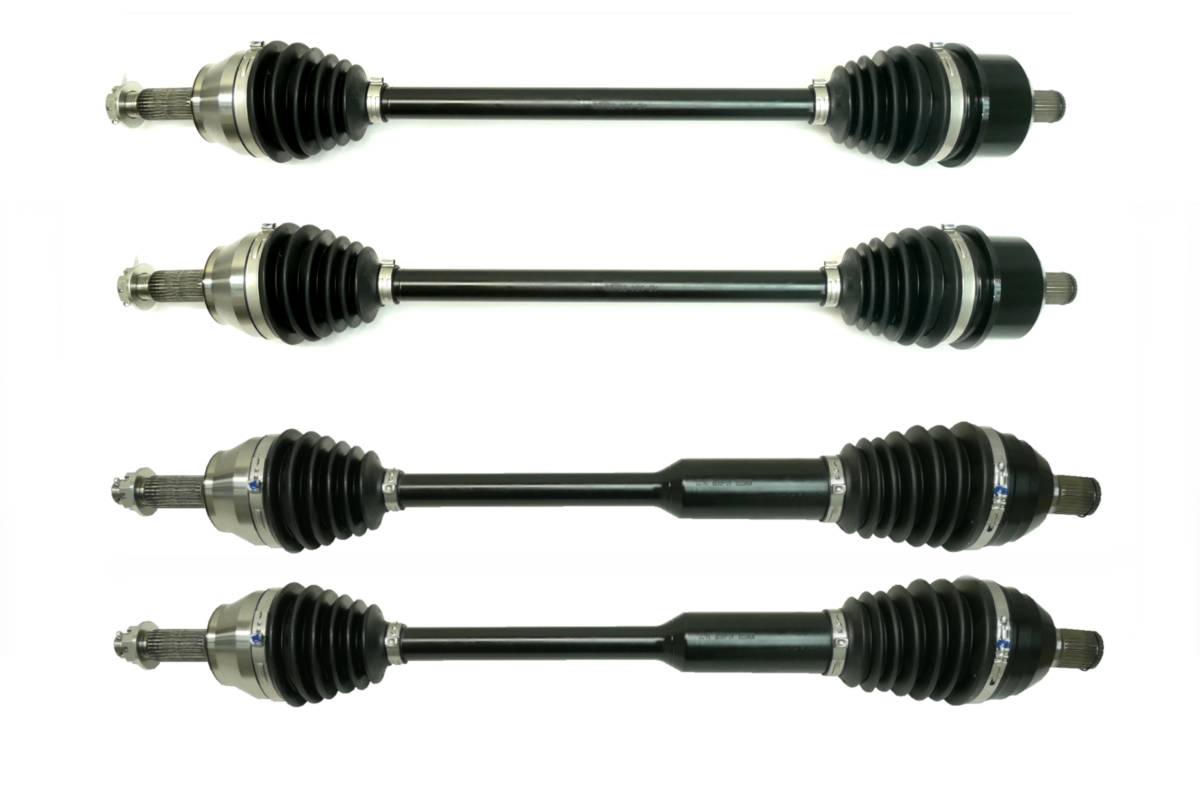

This is a set of new CV axles for an Arctic Cat Side x Side.

They will fit the following models:

2018-2019 ... Wildcat XX (including RG, XT, LTD, & EPS)

*Front axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

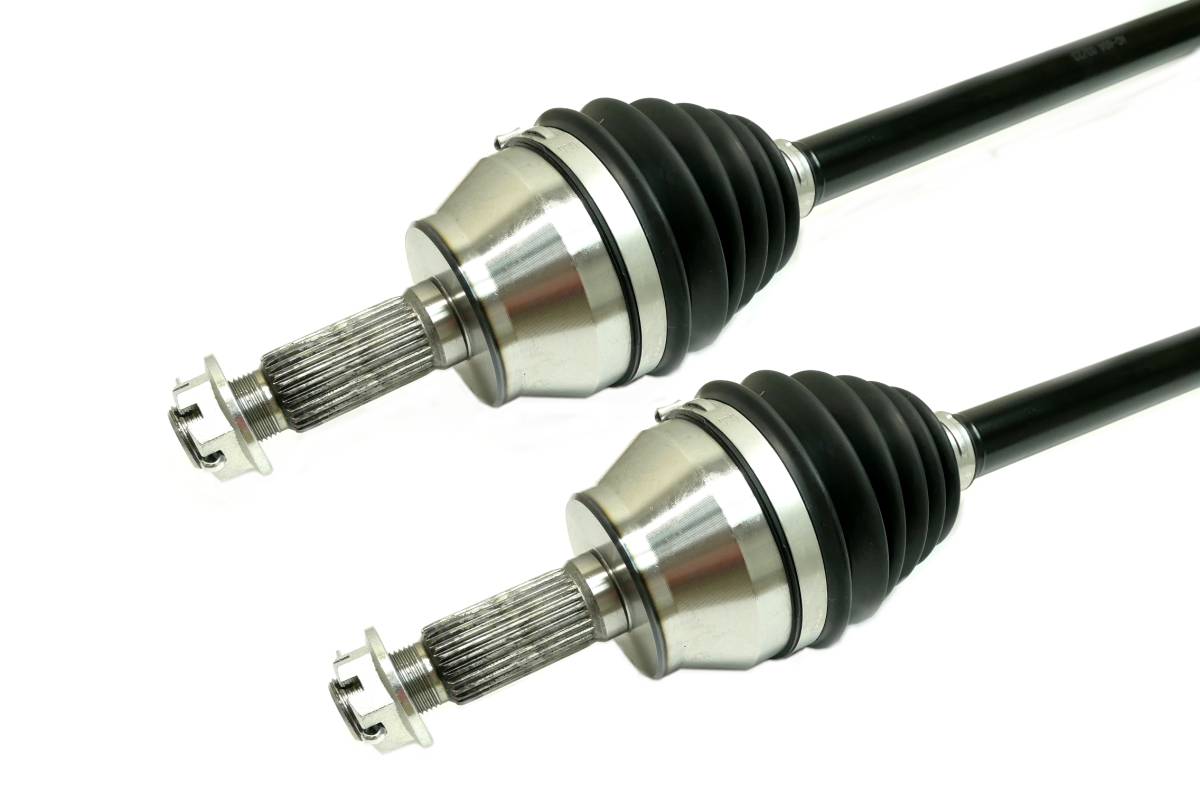

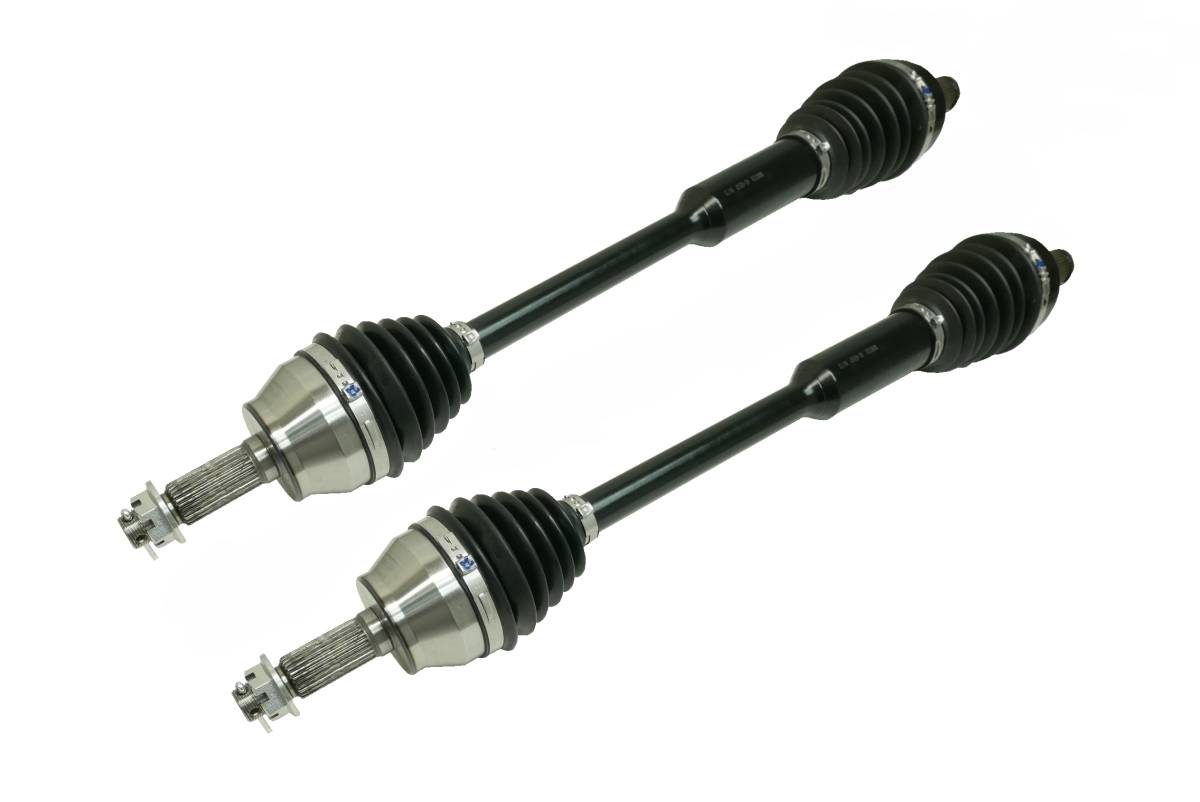

  • (fronts) Stronger than OEM, 4340 chromoly steel axle bars
  • (fronts) Greased with a moly based grease to provide superior joint lubrication
  • (fronts) Fitted with neoprene CV boots for added wear and puncture resistance

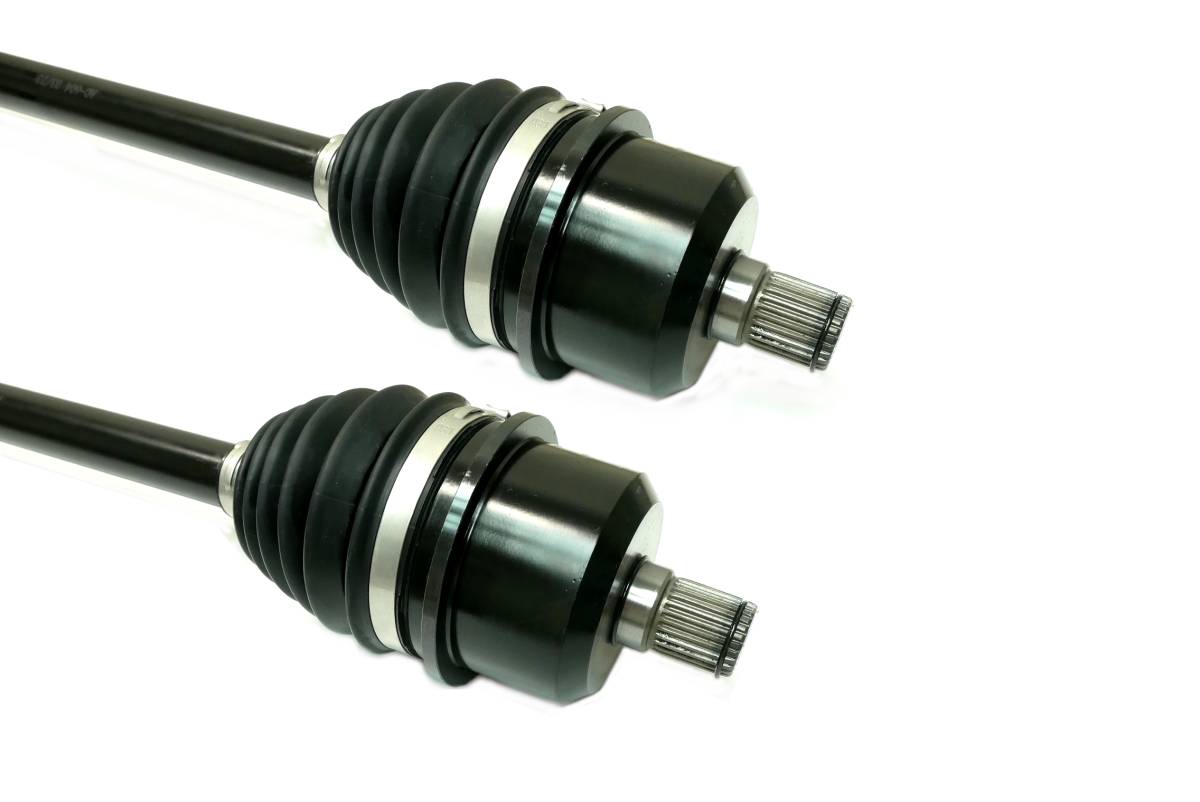

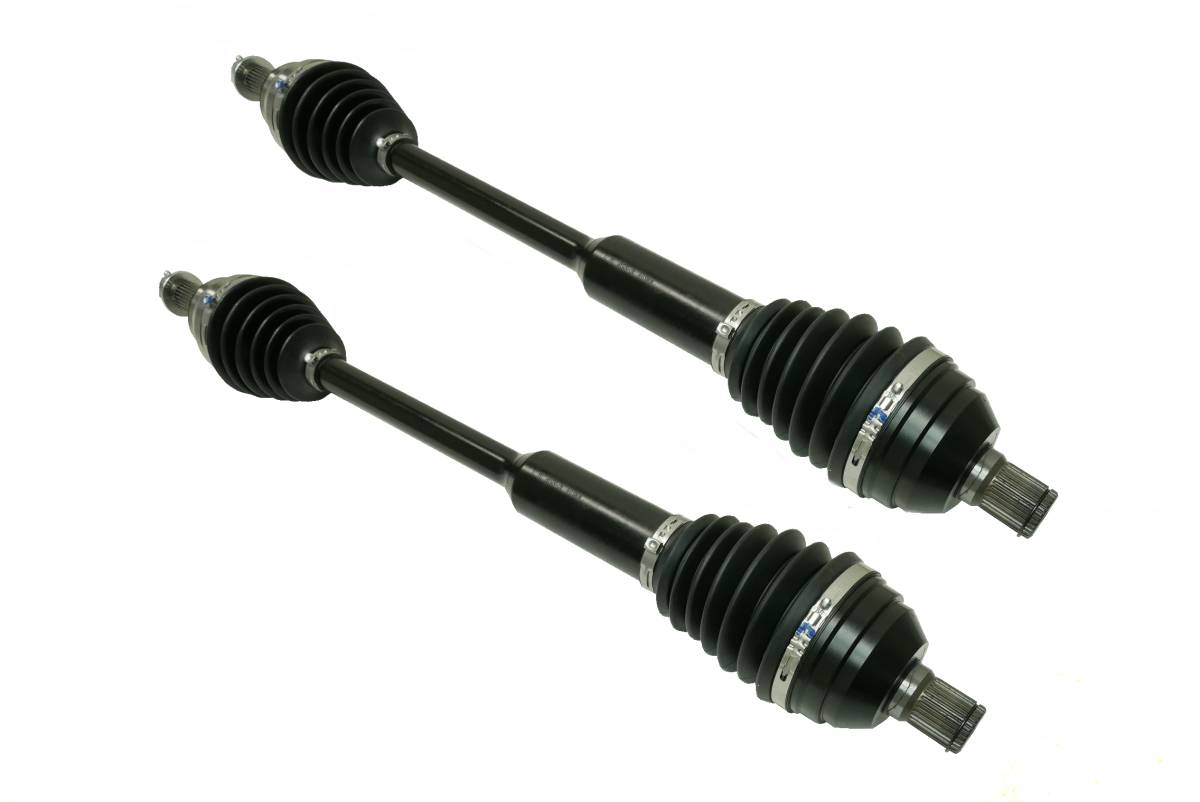

  • (rears) High-performance MONSTER AXLES XP series fitted with heavy duty CV boots
  • (rears) The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break.
  • (rears) Built from a unique, stronger than OEM chromoly-forged steel axle shaft.
  • Inboard CV joint spline count: Fronts - 27, Rears - 32
  • Outboard CV joint spline count: Fronts - 27, Rears - 27
  • Compressed overall axle length: Fronts - 803 mm, Rears - 764 mm
  • Replaces OEM # (fronts) 2502-708, (rears) 2502-763
Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $569.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2019Textron Off RoadWildcat XX4x4 EPS
2019Textron Off RoadWildcat XX4x4 LTD EPS
2018Textron Off RoadWildcat XX4X4

Product Notes

  • Fits the following Arctic Cat/Textron Off Road models: 2018-2019 Wildcat XX (including RG, XT, LTD, & EPS). Set includes 4 axles.
  • All feature stronger than OEM, 4340 chromoly steel bars. Fronts are a high strength OE stock replacements and the rears are genuine MONSTER AXLES XP Series axles.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (fronts) 2502-708, (rears) 2502-763. Inboard CV joint spline count: Fronts - 27, Rears - 32, Outboard CV joint spline count: Fronts - 27, Rears - 27, Compressed overall axle length: Fronts - 803 mm, Rears - 764 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-604/AC-604/AC-605XP/AC-605XP
    • AC-604/AC-604/AC-605XP/AC-605XP
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 92.0 lbs.
    • W10.0000” x H10.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
