Full CV Axle Set for Arctic Cat Textron Wildcat XX 2018-2019, Front & Rear, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
AC-604/AC-604/AC-605XP/AC-605XP

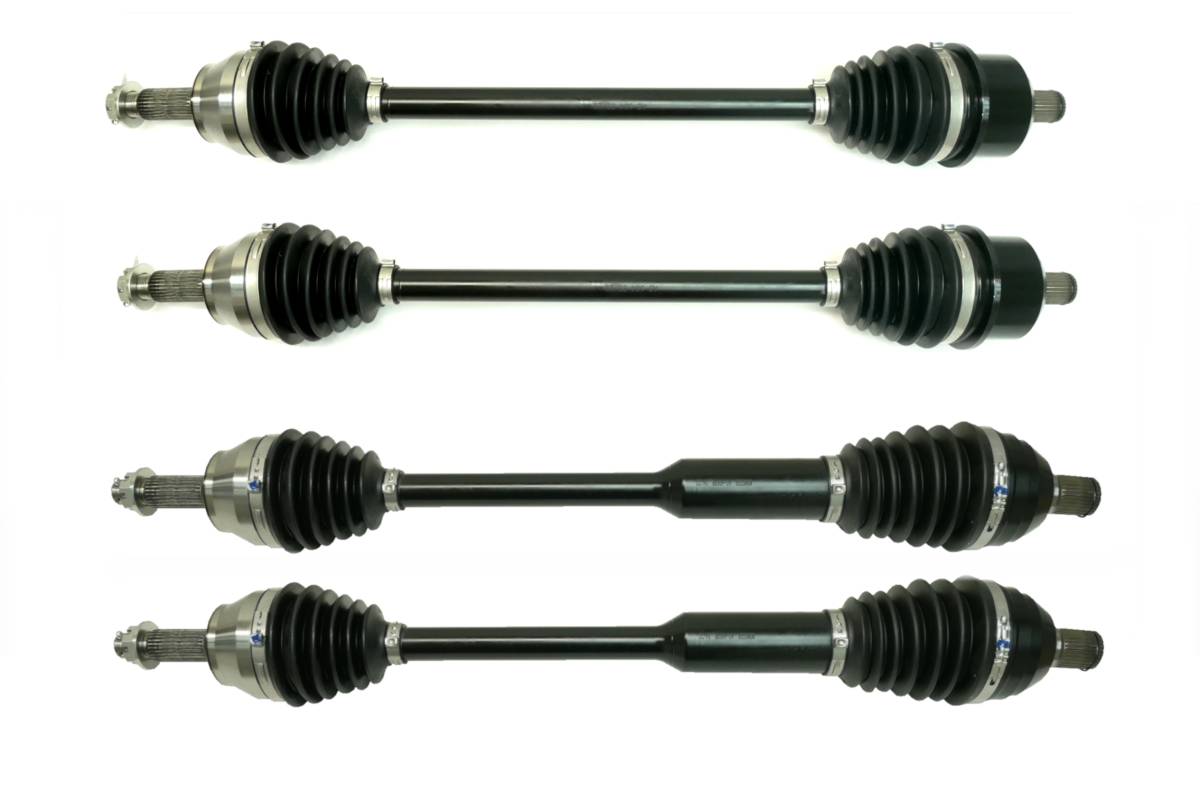

This is a set of new CV axles for an Arctic Cat Side x Side.

They will fit the following models:

2018-2019 ... Wildcat XX (including RG, XT, LTD, & EPS)

*front axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • (fronts) 4140 chromoly steel axle bars
  • (fronts) Greased with a moly based grease to provide superior joint lubrication
  • (fronts) Fitted with neoprene CV boots for added wear and puncture resistance
  • (rears) High-performance MONSTER AXLES XP series fitted with heavy duty CV boots
  • (rears) The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break.
  • (rears) Built from a unique, stronger than OEM chromoly-forged steel axle shaft.
  • inobard CV joint spline count: fronts - 27, rears - 32
  • outboard CV joint spline count: fronts - 27, rears - 27
  • Compressed overall axle length: fronts - 803 mm, rears - 764 mm
  • Replaces OEM # (fronts) 2502-708, (rears) 2502-763
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $549.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2019Textron Off RoadWildcat XX4x4 EPS
2019Textron Off RoadWildcat XX4x4 LTD EPS
2018Textron Off RoadWildcat XX4X4

Product Notes

  • Fits the following Arctic Cat/Textron Off Road models: 2018-2019 Wildcat XX (including RG, XT, LTD, & EPS).
  • Features 4140 chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # (fronts) 2502-708, (rears) 2502-763. Inboard CV joint spline count: fronts - 27, rears - 32, Outboard CV joint spline count: fronts - 27, rears - 27, Compressed overall axle length: fronts - 803 mm, rears - 764 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • AC-604/AC-604/AC-605XP/AC-605XP
    • AC-604/AC-604/AC-605XP/AC-605XP
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 92.0 lbs.
    • W10.0000” x H10.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
