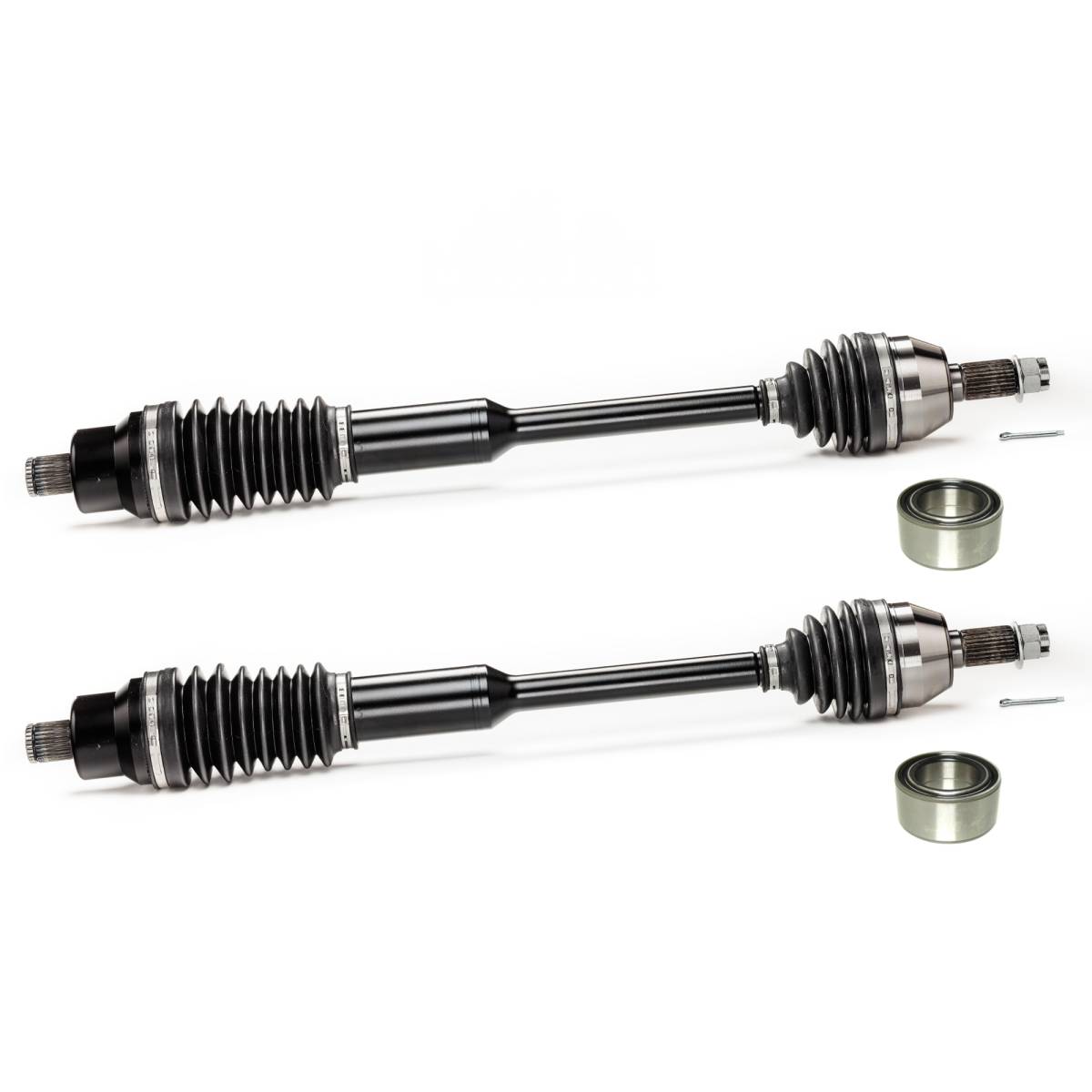

Monster Axles Rear Pair & Bearings for Polaris RZR XP & XP4 1000 14-15 XP Series

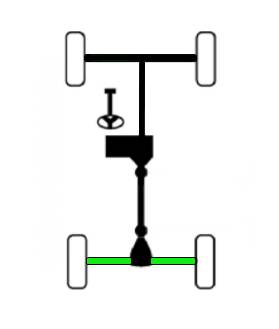

Location on vehicle: Rear,Left,Right

PO-374XP/PO-374XP/WB-1628/WB-1628
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $339.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015PolarisRZR 4 XP 1000EPS
2014PolarisRZR XP 4 1000EPS
2015PolarisRZR XP 1000Desert Edition EPS
2015PolarisRZR XP 1000EPS
2015PolarisRZR XP 1000FOX Edition EPS
2015PolarisRZR XP 1000High Lifter Edition EPS
2014PolarisRZR XP 1000EPS

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Polaris models: 2014-2015 Polaris RZR XP 1000, 2014-2015 RZR XP4 1000. Set includes 2 axles & 2 wheel bearings.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axles) 1333124, (bearings) 3514627, 3514699. Compressed axle length: 732 mm (both), Inboard spline count: 28 (both), Outboard spline count: 26 (both). Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

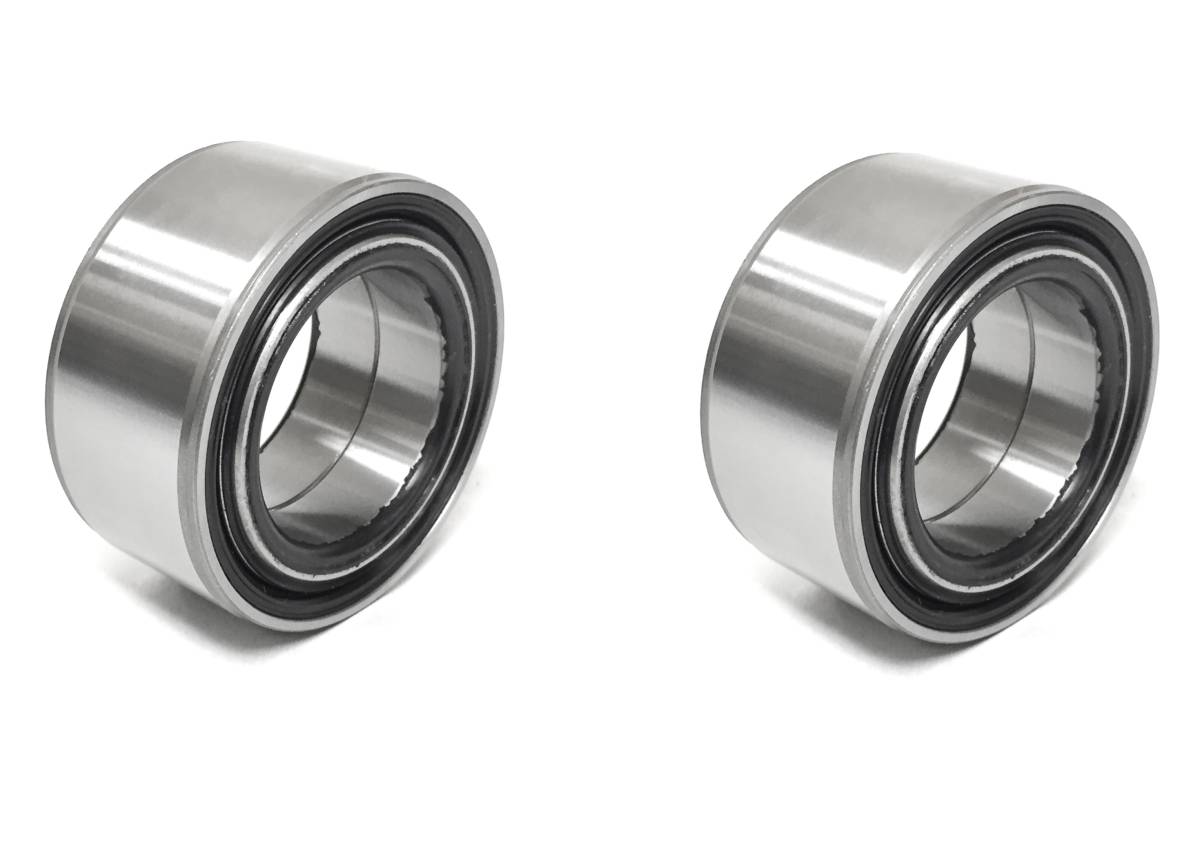

  • 2 axles & 2 wheel bearings
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-374XP/PO-374XP/WB-1628/WB-1628
    • PO-374XP/PO-374XP/WB-1628/WB-1628
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 39.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
