Full CV Axle Set for CF-Moto ZFORCE 500 Trail & 800 Trail 2018-2022

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CF-800/CF-809/CF-810/CF-810

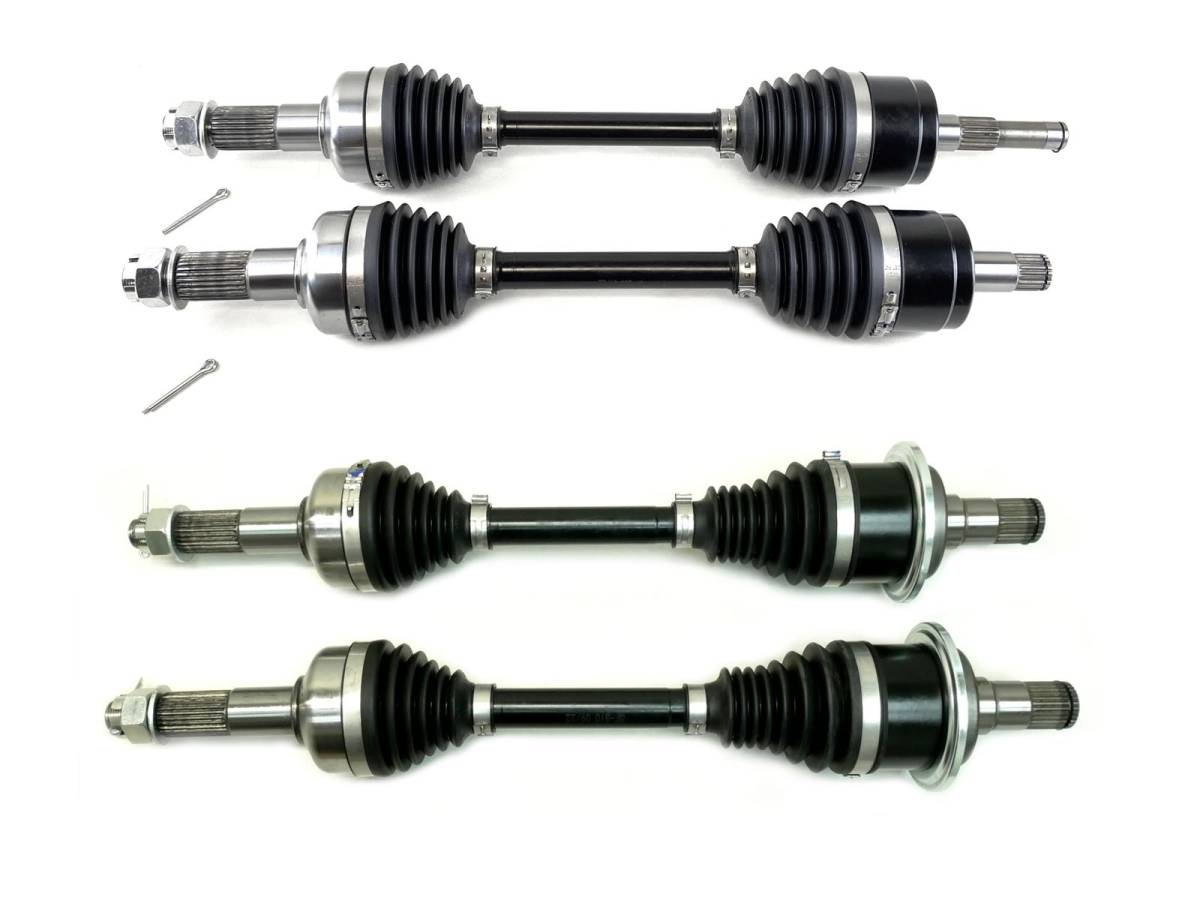

This is a full set of 4 CV axles for a CF-Moto ZFORCE.

They will fit the following following models:

2018-2022 ZFORCE 500 Trail

2018-2022 ZFORCE 800 Trail (does not fit EX models)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel bars
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • Uses high-performance moly grease to keep vital components lubricated
  • Compressed axle length (mm): FL - 596, FR - 556, RL - 554, RR - 554
  • Inboard spline count: Fronts - 21, Rears - 28
  • Outboard spline count: Fronts - 27, Rears - 27
  • Replaces OEM # (fronts) 5BWC-270100, 5BWC-270200, (rears) 5BWC-280300
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $264.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following CF-Moto ZFORCE models: 2018-2022 Z FORCE 500, 2018-2022 Z FORCE 800 Trail. Please note these will not fit '800 EX' models. Set includes 4 axles.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (fronts) 5BWC-270100, 5BWC-270200, (rears) 5BWC-280300. Compressed axle length (mm): FL - 596, FR - 556, RL - 554, RR - 554, Inboard spline count: Fronts - 21, Rears - 28, Outboard spline count: Fronts - 27, Rears - 27
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2022CF-MotoZFORCE 500Trail EPS
    2021CF-MotoZFORCE 500Trail EPS
    2020CF-MotoZFORCE 500Trail
    2020CF-MotoZFORCE 500Trail EPS
    2019CF-MotoZFORCE 500HO Trail EPS
    2018CF-MotoZFORCE 500HO Trail EPS
    2022CF-MotoZFORCE 800Trail EPS
    2021CF-MotoZFORCE 800Trail EPS
    2020CF-MotoZFORCE 800Trail EPS
    2019CF-MotoZFORCE 800Trail EPS
    2018CF-MotoZFORCE 800Trail EPS

    Details

    • CF-800/CF-809/CF-810/CF-810
    • CF-800/CF-809/CF-810/CF-810
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 42.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
