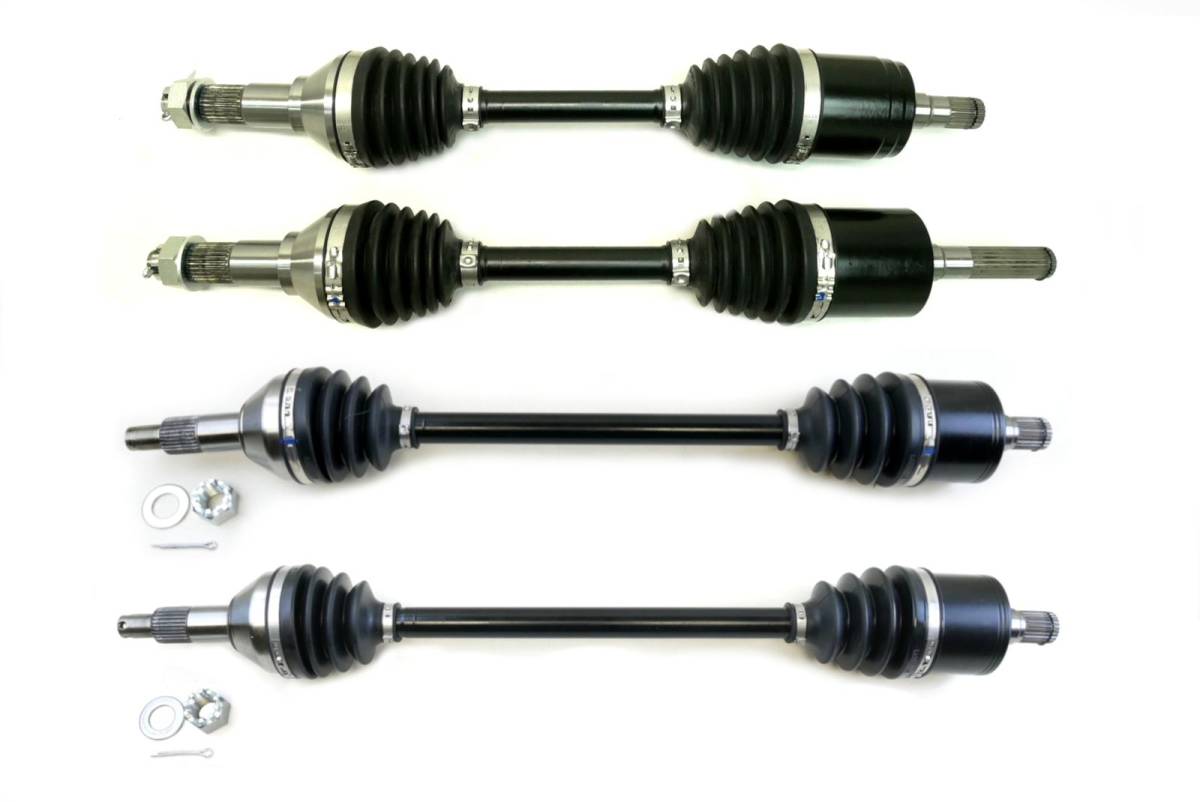

Full CV Axle Set for Can-Am Outlander XMR 650, XMR 850, XMR 1000 2020-2022

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review

SKU: CA-309/CA-310/CA-655/CA-656

This is a full set of new CV axles for a Can-Am ATV.

They will fit the following X-MR (Mud Racer) models:

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2020-2023 ... Renegade XMR 1000

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

*Please note these are only for XMR models and will not fit STD, XT, or Pro editions

Product features:

Stronger than OEM, 4340 chromoly steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
Inboard CV joint spline count: Fronts - 21, Rears - 24
Outboard CV joint spline count: Fronts - 26, Rears - 26
Compressed overall axle length (mm): FL - 529, FR - 573, RL - 574, RR - 535
Replaces OEM # (fronts) 705402237, 705402238
Replaces OEM # (rears) 705503025, 705502712, 705503024, 705502713

Limited Supply: only 9 remaining

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $259.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2022	Can-Am	Outlander 650	4x4 XMR DPS
2021	Can-Am	Outlander 650	4x4 XMR DPS
2020	Can-Am	Outlander 650	4x4 XMR DPS
2019	Can-Am	Outlander 650	4x4 XMR DPS
2023	Can-Am	Outlander 850	4x4 XMR DPS
2022	Can-Am	Outlander 850	4x4 XMR DPS
2021	Can-Am	Outlander 850	4x4 XMR DPS
2020	Can-Am	Outlander 850	4x4 XMR DPS
2019	Can-Am	Outlander 850	4x4 XMR DPS
2023	Can-Am	Outlander 1000R	4x4 XMR DPS
2022	Can-Am	Outlander 1000R	4x4 XMR DPS
2021	Can-Am	Outlander 1000R	4x4 XMR DPS
2020	Can-Am	Outlander 1000R	4x4 XMR DPS
2019	Can-Am	Outlander 1000R	4x4 XMR DPS
2023	Can-Am	Renegade 1000R	4x4 XMR DPS
2022	Can-Am	Renegade 1000R	4x4 XMR DPS
2021	Can-Am	Renegade 1000R	4x4 XMR DPS
2020	Can-Am	Renegade 1000R	4x4 XMR DPS

Product Notes

Fits the following Can-Am X-MR (Mud Racer) models: 2019-2023 XMR Outlander 650, 2019-2023 XMR Outlander 850, 2019-2023 XMR Outlander 1000, 2020-2023 Renegade XMR 1000. Please note these will only fit XMR models and do not fit STD, XT, or DPS models. Set includes 4 axles.

Features stronger than OEM, 4340 Chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.

Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.

Replaces OEM # (fronts) 705402237, 705402238, (rears) 705503025, 705502712, 705503024, 705502713. Compressed axle length (mm): FL - 529, FR - 573, RL - 574, RR - 535, Inboard spline count: Fronts - 21, Rears - 24, Outboard spline count: Fronts - 26, Rears - 26.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

What's In The Box

4 axles

Warranty

1 year factory defect limited warranty

Details

SKU: CA-309/CA-310/CA-655/CA-656
Item #: CA-309/CA-310/CA-655/CA-656
Brand: ATV Parts Connection

Availability: Available
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 50.0 lbs.
Package Dimensions: W12.0000” x H12.0000” x L32.0000”
Shipping: Free Ground Shipping
Shipping Remarks: Free Shipping - Same Day If Ordered Before 3 EST
