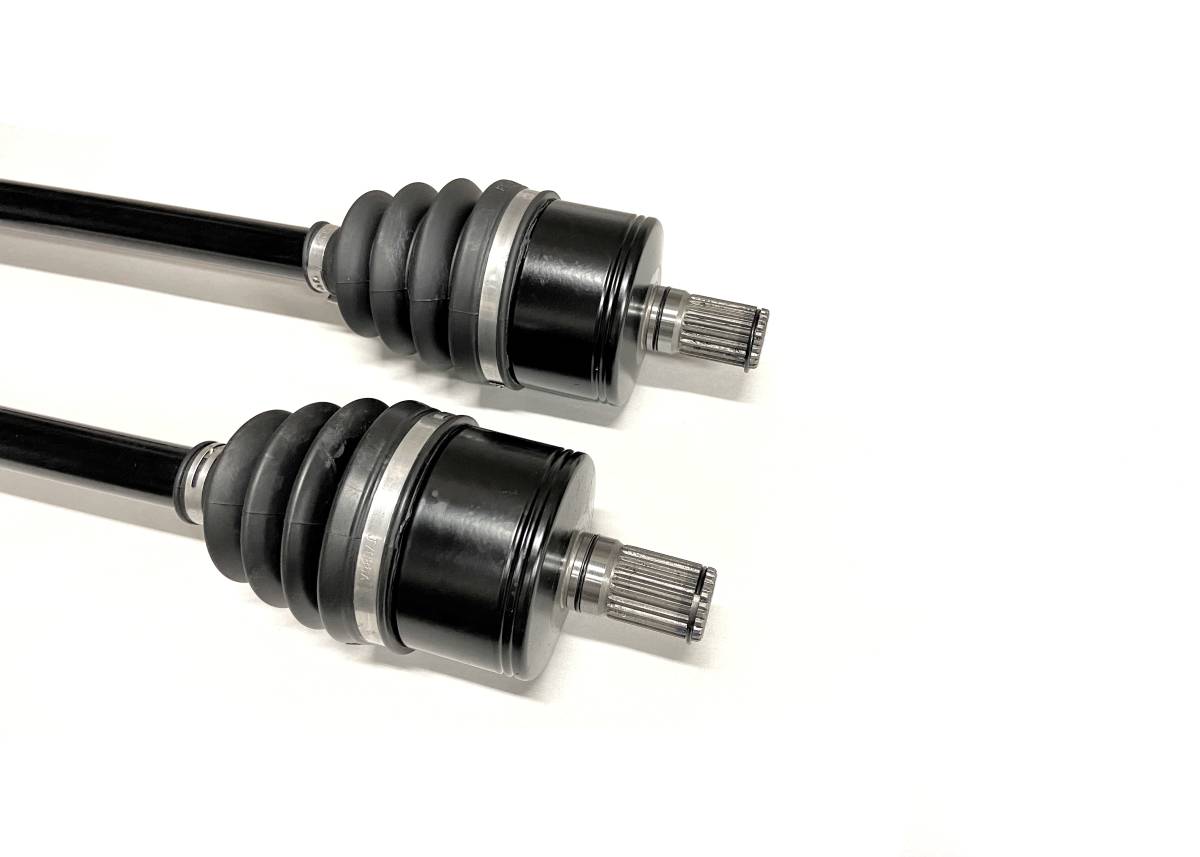

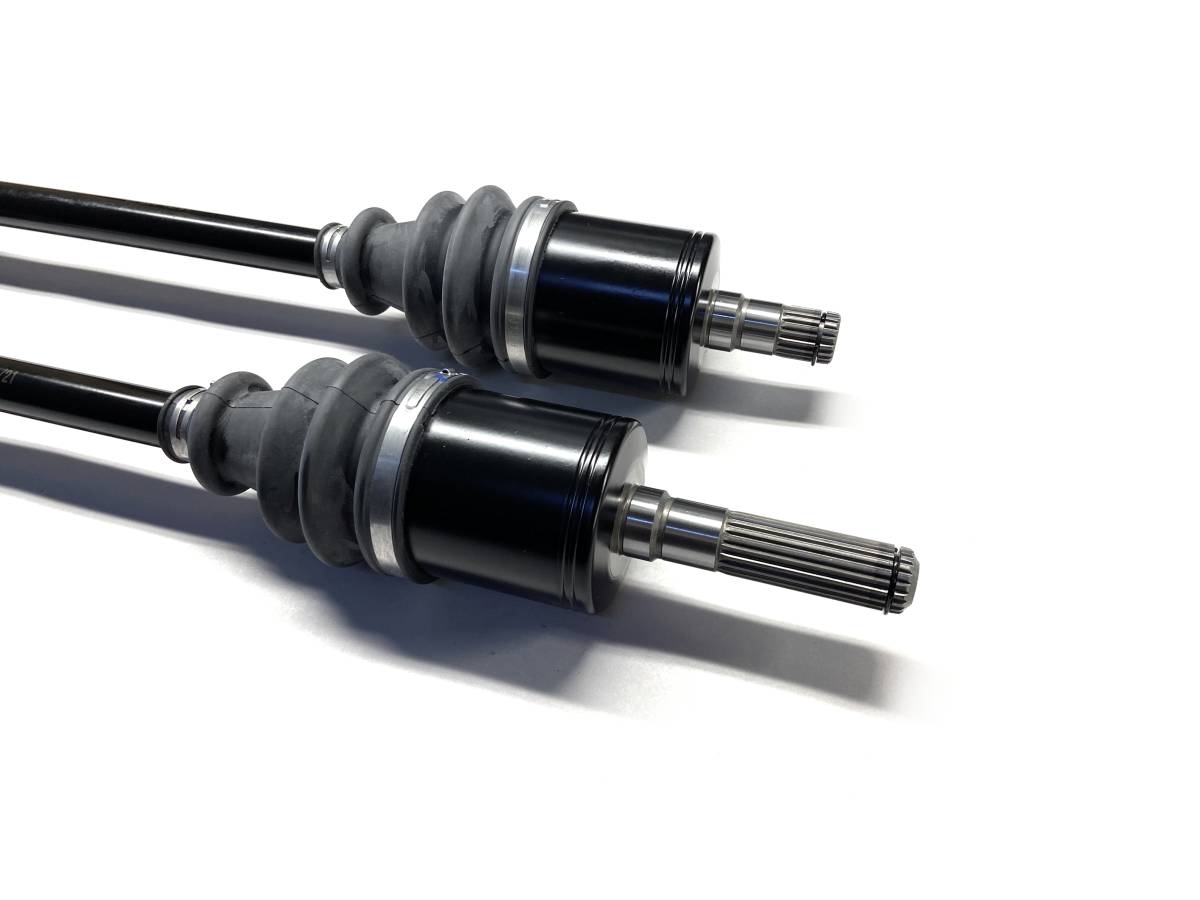

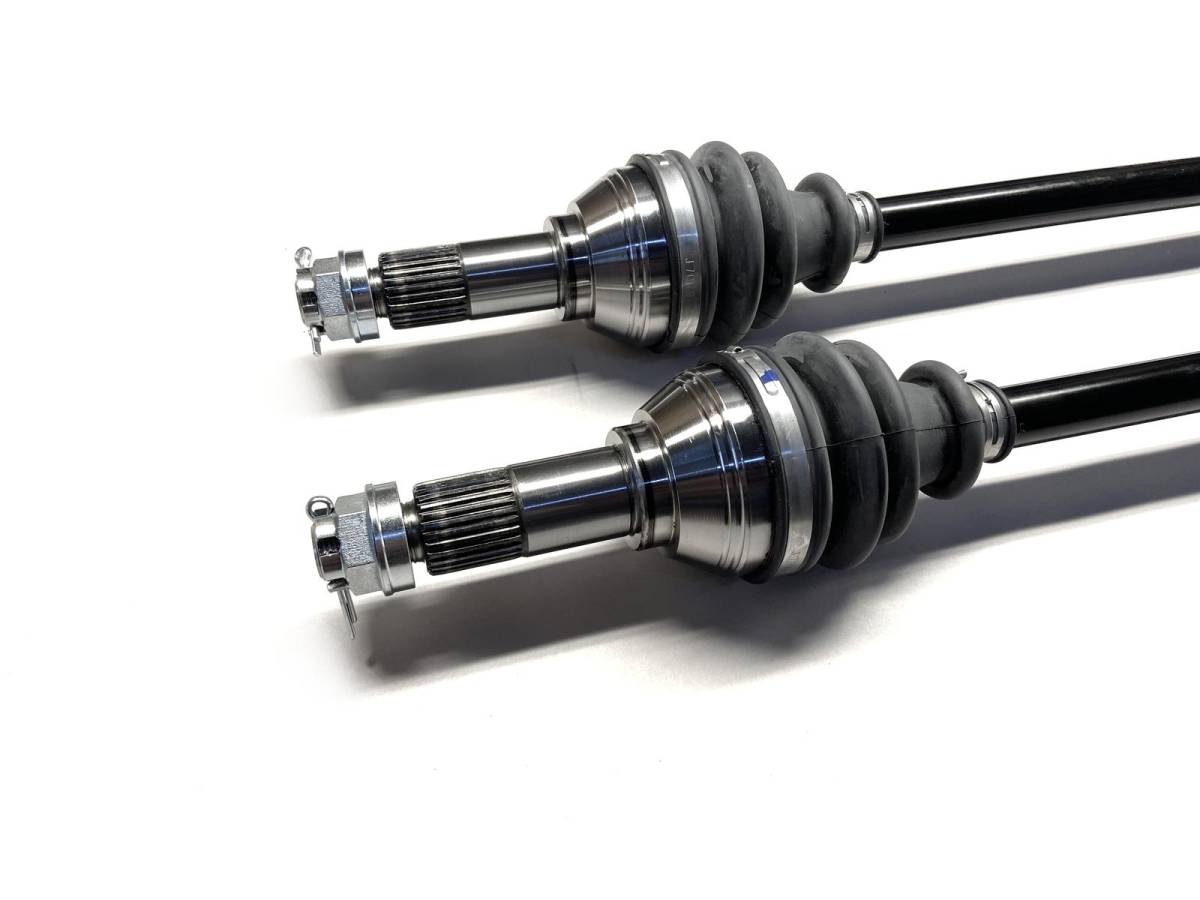

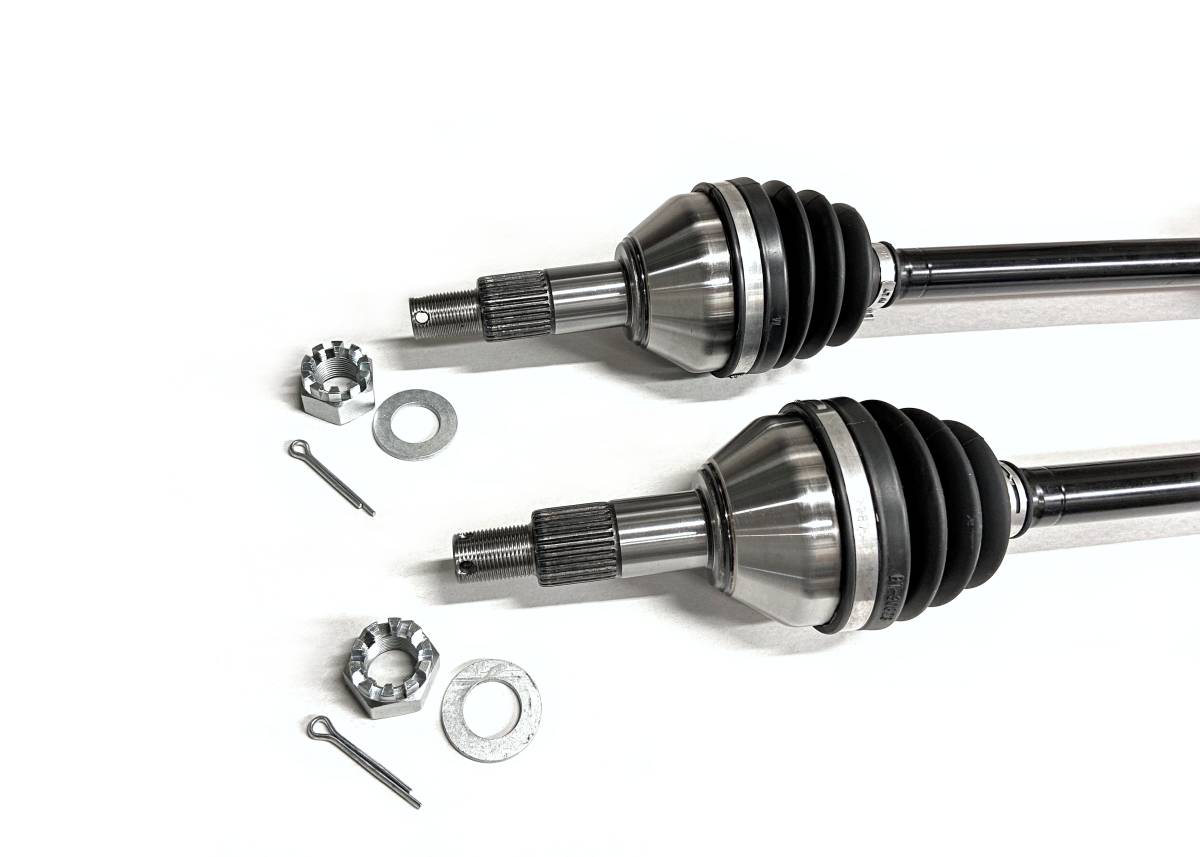

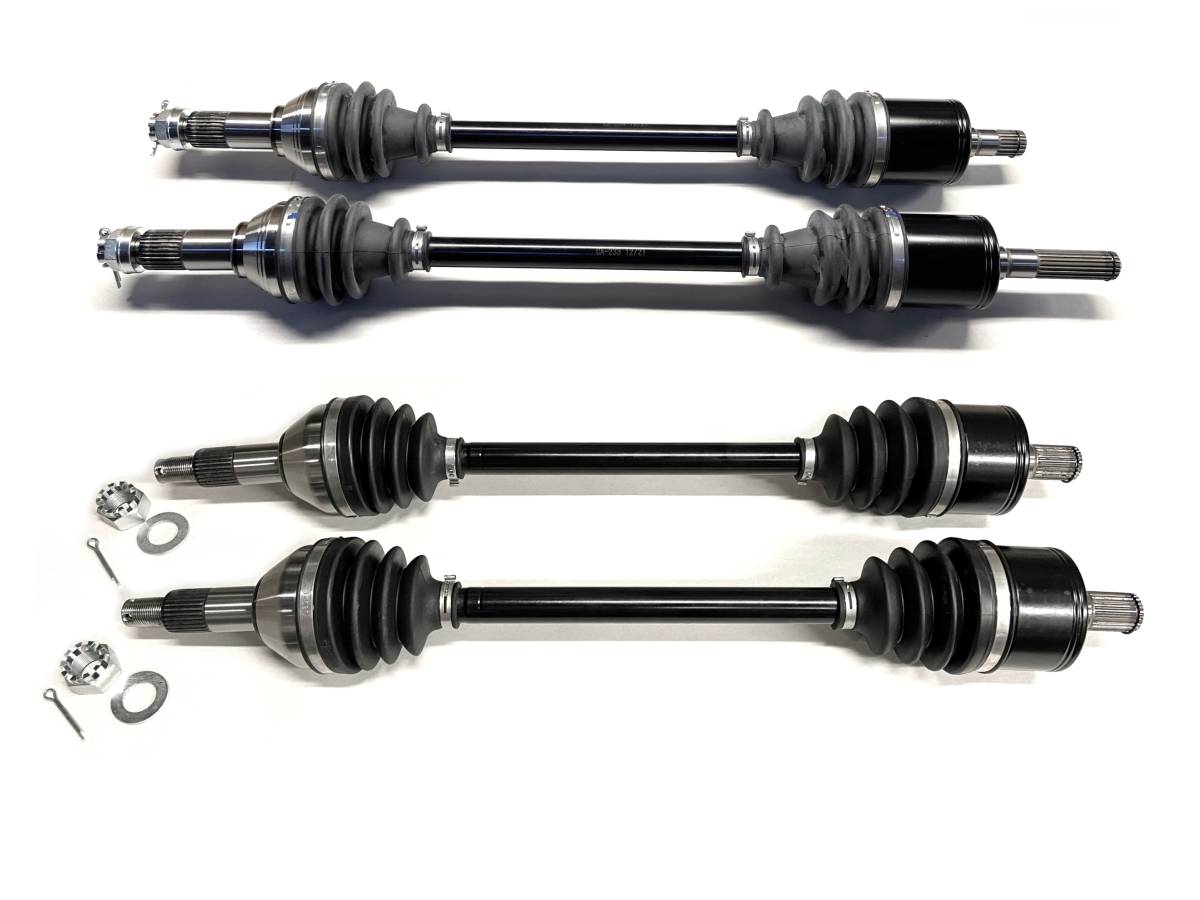

CV Axle Set for Can-Am Maverick Sport 1000 & Commander 1000, Base & DPS models

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-233/CA-234/CA-334/CA-334
This is a full set of CV axles for a Can-Am UTV/SXS.

They fit the following 4x4 models:

2021-2023 Commander 1000 STD/DPS (excluding XT, XTP, XMR)

2021-2023 Commander MAX 1000 STD/DPS (excluding XT, XTP, XMR)

2019-2023 Maverick Sport 1000 STD/DPS (excluding XMR, XXC, XRC)

2019-2023 Maverick Sport MAX 1000 STD/DPS (excluding XMR, XXC, XRC)

*Made as an OEM replacement, and not intended for lifted/ modified vehicles

*These are the axles for Base & DPS models

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard spline count: Fronts - 21, Rears - 24
  • Outboard spline count: Fronts - 29, Rears - 29
  • Compressed axle length (mm): FL - 703, FR - 662, RL - 680, RR - 680
  • Replaces OEM # (fronts) 705402031, 705402030, (rears) 705502552
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2021-2023Can-AmCommander 1000R4x4 DPS 2021-2023Can-AmCommander Max 1000R4x4 DPS 2022Can-AmCommander Max 1000R4x4 Limited DPS 2019-2022Can-AmMaverick Sport 1000 2019-2023Can-AmMaverick Sport 1000R4x4 DPS

Product Notes

  • Fits the following Can-Am models: 2021-2023 Commander 1000 STD/DPS & MAX 1000 STD/DPS (excluding XT, XTP, XMR) & 2019-2023 Maverick Sport 1000 STD/DPS & MAX 1000 STD/DPS (excluding XMR, XRC, XXC). Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (fronts) 705402031, 705402030, (rears) 705502552, Inboard spline count: Fronts - 21, Rears - 24, Outboard spline count: Fronts - 29, Rears - 29, Compressed axle length (mm): FL - 703, FR - 662, RL - 680, RR - 680.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles. This is the set for Base & DPS models, and will not fit any XT or X-MR variants.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-233/CA-234/CA-334/CA-334
    • CA-233/CA-234/CA-334/CA-334
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 56.4 lbs.
    • W10.0000” x H10.0000” x L39.0000”
