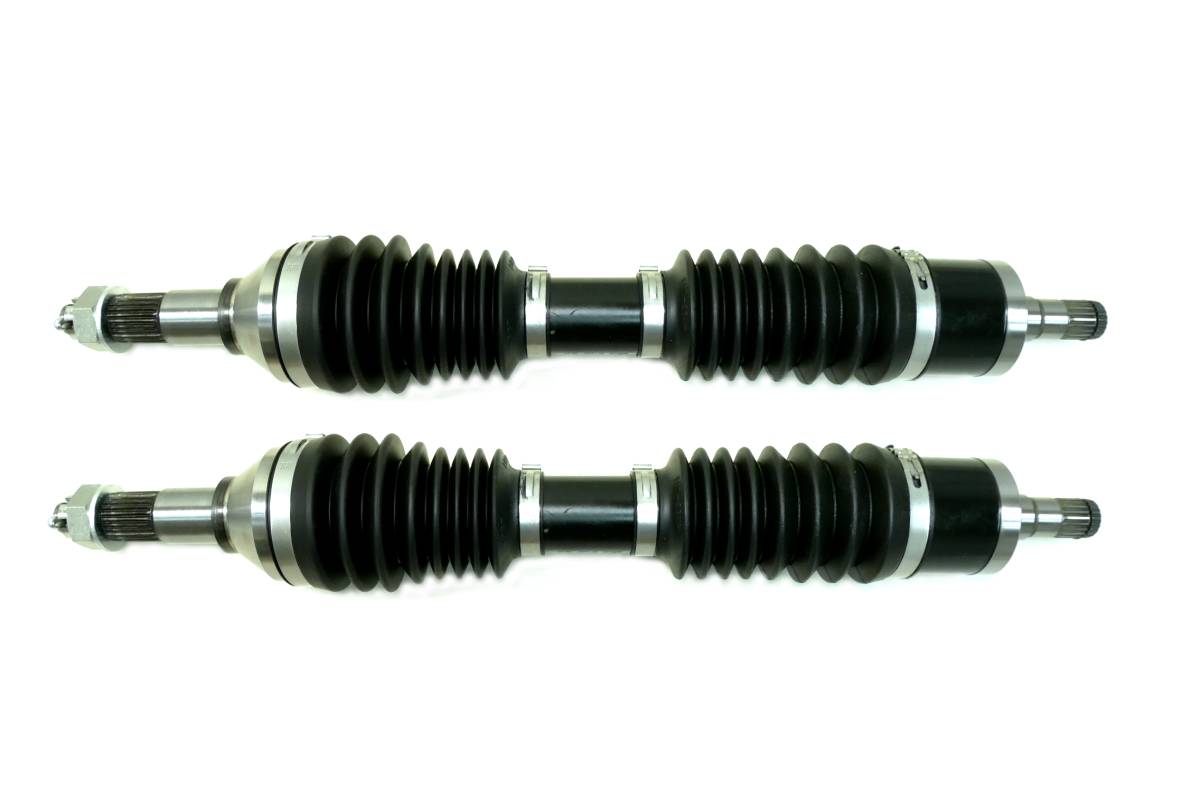

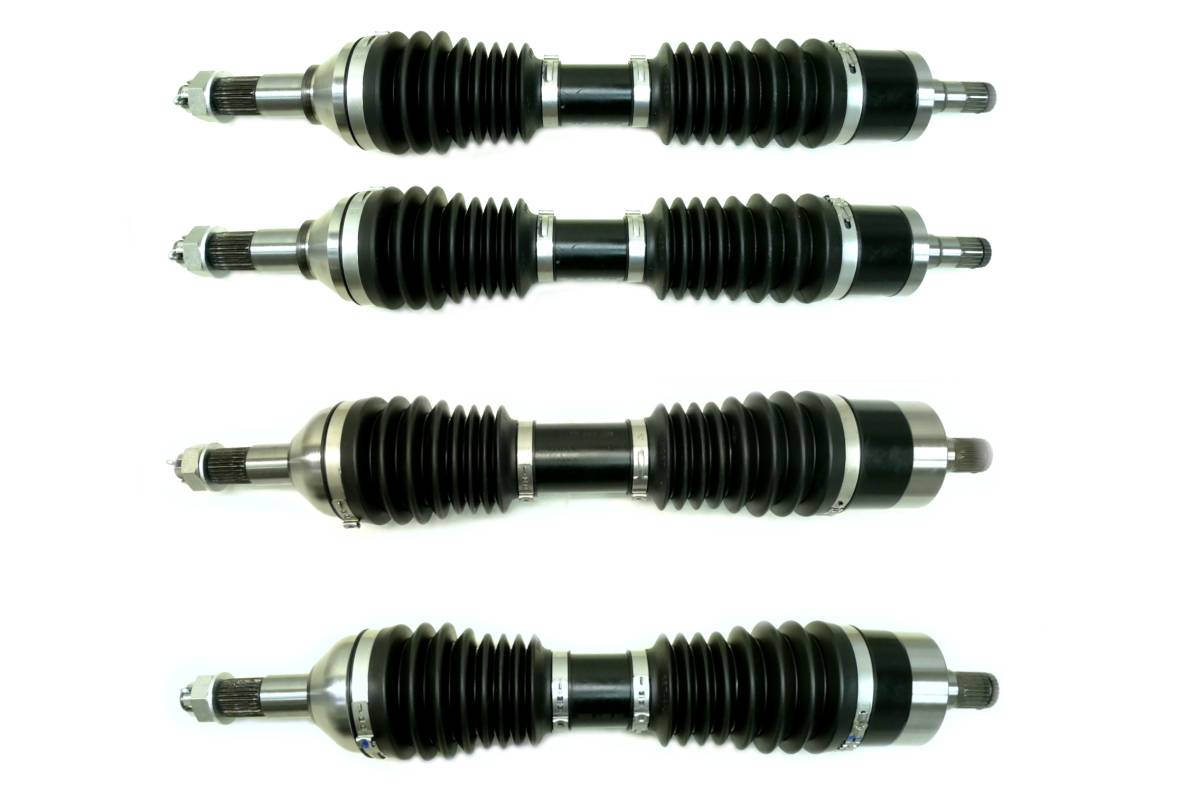

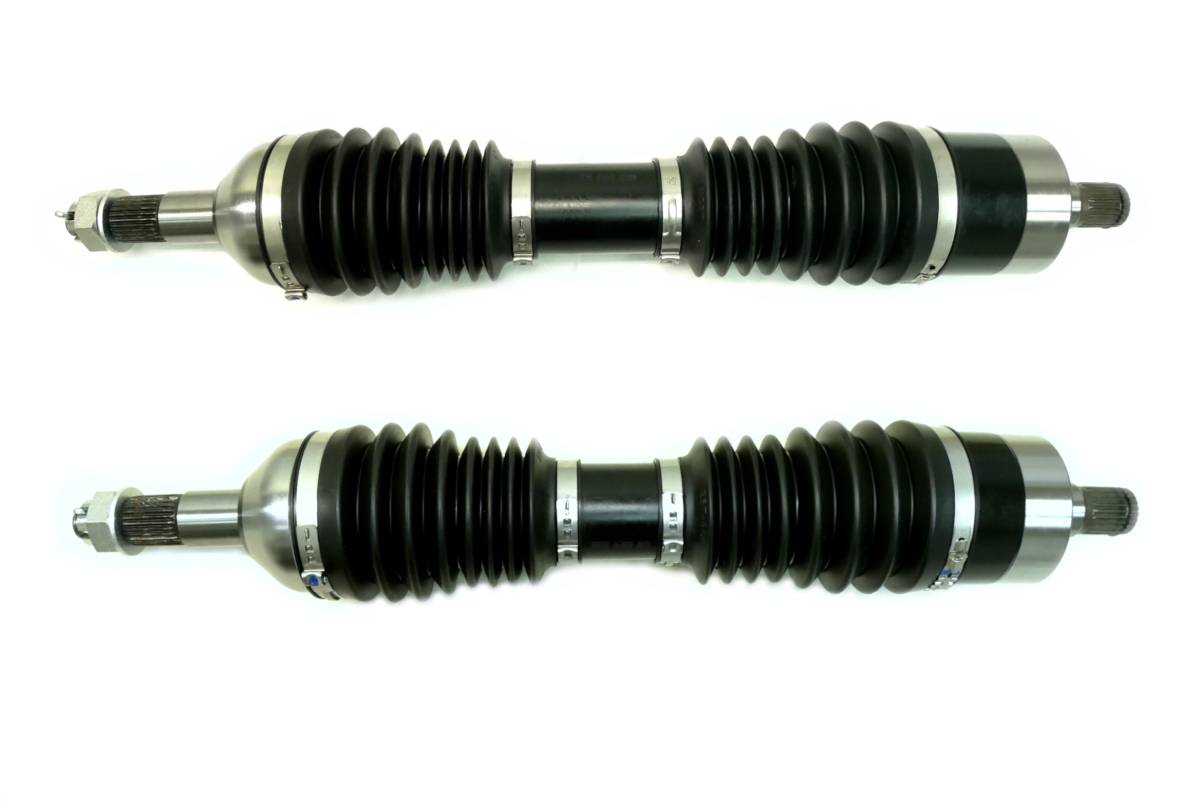

Monster Axles Full Set for Can-Am Outlander 500 570 & Renegade 570, XP Series

Location on vehicle: Front,Rear,Left,Right

CA-122XP/CA-222XP/CA-301XP/CA-302XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $639.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmOutlander 5004x4 DPS
2015Can-AmOutlander 5004x4 XT
2016Can-AmOutlander 5704x4 DPS
2016Can-AmOutlander 5704x4 XT Camo DPS
2016Can-AmOutlander 5704x4 XT DPS
2015Can-AmOutlander Max 5004x4 DPS
2015Can-AmOutlander Max 5004x4 XT
2016Can-AmOutlander Max 5704x4 DPS
2016Can-AmOutlander Max 5704x4 XT DPS
2018Can-AmRenegade 5704X4
2017Can-AmRenegade 5704X4
2016Can-AmRenegade 5704X4

Product Notes

  • Fits the following Can-Am models: 2015 Outlander 500/MAX 500 (excluding L 500), 2016 Outlander 570/MAX 500 (excluding L 500), 2016-2018 Renegade 570 (excluding XMR). Set includes 4 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # FL - 705401429, 705401945, FR - 705401428, 705401946, RL - 705500867, 705501485, RR - 705501486, 705500868. Compressed axle length (mm): FL - 520, FR - 562, RL - 554, RR - 513. Inboard splines: Fronts - 21, Rears - 24, Outboard splines: Fronts - 26, Rears - 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 4 axles
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • CA-122XP/CA-222XP/CA-301XP/CA-302XP
    • CA-122XP/CA-222XP/CA-301XP/CA-302XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 63.0 lbs.
    • W10.0000” x H32.0000” x L10.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
