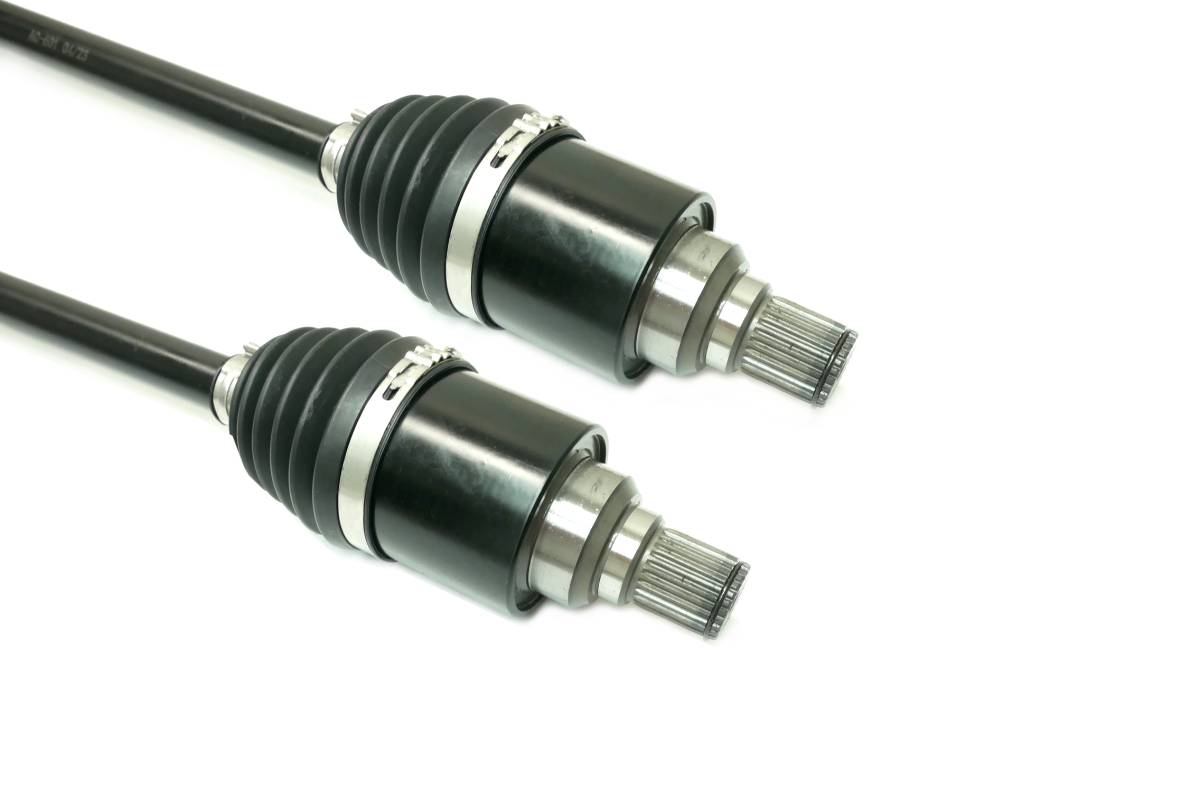

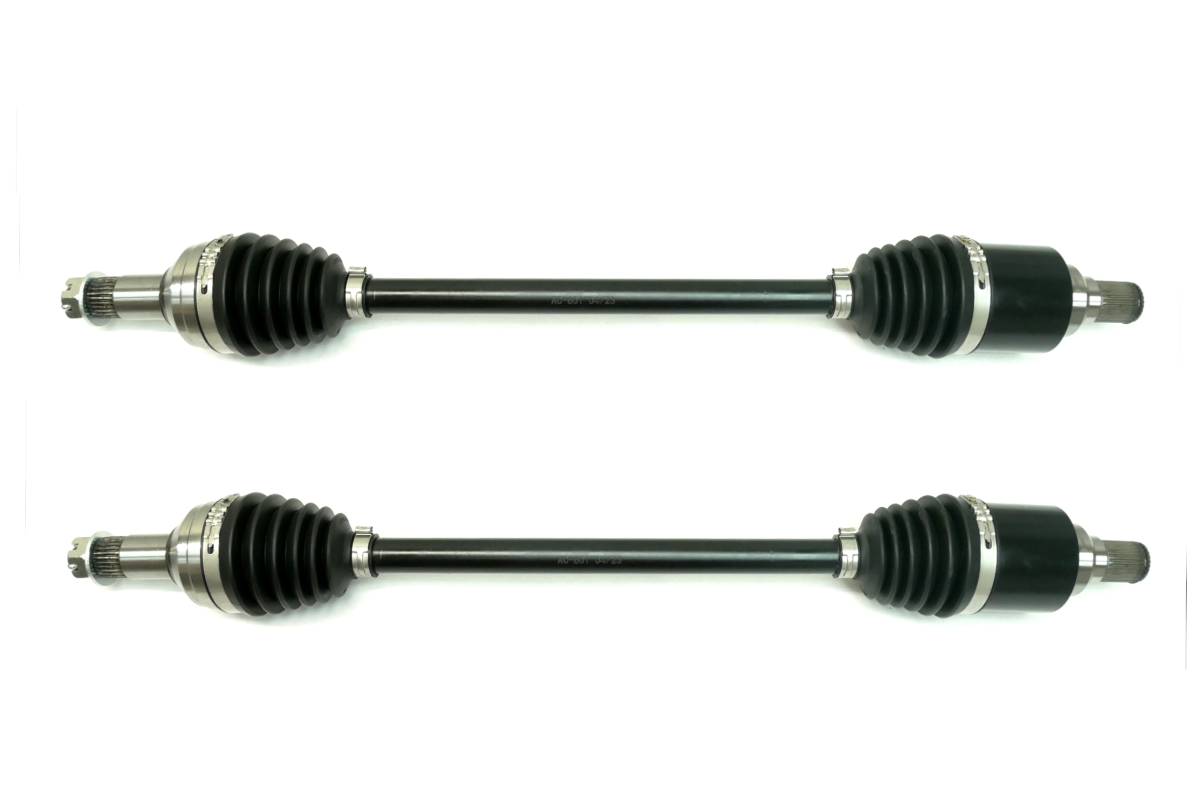

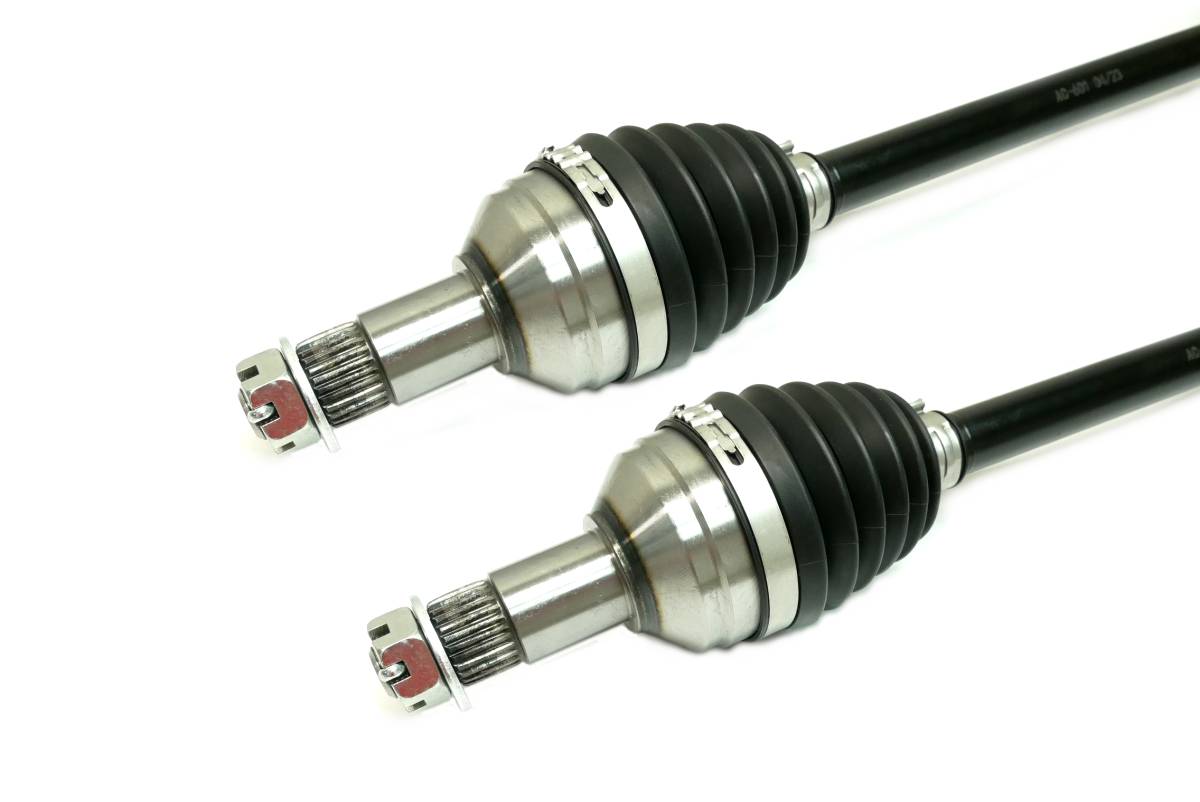

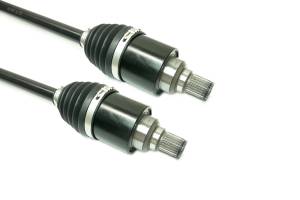

Rear CV Axle Pair for Arctic Cat Prowler & HDX 4x4 2502-356, 2502-189

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-601/AC-601
This is a pair of new CV axles for an Arctic Cat UTV.

They fit REAR, LEFT & RIGHT on the following models:

2015 Prowler 550 XT

2016-2017 HDX 500 XT

2016-2017 HDX 700 XT (excluding Crew XT models)

2015-2017 Prowler XT 700

2015-2017 Prowler 1000 XT

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 27 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 704 mm (both)
  • Replaces OEM # 2502-356, 2502-189
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $199.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Arctic CatHDX 5004x4 XT
2016Arctic CatHDX 5004x4 XT
2017Arctic CatHDX 7004x4 XT EPS
2016Arctic CatHDX 7004x4 SE Hunter Edition EPS
2016Arctic CatHDX 7004x4 XT EPS
2015Arctic CatProwler XT 5504X4
2017Arctic CatProwler XT 7004x4 EPS
2016Arctic CatProwler XT 7004x4 EPS
2015Arctic CatProwler XT 7004x4 EPS
2015Arctic CatProwler XT 7004x4 XT EPS Camo
2017Arctic CatProwler XT 10004x4 EPS
2016Arctic CatProwler XT 10004x4 EPS
2015Arctic CatProwler XT 10004x4 EPS

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Arctic Cat UTV models: 2015 Prowler 550 XT, 2016-2017 HDX 500 XT, 2016-2017 HDX 700 XT (excluding Crew XT models), 2015-2017 Prowler XT 700, 2015-2017 Prowler 1000 XT. Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 2502-356, 2502-189. Inboard CV joint spline count: 27 (both), Outboard CV joint spline count: 27 (both), Compressed axle length: 704 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-601/AC-601
    • AC-601/AC-601
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
