Full CV Axle Set for Can-Am Commander 800 & Commander 1000 2017-2020

Location on vehicle: Front,Rear,Left,Right

CA-131/CA-132/CA-333/CA-333

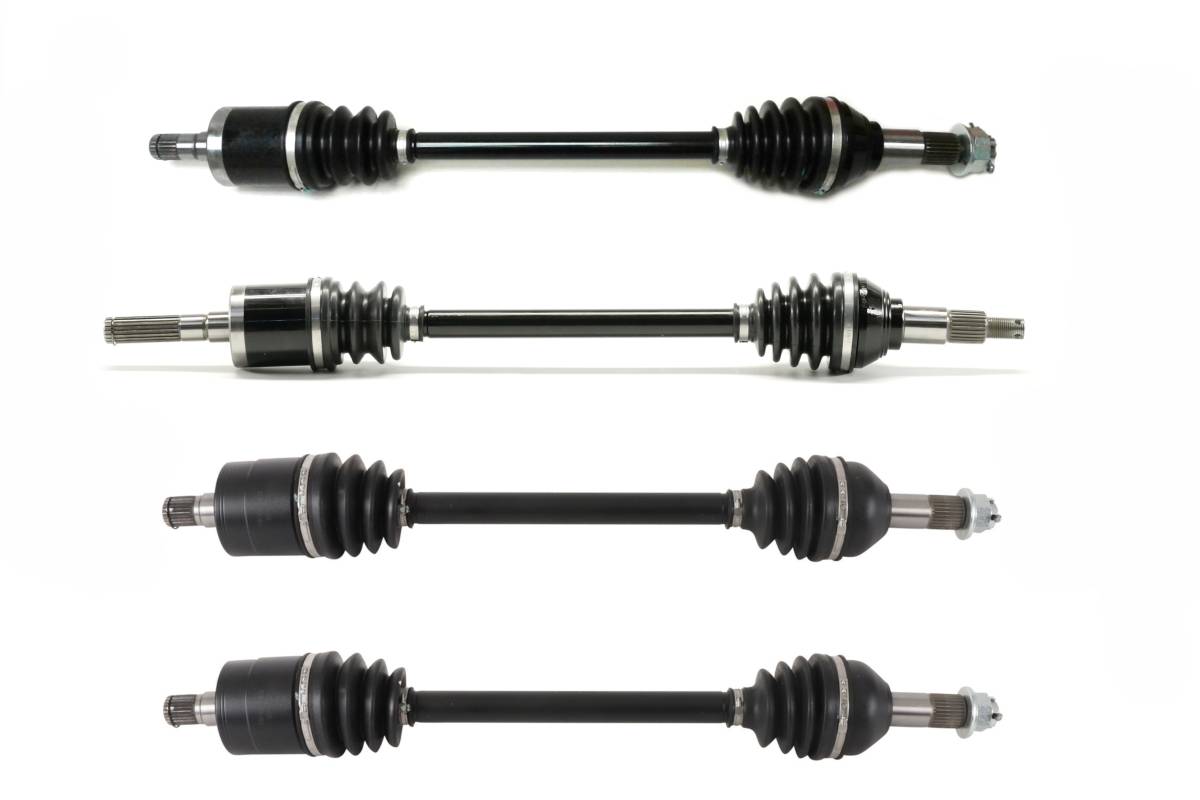

This is a full set of CV axles for a Can-Am Commander UTV.

They will fit the following 4x4 models:

2017-2020 Commander 800

2017-2020 Commander MAX 800

2017-2020 Commander 1000

2017-2020 Commander MAX 1000

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Compressed axle length (mm): FL - 649.5, FR - 692.5, RL - 680.5, RR - 680.5
  • Inboard spline count: Fronts - 21, Rears - 24
  • Outboard spline count: Fronts - 26, Rears - 29
  • Replaces OEM # (fronts) 705401871, 705400953, 705401872, 705400952, (rears) 705502355, 705502411
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $264.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Can-Am UTV models: 2017-2020 Commander 800/MAX 800 & 2017-2020 Commander 1000/MAX 1000. Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (fronts) 705401871, 705400953, 705401872, 705400952, (rears) 705502355, 705502411. Compressed axle length (mm): FL - 649.5, FR - 692.5, RL - 680.5, RR - 680.5, Inboard spline count: Fronts - 21, Rears - 24, Outboard spline count: Fronts - 26, Rears - 29.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2019Can-AmCommander 800R4X4
    2019Can-AmCommander 800R4x4 DPS
    2019Can-AmCommander 800R4x4 XT DPS
    2018Can-AmCommander 800R4X4
    2018Can-AmCommander 800R4x4 DPS
    2018Can-AmCommander 800R4x4 XT DPS
    2017Can-AmCommander 800R4X4
    2017Can-AmCommander 800R4x4 DPS
    2017Can-AmCommander 800R4x4 XT DPS
    2017Can-AmCommander 10004x4 DPS
    2017Can-AmCommander 10004x4 Limited DPS
    2017Can-AmCommander 10004x4 Mossy Oak Hunting Edition DPS
    2017Can-AmCommander 10004x4 XT-P DPS
    2017Can-AmCommander 10004x4 XT DPS
    2020Can-AmCommander 1000R4x4 DPS
    2020Can-AmCommander 1000R4x4 Limited DPS
    2020Can-AmCommander 1000R4x4 XT DPS
    2019Can-AmCommander 1000R4x4 DPS
    2019Can-AmCommander 1000R4x4 Limited DPS
    2019Can-AmCommander 1000R4x4 XT DPS
    2018Can-AmCommander 1000R4x4 DPS
    2018Can-AmCommander 1000R4x4 Limited DPS
    2018Can-AmCommander 1000R4x4 Mossy Oak Hunting Edition DPS
    2018Can-AmCommander 1000R4x4 XT DPS
    2019Can-AmCommander Max 800R4x4 DPS
    2018Can-AmCommander Max 800R4x4 DPS
    2017Can-AmCommander Max 800R4x4 DPS
    2017Can-AmCommander Max 10004x4 DPS
    2017Can-AmCommander Max 10004x4 Limited DPS
    2017Can-AmCommander Max 10004x4 XT DPS
    2020Can-AmCommander Max 1000R4x4 DPS
    2020Can-AmCommander Max 1000R4x4 Limited DPS
    2020Can-AmCommander Max 1000R4x4 XT DPS
    2019Can-AmCommander Max 1000R4x4 DPS
    2019Can-AmCommander Max 1000R4x4 Limited DPS
    2019Can-AmCommander Max 1000R4x4 XT DPS
    2018Can-AmCommander Max 1000R4x4 DPS
    2018Can-AmCommander Max 1000R4x4 Limited DPS
    2018Can-AmCommander Max 1000R4x4 XT DPS

    Details

    • CA-131/CA-132/CA-333/CA-333
    • CA-131/CA-132/CA-333/CA-333
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 47.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
