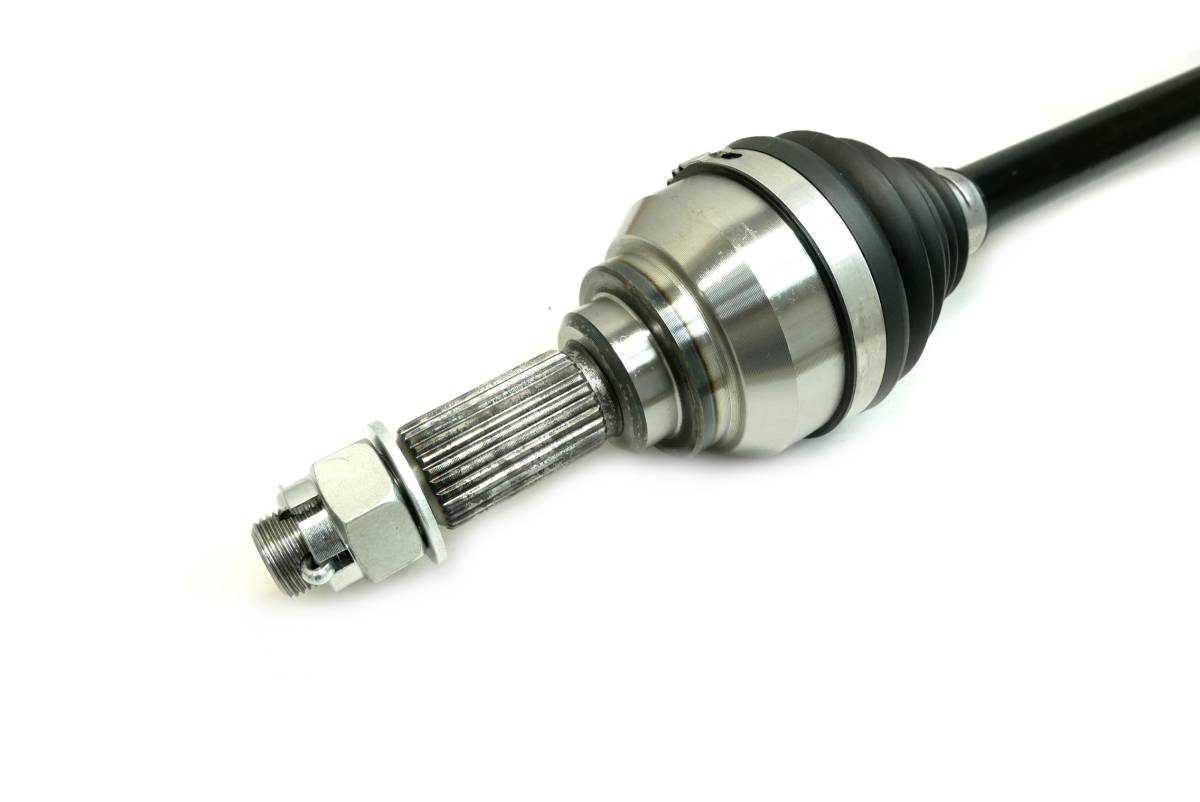

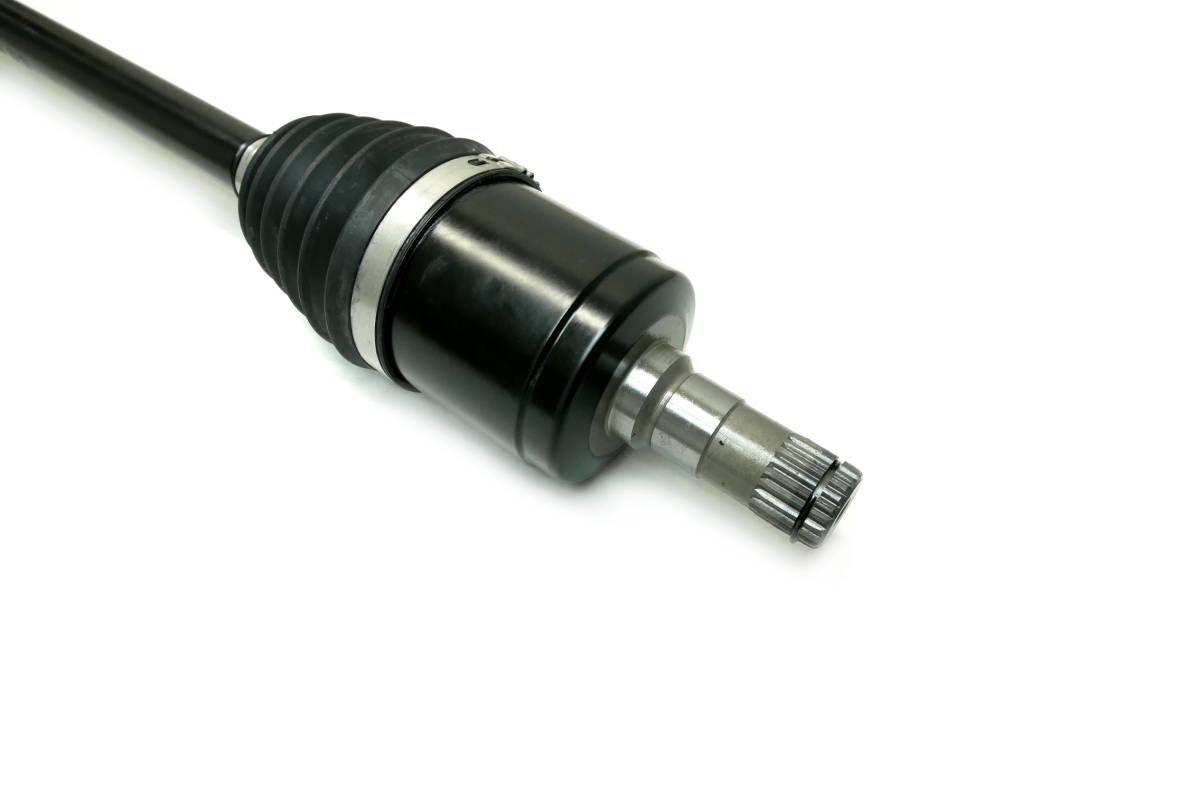

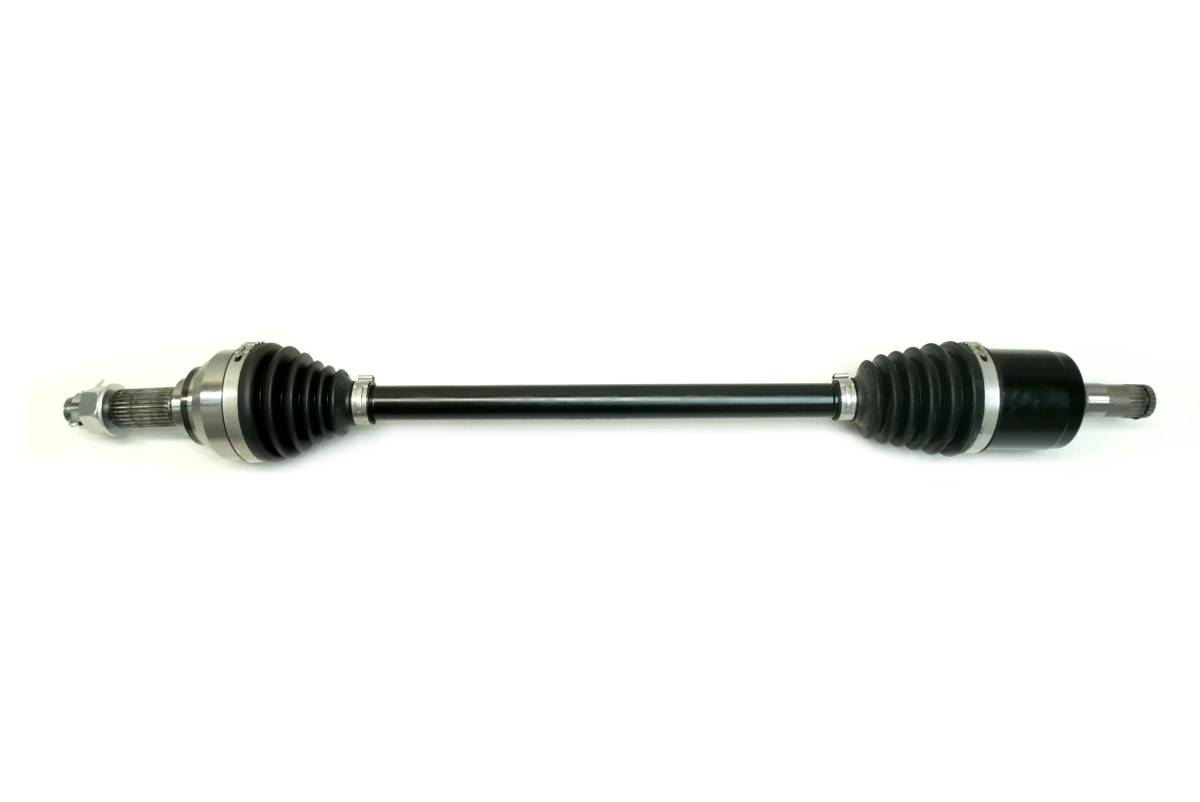

Front CV Axle for John Deere Gator 835 XUV & RSX 865 2018-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
JD-630
This is a new CV axle for a John Deere Gator.

It fits FRONT, LEFT or RIGHT on the following models:

2018-2020 Gator 835E/835M/835R XUV

2018-2020 Gator RSX 865E/865M

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 734 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020John DeereGator XUV 835E4X4
2019John DeereGator XUV 835E4X4
2018John DeereGator XUV 835E4X4
2020John DeereGator XUV 835M4x4 Cab EPS
2020John DeereGator XUV 835M4x4 EPS
2020John DeereGator XUV 835M4x4 HVAC EPS
2019John DeereGator XUV 835M4x4 Cab EPS
2019John DeereGator XUV 835M4x4 EPS
2019John DeereGator XUV 835M4x4 HVAC EPS
2018John DeereGator XUV 835M4x4 Cab EPS
2018John DeereGator XUV 835M4x4 EPS
2018John DeereGator XUV 835M4x4 HVAC EPS
2020John DeereGator XUV 835R4x4 EPS
2019John DeereGator XUV 835R4x4 EPS
2018John DeereGator XUV 835R4x4 EPS
2020John DeereGator XUV 865E4x4 Diesel
2019John DeereGator XUV 865E4x4 Diesel
2018John DeereGator XUV 865E4x4 Diesel
2020John DeereGator XUV 865M4x4 Cab Diesel EPS
2020John DeereGator XUV 865M4x4 Diesel EPS
2020John DeereGator XUV 865M4x4 HVAC Diesel EPS
2019John DeereGator XUV 865M4x4 Cab Diesel EPS
2019John DeereGator XUV 865M4x4 Diesel EPS
2019John DeereGator XUV 865M4x4 HVAC Diesel EPS
2018John DeereGator XUV 865M4x4 Cab Diesel EPS
2018John DeereGator XUV 865M4x4 Diesel EPS
2018John DeereGator XUV 865M4x4 HVAC Diesel EPS
2020John DeereGator XUV 865R4x4 Diesel EPS
2019John DeereGator XUV 865R4x4 Diesel EPS
2018John DeereGator XUV 865R4x4 Diesel EPS

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following John Deere Gator models: 2018-2020 Gator 835E/835M/835R XUV, 2018-2020 Gator RSX 865E/865M.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Compressed axle length: 734 mm, Inner spline count: 22, Outer spline count: 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • JD-630
    • JD-630
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 13.0 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
