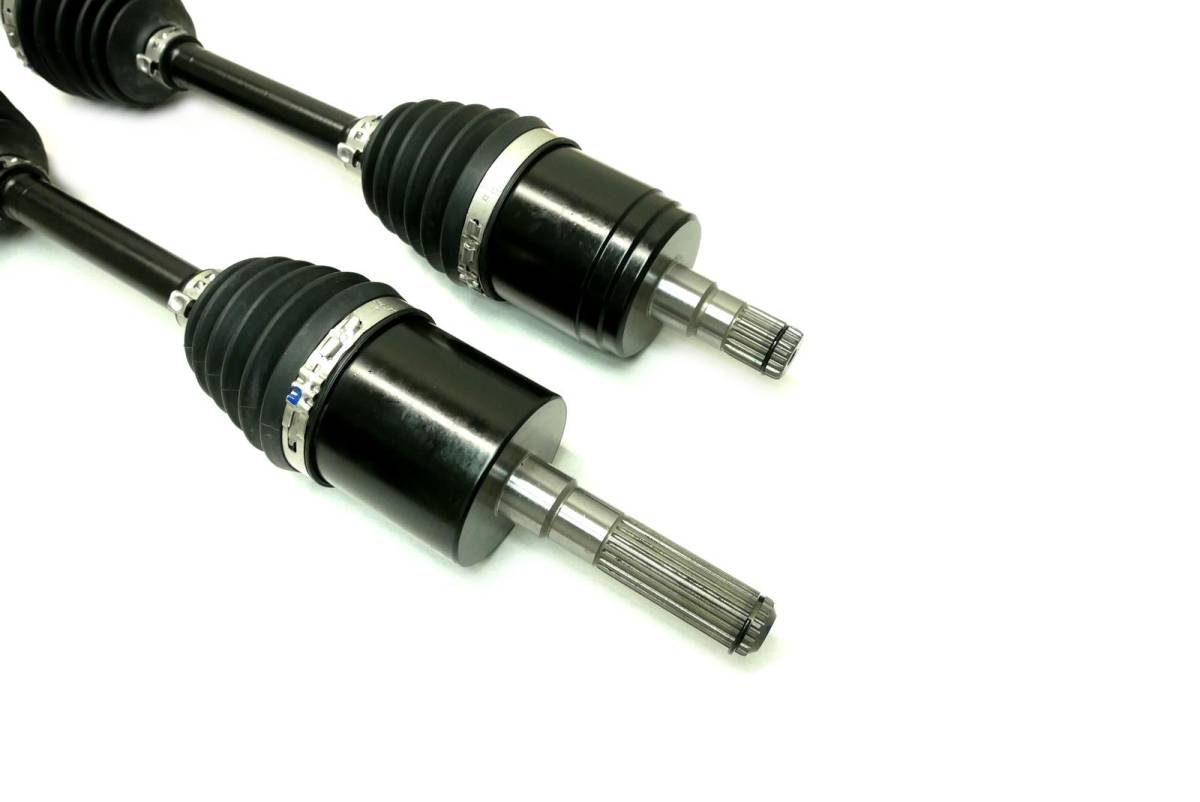

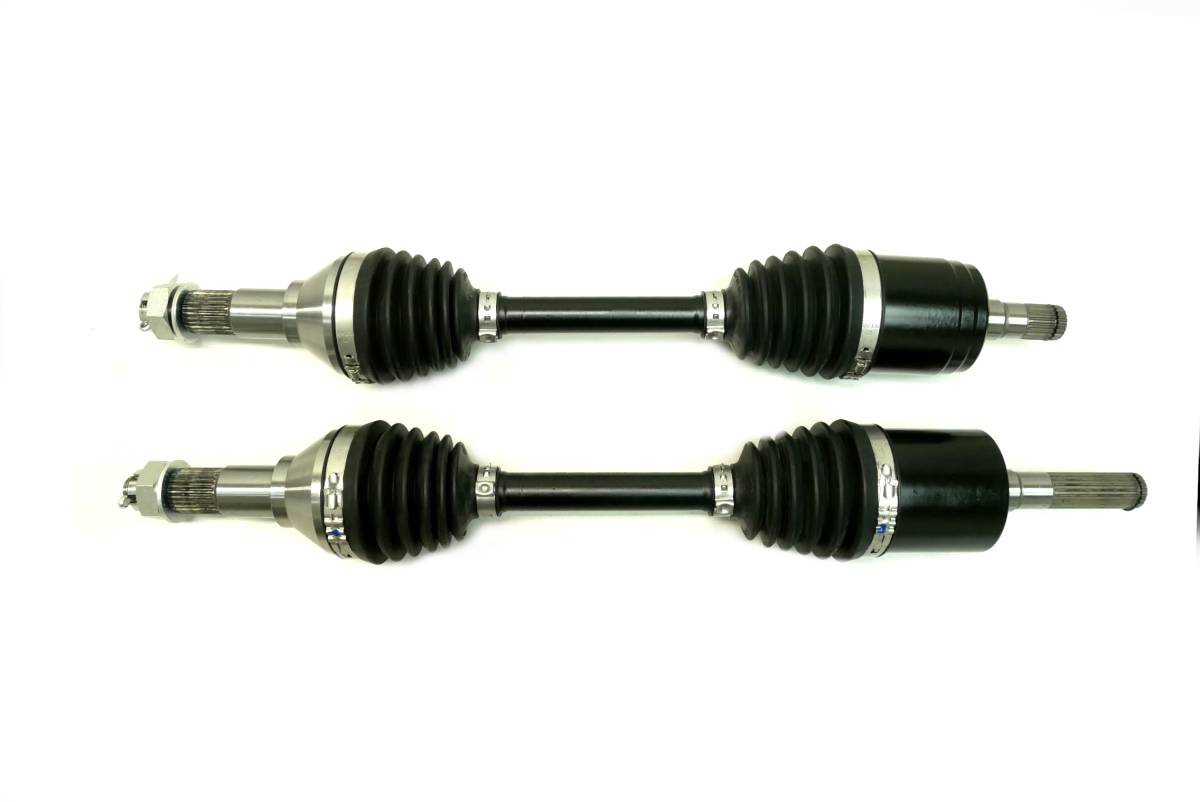

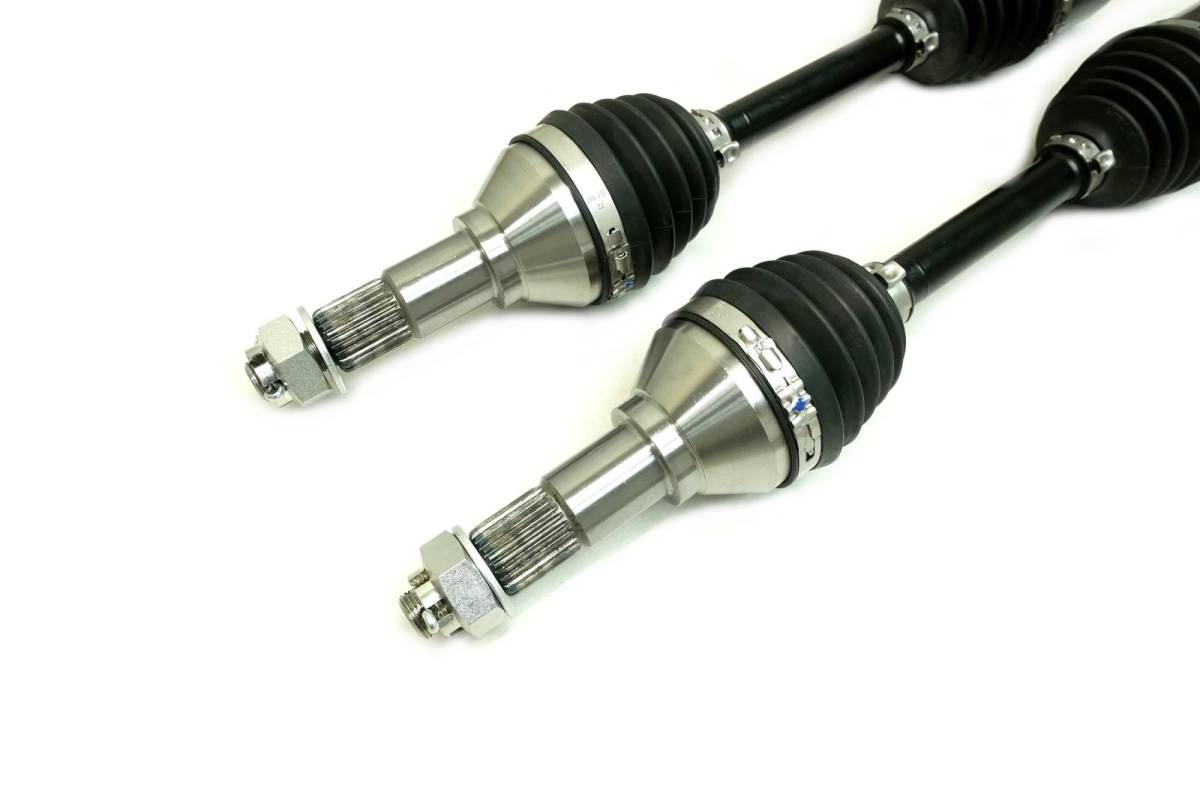

Front CV Axle Pair for Can-Am XMR Outlander & Renegade, 705402237, 705402238

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-655/CA-656
This is a pair of new CV axles for a Can-Am X-MR (Mud Racer) ATV.

They fit FRONT, LEFT & RIGHT on the following models:

2019-2023 ... Outlander XMR 650

2019-2023 ... Outlander XMR 850

2019-2023 ... Outlander XMR 1000

2019 ... Renegade XMR 570

2022-2023 ... Renegade XMR 650

2019-2023 ... Renegade XMR 1000

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

*Please note these are only for XMR models and will not fit STD, XT, or Pro editions

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 529 mm, Right - 573 mm
  • Replaces OEM # 705402237, 705402238
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am XMR (Mud Racer) models: 2019-2023 Outlander XMR 650, 2019-2023 Outlander XMR 850, 2019-2023 Outlander XMR 1000, 2019 Renegade XMR 570, 2022-2023 Renegade XMR 650, 2019-2022 Renegade XMR 1000.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 705402237, 705402238. Compressed axle length: Left - 529 mm, Right - 573 mm, Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504x4 XMR DPS
    2021Can-AmOutlander 6504x4 XMR DPS
    2020Can-AmOutlander 6504x4 XMR DPS
    2019Can-AmOutlander 6504x4 XMR DPS
    2023Can-AmOutlander 8504x4 XMR DPS
    2022Can-AmOutlander 8504x4 XMR DPS
    2021Can-AmOutlander 8504x4 XMR DPS
    2020Can-AmOutlander 8504x4 XMR DPS
    2019Can-AmOutlander 8504x4 XMR DPS
    2023Can-AmOutlander 1000R4x4 XMR DPS
    2022Can-AmOutlander 1000R4x4 XMR DPS
    2021Can-AmOutlander 1000R4x4 XMR DPS
    2020Can-AmOutlander 1000R4x4 XMR DPS
    2019Can-AmOutlander 1000R4x4 XMR DPS
    2019Can-AmRenegade 5704x4 XMR DPS
    2023Can-AmRenegade 6504x4 XMR
    2022Can-AmRenegade 6504x4 XMR
    2023Can-AmRenegade 1000R4x4 XMR DPS
    2022Can-AmRenegade 1000R4x4 XMR DPS
    2021Can-AmRenegade 1000R4x4 XMR DPS
    2020Can-AmRenegade 1000R4x4 XMR DPS

    Details

    • CA-655/CA-656
    • CA-655/CA-656
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W4.0000” x H8.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
