Rear CV Axle Pair for John Deere Gator RSX 850 & 860, 2013-2020

Location on vehicle: Rear,Left,Right

JD-620/JD-621

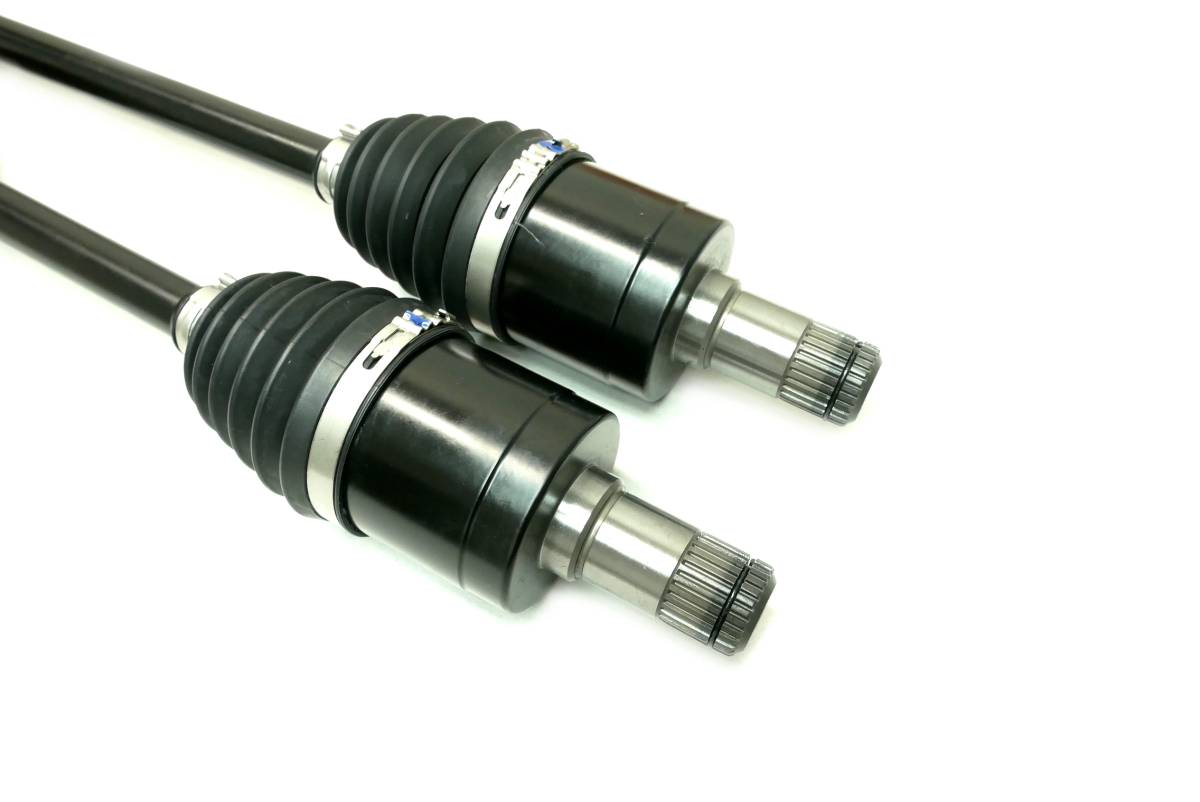

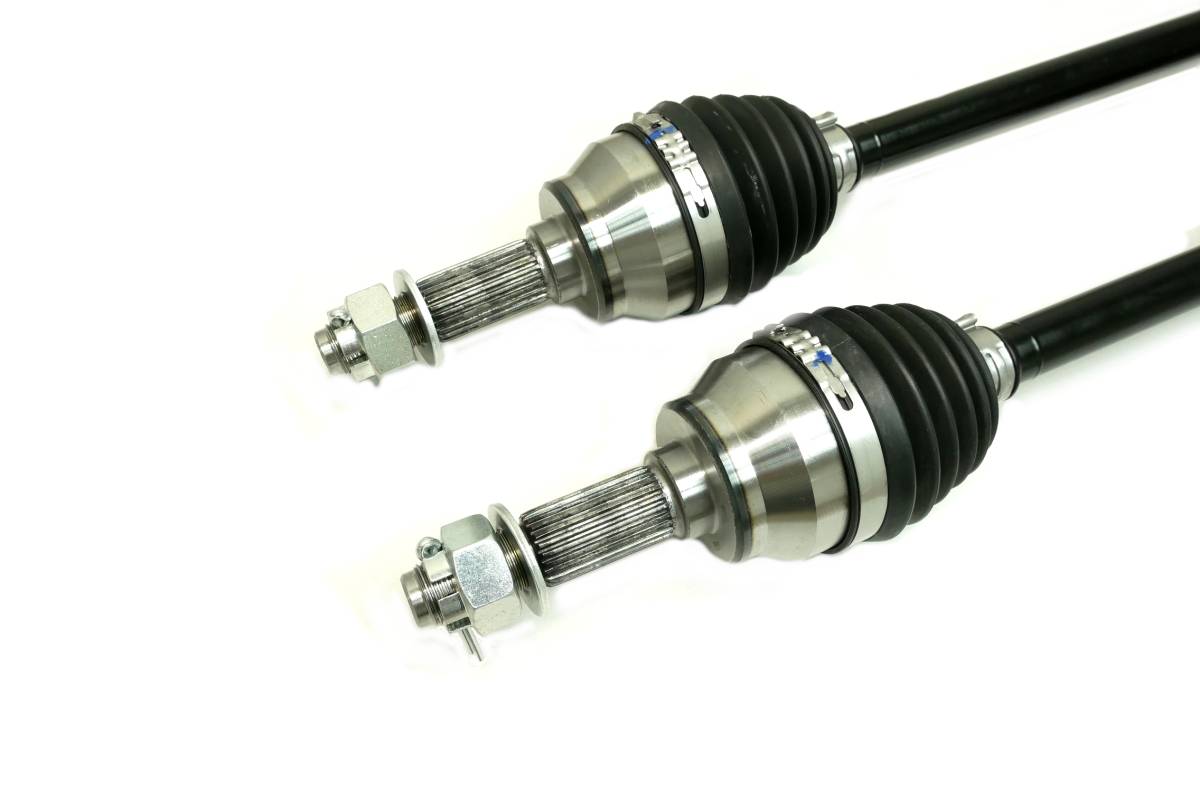

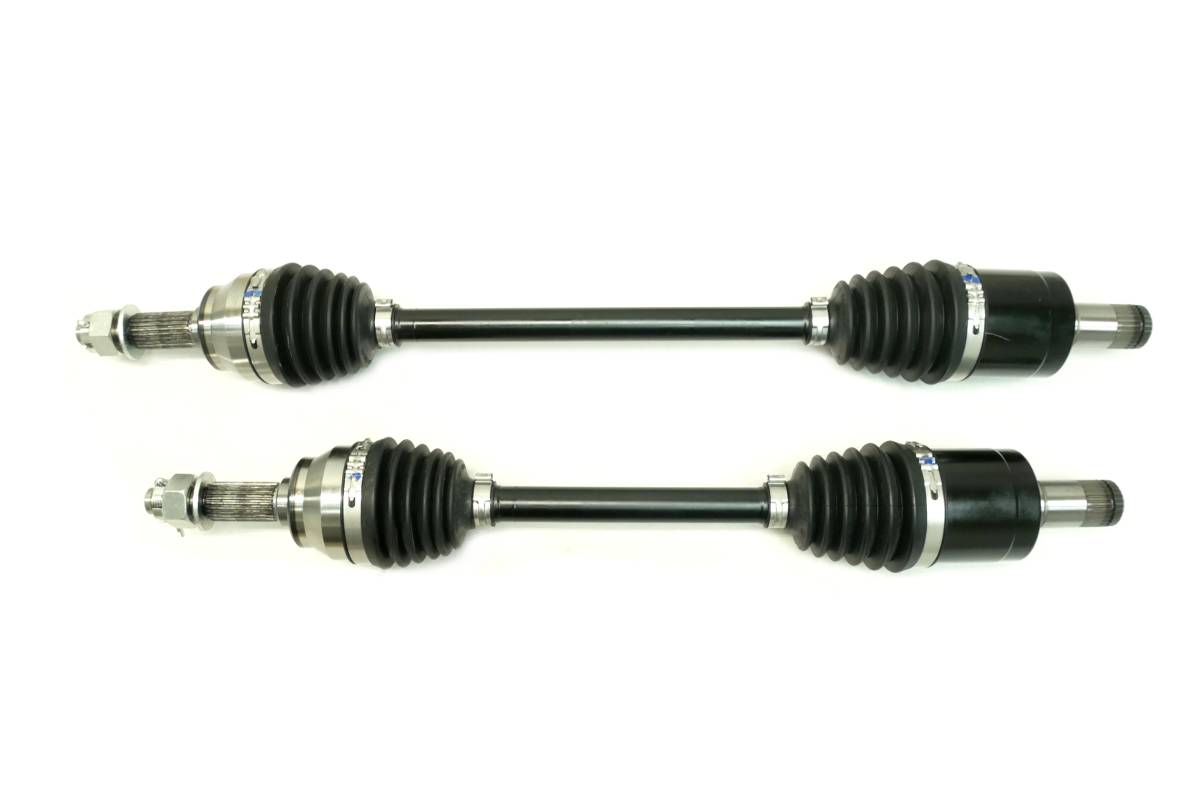

This is a pair of new CV axles for a John Deere Gator RSX.

They fit REAR, LEFT & RIGHT on the following models:

2013-2015 RSX 850i (including Standard, Sport, Trail, & SE)

2016-2020 RSX 860 (including 860i, 860E, & 860M)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 28 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: (left) - 576 mm, (right) - 674 mm
  • Replaces OEM # (left) AM140785, AM145320, (right) AM140786, AM145321
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following John Deere Gator 4x4 models: 2013-2015 RSX 850i (including Standard, Sport, Trail, & SE), 2016-2020 RSX 860 (including 860i, 860E & 860M). Set includes 2 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # (left) AM140785, AM145320, (right) AM140786, AM145321. Inboard Spline Count: 28, Outboard Spline Count 24, Compressed Length: (left) 576 mm, (right) 674 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2015John DeereGator RSX 850i4X4
    2015John DeereGator RSX 850i4x4 Sport
    2015John DeereGator RSX 850i4x4 Trail
    2014John DeereGator RSX 850i4X4
    2014John DeereGator RSX 850i4x4 Midnight Black Special Edition
    2014John DeereGator RSX 850i4x4 Sport
    2014John DeereGator RSX 850i4x4 Trail
    2013John DeereGator RSX 850i--
    2013John DeereGator RSX 850iSport
    2013John DeereGator RSX 850iTrail
    2020John DeereGator RSX 860E4X4
    2019John DeereGator RSX 860E4X4
    2018John DeereGator RSX 860E4X4
    2020John DeereGator RSX 860M4x4 EPS
    2019John DeereGator RSX 860M4x4 EPS
    2018John DeereGator RSX 860M4x4 EPS
    2017John DeereGator RSX 860i4X4
    2016John DeereGator RSX 860i4X4

    Details

    • JD-620/JD-621
    • JD-620/JD-621
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W6.0000” x H10.0000” x L32.0000”
