Rear CV Axle Pair for Yamaha Grizzly 700 4x4 2016-2023

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
YA-357/YA-357

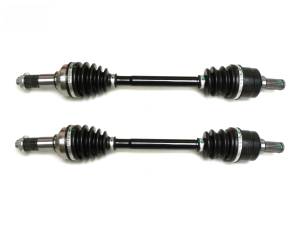

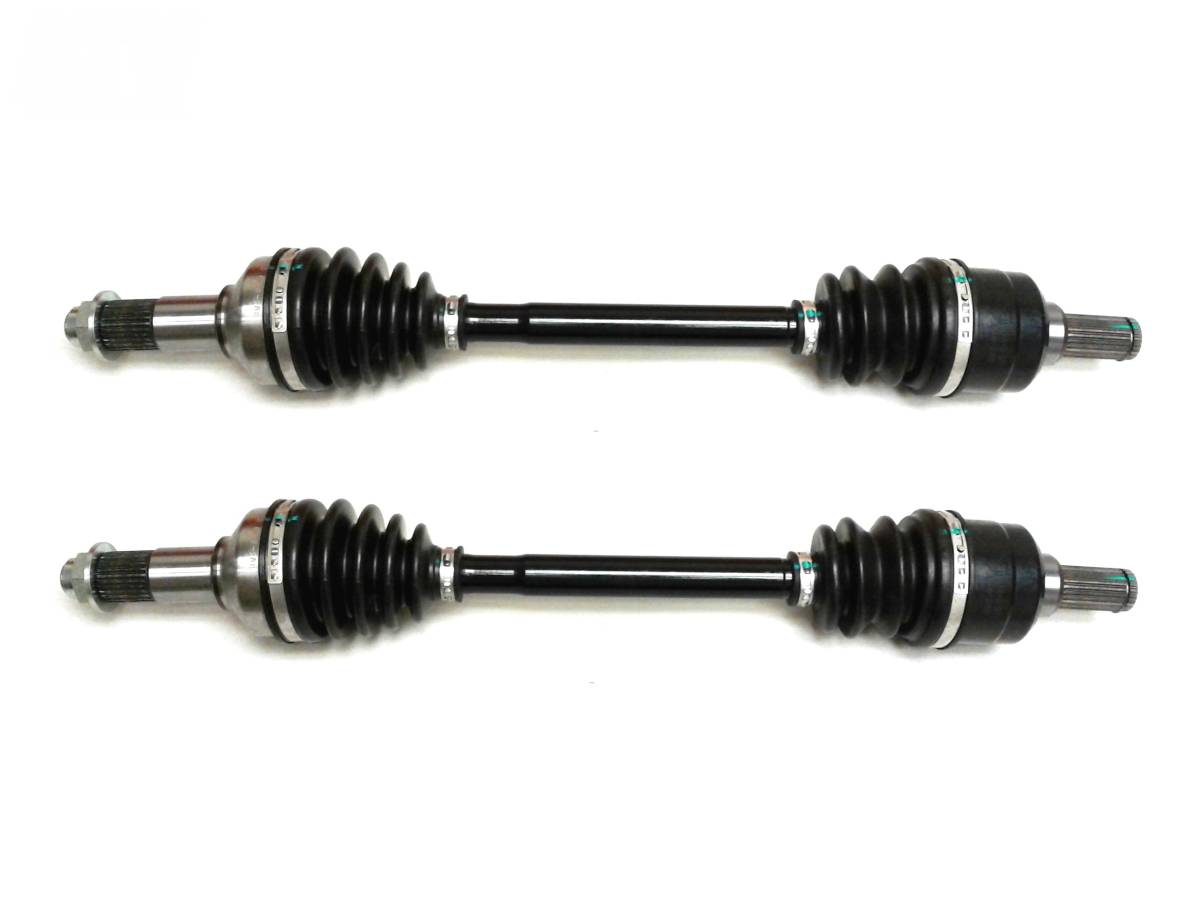

This is a pair of new CV axles for a Yamaha ATV.

They fit REAR, LEFT & RIGHT on the following models:

2016-2023 Grizzly 700 (including FI, LE, SE & Hunter models)

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 23 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 553 mm (both)
  • Replaces OEM # 2UD-2531H-00-00, 2UD-2531H-01-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Yamaha ATVs: 2016-2023 Grizzly 700 (including FI, LE, SE & Hunter models). Set includes 2 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # 2UD-2531H-00-00, 2UD-2531H-01-00. Compressed length: 553 mm (both), Inboard splines: 23 (both), Outboard splines: 27 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2016YamahaGrizzly 700YFM700D 4x4 FI
    2016YamahaGrizzly 700YFM700P 4x4 FI EPS
    2016YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2016YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2023YamahaGrizzly 700YFM700 EPS XT-R
    2023YamahaGrizzly 700YFM700P 4x4 FI EPS
    2023YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2022YamahaGrizzly 700YFM700 EPS XT-R
    2022YamahaGrizzly 700YFM700P 4x4 FI EPS
    2022YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2021YamahaGrizzly 700YFM700 EPS XT-R
    2021YamahaGrizzly 700YFM700P 4x4 FI EPS
    2021YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2020YamahaGrizzly 700YFM700 EPS XT-R
    2020YamahaGrizzly 700YFM700P 4x4 FI EPS
    2020YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2019YamahaGrizzly 700YFM700P 4x4 FI EPS
    2019YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2018YamahaGrizzly 700YFM700P 4x4 FI EPS
    2018YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2018YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2017YamahaGrizzly 700YFM700P 4x4 FI EPS
    2017YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2017YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

    Details

    • YA-357/YA-357
    • YA-357/YA-357
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W10.0000” x H5.0000” x L27.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
