Front Left Axle for CF-Moto C Force 400, 500, X5, 600, X6, 800 2007-2014

Location on vehicle: Front,Left

(0) Reviews: Write first review
CF-102

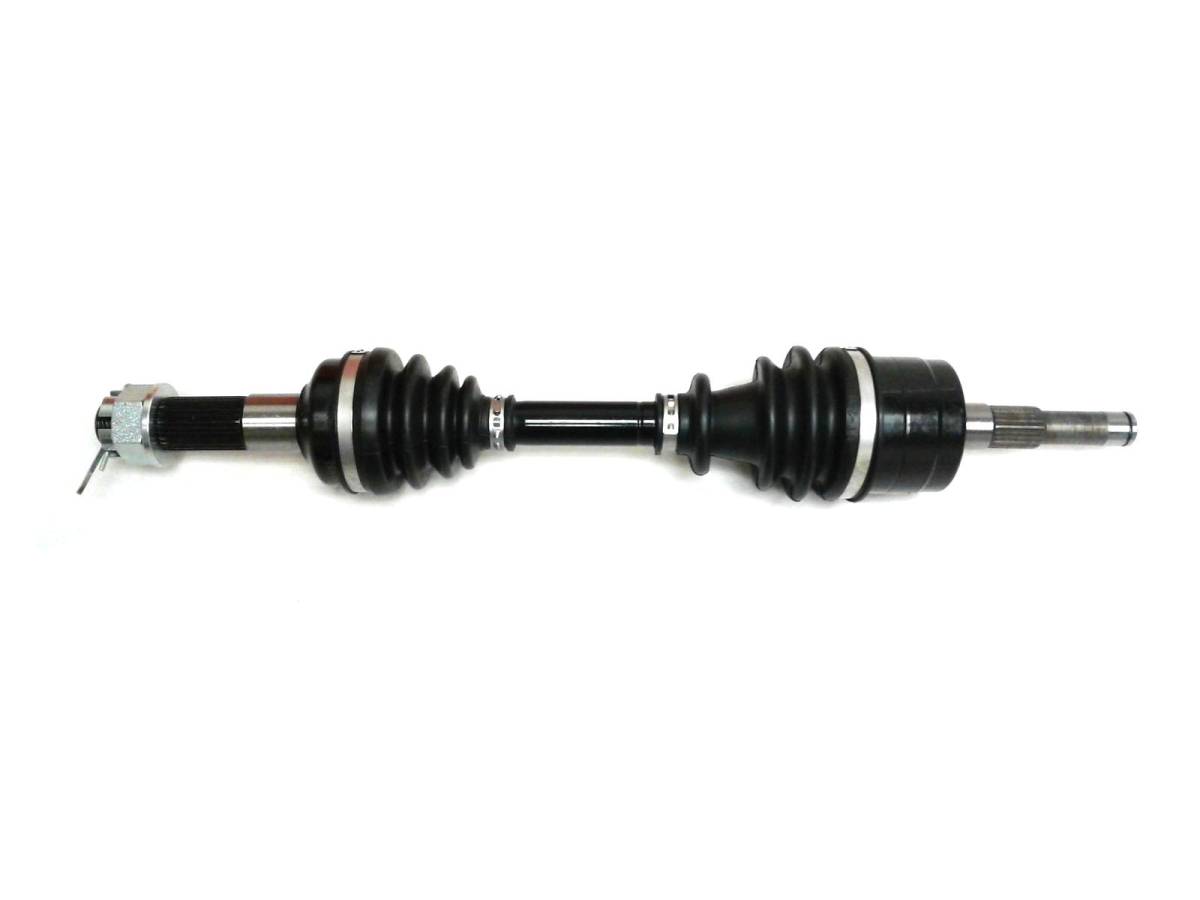

This is a new CV axle for a CF-Moto ATV.

It fits FRONT, LEFT (driver side) on the following models:

2007-2014 C Force 500

2011-2014 C Force X5 500

2011-2014 C Force X6 600

2012-2016 C Force 800

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 507 mm
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $124.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT (driver side) on the following CF-Moto ATV models: 2007-2014 C Force 500, 2011-2014 C Force X5 500, 2011-2014 C Force X6 600, 2012-2016 C Force 800.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Inboard Spline Count: 21, Outboard Spline Count 27, Compressed Length 507 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2010CF-MotoCF500--CFORCE
    2009CF-MotoCF500--CFORCE
    2008CF-MotoCF500--CFORCE
    2007CF-MotoCF500--CFORCE
    2014CF-MotoCFORCE 600--
    2013CF-MotoCFORCE 600--
    2016CF-MotoCFORCE 800EPS
    2015CF-MotoCFORCE 800EPS
    2014CF-MotoCFORCE 800--
    2013CF-MotoCFORCE 800--
    2013CF-MotoX5Long Wheel Base
    2013CF-MotoX5Short Wheel Base
    2012CF-MotoX5Long Wheel Base
    2012CF-MotoX5Short Wheel Base
    2011CF-MotoX5Long Wheel Base
    2011CF-MotoX5Short Wheel Base
    2013CF-MotoX6EFI
    2012CF-MotoX6Long Wheel Base
    2012CF-MotoX6Short Wheel Base
    2013CF-MotoX8EFI
    2012CF-MotoX8--
    2012CF-MotoX8EFI

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 9.0 lbs.
    • W5.0000” x H5.0000” x L23.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
