Monster Axles 2" Lift Set with Spacers for Yamaha Grizzly 550 & 700, XP Series

Location on vehicle: Front,Rear,Left,Right

MSET-201LAS
This is a bundled set of Monster Axles™ XP Series axles with a 2" High Lifter Signature Series Lift Kit & 2" High Lifter Wheel Spacers.

This set will fits these Yamaha ATVs:

2009-2014 Grizzly 550 (including EPS & FI)

2007-2013 Grizzly 700 (including EPS, FI, SE)

Tire Fitment: Grizzly 550 up to 27" ... Grizzly 700 up to 28"
Please note this is a general guide for tire fitment is not guaranteed
Always measure and verify your clearance before buying larger tires

Bundle features:

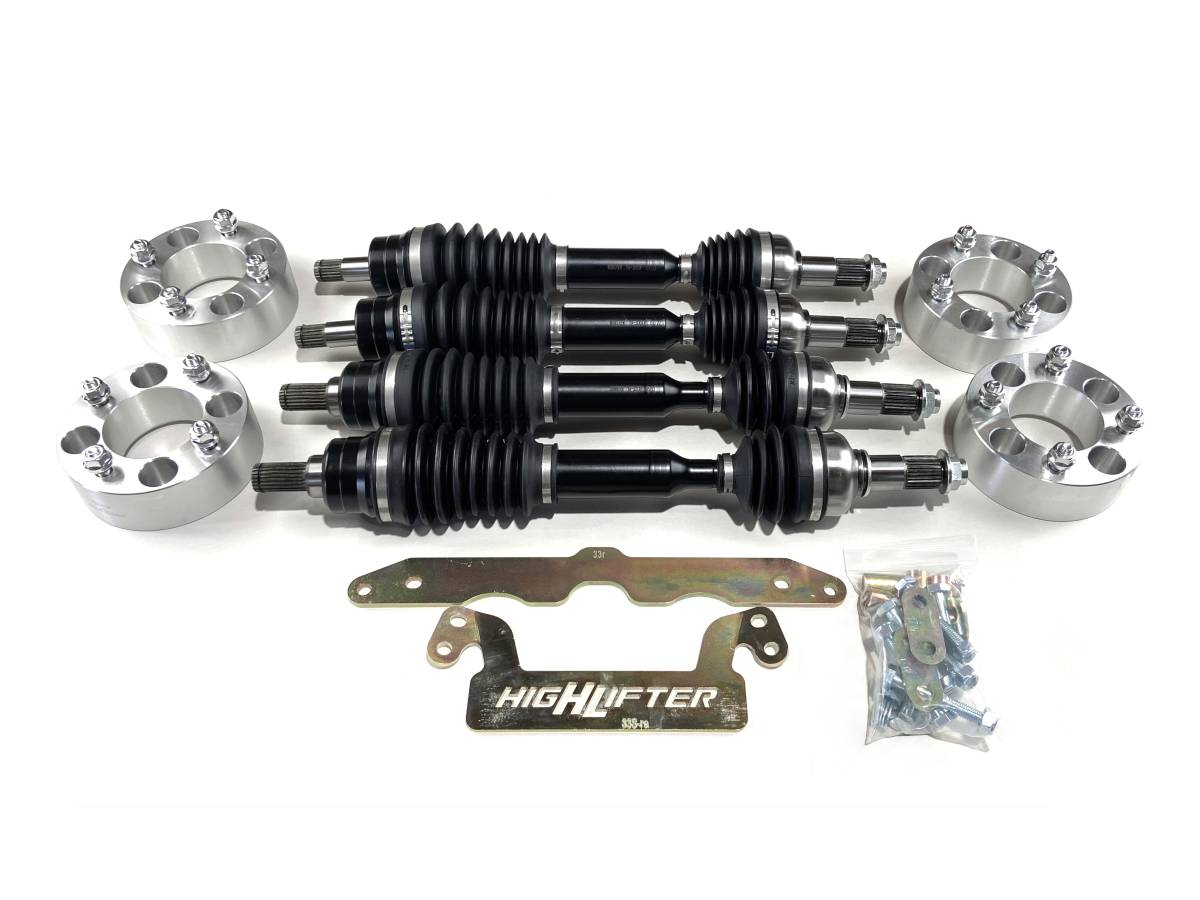

  • Includes: Monster Axles™ XP Series axles (4), 2" 4/110 High Lifter Wheel Spacers (4), a 2" High Lifter Signature Series Lift Kit
  • High Lifter 2" Lift Kit is made with zinc plating (hardware and detailed step by step photo instructions included)

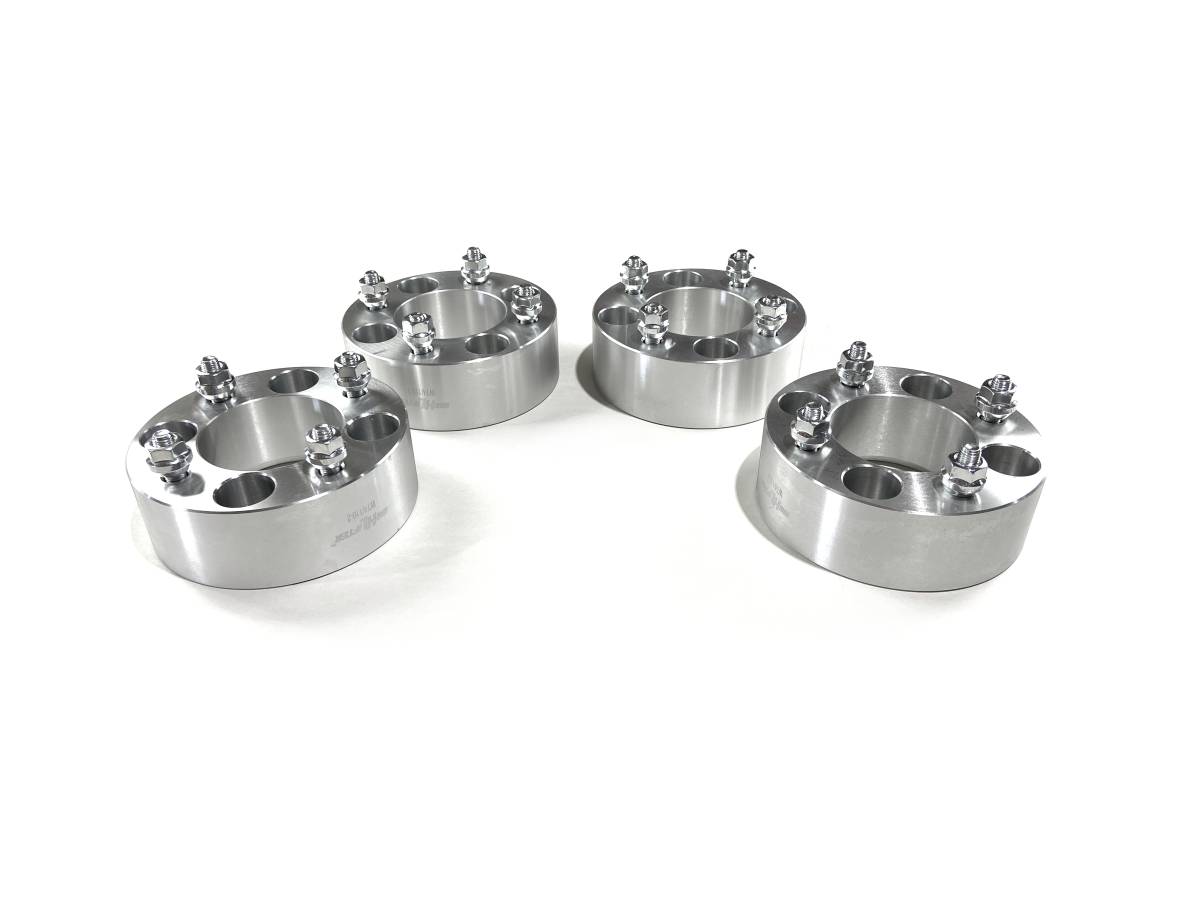

  • Wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs
  • No OEM studs are required to be removed from the ATV and stud extenders are not used
  • Wheel spacers bolt to existing studs and the wheel is then bolted to the grade 8 wheel spacer stud furnished
  • Compressed axle length: Fronts - 507 mm, Rears - 530 mm
  • Inboard axle splines: Fronts - 21, Rears - 23, Outboard axle splines: Fronts - 27, Rears - 27
MONSTER AXLES and High Lifter have teamed up to provide the best lift set available for your Grizzly. More clearance, more performance, space for larger tires, and backed by a combined 40+ years of industry experience.

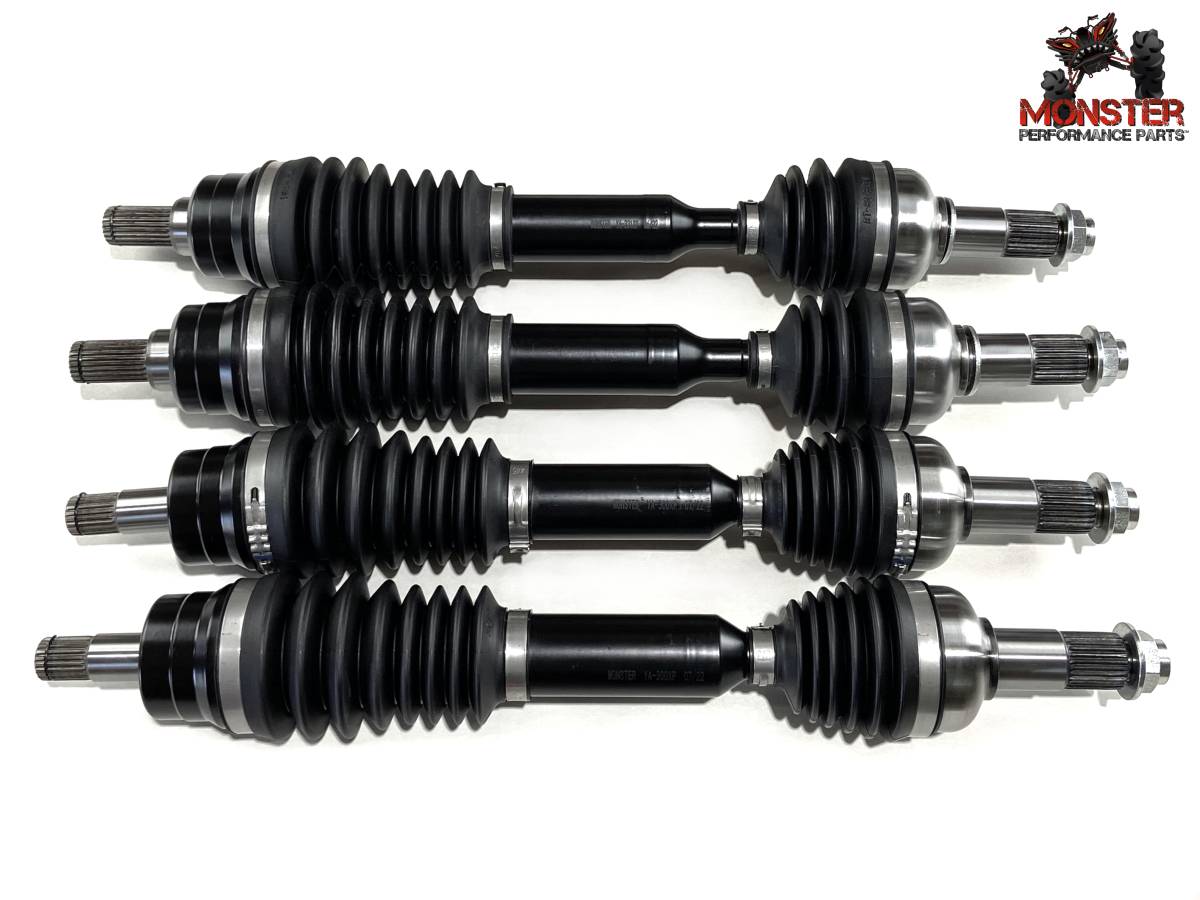

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with this 2" lift kit, they provide even more support for handling bumpy trails, crawling over rocks, and keeping you and your ride a little safer out in the wild.

Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.

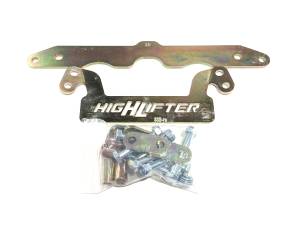

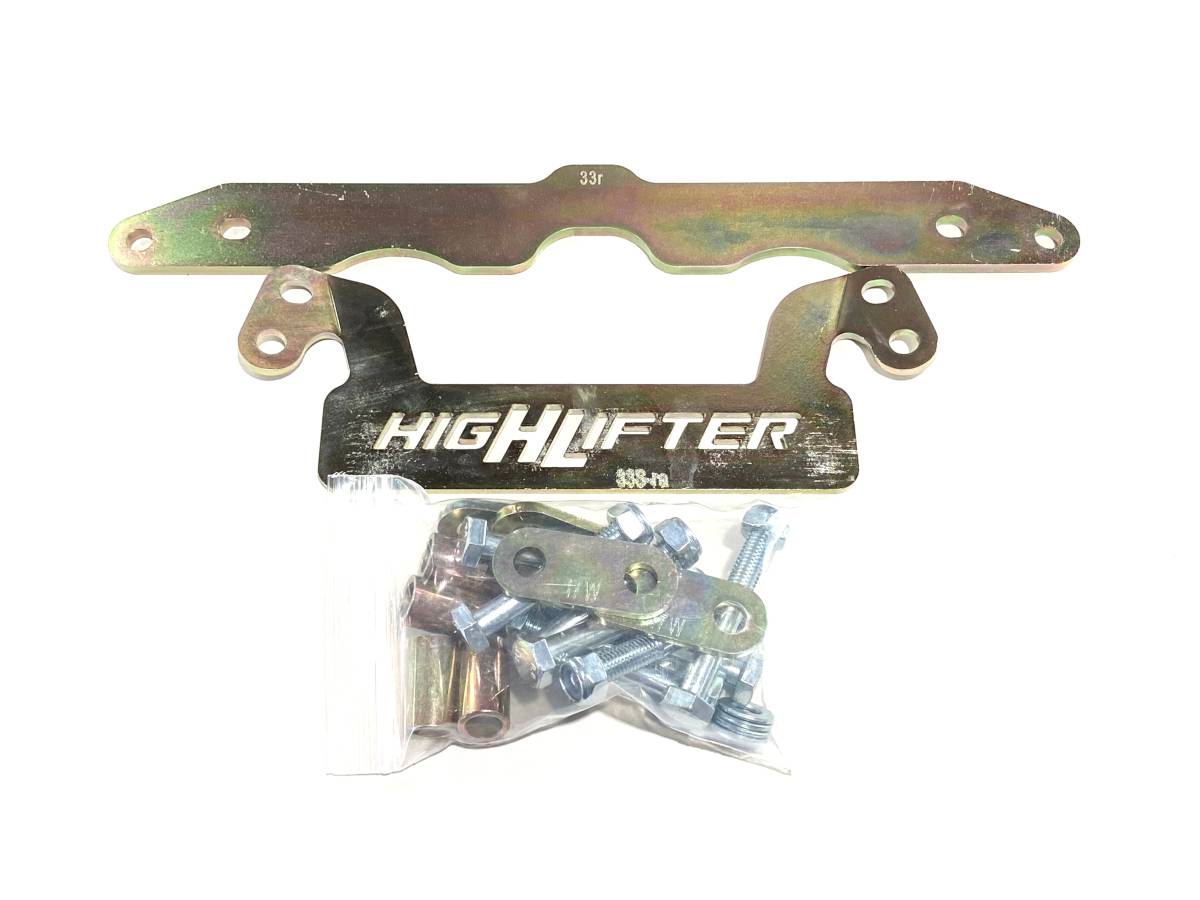

Lift your ride with confidence — High Lifter has been perfecting the lift kit for over 20 years. Their kits are precision-engineered, backed by a lifetime warranty, and are a guaranteed way to make a statement.

Wider stance, safer ride — You can increase your stability, improve handling, and get an aggressive look without having to worry about your CV joints buckling under the pressure. Plus the extra clearance will keep larger tires from rubbing on shocks, fenders, etc.

Limited Supply: only 3 remaining
Shipping: Game Changing Axles with a High Lifter Signature Series Lift & Wheel Spacers
Pricing: $999.99
Qty:
Free Ground Shipping

Warranty

Monster Warranty / High Lifter Warranty

Product Notes

  • Fits the following Yamaha ATVs: 2009-2014 Grizzly 550 & 2007-2013 Grizzly 700. Includes: XP Series Monster Axles (4), 2" High Lifter Wheel Spacers (4), and a High Lifter 2" Signature Series Lift Kit (with hardware and installation instructions).
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length up to a 4" lift. Plus, the CV joint can be easily removed for service in the field without special tools.
  • Key to its performance - the plunge mechanism is moved from the inner joint to the shaft (a telescoping shaft providing 60 mm of travel). This eliminates issues that cause most joints to bind and break. And with its inner joint designed like an outer joint, you get a 45 degree angle of operation.
  • Lift your ride with confidence - High Lifter lift kits are precision-engineered and backed by a lifetime warranty. Their wheel spacers are machined from aircraft grade 6061 billet aluminum and use grade 8 studs. This design is the strongest available to ATVs and features a zinc plating.
  • Wheel Spacers are a 4/110 bolt pattern. Compressed axle length: Fronts - 507 mm, Rears - 530 mm. Inner axle splines: Fronts - 21, Rears - 23. Outer axle splines: Fronts - 27, Rears - 27. Wheel Spacers backed by High Lifter Warranty. Axles backed by Monster Axle warranty.

  • What's In The Box

  • 1 lift kit, 4 axles, 4 wheel spacers
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2014YamahaGrizzly 550YFM550D 4x4 FI
    2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 550YFM550P 4x4 FI EPS
    2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 550YFM550FG 4x4 FI
    2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 550YFM550FG 4x4 FI
    2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 550YFM550FG 4x4 FI
    2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 550YFM550FG 4x4 FI
    2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FG 4x4 FI
    2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
    2013YamahaGrizzly 700YFM700FG 4x4 FI
    2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2012YamahaGrizzly 700YFM700FG 4x4 FI
    2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2011YamahaGrizzly 700YFM700FG 4x4 FI
    2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2010YamahaGrizzly 700YFM700FG 4x4 FI
    2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2009YamahaGrizzly 700YFM700FG 4x4 FI
    2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2008YamahaGrizzly 700YFM700FG 4x4 FI
    2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
    2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
