CV Axle Set for Can-Am Maverick XMR 1000 2016-2018

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-119/CA-219/CA-400/CA-400

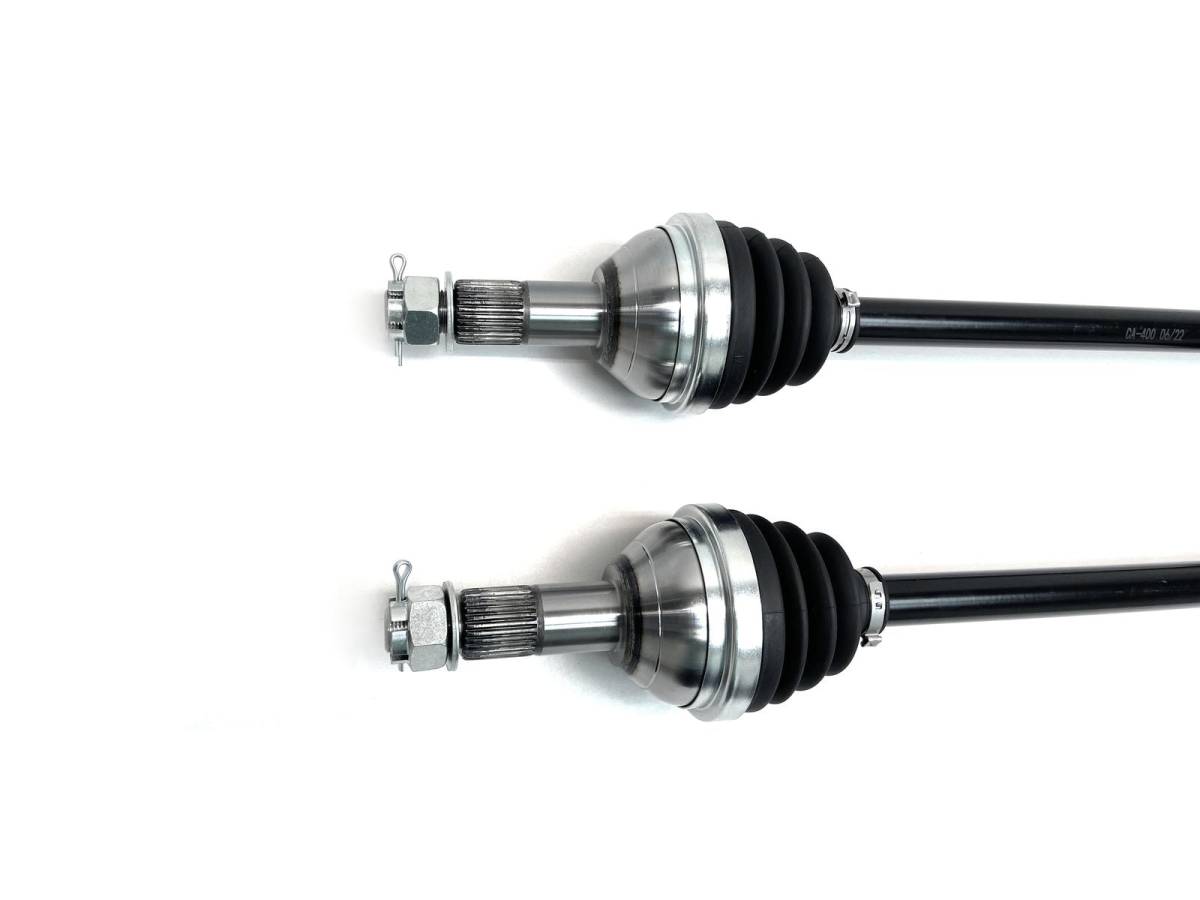

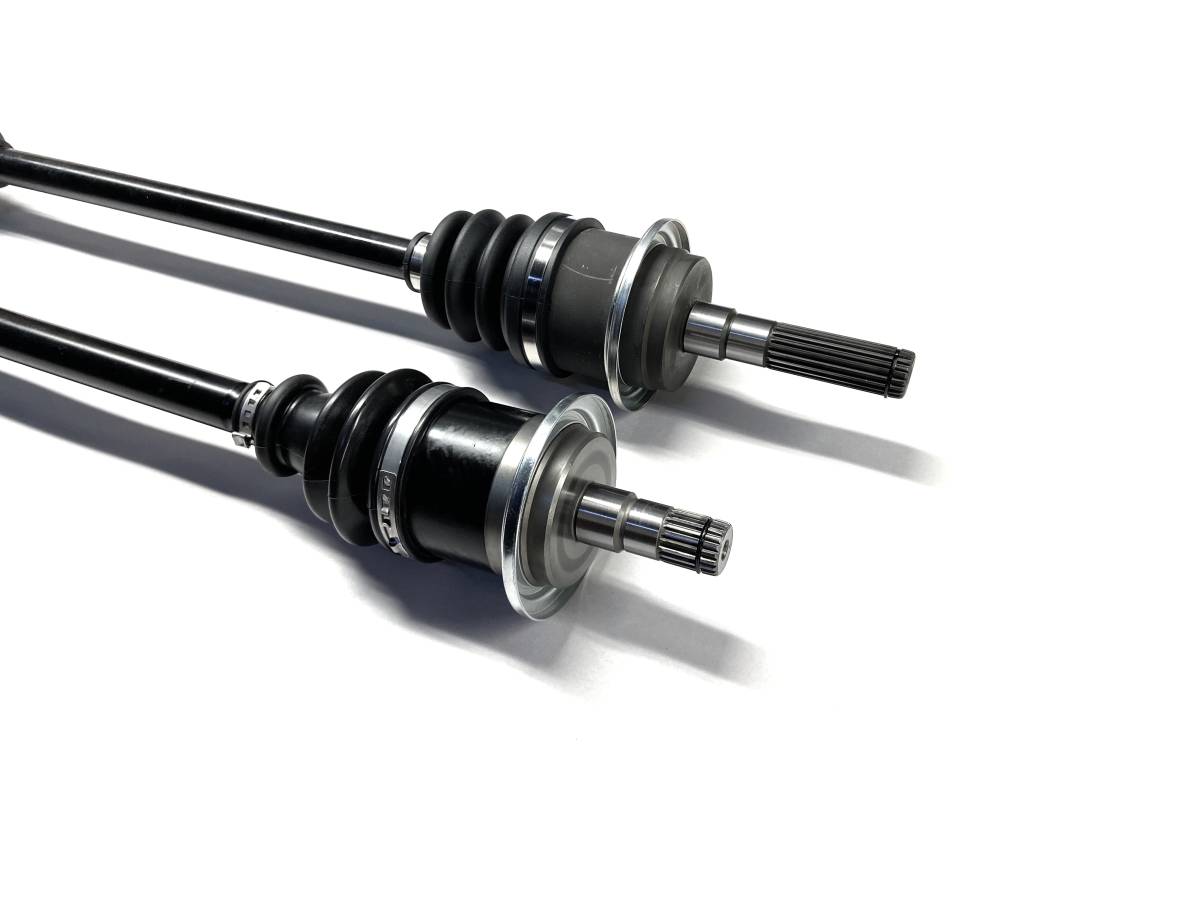

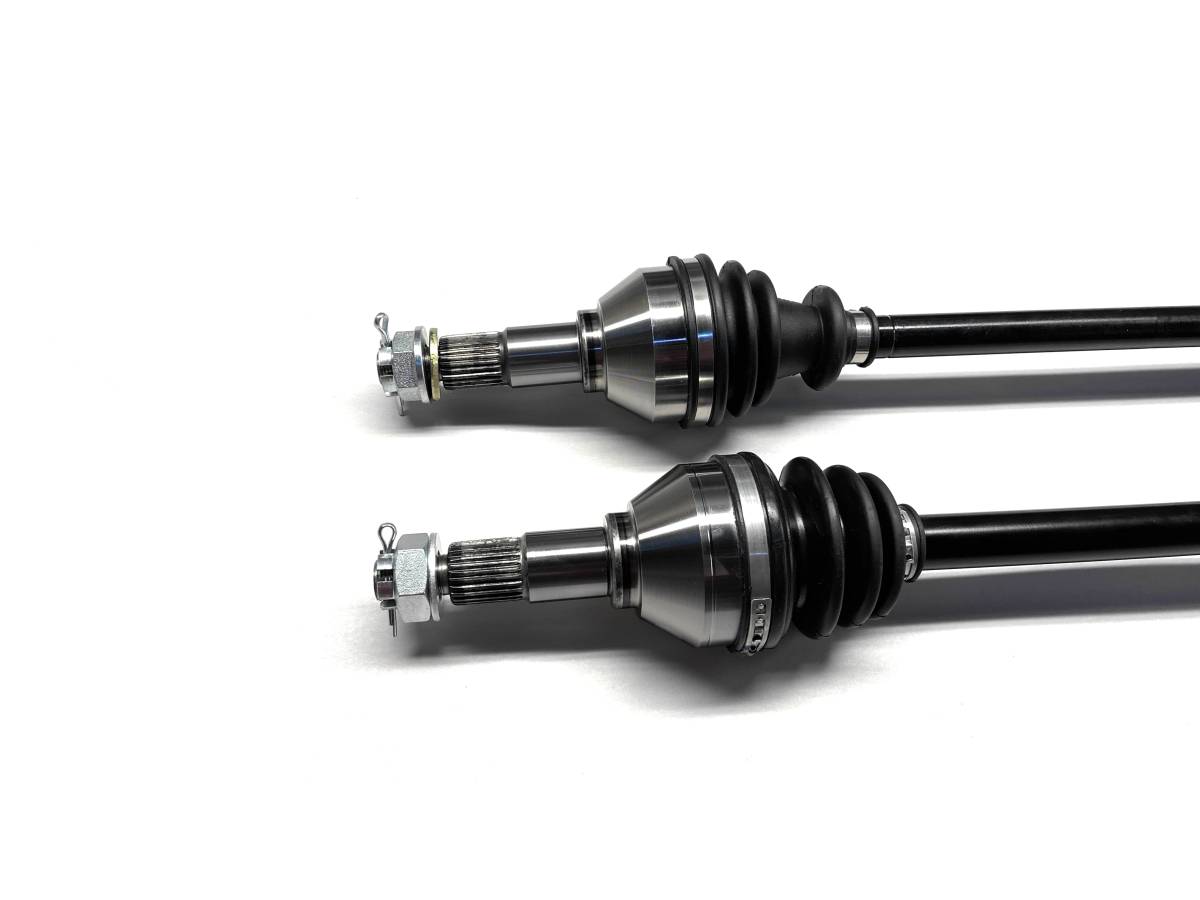

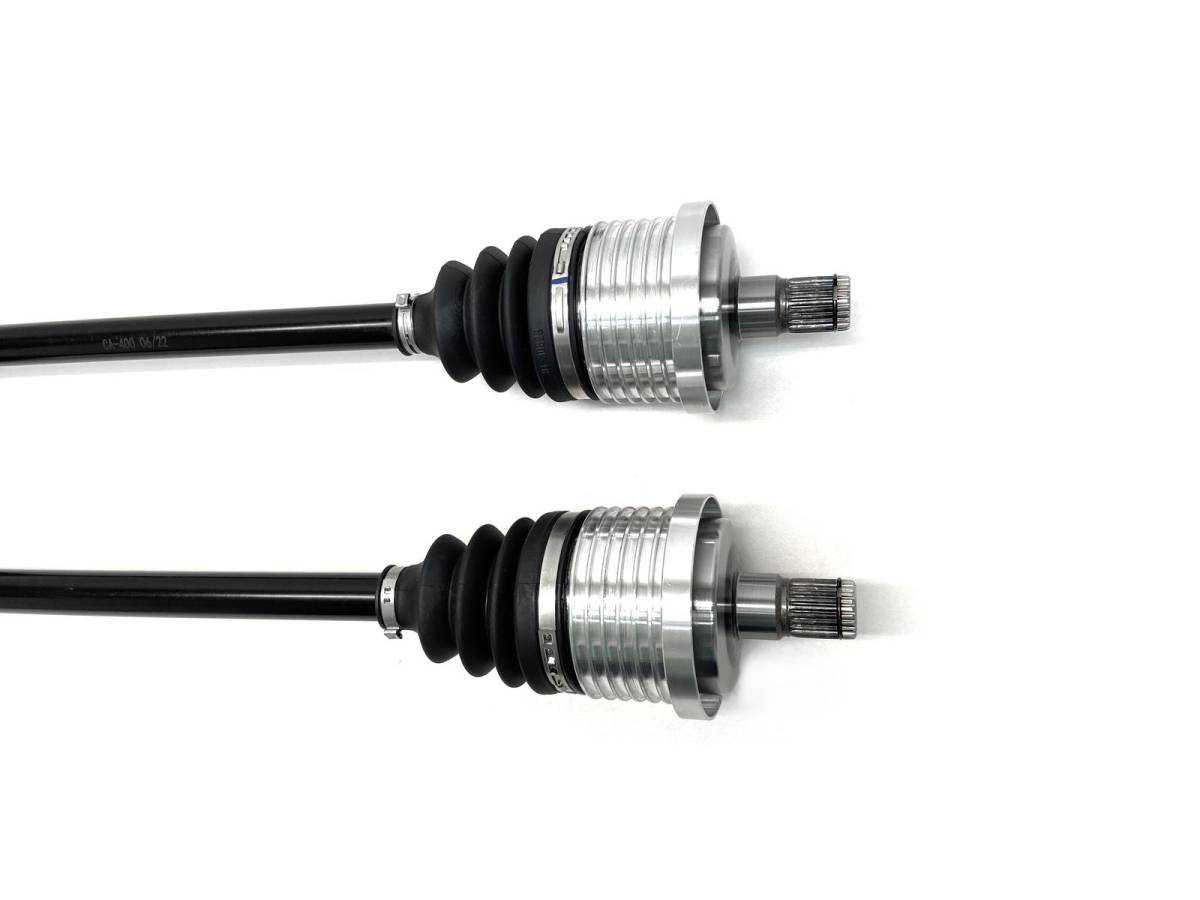

This is a set of new CV axles for a Can-Am Maverick XMR.

They fit the following models:

2016-2018 Maverick 1000R XMR

2017-2018 Maverick MAX 1000R XMR

*Axles made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

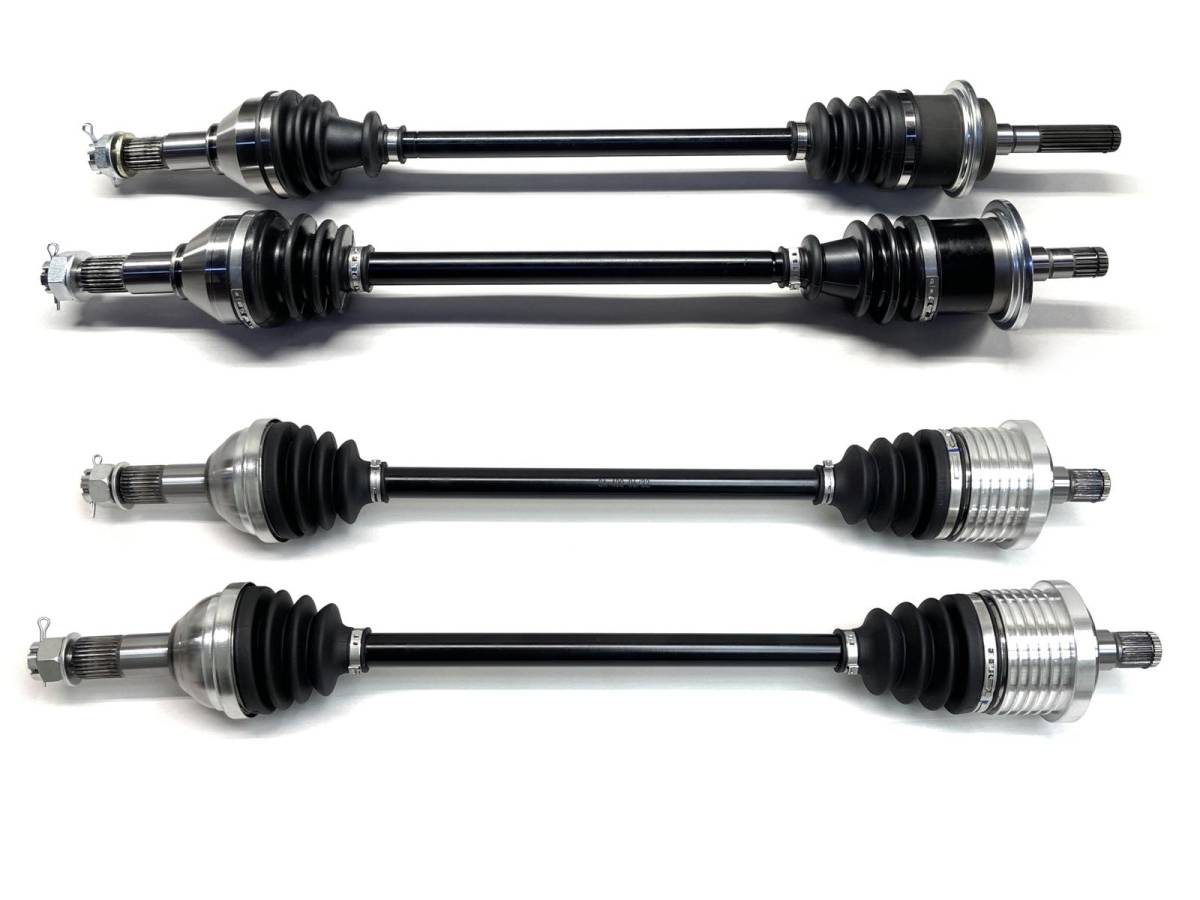

  • Includes 4 fully-assembled CV axles
  • inobard CV joint spline count: front - 21, rears - 24
  • outboard CV joint spline count: fronts - 26, rears - 29
  • Compressed overall axle length (mm): FL - 730.5, FR- 773, BR = 760
  • Replaces OEM # FL - 705401387, 705401663, FR - 705401388, 705401878, BR - 705502351, 705502414
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $284.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2018Can-AmMaverick 1000R4x4 XMR DPS
2017Can-AmMaverick 1000R4x4 XMR DPS
2016Can-AmMaverick 1000R4x4 XMR DPS
2018Can-AmMaverick Max 1000R4x4 XMR DPS
2017Can-AmMaverick Max 1000R4x4 XMR DPS

Product Notes

  • Fits the following Can-Am models: 2016-2018 Maverick XMR 1000, 2017-2018 Maverick MAX XMR 1000. Please note these will only fit XMR 'Mud Racer' models.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # FL - 705401387, 705401663, FR - 705401388, 705401878, BR - 705502351, 705502414. Compressed length (mm) - FL - 730.5, FR - 773, RL - 760, RR - 760, Inboard splines: front - 21, rears - 24, Outboard splines: fronts - 26, rears - 29.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-119/CA-219/CA-400/CA-400
    • CA-119/CA-219/CA-400/CA-400
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New
