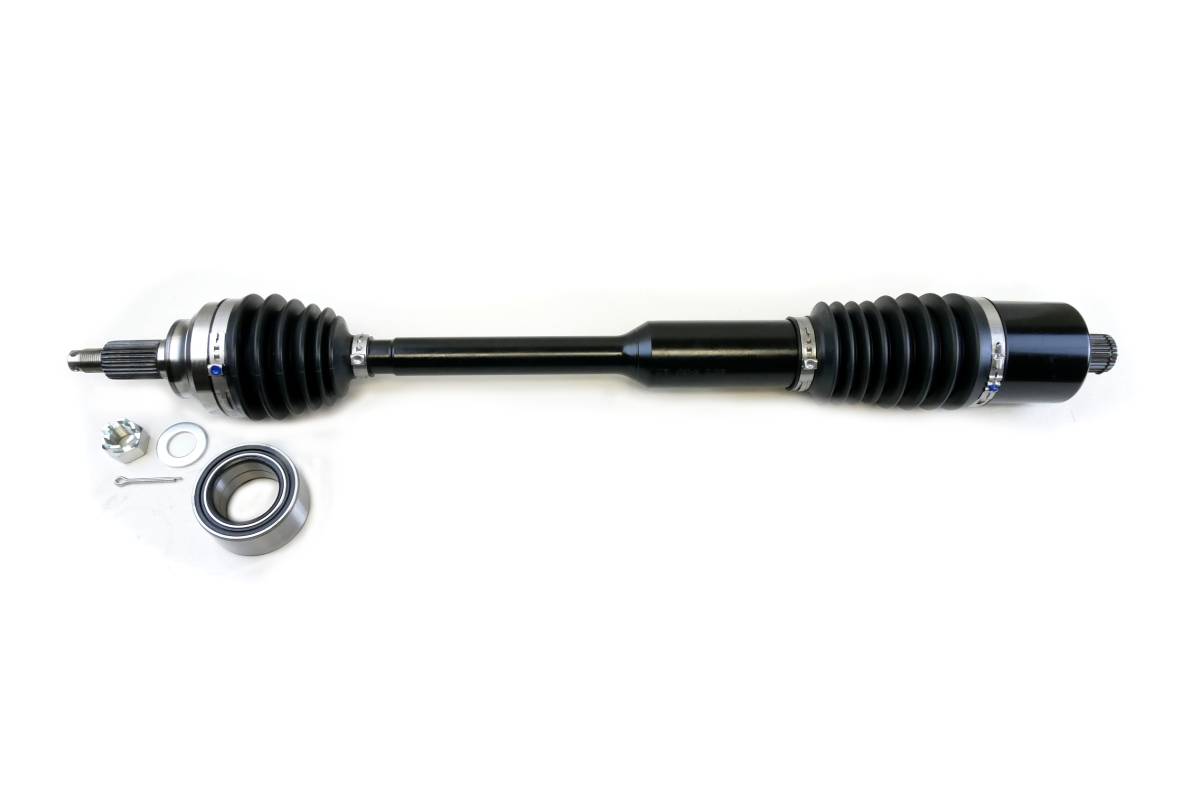

Monster Axles Rear Axle & Bearing for Polaris RZR XP 1000, Turbo, & RS1 1333858

Location on vehicle: Rear,Left,Right

PO-339XP/WB-1628
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.95
Qty:
Free Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Polaris models: 2016-2019 RZR XP/XP4 1000, 2016-2019 RZR XP/XP4 Turbo (excluding Turbo S models) & 2018-2021 RZR RS1 4x4. Set includes 1 axle & 1 wheel bearing.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 1333439, 1333944, 1333858. Compressed length - 737 mm (both), Inboard spline count - 28 (both), Outboard spline count - 26. Comes with a 1 year warranty (excluding torn boots).

  • What's In The Box

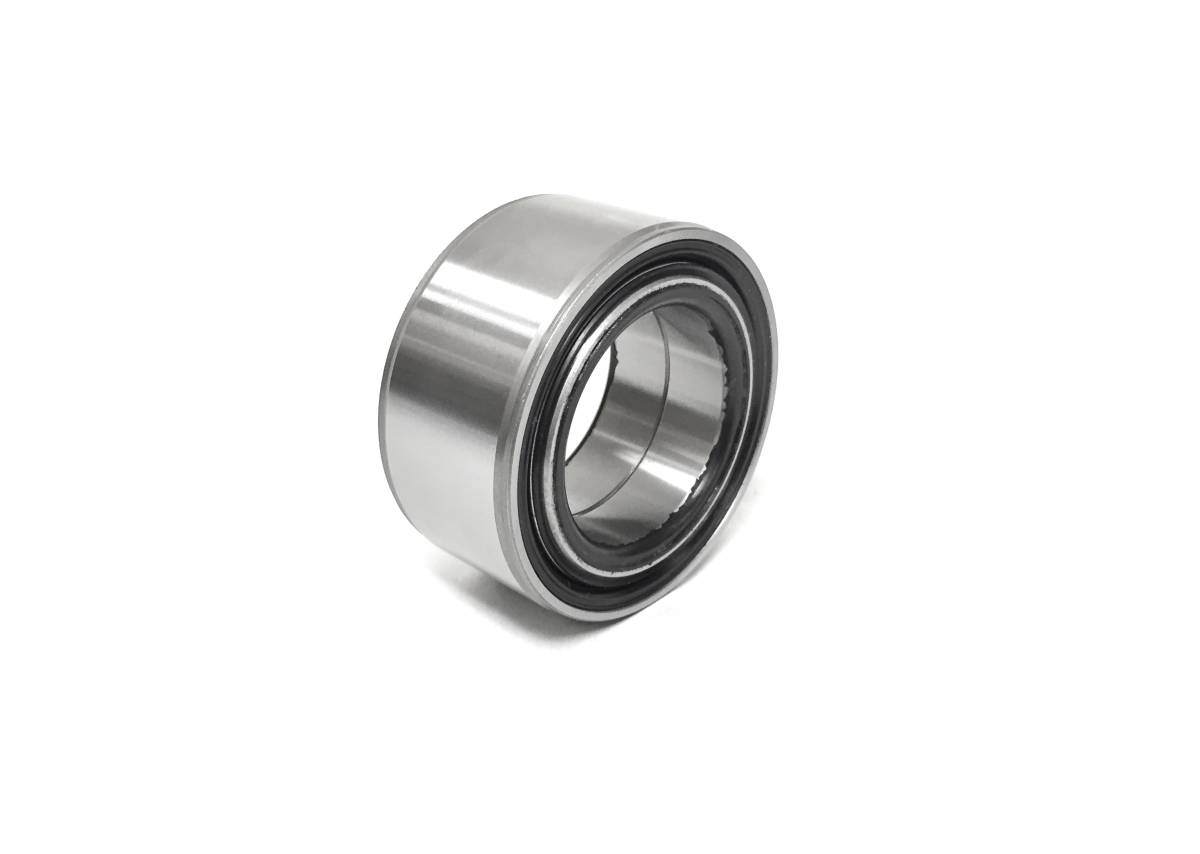

  • 1 axle, 1 wheel bearing
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2021PolarisRZR RS1EPS
    2020PolarisRZR RS1EPS
    2019PolarisRZR RS1EPS
    2018PolarisRZR RS1EPS
    2019PolarisRZR XPTurbo EPS
    2019PolarisRZR XPTurbo EPS DYNAMIX Edition
    2019PolarisRZR XPTurbo EPS LE
    2018PolarisRZR XPTurbo EPS
    2018PolarisRZR XPTurbo EPS DYNAMIX Edition
    2018PolarisRZR XPTurbo EPS Fox Edition
    2017PolarisRZR XPTurbo EPS
    2016PolarisRZR XPTurbo EPS
    2019PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2019PolarisRZR XP 4Turbo EPS LE
    2018PolarisRZR XP 4Turbo EPS
    2018PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2018PolarisRZR XP 4Turbo EPS Fox Edition
    2017PolarisRZR XP 4Turbo EPS
    2016PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4 1000DYNAMIX Edition EPS
    2019PolarisRZR XP 4 1000EPS
    2019PolarisRZR XP 4 1000High Lifter Edition EPS
    2019PolarisRZR XP 4 1000Ride Command Edition EPS
    2018PolarisRZR XP 4 1000EPS
    2018PolarisRZR XP 4 1000High Lifter Edition EPS
    2018PolarisRZR XP 4 1000Ride Command Edition EPS
    2017PolarisRZR XP 4 1000EPS
    2017PolarisRZR XP 4 1000High Lifter Edition EPS
    2016PolarisRZR XP 4 1000EPS
    2016PolarisRZR XP 4 1000High Lifter Edition EPS
    2019PolarisRZR XP 1000DYNAMIX Edition EPS
    2019PolarisRZR XP 1000EPS
    2019PolarisRZR XP 1000High Lifter Edition EPS
    2019PolarisRZR XP 1000Ride Command Edition EPS
    2019PolarisRZR XP 1000Trails and Rock Edition EPS
    2018PolarisRZR XP 1000EPS
    2018PolarisRZR XP 1000High Lifter Edition EPS
    2018PolarisRZR XP 1000Ride Command Edition EPS
    2018PolarisRZR XP 1000Trails and Rock Edition EPS
    2017PolarisRZR XP 1000EPS
    2017PolarisRZR XP 1000Gold Matte Metallic LE EPS
    2017PolarisRZR XP 1000High Lifter Edition EPS
    2017PolarisRZR XP 1000Veliocity Blue LE EPS
    2016PolarisRZR XP 1000EPS
    2016PolarisRZR XP 1000High Lifter Edition EPS

    Details

    • PO-339XP/WB-1628
    • PO-339XP/WB-1628
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 20.2 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
