Additional Images

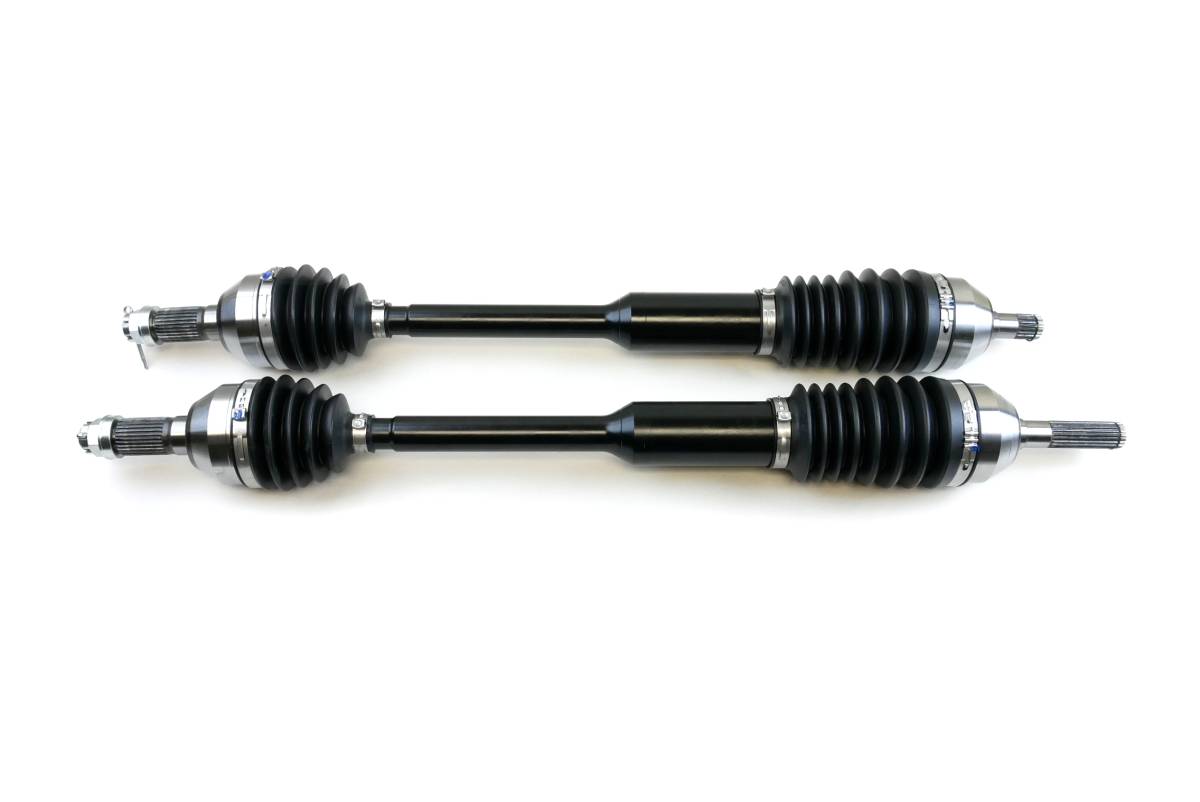

Monster Axles Front Axle Pair for Can-Am Maverick X3 Turbo, 705401686, 705401687

Location on vehicle: Front,Left,Right

CA-124XP/CA-224XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $339.95
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Can-Am X3 models: 2017-2018 Maverick X3/X3 Turbo STD & XDS-DPS, 2017-2018 Maverick X3 MAX/X3 MAX Turbo STD & XDS-DPS, 2018 Maverick X3 900 HO, 2019 Maverick X3 Turbo/Turbo R STD, 2019 Maverick X3 MAX Turbo R.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (left) 705401686, 705402097, (right) 705401687, 705402098. Compressed length: Left - 778 mm, Right - 735 mm, Inboard spline count - 21 (both), Outboard spline count - 29 (both). Comes with a 1 year warranty (excluding torn boots). Set includes 2 axles.

  • What's In The Box

  • 2 axles
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2019Can-AmMaverick X34x4 Turbo DPS
    2018Can-AmMaverick X34x4 Turbo DPS
    2019Can-AmMaverick X3 Max R4x4 Turbo DPS
    2017Can-AmMaverick X3 Max R4x4 Turbo DPS
    2017Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
    2019Can-AmMaverick X3 R4x4 Turbo DPS
    2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
    2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2017Can-AmMaverick X3 R4x4 Turbo DPS
    2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

    Details

    • CA-124XP/CA-224XP
    • CA-124XP/CA-224XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 36.0 lbs.
    • W9.5000” x H9.5000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
