Monster Axles Front Axle & Bearing for Polaris RZR Turbo & RS1 1333870 XP Series

Location on vehicle: Front,Left,Right

PO-332XP/WB-1628
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022PolarisRZR RS1EPS
2021PolarisRZR RS1EPS
2020PolarisRZR RS1EPS
2019PolarisRZR RS1EPS
2018PolarisRZR RS1EPS
2021PolarisRZR XPTurbo EPS
2021PolarisRZR XPTurbo S
2020PolarisRZR XPTurbo EPS
2020PolarisRZR XPTurbo S
2020PolarisRZR XPTurbo S Velocity
2019PolarisRZR XPTurbo EPS
2019PolarisRZR XPTurbo EPS DYNAMIX Edition
2019PolarisRZR XPTurbo EPS LE
2019PolarisRZR XPTurbo S
2021PolarisRZR XP 4Turbo
2021PolarisRZR XP 4Turbo S
2021PolarisRZR XP 4Turbo S Velocity
2020PolarisRZR XP 4Turbo
2020PolarisRZR XP 4Turbo S
2020PolarisRZR XP 4Turbo S Velocity
2019PolarisRZR XP 4Turbo
2019PolarisRZR XP 4Turbo EPS
2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
2019PolarisRZR XP 4Turbo EPS LE
2019PolarisRZR XP 4Turbo S

Product Notes

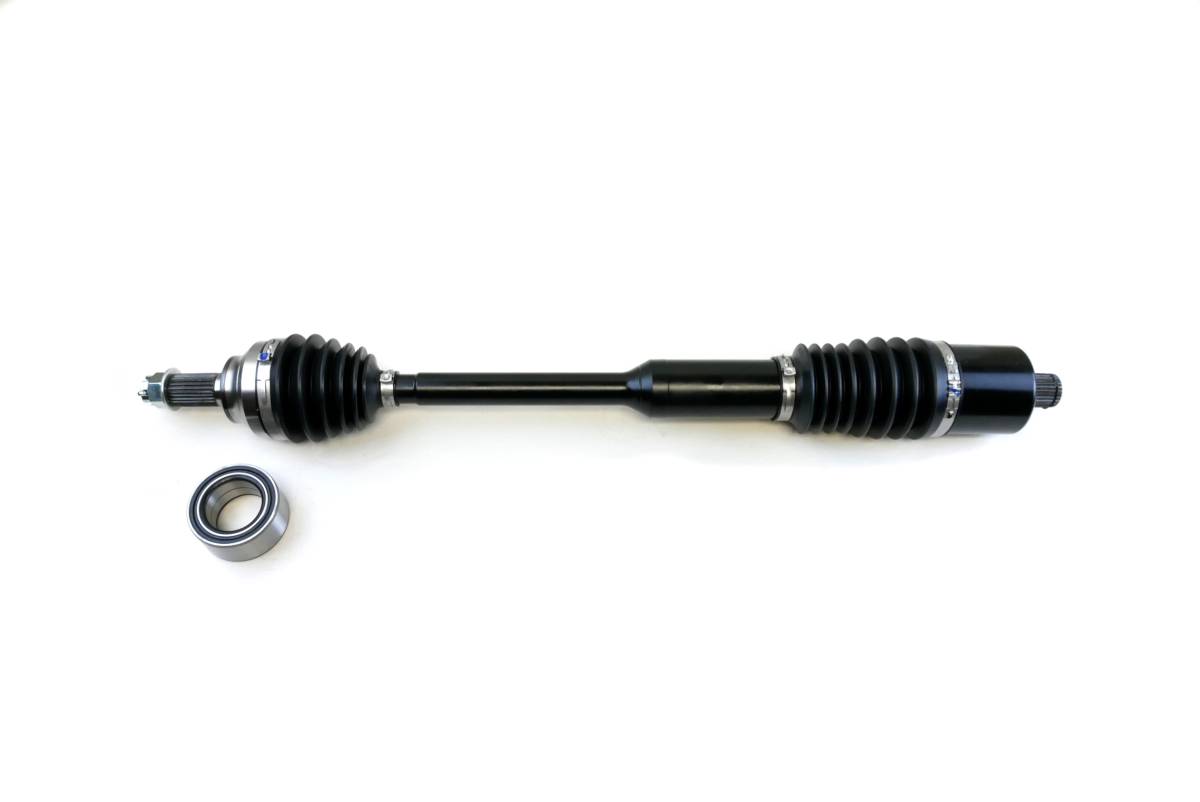

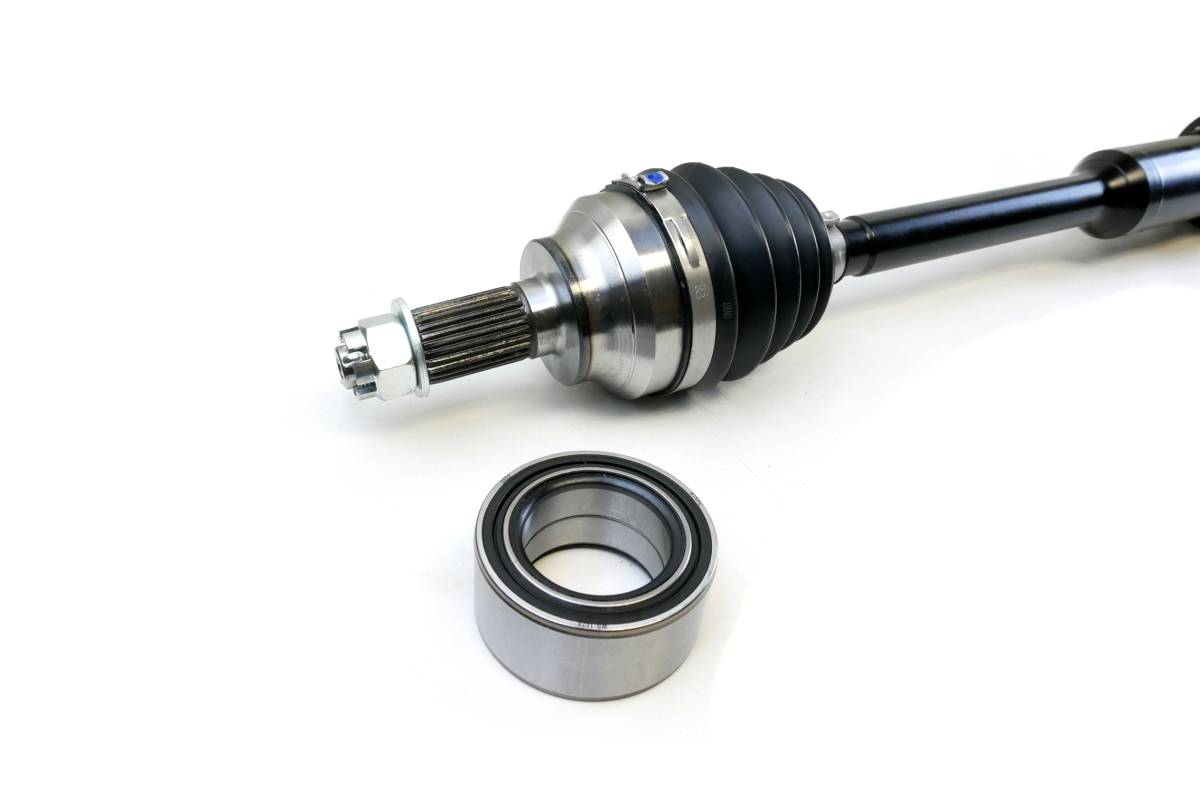

  • Fits FRONT, LEFT or RIGHT on the following Polaris models. 2016-2021 RZR XP/XP4 Turbo & 2018-2022 RZR RS1. Set includes 1 axle & 1 wheel bearing.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axle) 1334273, 1333434, 1333942, 1333870, (bearing) 3514627, 3514699. Compressed length: 752 mm, Inner spline count: 28, Outer spline count: 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 1 axle, 1 wheel bearing
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-332XP/WB-1628
    • PO-332XP/WB-1628
    • CUSTOM
    • Monster Axles
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 22.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
