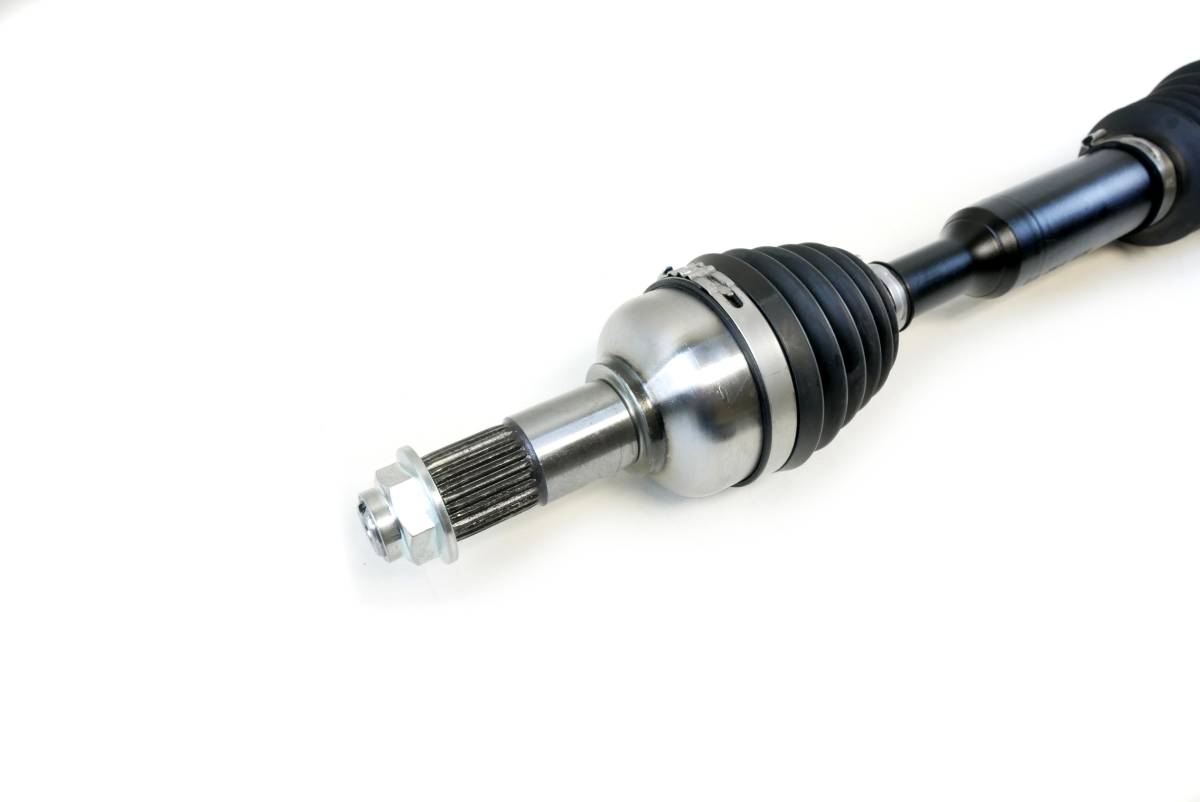

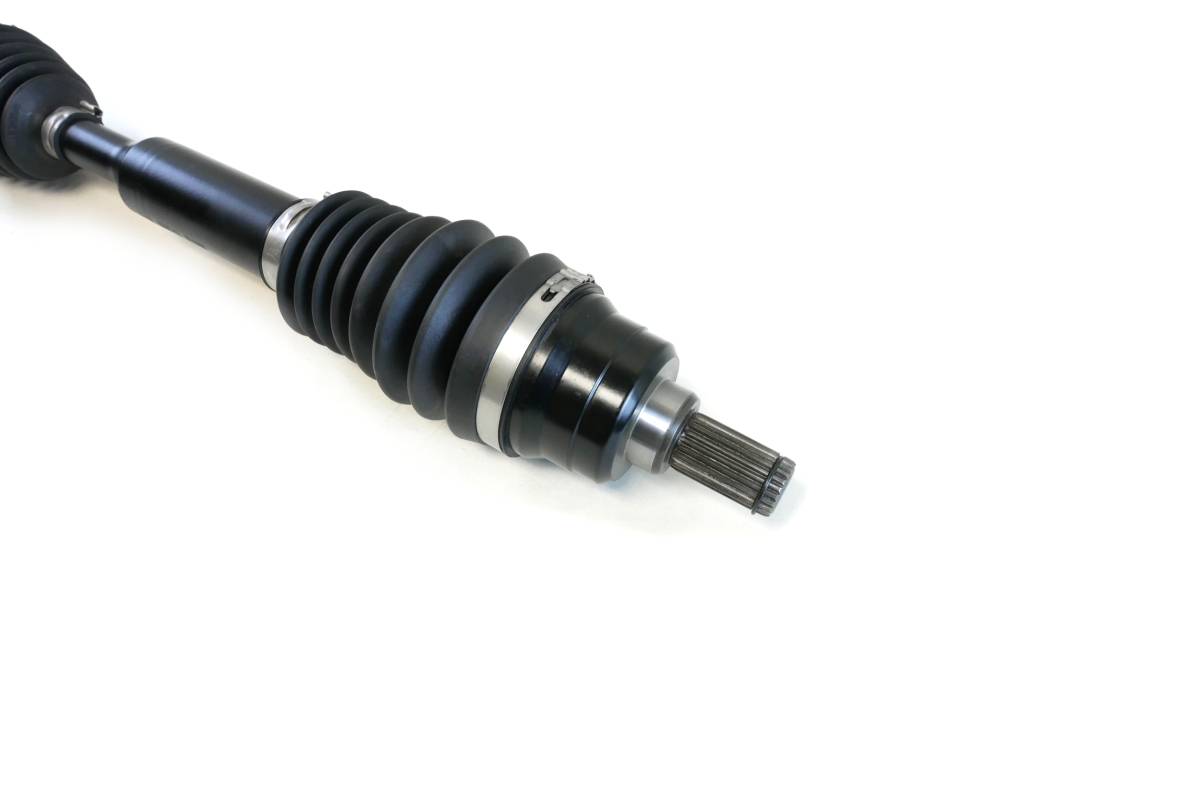

Monster Axles Rear Pair & Bearings for Yamaha Grizzly 700 2014-2015, XP Series

Location on vehicle: Rear,Left,Right

WB-1496/WB-1496/YA-346XP/YA-346XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Limited Supply: only 4 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015YamahaGrizzly 700YFM700D 4x4 FI
2015YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
2015YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2015YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2015YamahaGrizzly 700YFM700PHFH 4x4 Hunter Edition FI EPS
2014YamahaGrizzly 700YFM700D 4x4 FI
2014YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
2014YamahaGrizzly 700YFM700P 4x4 FI EPS
2014YamahaGrizzly 700YFM700PHH 4x4 Hunter Edition FI EPS
2014YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

Product Notes

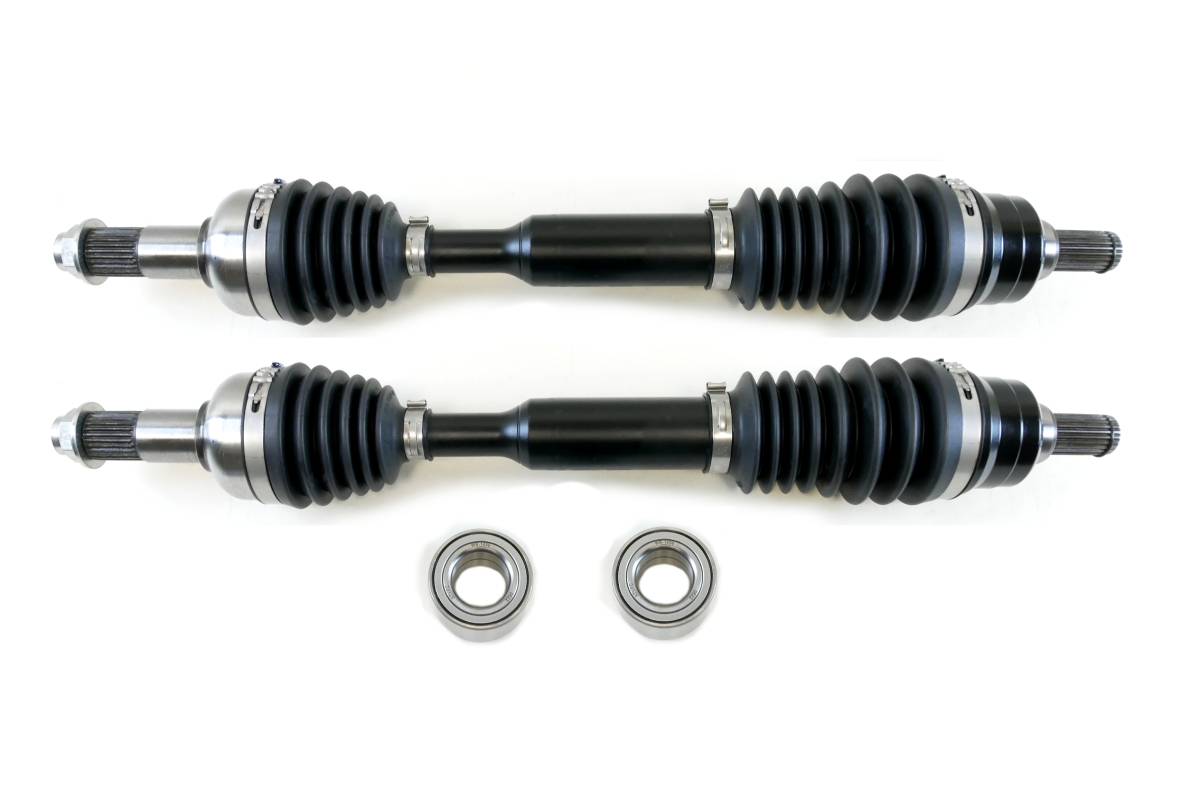

  • Fits REAR, LEFT & RIGHT on the 2014-2015 Yamaha Grizzly 700 (including EPS, FI, SE, and Hunter models). Set includes 2 axles & 2 wheel bearings.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # (axle) 28P-2530V-01-00, 28P-2510F-02-00, 2BG-2518E-10-00, (bearing) 93305-00601-00, 93305-00602-00. Compressed length - 552.5 mm, Inboard spline count - 23, Outboard spline count - 27. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

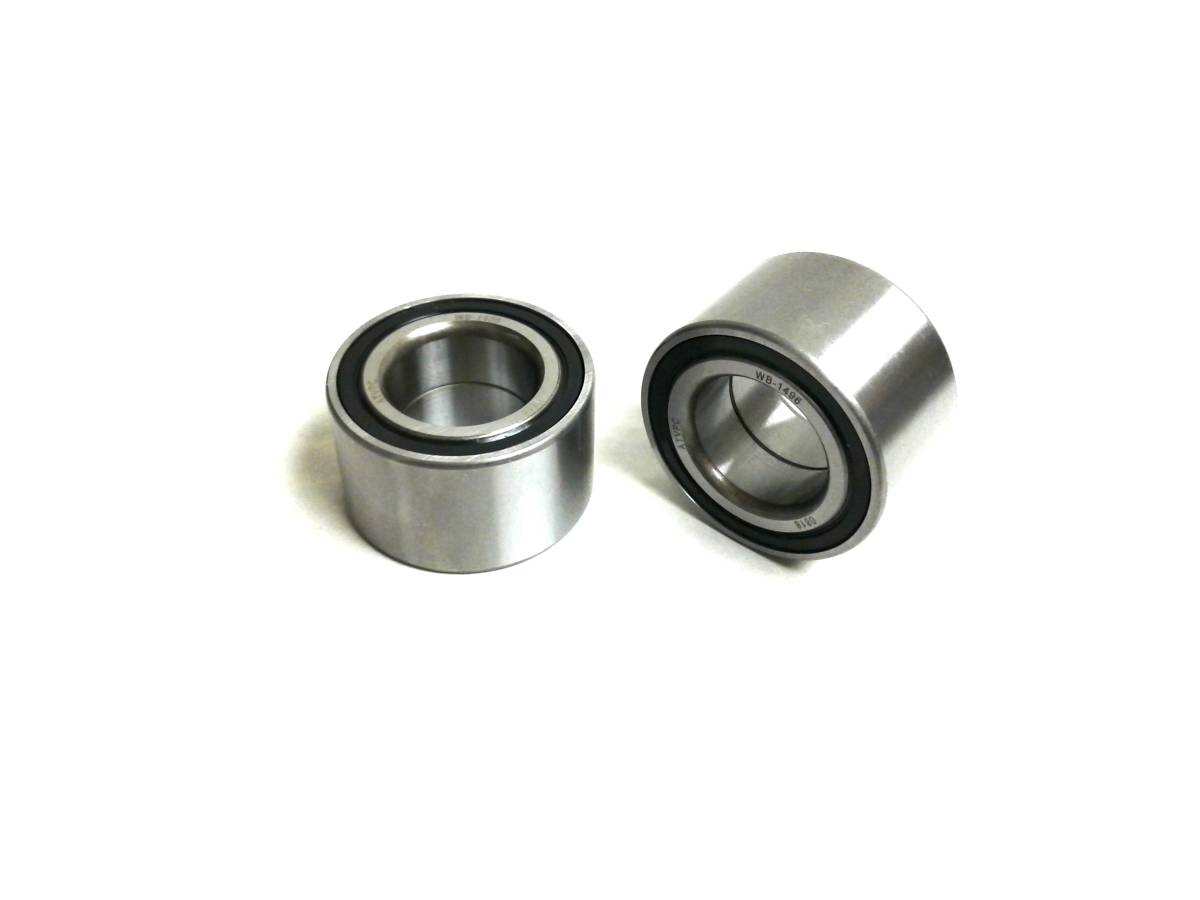

  • 2 axles & 2 wheel bearings
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • WB-1496/WB-1496/YA-346XP/YA-346XP
    • WB-1496/WB-1496/YA-346XP/YA-346XP
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
