Front Axle & Bearing for Cub Cadet Volunteer 4x4 06-20, 611-04071A, 911-04071A

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CC-300/WB-1516

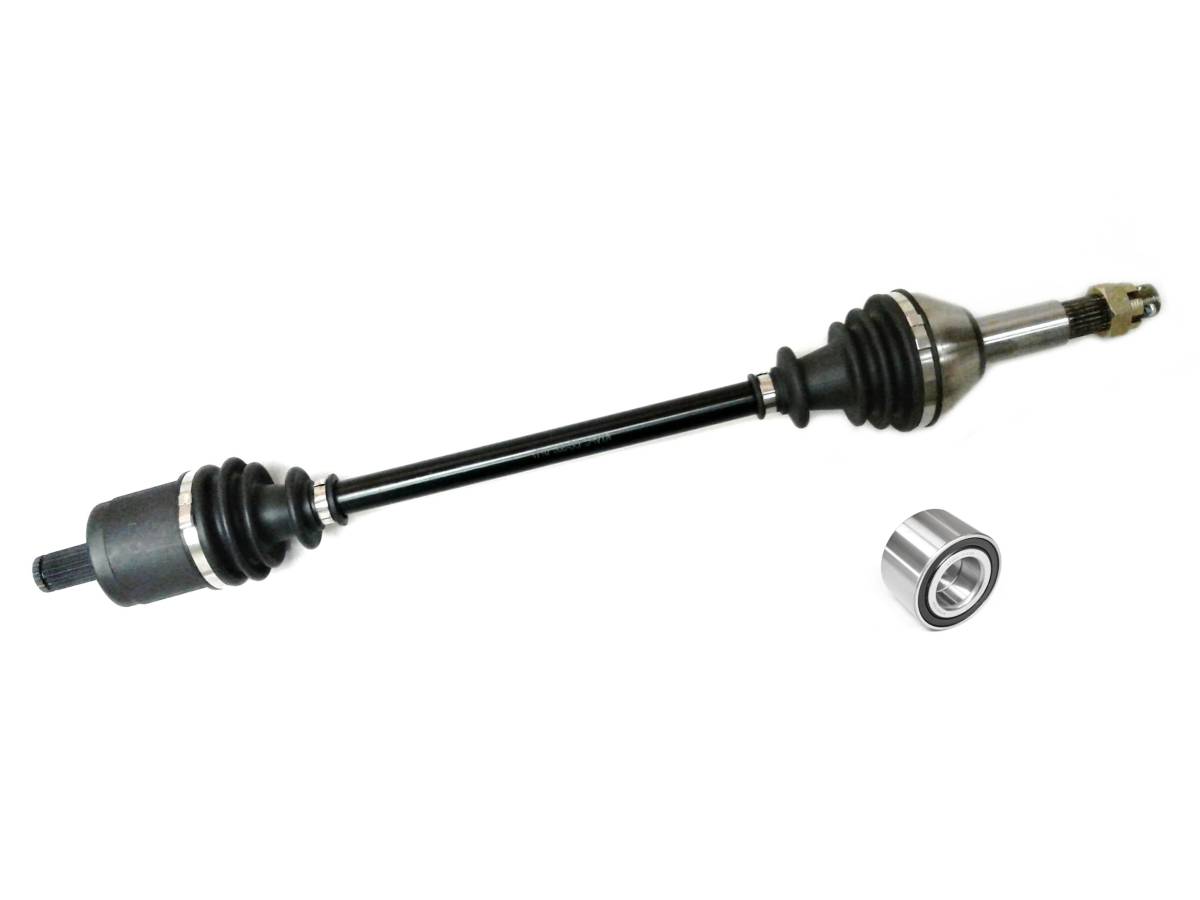

This is a CV axle with wheel bearing for a Cub Cadet Volunteer UTV.

They fit FRONT, LEFT or RIGHT on the following models:

2006-2020 ... 4x4 Volunteer (excluding WT)

2007-2015 ... 4x4 Diesel Volunteer

*made as an OE replacement, and not intended for lifted/ modified vehicles

*please note this will not fit WT editions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

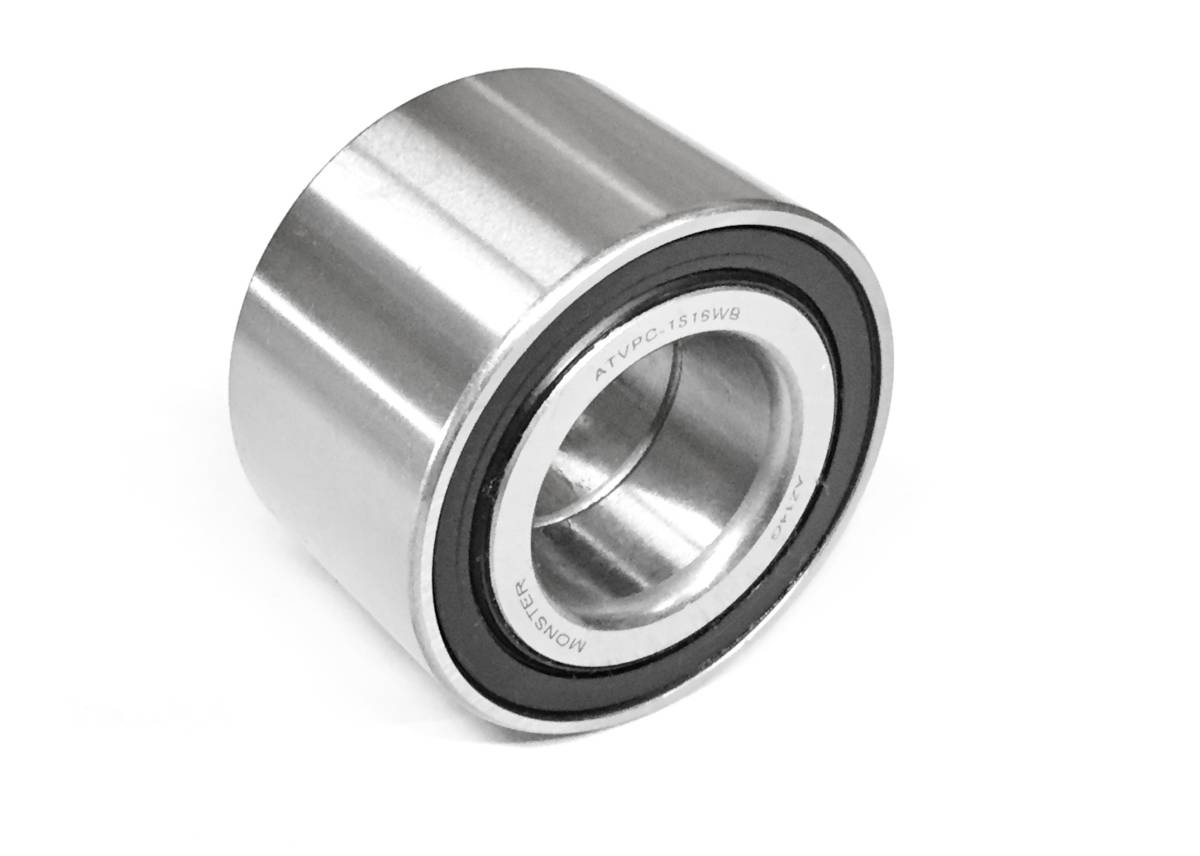

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

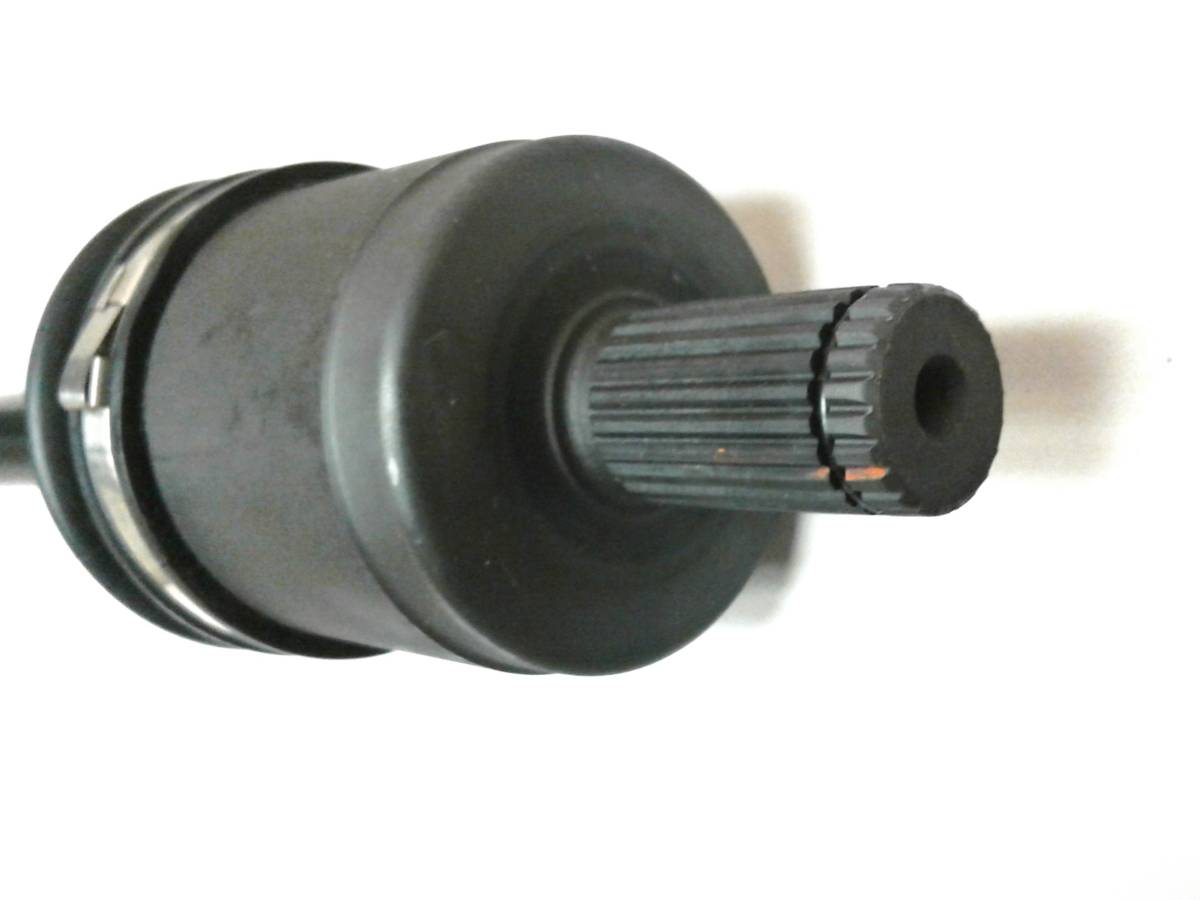

  • Inboard CV joint spline count: 22

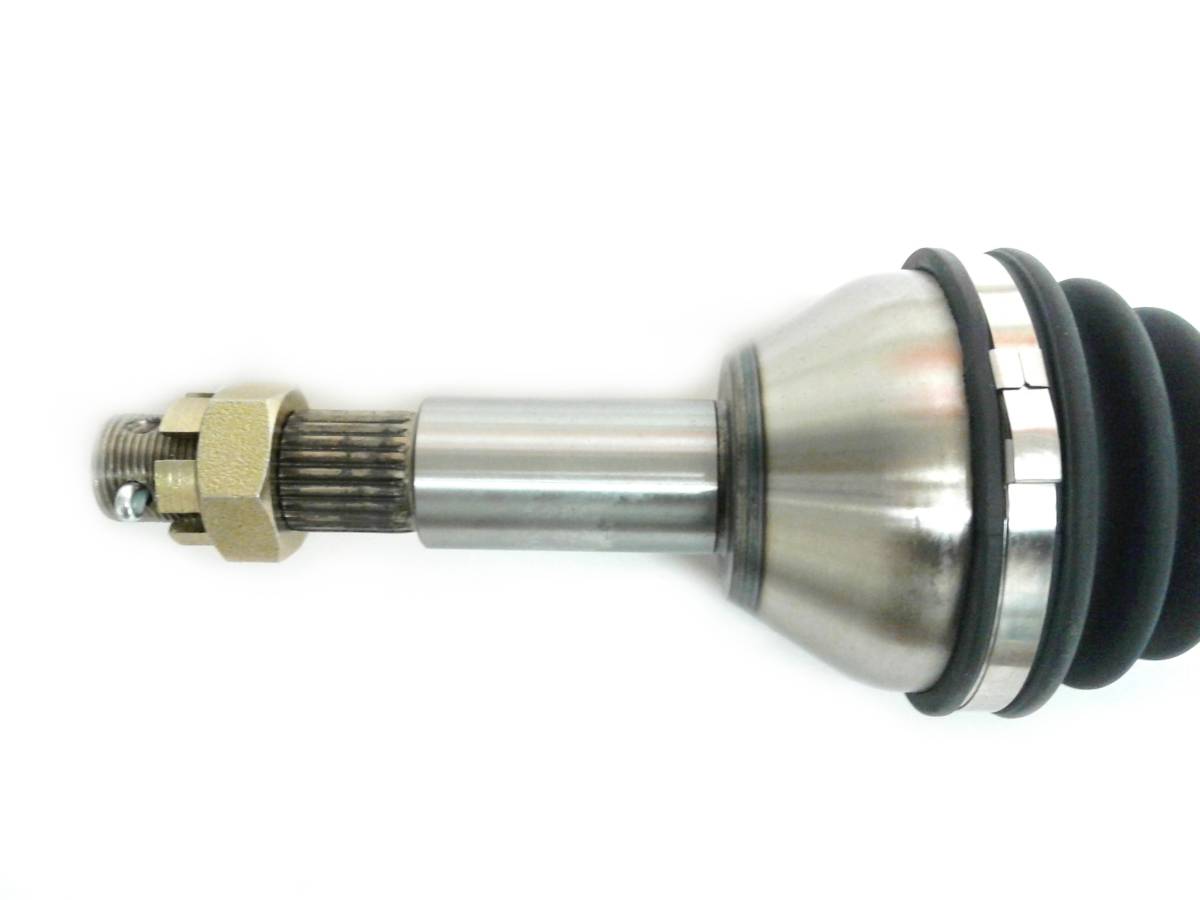

  • Outboard CV joint spline count: 22
  • Compressed overall axle length: 27 3/8 inches - 695 mm
  • Replaces OEM # 611-04071A, 911-04071A
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2007Cub Cadet4x420HP
2007Cub Cadet4x420HP Diesel
2006Cub Cadet4x4--
2006Cub Cadet4x4Diesel
2020Cub CadetVolunteer4x4 EFI
2019Cub CadetVolunteer4x4 EFI
2018Cub CadetVolunteer4x4 EFI
2017Cub CadetVolunteer4x4 EFI
2016Cub CadetVolunteer4x4 EFI
2015Cub CadetVolunteer4x4 Diesel
2015Cub CadetVolunteer4x4 EFI
2014Cub CadetVolunteer4X4
2014Cub CadetVolunteer4x4 Diesel
2014Cub CadetVolunteer4x4 EFI
2013Cub CadetVolunteer4x4 Diesel
2012Cub CadetVolunteer4x4 Diesel
2011Cub CadetVolunteer4x4 Diesel
2010Cub CadetVolunteer4x4 Diesel
2009Cub CadetVolunteer4X4
2009Cub CadetVolunteer4X4 Cab
2009Cub CadetVolunteer4X4 Cab Diesel
2009Cub CadetVolunteer4x4 Cab EFI
2009Cub CadetVolunteer4x4 Diesel
2009Cub CadetVolunteer4x4 EFI
2008Cub CadetVolunteer4x4 EFI
2008Cub CadetVolunteer4x4 Trail

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Cub Cadet models: 2006-2020 4x4 Volunteer 4x4 & 2007-2015 4x4 Diesel Volunteer. Please note this will not fit WT models. Includes 1 axle & 1 wheel bearing.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces OEM # 611-04071A, 911-04071A. Inboard spline count: 22. Outboard spline count: 22. Compressed length: 27 3/8 inches - 695 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    1 year factory defect warranty

    Details

    • CC-300/WB-1516
    • CC-300/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.5 lbs.
    • W5.0000” x H5.0000” x L30.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
