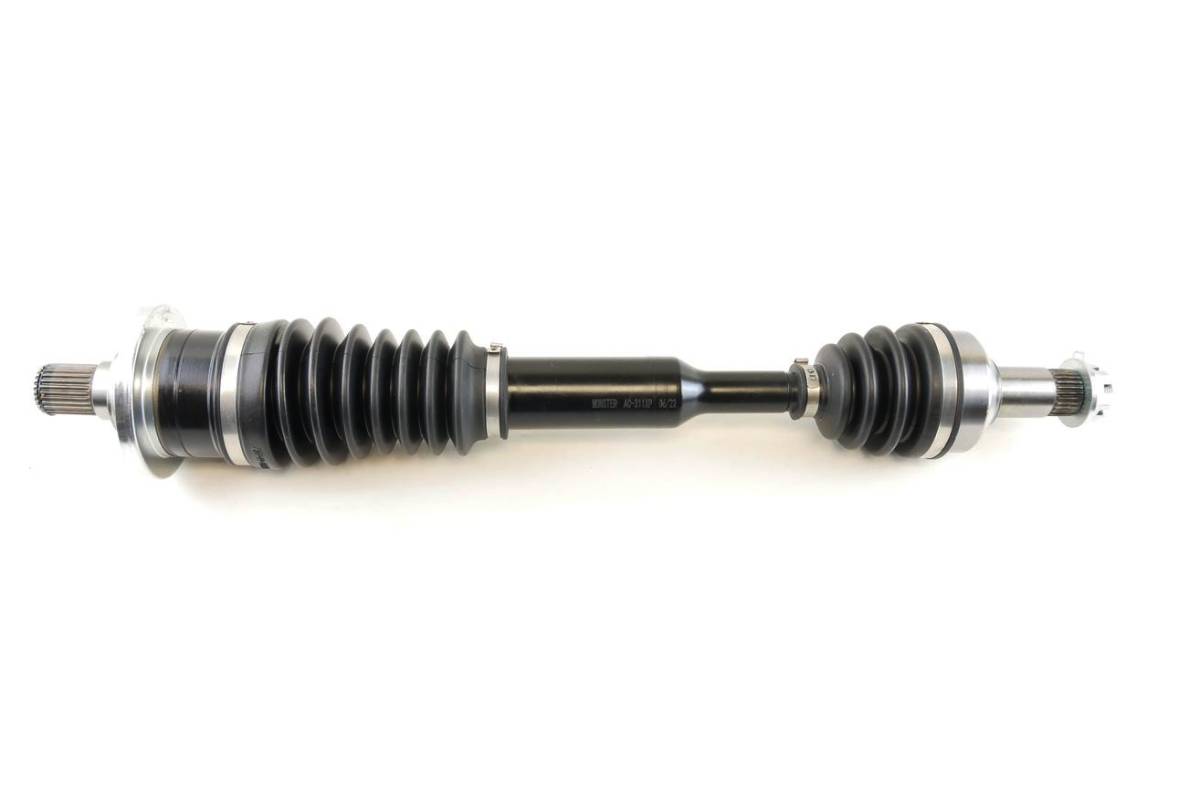

Monster Axles Rear CV Axle for Arctic Cat ATV 1502-938, 0502-811, XP Series

Location on vehicle: Rear,Left,Right

SKU: AC-311XP

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits REAR, LEFT or RIGHT on the following Arctic Cat ATVs: 2005-2008 400 FIS, 2009-2014 TRV 400, 2010-2012 450/TRV 450, 2005-2014 500, 2009-2014 550, 2004-2012 650, 2006-2014 700, 2009-2016 1000, 2017 Alterra 1000, 2008-2010 Thundercat.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

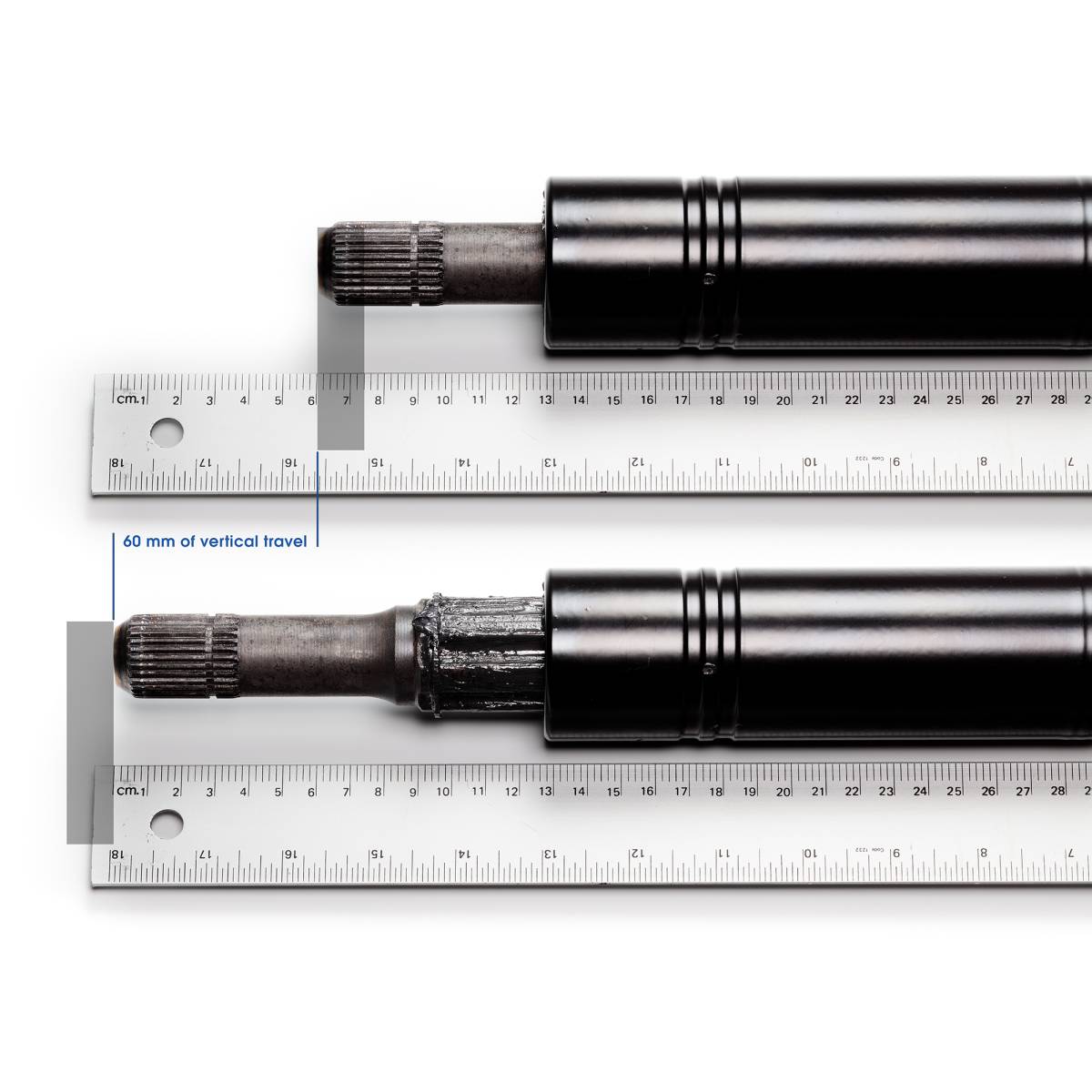

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $149.95

Application List
Product Notes
Product Videos
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2014	Arctic Cat	400	TRV
2013	Arctic Cat	400	TRV CR
2011	Arctic Cat	400	4x4 TRV
2010	Arctic Cat	400	4x4 TRV Automatic
2009	Arctic Cat	400	4x4 TRV Automatic
2008	Arctic Cat	400	4X4
2008	Arctic Cat	400	4x4 Automatic
2008	Arctic Cat	400	4x4 TRV Automatic
2007	Arctic Cat	400	4X4
2007	Arctic Cat	400	4x4 Automatic
2007	Arctic Cat	400	4x4 LE Automatic
2007	Arctic Cat	400	4x4 TRV Automatic
2007	Arctic Cat	400	4x4 TRV Plus Automatic
2006	Arctic Cat	400	4X4
2006	Arctic Cat	400	4x4 Automatic
2006	Arctic Cat	400	4x4 LE Automatic
2006	Arctic Cat	400	4x4 M4 Automatic
2006	Arctic Cat	400	4x4 TBX Automatic
2006	Arctic Cat	400	4x4 TRV Automatic
2006	Arctic Cat	400	4x4 VP
2006	Arctic Cat	400	4x4 VP Automatic
2005	Arctic Cat	400	4X4
2005	Arctic Cat	400	4x4 Automatic
2005	Arctic Cat	400	4x4 LE Automatic
2005	Arctic Cat	400	4x4 TBX Automatic
2005	Arctic Cat	400	4x4 VP
2005	Arctic Cat	400	4x4 VP Automatic
2012	Arctic Cat	450	4X4
2012	Arctic Cat	450	4x4 EFI
2012	Arctic Cat	450	4x4 GT EFI
2012	Arctic Cat	450	4x4 TRV EFI
2012	Arctic Cat	450	4x4 TRV GT EFI
2011	Arctic Cat	450	4x4 EFI
2011	Arctic Cat	450	4x4 H1 EFI
2011	Arctic Cat	450	4x4 LTD EFI
2011	Arctic Cat	450	4x4 TRV EFI
2010	Arctic Cat	450	4x4 H1 Automatic EFI
2014	Arctic Cat	500	4X4
2014	Arctic Cat	500	4x4 TRV
2014	Arctic Cat	500	4x4 XT
2013	Arctic Cat	500	4x4 CR
2013	Arctic Cat	500	4x4 TRV CR
2013	Arctic Cat	500	4x4 XT
2012	Arctic Cat	500	4x4 EFI
2009	Arctic Cat	500	4X4
2009	Arctic Cat	500	4x4 Automatic
2008	Arctic Cat	500	4X4
2008	Arctic Cat	500	4x4 Automatic
2008	Arctic Cat	500	4x4 M4 Automatic
2008	Arctic Cat	500	4x4 TRV Automatic
2007	Arctic Cat	500	4X4
2007	Arctic Cat	500	4x4 Automatic
2006	Arctic Cat	500	4X4
2006	Arctic Cat	500	4x4 Automatic
2006	Arctic Cat	500	4x4 LE Automatic
2006	Arctic Cat	500	4x4 M4 Automatic
2006	Arctic Cat	500	4x4 TBX Automatic
2006	Arctic Cat	500	4x4 TRV Automatic
2005	Arctic Cat	500	4X4
2005	Arctic Cat	500	4x4 Automatic
2005	Arctic Cat	500	4x4 LE Automatic
2005	Arctic Cat	500	4x4 TBX Automatic
2005	Arctic Cat	500	4x4 TRV Automatic
2014	Arctic Cat	550	4X4
2014	Arctic Cat	550	4x4 Limited
2014	Arctic Cat	550	4x4 TRV Limited
2014	Arctic Cat	550	4x4 TRV XT
2014	Arctic Cat	550	4x4 XT
2013	Arctic Cat	550	4x4 CR
2013	Arctic Cat	550	4x4 Limited
2013	Arctic Cat	550	4x4 TRV Limited
2013	Arctic Cat	550	4x4 TRV XT
2013	Arctic Cat	550	4x4 XT
2012	Arctic Cat	550	4x4 EFI
2012	Arctic Cat	550	4x4 GT EFI
2012	Arctic Cat	550	4x4 LTD EFI
2012	Arctic Cat	550	4x4 TRV Cruiser EFI
2012	Arctic Cat	550	4x4 TRV GT EFI
2011	Arctic Cat	550	4x4 H1 Automatic EFI
2011	Arctic Cat	550	4x4 H1 LTD EFI
2011	Arctic Cat	550	4x4 H1 TRV Automatic EFI
2011	Arctic Cat	550	4x4 H1 TRV Cruiser EFI
2011	Arctic Cat	550	4x4 H1 TRV GT EFI
2010	Arctic Cat	550	4x4 H1 Automatic EFI
2010	Arctic Cat	550	4x4 H1 LE Automatic EFI
2010	Arctic Cat	550	4x4 H1 TRV EFI
2010	Arctic Cat	550	4x4 TRV Automatic
2010	Arctic Cat	550	4x4 TRV GT
2009	Arctic Cat	550	4x4 Automatic
2009	Arctic Cat	550	4x4 LE Automatic
2009	Arctic Cat	550	4x4 M4 Automatic
2009	Arctic Cat	550	4x4 TRV Automatic
2009	Arctic Cat	550	4x4 TRV LE Automatic
2011	Arctic Cat	650	4x4 H1 Automatic
2010	Arctic Cat	650	4x4 H1 Automatic
2009	Arctic Cat	650	4x4 H1 TRV Automatic
2009	Arctic Cat	650	4x4 TBX Automatic
2008	Arctic Cat	650	4x4 H1 Automatic
2008	Arctic Cat	650	4x4 H1 TRV Automatic
2007	Arctic Cat	650	4x4 H1 Automatic
2007	Arctic Cat	650	4x4 H1 LE Automatic
2007	Arctic Cat	650	4x4 H1 TBX Automatic
2007	Arctic Cat	650	4x4 H1 TRV Automatic
2007	Arctic Cat	650	4x4 H1 TRV LE Automatic
2007	Arctic Cat	650	4x4 H1 TRV Plus Automatic
2007	Arctic Cat	650	4x4 H1 TRV Plus LE Automatic
2006	Arctic Cat	650	4x4 H1 Automatic
2006	Arctic Cat	650	4x4 H1 SE Automatic
2006	Arctic Cat	650	4x4 V2 Automatic
2006	Arctic Cat	650	4x4 V2 LE Automatic
2006	Arctic Cat	650	4x4 V2 Tony Stewart Automatic
2005	Arctic Cat	650	4x4 H1 Automatic
2005	Arctic Cat	650	4x4 V2 Automatic
2005	Arctic Cat	650	4x4 V2 LE Automatic
2004	Arctic Cat	650	4x4 Automatic
2004	Arctic Cat	650	4x4 LE Automatic
2004	Arctic Cat	650	4x4 MRP Automatic
2004	Arctic Cat	650	4x4 V2 Automatic
2004	Arctic Cat	650	4x4 V2 LE Automatic
2004	Arctic Cat	650	4x4 V2 MRP Automatic
2014	Arctic Cat	700	4X4
2014	Arctic Cat	700	4x4 Limited
2014	Arctic Cat	700	4x4 Super Duty Diesel
2014	Arctic Cat	700	4x4 TRV XT
2014	Arctic Cat	700	4x4 XT
2013	Arctic Cat	700	4x4 CR
2013	Arctic Cat	700	4x4 Limited
2013	Arctic Cat	700	4x4 Super Duty Diesel
2013	Arctic Cat	700	4x4 TBX XT
2013	Arctic Cat	700	4x4 TRV Limited
2013	Arctic Cat	700	4x4 TRV XT
2013	Arctic Cat	700	4x4 XT
2012	Arctic Cat	700	4x4 EFI
2012	Arctic Cat	700	4x4 GT EFI
2012	Arctic Cat	700	4x4 H1 EFI EPS
2012	Arctic Cat	700	4x4 LTD EFI
2012	Arctic Cat	700	4x4 Super Duty Diesel
2012	Arctic Cat	700	4x4 TBX GT EFI
2012	Arctic Cat	700	4x4 TRV Cruiser EFI
2012	Arctic Cat	700	4x4 TRV GT EFI
2011	Arctic Cat	700	4x4 H1 EFI
2011	Arctic Cat	700	4x4 H1 EFI EPS
2011	Arctic Cat	700	4x4 H1 LTD
2011	Arctic Cat	700	4x4 Super Duty Diesel
2011	Arctic Cat	700	4x4 TBX LTD
2011	Arctic Cat	700	4x4 TRV
2011	Arctic Cat	700	4x4 TRV Cruiser
2011	Arctic Cat	700	4x4 TRV GT
2010	Arctic Cat	700	4x4 Automatic EFI
2010	Arctic Cat	700	4x4 H1 Automatic EFI
2010	Arctic Cat	700	4x4 H1 LE Automatic EFI
2010	Arctic Cat	700	4x4 H1 MudPro Automatic EFI
2010	Arctic Cat	700	4x4 H1 TBX Automatic EFI
2010	Arctic Cat	700	4x4 H1 TRV Automatic EFI
2010	Arctic Cat	700	4x4 H1 TRV Cruiser Automatic EFI
2010	Arctic Cat	700	4x4 Super Duty Diesel
2010	Arctic Cat	700	4x4 TRV GT
2009	Arctic Cat	700	4x4 Automatic EFI
2009	Arctic Cat	700	4x4 H1 Automatic EFI
2009	Arctic Cat	700	4x4 H1 LE Automatic EFI
2009	Arctic Cat	700	4x4 H1 MudPro Automatic EFI
2009	Arctic Cat	700	4x4 H1 SE Automatic EFI
2009	Arctic Cat	700	4x4 H1 TRV Automatic EFI
2009	Arctic Cat	700	4x4 TRV Cruiser EFI
2008	Arctic Cat	700	4x4 Automatic Diesel
2008	Arctic Cat	700	4x4 Automatic EFI
2008	Arctic Cat	700	4x4 H1 SE Automatic EFI
2008	Arctic Cat	700	4x4 M4 Automatic EFI
2008	Arctic Cat	700	4x4 TRV Cruiser Automatic EFI
2008	Arctic Cat	700	4x4 TRV LE Automatic EFI
2007	Arctic Cat	700	4x4 Automatic Diesel
2007	Arctic Cat	700	4x4 Automatic EFI
2007	Arctic Cat	700	4x4 LE Automatic EFI
2006	Arctic Cat	700	4x4 SE EFI
2016	Arctic Cat	1000	4x4 XT EPS
2015	Arctic Cat	1000	4x4 MudPro Limited EPS
2015	Arctic Cat	1000	4x4 TRV Limited EPS
2015	Arctic Cat	1000	4x4 TRV XT EPS
2015	Arctic Cat	1000	4x4 XT EPS
2014	Arctic Cat	1000	4x4 MudPro Limited
2014	Arctic Cat	1000	4x4 TRV Limited
2014	Arctic Cat	1000	4x4 XT
2013	Arctic Cat	1000	4x4 MudPro Limited
2013	Arctic Cat	1000	4x4 TRV Limited
2013	Arctic Cat	1000	4x4 XT
2012	Arctic Cat	1000	4x4 GT EFI
2012	Arctic Cat	1000	4x4 GT EFI EPS
2012	Arctic Cat	1000	4x4 MudPro EFI
2012	Arctic Cat	1000	4x4 MudPro LTD EFI
2012	Arctic Cat	1000	4x4 TRV Cruiser EFI
2012	Arctic Cat	1000	4x4 TRV GT EFI
2011	Arctic Cat	1000	4x4 H2 LTD EFI
2011	Arctic Cat	1000	4x4 H2 MudPro Automatic EFI
2011	Arctic Cat	1000	4x4 TRV Automatic EFI
2011	Arctic Cat	1000	4x4 TRV Cruiser EFI
2010	Arctic Cat	1000	4x4 H2 MudPro Automatic EFI
2010	Arctic Cat	1000	4x4 TRV Automatic EFI
2010	Arctic Cat	1000	4x4 TRV Cruiser
2009	Arctic Cat	1000	4x4 H2 TRV Cruiser EFI
2009	Arctic Cat	1000	4x4 TRV
2010	Arctic Cat	Thundercat	4x4 Automatic EFI
2010	Arctic Cat	Thundercat	4x4 LE Automatic EFI
2009	Arctic Cat	Thundercat	4x4 SE Automatic EFI
2008	Arctic Cat	Thundercat	4x4 Automatic
2008	Arctic Cat	Thundercat	4x4 H2 SE Automatic EFI

Product Notes

Fits REAR, LEFT or RIGHT on the followng Arctic Cat ATVs: 2005-2008 400 FIS, 2009-2014 TRV 400, 2010-2012 450/TRV 450, 2005-2014 500, 2009-2014 550, 2004-2012 650, 2006-2014 700, 2009-2016 1000, 2017 Alterra 1000, 2008-2010 Thundercat 4x4.

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.

Comes with a 1 year limited warranty (excluding torn boots). Replaces OEM # 1502-938, 0502-811, 1502-343, 1502-798. Inboard spline count: 27, Outboard spline count: 27, Compressed axle length: 548 mm.

What's In The Box

1 axle

Product Videos

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Details

SKU: AC-311XP
Item #: AC-311XP
Brand: Monster Axles

Availability: Available
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 13.0 lbs.
Package Dimensions: W6.0000” x H6.0000” x L32.0000”
Shipping: Free Ground Shipping
Shipping Remarks: Free Shipping - Same Day If Ordered Before 3 EST
