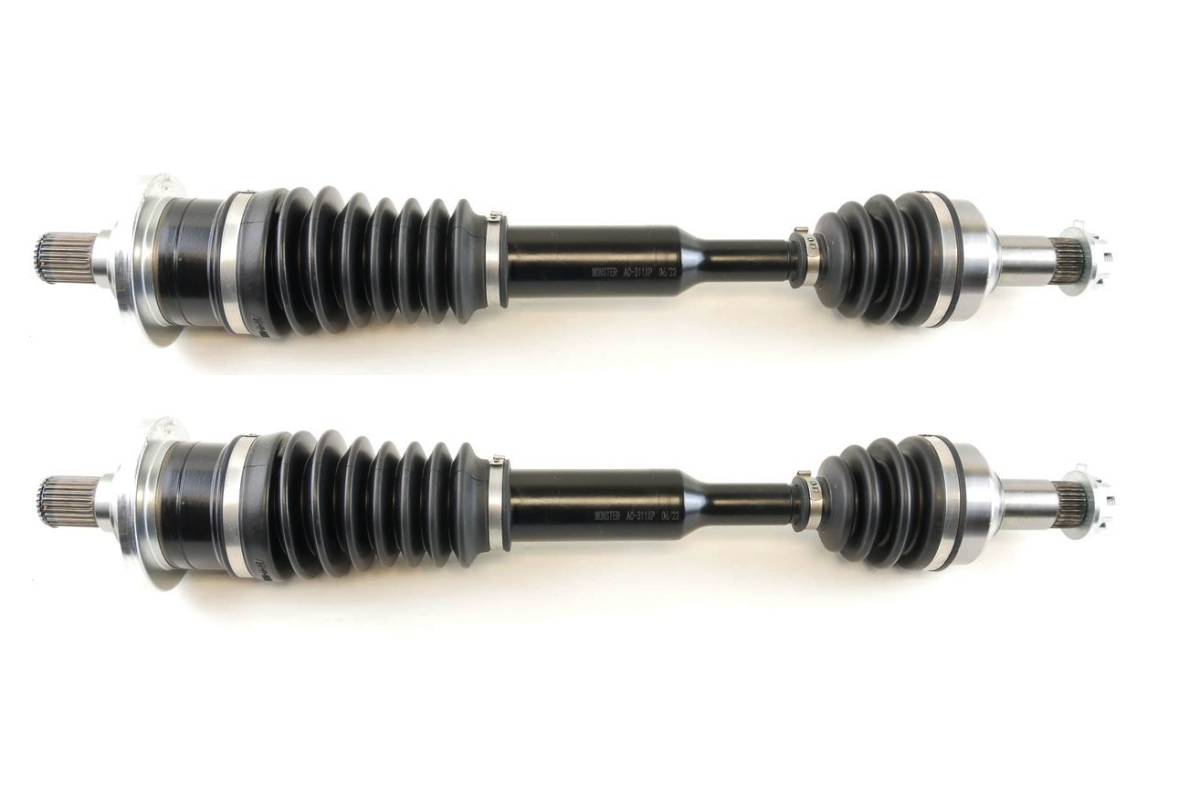

Monster Axles Rear CV Axle Pair for Arctic Cat 4x4 ATV, 1502-938, XP Series

Location on vehicle: Rear,Left,Right

AC-311XP/AC-311XP

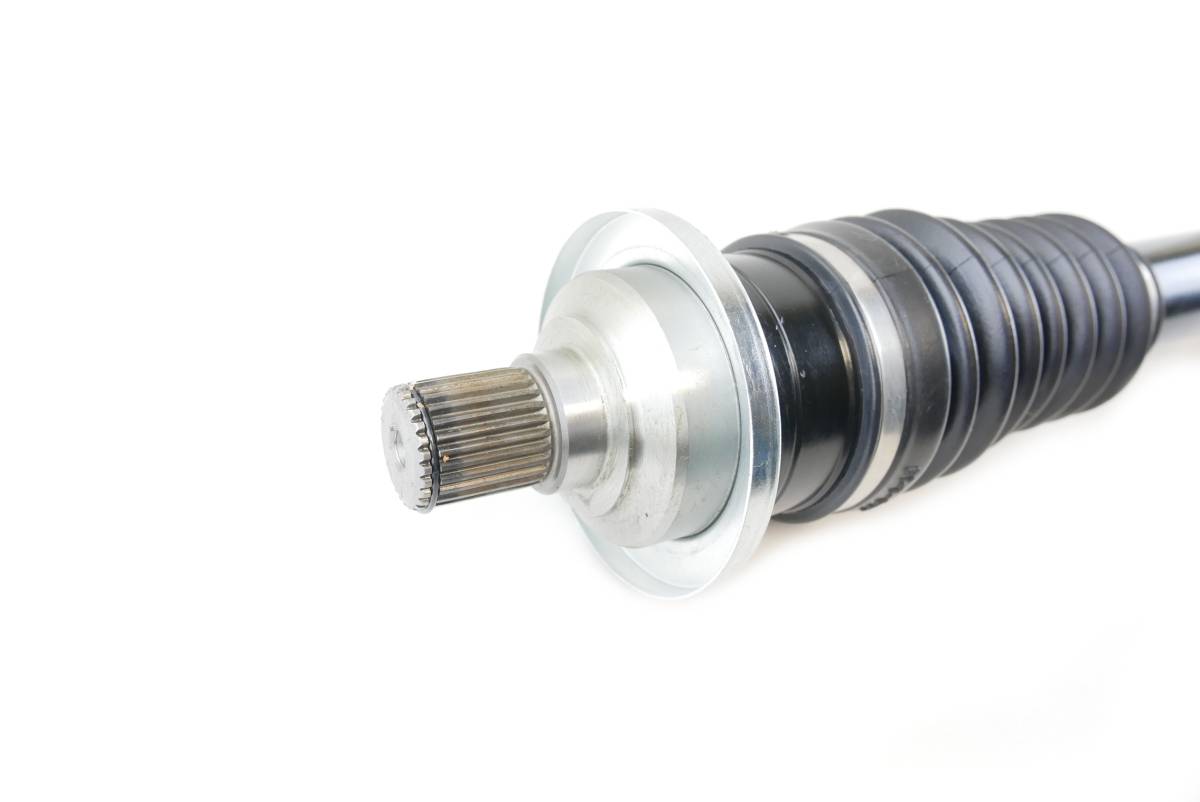

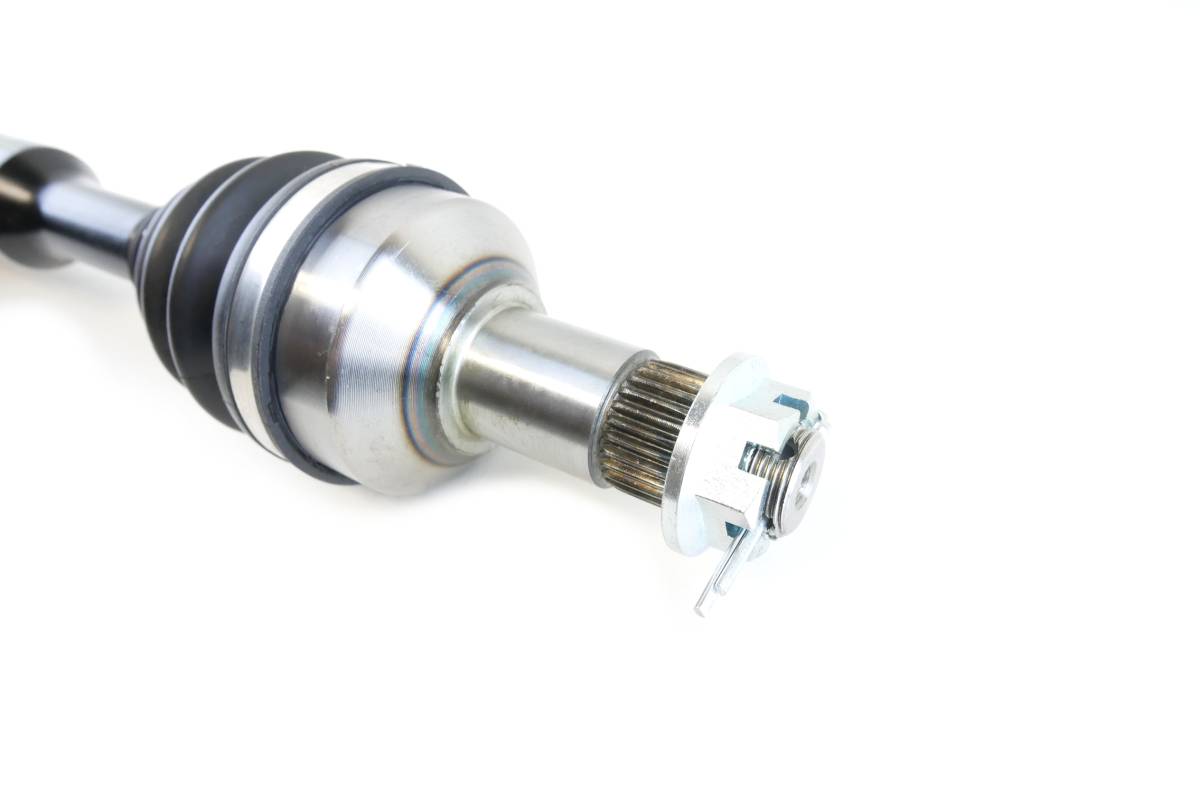

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

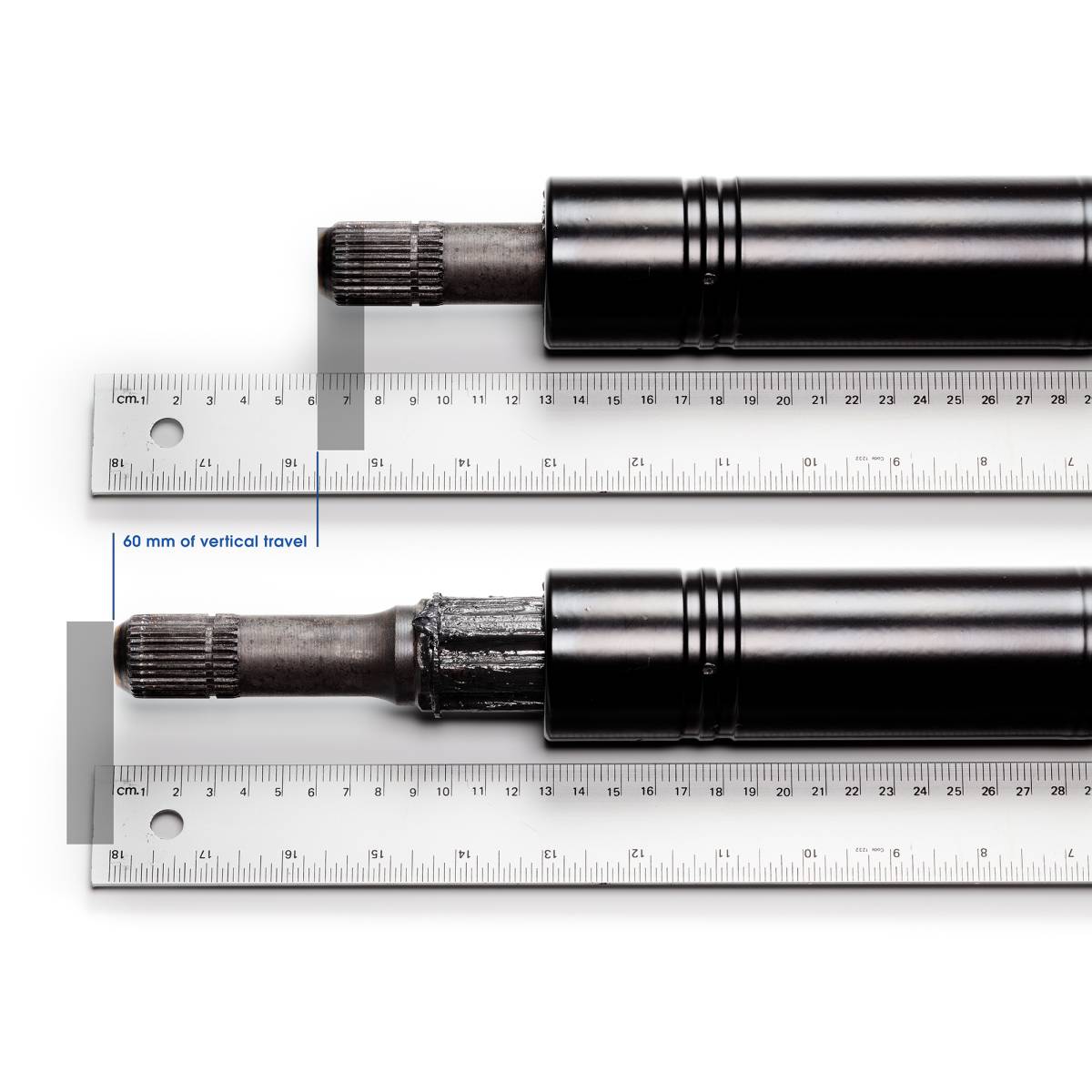

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $339.95
Qty:
Free Ground Shipping

Warranty

1 year, one-time repair/ replace. Buyer pays shipping

Product Notes

  • Fits REAR, LEFT & RIGHT: 2005-2008 400 FIS, 2009-2014 TRV 400, 2010-2012 450/TRV 450, 2005-2014 500, 2009-2014 550, 2004-2012 650, 2006-2014 700, 2009-2016 1000, 2017 Alterra 1000, 2008-2010 Thundercat 4x4. Set includes 2 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Comes with a 1 year limited warranty (excluding torn boots). Replaces OEM # 1502-938, 0502-811, 1502-343, 1502-798. Inboard spline count: 27, Outboard spline count: 27, Compressed axle length: 548 mm.

  • What's In The Box

  • 2 axles
  • Product Videos

    Application List

    YearMakeModelSubmodelNotes
    2014Arctic Cat400TRV
    2013Arctic Cat400TRV CR
    2011Arctic Cat4004x4 TRV
    2010Arctic Cat4004x4 TRV Automatic
    2009Arctic Cat4004x4 TRV Automatic
    2008Arctic Cat4004X4
    2008Arctic Cat4004x4 Automatic
    2008Arctic Cat4004x4 TRV Automatic
    2007Arctic Cat4004X4
    2007Arctic Cat4004x4 Automatic
    2007Arctic Cat4004x4 LE Automatic
    2007Arctic Cat4004x4 TRV Automatic
    2007Arctic Cat4004x4 TRV Plus Automatic
    2006Arctic Cat4004X4
    2006Arctic Cat4004x4 Automatic
    2006Arctic Cat4004x4 LE Automatic
    2006Arctic Cat4004x4 M4 Automatic
    2006Arctic Cat4004x4 TBX Automatic
    2006Arctic Cat4004x4 TRV Automatic
    2006Arctic Cat4004x4 VP
    2006Arctic Cat4004x4 VP Automatic
    2005Arctic Cat4004X4
    2005Arctic Cat4004x4 Automatic
    2005Arctic Cat4004x4 LE Automatic
    2005Arctic Cat4004x4 TBX Automatic
    2005Arctic Cat4004x4 VP
    2005Arctic Cat4004x4 VP Automatic
    2012Arctic Cat4504X4
    2012Arctic Cat4504x4 EFI
    2012Arctic Cat4504x4 GT EFI
    2012Arctic Cat4504x4 TRV EFI
    2012Arctic Cat4504x4 TRV GT EFI
    2011Arctic Cat4504x4 EFI
    2011Arctic Cat4504x4 H1 EFI
    2011Arctic Cat4504x4 LTD EFI
    2011Arctic Cat4504x4 TRV EFI
    2010Arctic Cat4504x4 H1 Automatic EFI
    2014Arctic Cat5004X4
    2014Arctic Cat5004x4 TRV
    2014Arctic Cat5004x4 XT
    2013Arctic Cat5004x4 CR
    2013Arctic Cat5004x4 TRV CR
    2013Arctic Cat5004x4 XT
    2012Arctic Cat5004x4 EFI
    2009Arctic Cat5004X4
    2009Arctic Cat5004x4 Automatic
    2008Arctic Cat5004X4
    2008Arctic Cat5004x4 Automatic
    2008Arctic Cat5004x4 M4 Automatic
    2008Arctic Cat5004x4 TRV Automatic
    2007Arctic Cat5004X4
    2007Arctic Cat5004x4 Automatic
    2006Arctic Cat5004X4
    2006Arctic Cat5004x4 Automatic
    2006Arctic Cat5004x4 LE Automatic
    2006Arctic Cat5004x4 M4 Automatic
    2006Arctic Cat5004x4 TBX Automatic
    2006Arctic Cat5004x4 TRV Automatic
    2005Arctic Cat5004X4
    2005Arctic Cat5004x4 Automatic
    2005Arctic Cat5004x4 LE Automatic
    2005Arctic Cat5004x4 TBX Automatic
    2005Arctic Cat5004x4 TRV Automatic
    2014Arctic Cat5504X4
    2014Arctic Cat5504x4 Limited
    2014Arctic Cat5504x4 TRV Limited
    2014Arctic Cat5504x4 TRV XT
    2014Arctic Cat5504x4 XT
    2013Arctic Cat5504x4 CR
    2013Arctic Cat5504x4 Limited
    2013Arctic Cat5504x4 TRV Limited
    2013Arctic Cat5504x4 TRV XT
    2013Arctic Cat5504x4 XT
    2012Arctic Cat5504x4 EFI
    2012Arctic Cat5504x4 GT EFI
    2012Arctic Cat5504x4 LTD EFI
    2012Arctic Cat5504x4 TRV Cruiser EFI
    2012Arctic Cat5504x4 TRV GT EFI
    2011Arctic Cat5504x4 H1 Automatic EFI
    2011Arctic Cat5504x4 H1 LTD EFI
    2011Arctic Cat5504x4 H1 TRV Automatic EFI
    2011Arctic Cat5504x4 H1 TRV Cruiser EFI
    2011Arctic Cat5504x4 H1 TRV GT EFI
    2010Arctic Cat5504x4 H1 Automatic EFI
    2010Arctic Cat5504x4 H1 LE Automatic EFI
    2010Arctic Cat5504x4 H1 TRV EFI
    2010Arctic Cat5504x4 TRV Automatic
    2010Arctic Cat5504x4 TRV GT
    2009Arctic Cat5504x4 Automatic
    2009Arctic Cat5504x4 LE Automatic
    2009Arctic Cat5504x4 M4 Automatic
    2009Arctic Cat5504x4 TRV Automatic
    2009Arctic Cat5504x4 TRV LE Automatic
    2011Arctic Cat6504x4 H1 Automatic
    2010Arctic Cat6504x4 H1 Automatic
    2009Arctic Cat6504x4 H1 TRV Automatic
    2009Arctic Cat6504x4 TBX Automatic
    2008Arctic Cat6504x4 H1 Automatic
    2008Arctic Cat6504x4 H1 TRV Automatic
    2007Arctic Cat6504x4 H1 Automatic
    2007Arctic Cat6504x4 H1 LE Automatic
    2007Arctic Cat6504x4 H1 TBX Automatic
    2007Arctic Cat6504x4 H1 TRV Automatic
    2007Arctic Cat6504x4 H1 TRV LE Automatic
    2007Arctic Cat6504x4 H1 TRV Plus Automatic
    2007Arctic Cat6504x4 H1 TRV Plus LE Automatic
    2006Arctic Cat6504x4 H1 Automatic
    2006Arctic Cat6504x4 H1 SE Automatic
    2006Arctic Cat6504x4 V2 Automatic
    2006Arctic Cat6504x4 V2 LE Automatic
    2006Arctic Cat6504x4 V2 Tony Stewart Automatic
    2005Arctic Cat6504x4 H1 Automatic
    2005Arctic Cat6504x4 V2 Automatic
    2005Arctic Cat6504x4 V2 LE Automatic
    2004Arctic Cat6504x4 Automatic
    2004Arctic Cat6504x4 LE Automatic
    2004Arctic Cat6504x4 MRP Automatic
    2004Arctic Cat6504x4 V2 Automatic
    2004Arctic Cat6504x4 V2 LE Automatic
    2004Arctic Cat6504x4 V2 MRP Automatic
    2014Arctic Cat7004X4
    2014Arctic Cat7004x4 Limited
    2014Arctic Cat7004x4 Super Duty Diesel
    2014Arctic Cat7004x4 TRV XT
    2014Arctic Cat7004x4 XT
    2013Arctic Cat7004x4 CR
    2013Arctic Cat7004x4 Limited
    2013Arctic Cat7004x4 Super Duty Diesel
    2013Arctic Cat7004x4 TBX XT
    2013Arctic Cat7004x4 TRV Limited
    2013Arctic Cat7004x4 TRV XT
    2013Arctic Cat7004x4 XT
    2012Arctic Cat7004x4 EFI
    2012Arctic Cat7004x4 GT EFI
    2012Arctic Cat7004x4 H1 EFI EPS
    2012Arctic Cat7004x4 LTD EFI
    2012Arctic Cat7004x4 Super Duty Diesel
    2012Arctic Cat7004x4 TBX GT EFI
    2012Arctic Cat7004x4 TRV Cruiser EFI
    2012Arctic Cat7004x4 TRV GT EFI
    2011Arctic Cat7004x4 H1 EFI
    2011Arctic Cat7004x4 H1 EFI EPS
    2011Arctic Cat7004x4 H1 LTD
    2011Arctic Cat7004x4 Super Duty Diesel
    2011Arctic Cat7004x4 TBX LTD
    2011Arctic Cat7004x4 TRV
    2011Arctic Cat7004x4 TRV Cruiser
    2011Arctic Cat7004x4 TRV GT
    2010Arctic Cat7004x4 Automatic EFI
    2010Arctic Cat7004x4 H1 Automatic EFI
    2010Arctic Cat7004x4 H1 LE Automatic EFI
    2010Arctic Cat7004x4 H1 MudPro Automatic EFI
    2010Arctic Cat7004x4 H1 TBX Automatic EFI
    2010Arctic Cat7004x4 H1 TRV Automatic EFI
    2010Arctic Cat7004x4 H1 TRV Cruiser Automatic EFI
    2010Arctic Cat7004x4 Super Duty Diesel
    2010Arctic Cat7004x4 TRV GT
    2009Arctic Cat7004x4 Automatic EFI
    2009Arctic Cat7004x4 H1 Automatic EFI
    2009Arctic Cat7004x4 H1 LE Automatic EFI
    2009Arctic Cat7004x4 H1 MudPro Automatic EFI
    2009Arctic Cat7004x4 H1 SE Automatic EFI
    2009Arctic Cat7004x4 H1 TRV Automatic EFI
    2009Arctic Cat7004x4 TRV Cruiser EFI
    2008Arctic Cat7004x4 Automatic Diesel
    2008Arctic Cat7004x4 Automatic EFI
    2008Arctic Cat7004x4 H1 SE Automatic EFI
    2008Arctic Cat7004x4 M4 Automatic EFI
    2008Arctic Cat7004x4 TRV Cruiser Automatic EFI
    2008Arctic Cat7004x4 TRV LE Automatic EFI
    2007Arctic Cat7004x4 Automatic Diesel
    2007Arctic Cat7004x4 Automatic EFI
    2007Arctic Cat7004x4 LE Automatic EFI
    2006Arctic Cat7004x4 SE EFI
    2016Arctic Cat10004x4 XT EPS
    2015Arctic Cat10004x4 MudPro Limited EPS
    2015Arctic Cat10004x4 TRV Limited EPS
    2015Arctic Cat10004x4 TRV XT EPS
    2015Arctic Cat10004x4 XT EPS
    2014Arctic Cat10004x4 MudPro Limited
    2014Arctic Cat10004x4 TRV Limited
    2014Arctic Cat10004x4 XT
    2013Arctic Cat10004x4 MudPro Limited
    2013Arctic Cat10004x4 TRV Limited
    2013Arctic Cat10004x4 XT
    2012Arctic Cat10004x4 GT EFI
    2012Arctic Cat10004x4 GT EFI EPS
    2012Arctic Cat10004x4 MudPro EFI
    2012Arctic Cat10004x4 MudPro LTD EFI
    2012Arctic Cat10004x4 TRV Cruiser EFI
    2012Arctic Cat10004x4 TRV GT EFI
    2011Arctic Cat10004x4 H2 LTD EFI
    2011Arctic Cat10004x4 H2 MudPro Automatic EFI
    2011Arctic Cat10004x4 TRV Automatic EFI
    2011Arctic Cat10004x4 TRV Cruiser EFI
    2010Arctic Cat10004x4 H2 MudPro Automatic EFI
    2010Arctic Cat10004x4 TRV Automatic EFI
    2010Arctic Cat10004x4 TRV Cruiser
    2009Arctic Cat10004x4 H2 TRV Cruiser EFI
    2009Arctic Cat10004x4 TRV
    2010Arctic CatThundercat4x4 Automatic EFI
    2010Arctic CatThundercat4x4 LE Automatic EFI
    2009Arctic CatThundercat4x4 SE Automatic EFI
    2008Arctic CatThundercat4x4 Automatic
    2008Arctic CatThundercat4x4 H2 SE Automatic EFI

    Details

    • AC-311XP/AC-311XP
    • AC-311XP/AC-311XP
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
