Front CV Axle Pair for Can-Am Outlander & Renegade 570, 650, 850, 1000 2019-2022

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CA-231/CA-232

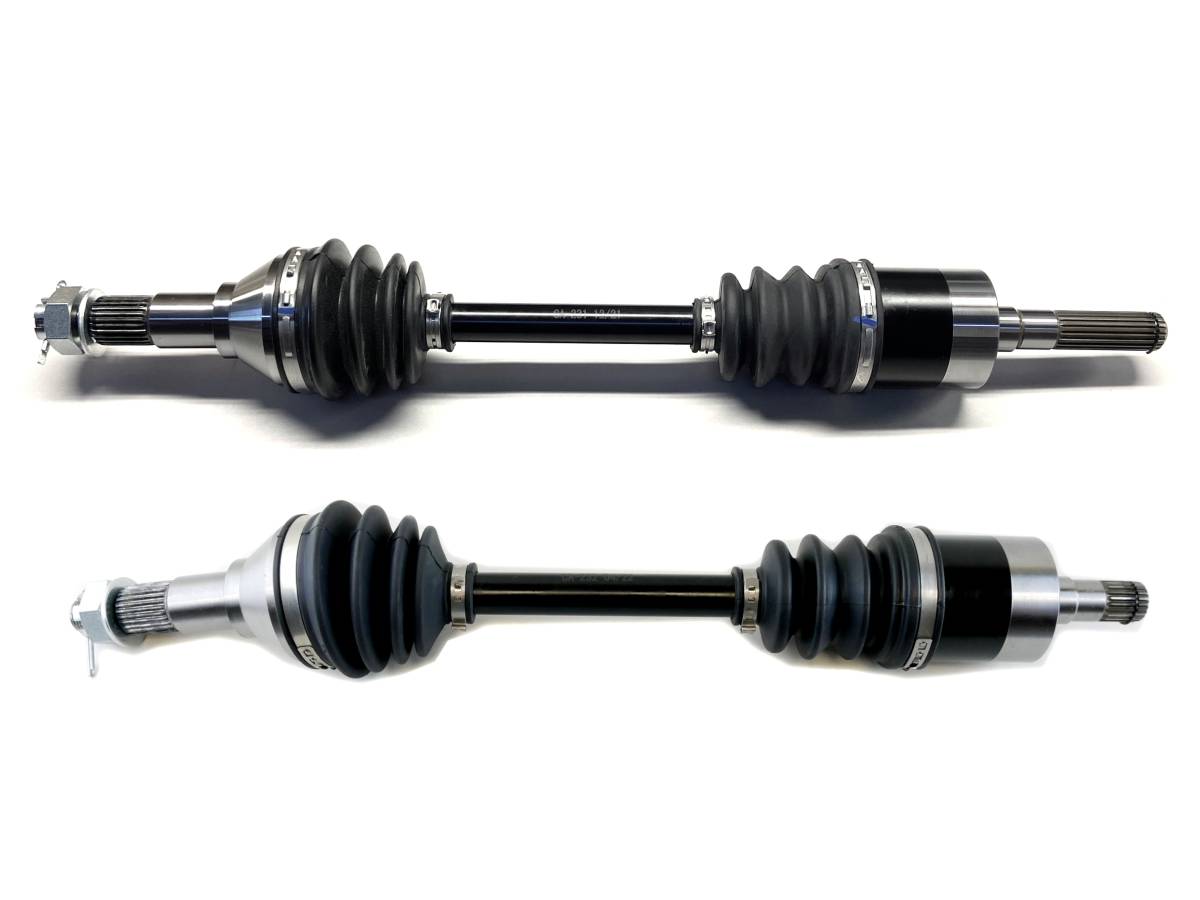

This is a pair of new CV axles for a Can-Am ATV.

They fit FRONT, LEFT & RIGHT on the following (excluding any XMR models):

2019-2022 Outlander 650/Max 650 4x4 and 6x6

2019-2022 Outlander 850/Max 850

2019-2022 Outlander 1000/Max 1000 4x4 and 6x6

2019-2022 Renegade 570

2019-2022 Renegade 850

2019-2022 Renegade 1000

*Axles are made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

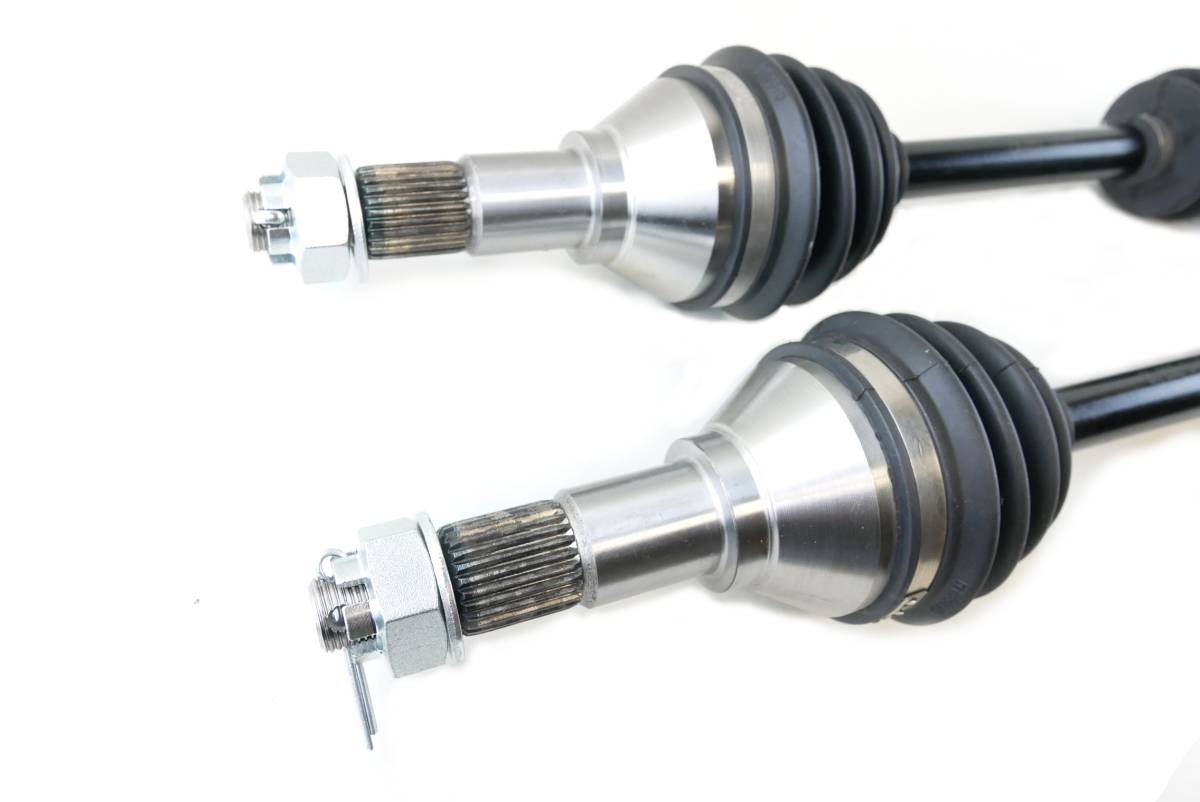

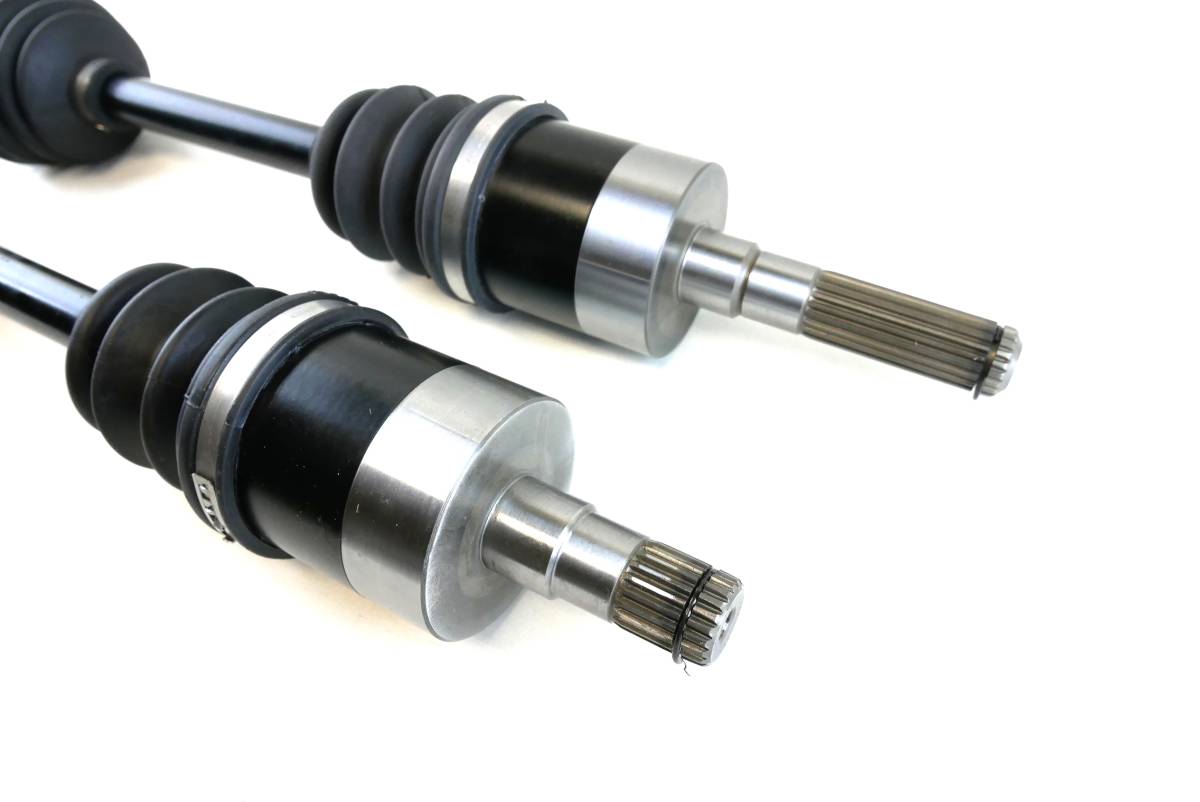

  • Inner spines: 21 (both), Outer splines: 26 (both), Compressed axle length: FL - 531 mm , FR - 573 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $137.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT (excluding any XMR models) on the following Can-Am ATVs: 2019-2022 Outlander 650/Max 650 4x4 & 6x6, 2019-2022 Outlander 850/Max 850, 2019-2022 Outlander 1000/Max 1000 4x4 & 6x6, 2019-2022 Renegade 570/850, & 2019-2022 Renegade 1000.
  • Features a stronger than OEM chromoly forged steel axle bars. Set includes 2 axles.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Set includes 2 fully assembled axles. Inner spines: 21 (both), Outer splines: 26 (both), Compressed axle length: FL - 531 mm , FR - 573 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmOutlander 6504X4
    2022Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2022Can-AmOutlander 6504x4 DPS
    2022Can-AmOutlander 6504x4 XT DPS
    2021Can-AmOutlander 6504X4
    2021Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2021Can-AmOutlander 6504x4 DPS
    2021Can-AmOutlander 6504x4 XT DPS
    2020Can-AmOutlander 6504X4
    2020Can-AmOutlander 6504X4 Mossy Oak Hunting Edition
    2020Can-AmOutlander 6504x4 DPS
    2020Can-AmOutlander 6504x4 XT DPS
    2019Can-AmOutlander 6504X4
    2019Can-AmOutlander 6504x4 DPS
    2019Can-AmOutlander 6504x4 North Edition DPS
    2019Can-AmOutlander 6504x4 XT DPS
    2022Can-AmOutlander 8504X4
    2022Can-AmOutlander 8504x4 DPS
    2022Can-AmOutlander 8504x4 XT DPS
    2022Can-AmOutlander 8504x4 XTP DPS
    2021Can-AmOutlander 8504X4
    2021Can-AmOutlander 8504x4 DPS
    2021Can-AmOutlander 8504x4 North Edition DPS
    2021Can-AmOutlander 8504x4 XT DPS
    2021Can-AmOutlander 8504x4 XTP DPS
    2020Can-AmOutlander 8504X4
    2020Can-AmOutlander 8504x4 DPS
    2020Can-AmOutlander 8504x4 North Edition DPS
    2020Can-AmOutlander 8504x4 XT DPS
    2020Can-AmOutlander 8504x4 XTP DPS
    2019Can-AmOutlander 8504X4
    2019Can-AmOutlander 8504x4 DPS
    2019Can-AmOutlander 8504x4 North Edition DPS
    2019Can-AmOutlander 8504x4 XT-P DPS
    2019Can-AmOutlander 8504x4 XT DPS
    2021Can-AmOutlander 1000R4x4 XT-P DPS
    2021Can-AmOutlander 1000R4x4 XT DPS
    2020Can-AmOutlander 1000R4x4 XT-P DPS
    2020Can-AmOutlander 1000R4x4 XT DPS
    2019Can-AmOutlander 1000R4x4 DPS
    2019Can-AmOutlander 1000R4x4 Mossy Oak Hunting Edition DPS
    2019Can-AmOutlander 1000R4x4 XT-P DPS
    2019Can-AmOutlander 1000R4x4 XT DPS
    2022Can-AmOutlander Max 6504x4 DPS
    2022Can-AmOutlander Max 6504x4 XT DPS
    2022Can-AmOutlander Max 6506x6 DPS
    2021Can-AmOutlander Max 6504x4 DPS
    2021Can-AmOutlander Max 6504x4 XT DPS
    2021Can-AmOutlander Max 6506x6 DPS
    2020Can-AmOutlander Max 6504x4 DPS
    2020Can-AmOutlander Max 6504x4 XT DPS
    2020Can-AmOutlander Max 6506x6 DPS
    2019Can-AmOutlander Max 6504x4 DPS
    2019Can-AmOutlander Max 6504x4 North Edition DPS
    2019Can-AmOutlander Max 6504x4 XT DPS
    2019Can-AmOutlander Max 6506x6 DPS
    2022Can-AmOutlander Max 8504x4 XT DPS
    2022Can-AmOutlander Max 8504x4 XTP DPS
    2021Can-AmOutlander Max 8504x4 North Edition DPS
    2021Can-AmOutlander Max 8504x4 XT DPS
    2021Can-AmOutlander Max 8504x4 XTP DPS
    2020Can-AmOutlander Max 8504x4 North Edition DPS
    2020Can-AmOutlander Max 8504x4 XT DPS
    2020Can-AmOutlander Max 8504x4 XTP DPS
    2019Can-AmOutlander Max 8504x4 North Edition DPS
    2019Can-AmOutlander Max 8504x4 XT DPS
    2019Can-AmOutlander Max 8504x4 XTP DPS
    2022Can-AmOutlander Max 10006x6 XT
    2021Can-AmOutlander Max 10006x6 XT
    2022Can-AmOutlander Max 1000R4x4 LTD DPS
    2022Can-AmOutlander Max 1000R4x4 XT DPS
    2022Can-AmOutlander Max 1000R4x4 XTP DPS
    2021Can-AmOutlander Max 1000R4x4 LTD DPS
    2021Can-AmOutlander Max 1000R4x4 XT DPS
    2021Can-AmOutlander Max 1000R4x4 XTP DPS
    2020Can-AmOutlander Max 1000R4x4 LTD DPS
    2020Can-AmOutlander Max 1000R4x4 XT DPS
    2020Can-AmOutlander Max 1000R4x4 XTP DPS
    2020Can-AmOutlander Max 1000R6x6 XT
    2019Can-AmOutlander Max 1000R4x4 LTD DPS
    2019Can-AmOutlander Max 1000R4x4 XT DPS
    2019Can-AmOutlander Max 1000R4x4 XTP DPS
    2019Can-AmOutlander Max 1000R6x6 XT
    2022Can-AmRenegade 5704X4
    2021Can-AmRenegade 5704X4
    2020Can-AmRenegade 5704X4
    2019Can-AmRenegade 5704X4
    2022Can-AmRenegade 8504X4
    2022Can-AmRenegade 8504x4 XXC DPS
    2021Can-AmRenegade 8504X4
    2021Can-AmRenegade 8504x4 XXC DPS
    2020Can-AmRenegade 8504X4
    2020Can-AmRenegade 8504x4 XXC DPS
    2019Can-AmRenegade 8504X4
    2019Can-AmRenegade 8504x4 XXC DPS
    2022Can-AmRenegade 1000R4x4 XXC DPS
    2021Can-AmRenegade 1000R4x4 XXC DPS
    2020Can-AmRenegade 1000R4x4 XXC DPS
    2019Can-AmRenegade 1000R4X4
    2019Can-AmRenegade 1000R4x4 XXC DPS

    Details

    • CA-231/CA-232
    • CA-231/CA-232
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
