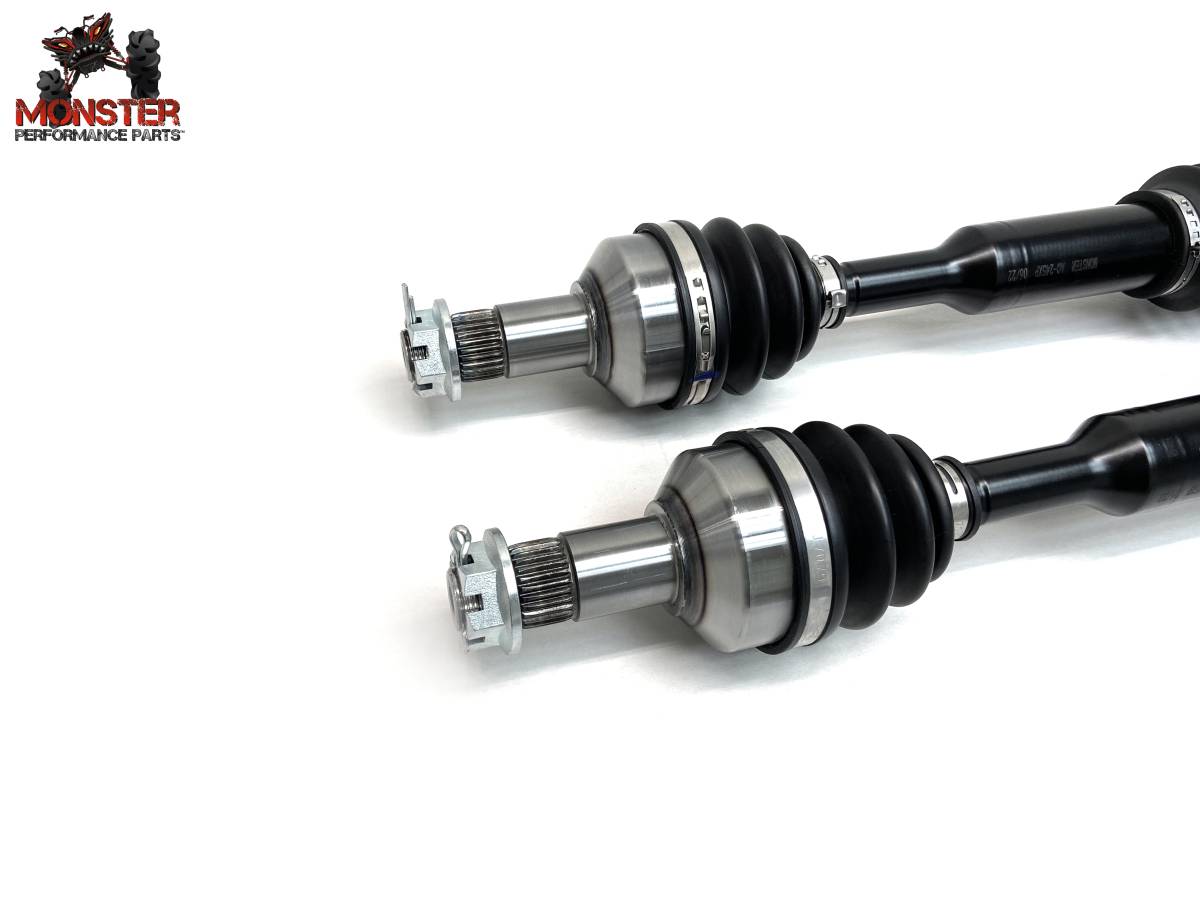

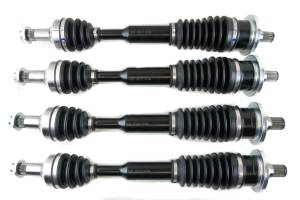

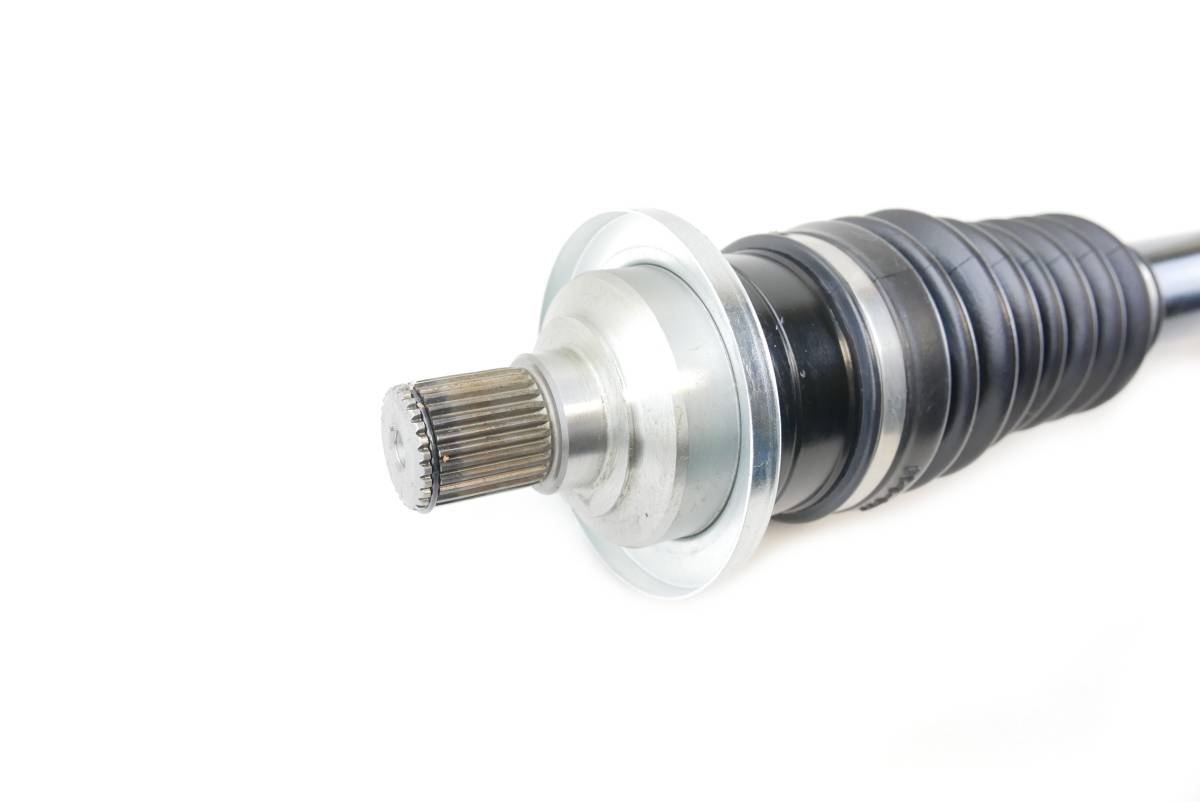

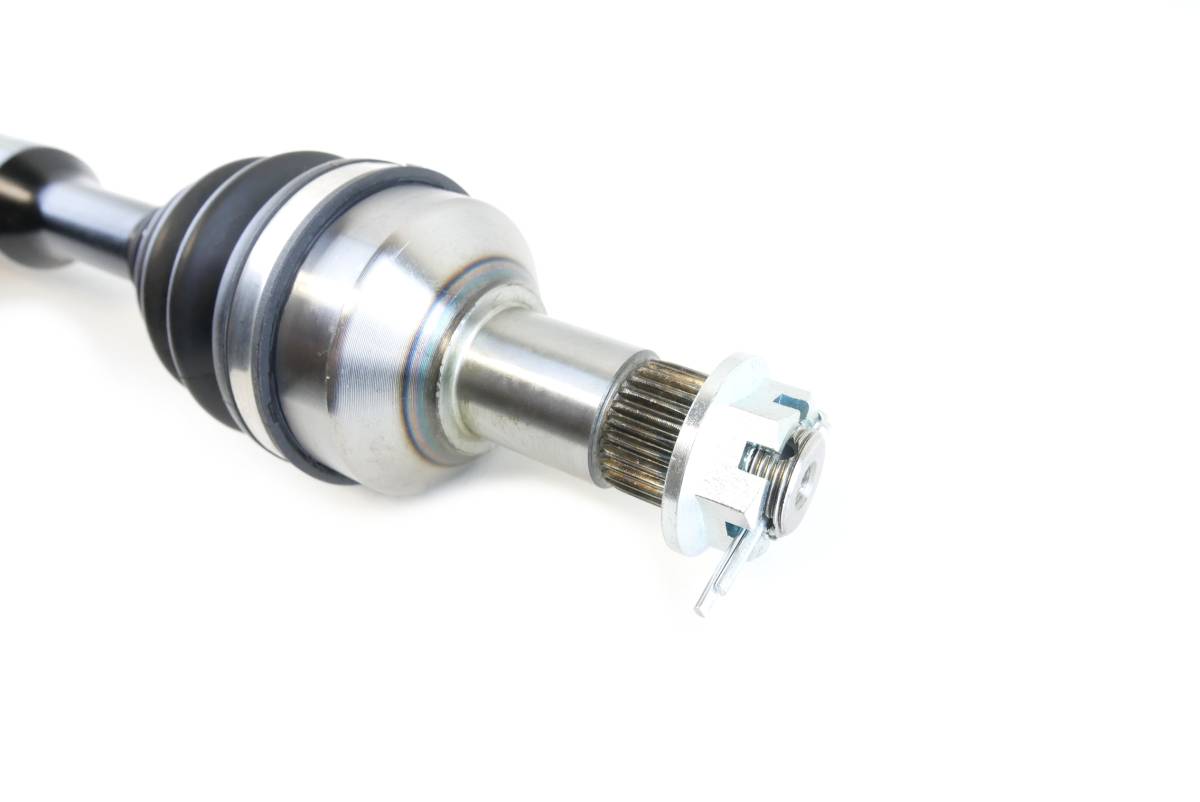

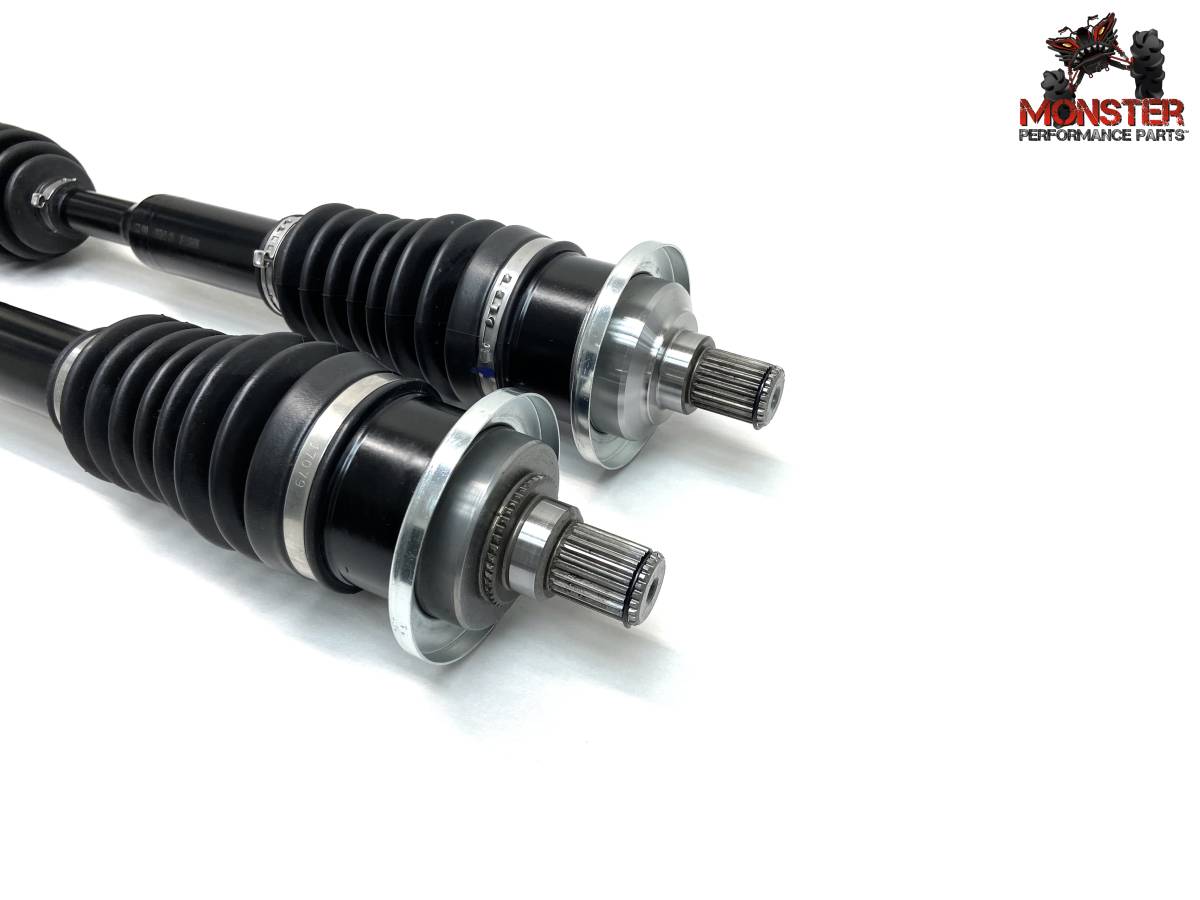

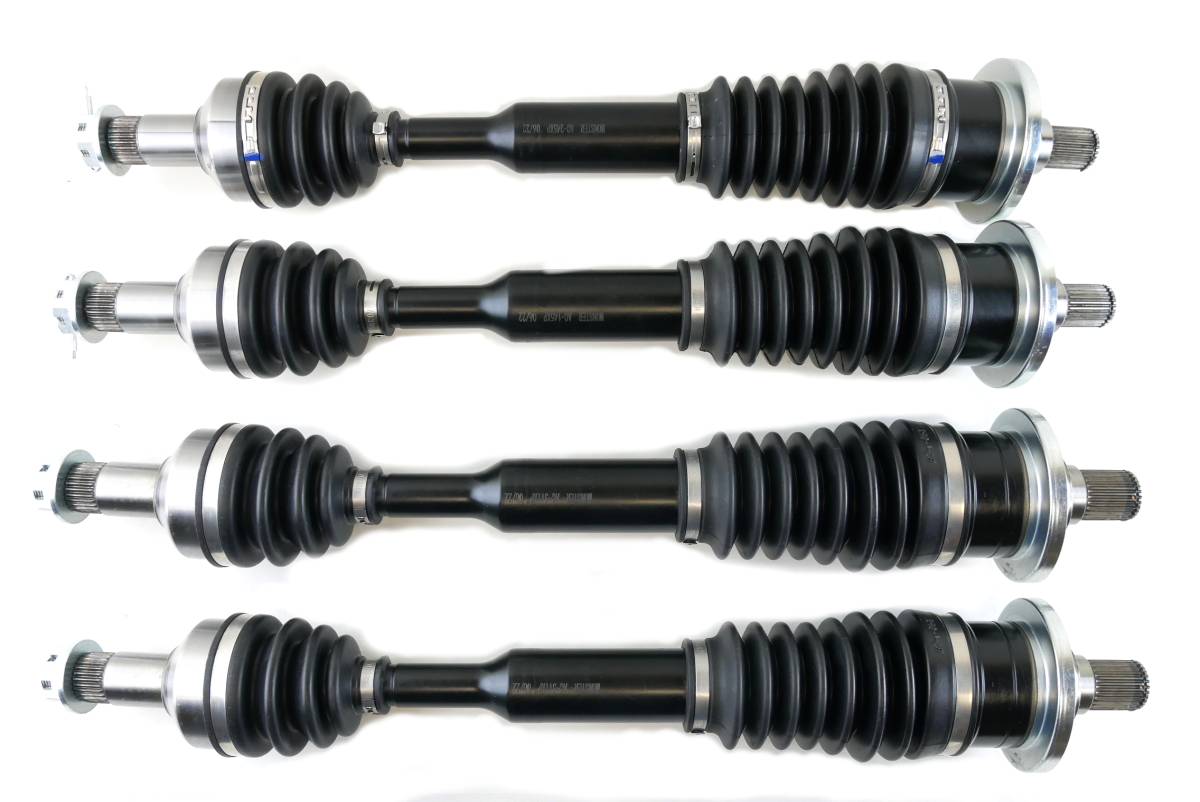

Monster Axles Full Set for Arctic Cat 1502-873, 1502-874, 1502-938, XP Series

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
AC-145XP/AC-245XP/AC-311XP/AC-311XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Fits the following Arctic Cat ATV models: 2006-2008 400 FIS AT/MT, 2009-2012 TRV 400, 2009-2012 450 EFI/TRV 450, 2006-2014 500 FIS MT/AT, 2009-2014 550, 2006-2011 650 (excl Mud Pro), 2006-2014 700 (excl Mud Pro), 2009-2010 TRV 1000.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

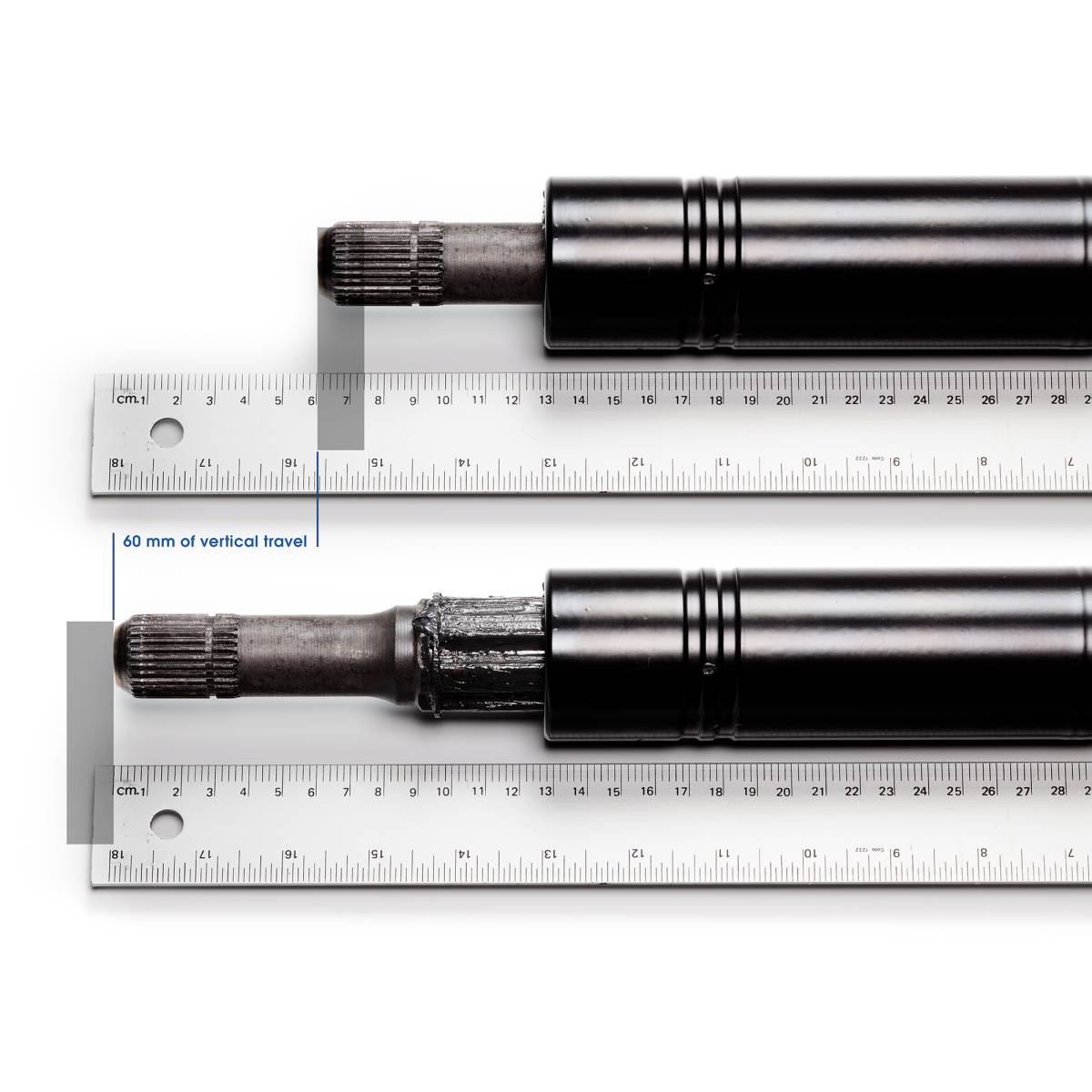

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $519.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2011Arctic Cat4004x4 TRV
2010Arctic Cat4004x4 TRV Automatic
2009Arctic Cat4004x4 TRV Automatic
2008Arctic Cat4004X4
2008Arctic Cat4004x4 Automatic
2007Arctic Cat4004X4
2007Arctic Cat4004x4 Automatic
2007Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004X4
2006Arctic Cat4004x4 Automatic
2006Arctic Cat4004x4 LE Automatic
2006Arctic Cat4004x4 M4 Automatic
2012Arctic Cat4504X4
2012Arctic Cat4504x4 EFI
2012Arctic Cat4504x4 GT EFI
2012Arctic Cat4504x4 TRV EFI
2012Arctic Cat4504x4 TRV GT EFI
2011Arctic Cat4504x4 EFI
2011Arctic Cat4504x4 H1 EFI
2011Arctic Cat4504x4 LTD EFI
2011Arctic Cat4504x4 TRV EFI
2010Arctic Cat4504x4 H1 Automatic EFI
2009Arctic Cat5004X4
2008Arctic Cat5004X4
2008Arctic Cat5004x4 Automatic
2008Arctic Cat5004x4 M4 Automatic
2007Arctic Cat5004X4
2007Arctic Cat5004x4 Automatic
2006Arctic Cat5004X4
2006Arctic Cat5004x4 Automatic
2006Arctic Cat5004x4 LE Automatic
2006Arctic Cat5004x4 M4 Automatic
2014Arctic Cat5504X4
2014Arctic Cat5504x4 Limited
2014Arctic Cat5504x4 TRV Limited
2014Arctic Cat5504x4 TRV XT
2014Arctic Cat5504x4 XT
2013Arctic Cat5504x4 CR
2013Arctic Cat5504x4 Limited
2013Arctic Cat5504x4 TRV Limited
2013Arctic Cat5504x4 TRV XT
2013Arctic Cat5504x4 XT
2012Arctic Cat5504x4 EFI
2012Arctic Cat5504x4 GT EFI
2012Arctic Cat5504x4 LTD EFI
2012Arctic Cat5504x4 TRV Cruiser EFI
2012Arctic Cat5504x4 TRV GT EFI
2011Arctic Cat5504x4 H1 Automatic EFI
2011Arctic Cat5504x4 H1 LTD EFI
2011Arctic Cat5504x4 H1 TRV Automatic EFI
2011Arctic Cat5504x4 H1 TRV Cruiser EFI
2011Arctic Cat5504x4 H1 TRV GT EFI
2010Arctic Cat5504x4 H1 Automatic EFI
2010Arctic Cat5504x4 H1 LE Automatic EFI
2010Arctic Cat5504x4 H1 TRV EFI
2010Arctic Cat5504x4 TRV Automatic
2010Arctic Cat5504x4 TRV GT
2009Arctic Cat5504x4 Automatic
2009Arctic Cat5504x4 LE Automatic
2009Arctic Cat5504x4 M4 Automatic
2009Arctic Cat5504x4 TRV Automatic
2009Arctic Cat5504x4 TRV LE Automatic
2011Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 EFI
2010Arctic Cat550S4x4 H1 LTD EFI
2010Arctic Cat550S4x4 H1 TRV GT EFI
2011Arctic Cat6504x4 H1 Automatic
2010Arctic Cat6504x4 H1 Automatic
2009Arctic Cat6504x4 H1 TRV Automatic
2009Arctic Cat6504x4 TBX Automatic
2008Arctic Cat6504x4 H1 Automatic
2008Arctic Cat6504x4 H1 TRV Automatic
2007Arctic Cat6504x4 H1 Automatic
2007Arctic Cat6504x4 H1 LE Automatic
2007Arctic Cat6504x4 H1 TBX Automatic
2007Arctic Cat6504x4 H1 TRV Automatic
2007Arctic Cat6504x4 H1 TRV LE Automatic
2007Arctic Cat6504x4 H1 TRV Plus Automatic
2007Arctic Cat6504x4 H1 TRV Plus LE Automatic
2006Arctic Cat6504x4 H1 Automatic
2006Arctic Cat6504x4 H1 SE Automatic
2006Arctic Cat6504x4 V2 Automatic
2006Arctic Cat6504x4 V2 LE Automatic
2006Arctic Cat6504x4 V2 Tony Stewart Automatic
2014Arctic Cat7004X4
2014Arctic Cat7004x4 Limited
2014Arctic Cat7004x4 Super Duty Diesel
2014Arctic Cat7004x4 TBX
2014Arctic Cat7004x4 TRV Limited
2014Arctic Cat7004x4 TRV XT
2014Arctic Cat7004x4 XT
2013Arctic Cat7004x4 CR
2013Arctic Cat7004x4 Limited
2013Arctic Cat7004x4 Super Duty Diesel
2013Arctic Cat7004x4 TRV Limited
2013Arctic Cat7004x4 TRV XT
2013Arctic Cat7004x4 XT
2012Arctic Cat7004x4 EFI
2012Arctic Cat7004x4 GT EFI
2012Arctic Cat7004x4 H1 EFI EPS
2012Arctic Cat7004x4 LTD EFI
2012Arctic Cat7004x4 Super Duty Diesel
2012Arctic Cat7004x4 TBX GT EFI
2012Arctic Cat7004x4 TRV Cruiser EFI
2012Arctic Cat7004x4 TRV GT EFI
2011Arctic Cat7004x4 H1 EFI EPS
2011Arctic Cat7004x4 H1 LTD
2011Arctic Cat7004x4 Super Duty Diesel
2011Arctic Cat7004x4 TBX LTD
2011Arctic Cat7004x4 TRV
2011Arctic Cat7004x4 TRV Cruiser
2011Arctic Cat7004x4 TRV GT
2010Arctic Cat7004x4 Automatic EFI
2010Arctic Cat7004x4 H1 Automatic EFI
2010Arctic Cat7004x4 H1 LE Automatic EFI
2010Arctic Cat7004x4 H1 TBX Automatic EFI
2010Arctic Cat7004x4 H1 TRV Automatic EFI
2010Arctic Cat7004x4 H1 TRV Cruiser Automatic EFI
2010Arctic Cat7004x4 Super Duty Diesel
2010Arctic Cat7004x4 TRV GT
2009Arctic Cat7004x4 Automatic EFI
2009Arctic Cat7004x4 H1 Automatic EFI
2009Arctic Cat7004x4 H1 LE Automatic EFI
2009Arctic Cat7004x4 H1 SE Automatic EFI
2009Arctic Cat7004x4 H1 TRV Automatic EFI
2009Arctic Cat7004x4 TRV Cruiser EFI
2008Arctic Cat7004x4 Automatic Diesel
2008Arctic Cat7004x4 Automatic EFI
2008Arctic Cat7004x4 H1 SE Automatic EFI
2008Arctic Cat7004x4 M4 Automatic EFI
2008Arctic Cat7004x4 TRV Cruiser Automatic EFI
2008Arctic Cat7004x4 TRV LE Automatic EFI
2007Arctic Cat7004x4 Automatic Diesel
2007Arctic Cat7004x4 Automatic EFI
2007Arctic Cat7004x4 LE Automatic EFI
2010Arctic Cat10004x4 TRV Automatic EFI
2010Arctic Cat10004x4 TRV Cruiser
2009Arctic Cat10004x4 H2 TRV Cruiser EFI
2009Arctic Cat10004x4 TRV
2010Arctic CatThundercat4x4 Automatic EFI
2010Arctic CatThundercat4x4 LE Automatic EFI
2009Arctic CatThundercat4x4 SE Automatic EFI
2008Arctic CatThundercat4x4 Automatic
2008Arctic CatThundercat4x4 H2 SE Automatic EFI

Product Notes

  • Fits the following Arctic Cat ATV models: 2006-2008 400 FIS AT/MT, 2009-2012 TRV 400, 2009-2012 450 EFI/TRV 450, 2006-2014 500 FIS MT/AT, 2009-2014 550, 2006-2011 650 (excl Mud Pro), 2006-2014 700 (excl Mud Pro), 2009-2010 TRV 1000. Set includes 4 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Comes with a 1 year limited warranty (excluding torn boots). Inboard splines: Fronts - 24, Rears - 27, Outboard splines: Fronts - 27, Rears - 27, Compressed length: FL - 550 mm, FR - 548 mm, RL - 548 mm, RR - 548 mm. Replaces OEM # (fronts) 1502-345, 0502-813, (rears) 1502-938, 0502-811.

    • What's In The Box

  • 4 axles

    • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • AC-145XP/AC-245XP/AC-311XP/AC-311XP
    • AC-145XP/AC-245XP/AC-311XP/AC-311XP
    • MONSTER AXLES
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 50.0 lbs.
    • W12.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
