Front CV Axle for Arctic Cat Wildcat 1000, 2502-168 2502-360, Left or Right, 4140 Chromoly Steel, Heat-Treated, Quality Tested, ATVPC

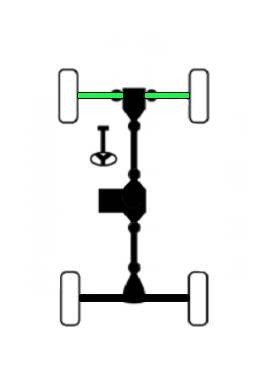

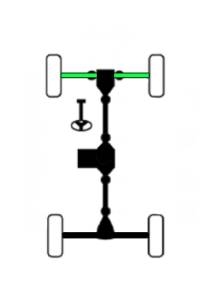

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-402

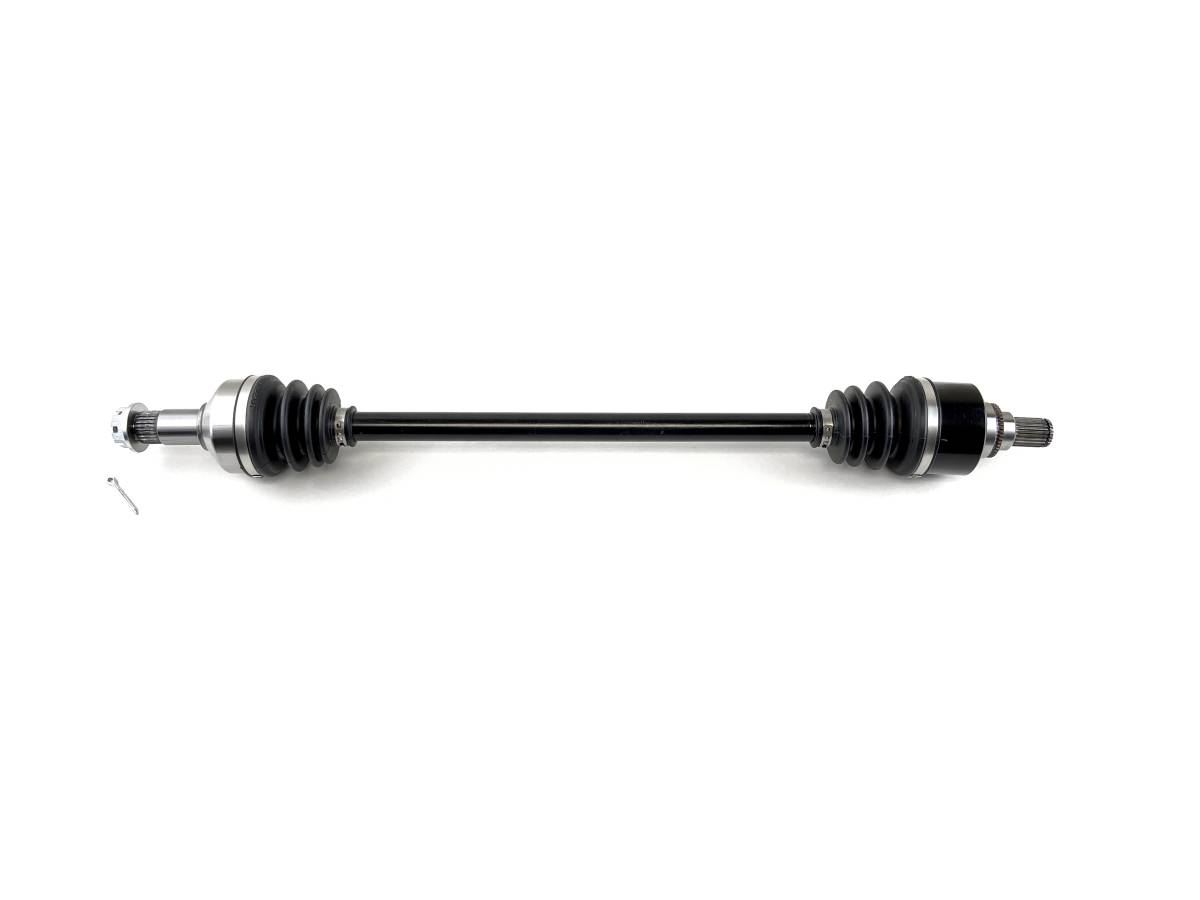

This is a new complete CV axle for an Arctic Cat 4x4.

It fits front, left or right on the following models

2016 Wildcat X LTD EPS, X SE EPS, 4X (all excluding standard X models)

2018-2019 Wildcat X/4X (all)

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • 4140 chromoly steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

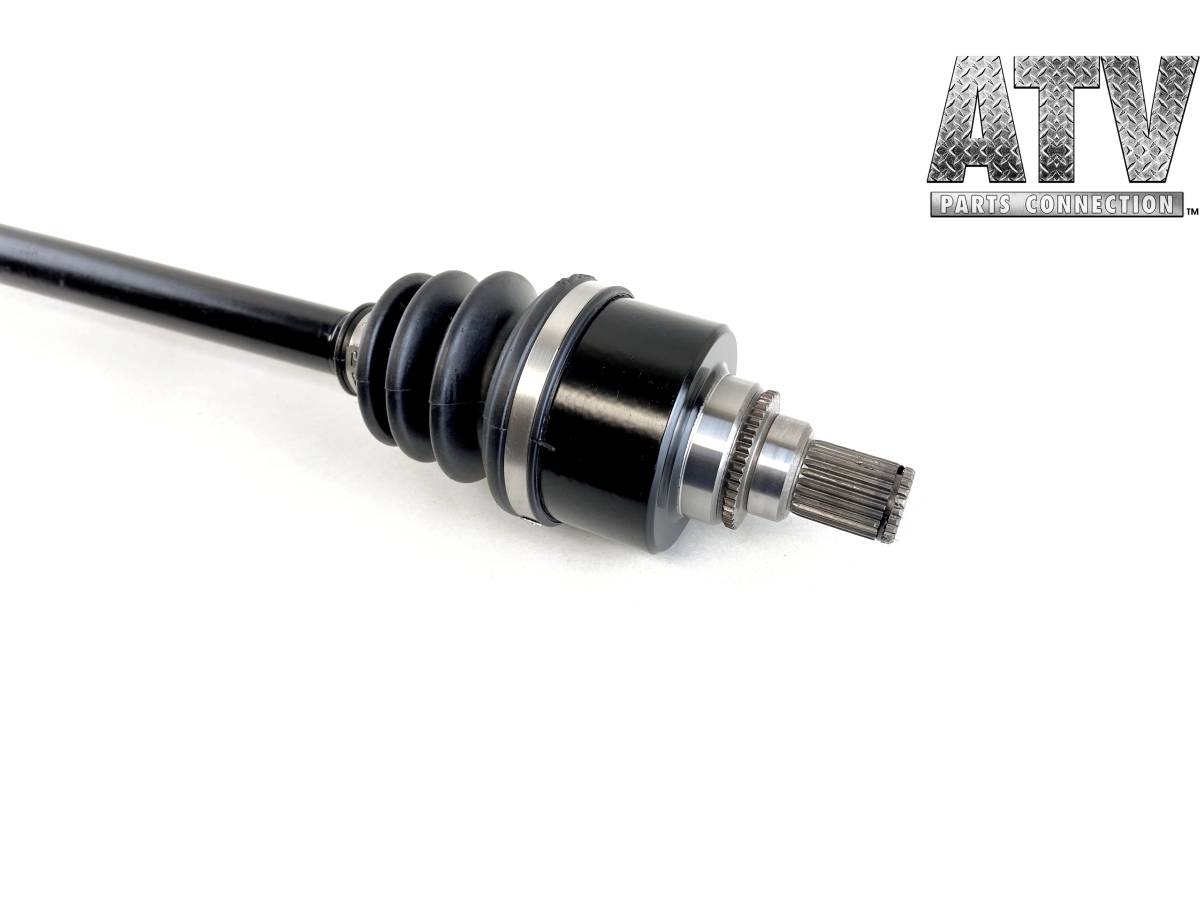

  • inobard CV joint spline count: 24

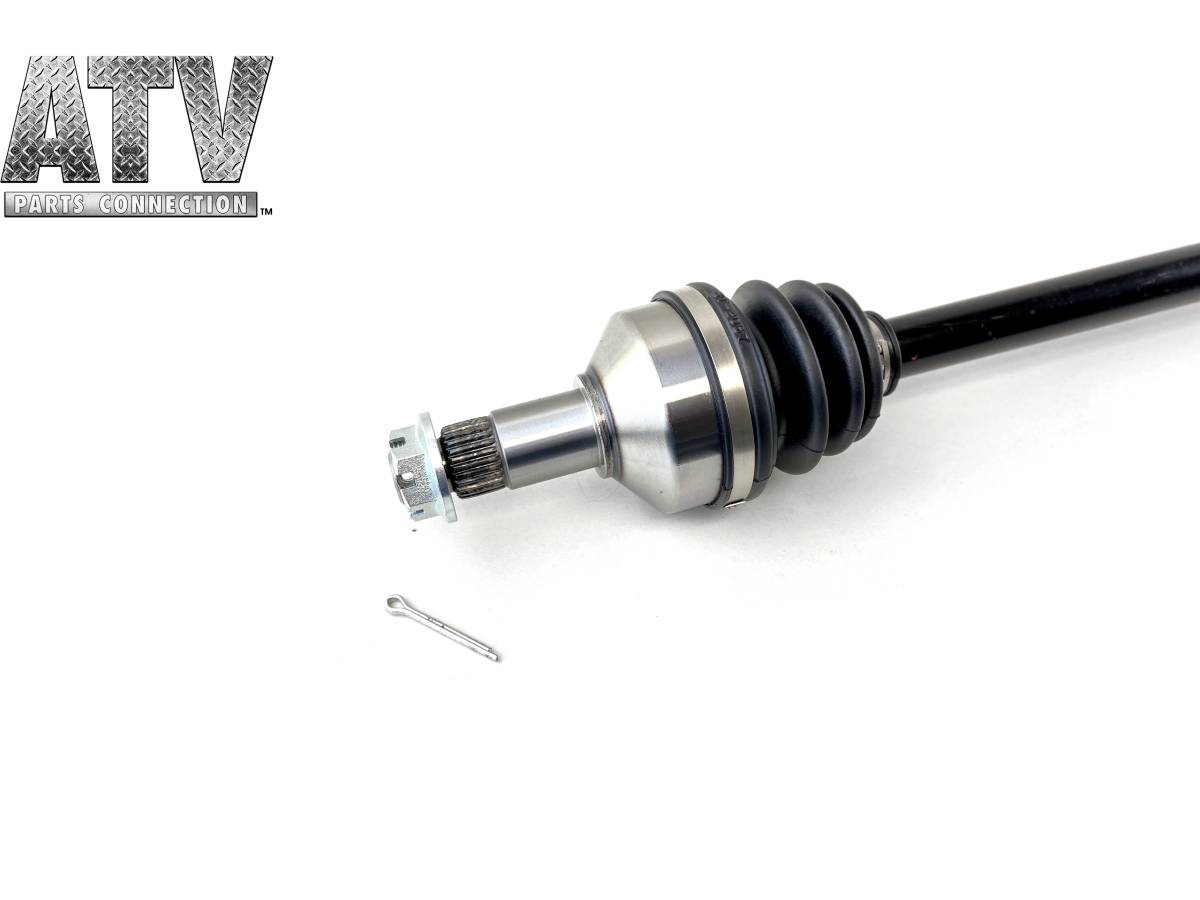

  • outboard CV joint spline count: 27
  • Compressed overall axle length: 737 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $54.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016Arctic CatWildcat 4X 10004x4 EPS
2016Arctic CatWildcat X 10004x4 Limited EPS
2016Arctic CatWildcat X 10004x4 Special Edition EPS
2018Textron Off RoadWildcat 4X 10004x4 EPS
2018Textron Off RoadWildcat 4X 10004x4 Limited EPS
2018Textron Off RoadWildcat X 10004x4 EPS
2018Textron Off RoadWildcat X 10004x4 Limited EPS

Product Notes

  • Fits front, left or right on the following Arctic Cat models: 2016 Wildcat X LTD EPS, X SE EPS & 4X (all excluding standard X models), 2018-2019 Wildcat X/4X (all).
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 2502-168 2502-360. Inboard CV joint spline count: 24, Outboard CV joint spline count: 27, Compressed axle length: 737 mm.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    Limited 2 year, one-time warranty

    Details

    • AC-402
    • AC-402
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 15.0 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
