Front CV Axle Pair for CF Moto CFORCE 400S & 500S 2019-2022, 9GQA-270300

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
CF-801/CF-801

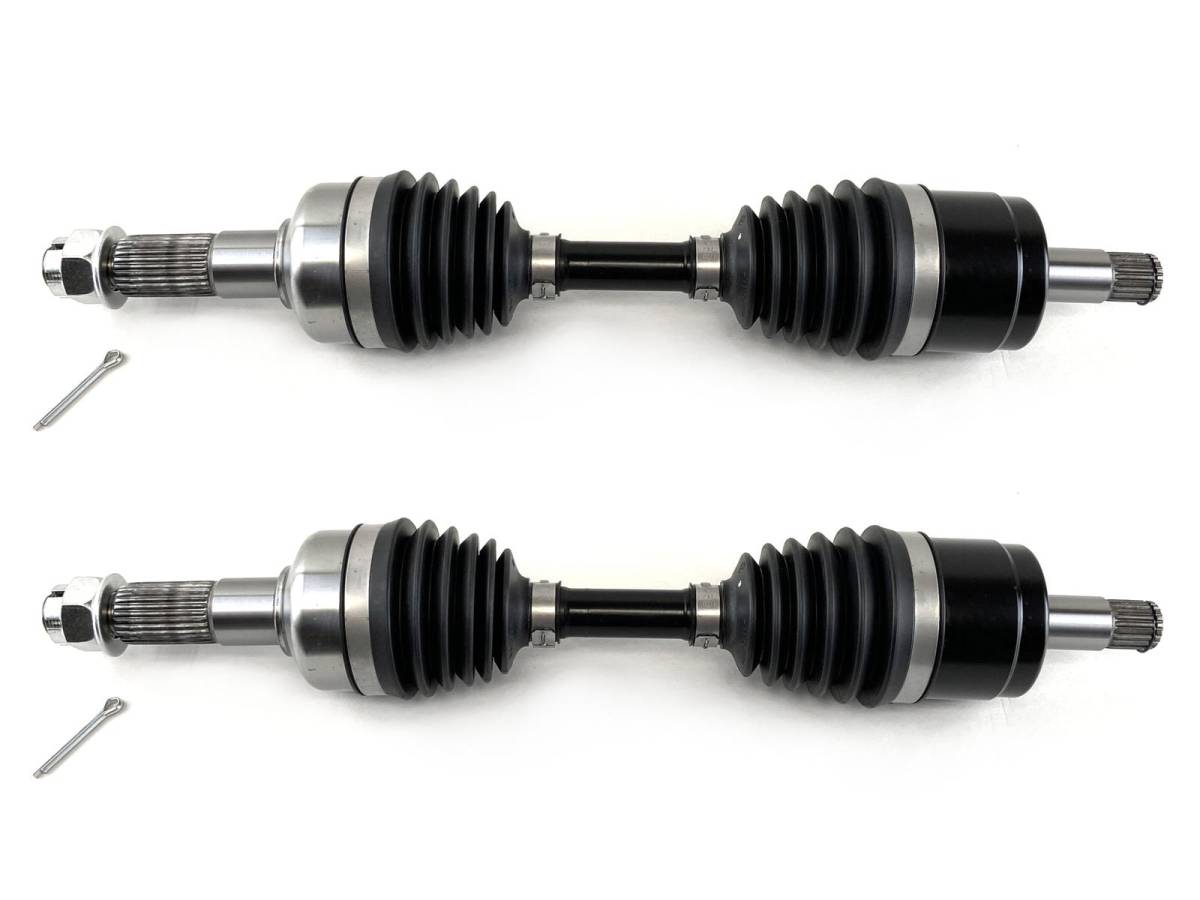

This is a pair of new CV axles for a CF-Moto ATV.

They fit FRONT, LEFT & RIGHT on the following models:

2019-2022 CFORCE 400S (excluding G2 models)

2019-2022 CFORCE 500S (excluding HO & G2 models)

*Made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 464 mm (both)
  • Replaces OEM # 9GQA-270300
Limited Supply: only 3 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $144.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following CF Moto ATVs: 2019-2022 CFORCE 400S (excluding G2 models), 2018-2022 CFORCE 500S (excluding HO & G2 models). Set includes 2 fully assembled axles.
  • Features stronger than OEM, 4340 chromoly steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length: 464 mm (both), Inner spline count: 21 (both), Outer spline count: 27 (both), Replaces OEM # 9GQA-270300.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2022CF-MotoCFORCE 400--
    2021CF-MotoCFORCE 400--
    2020CF-MotoCFORCE 400S
    2019CF-MotoCFORCE 400--
    2022CF-MotoCFORCE 500EPS
    2021CF-MotoCFORCE 500EPS
    2021CF-MotoCFORCE 500S
    2020CF-MotoCFORCE 500S
    2019CF-MotoCFORCE 500S EPS
    2018CF-MotoCFORCE 500S EPS

    Details

    • CF-801/CF-801
    • CF-801/CF-801
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 18.5 lbs.
    • W5.0000” x H10.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
