CV Axle Set for for CF Moto CFORCE 400S & 500S 2019-2022

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CF-801/CF-801/CF-803/CF-804

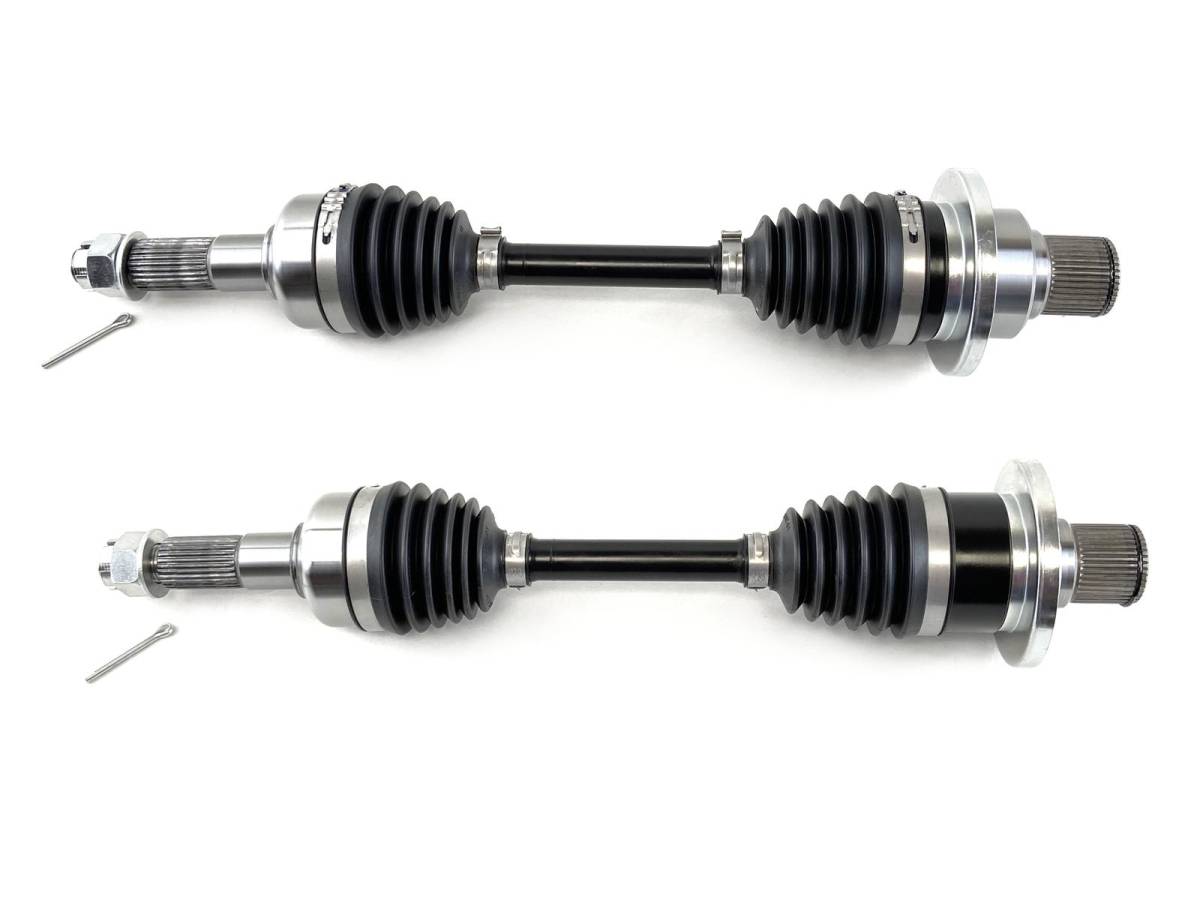

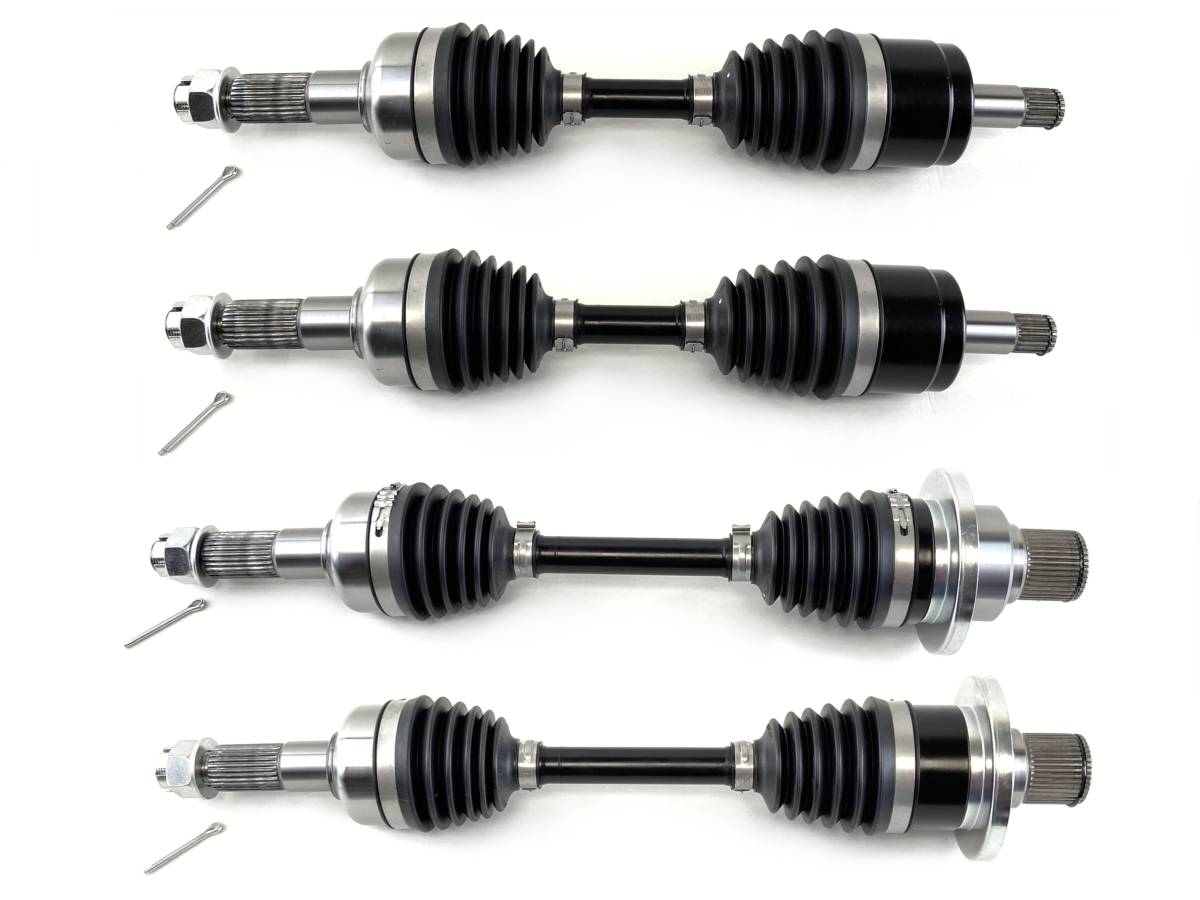

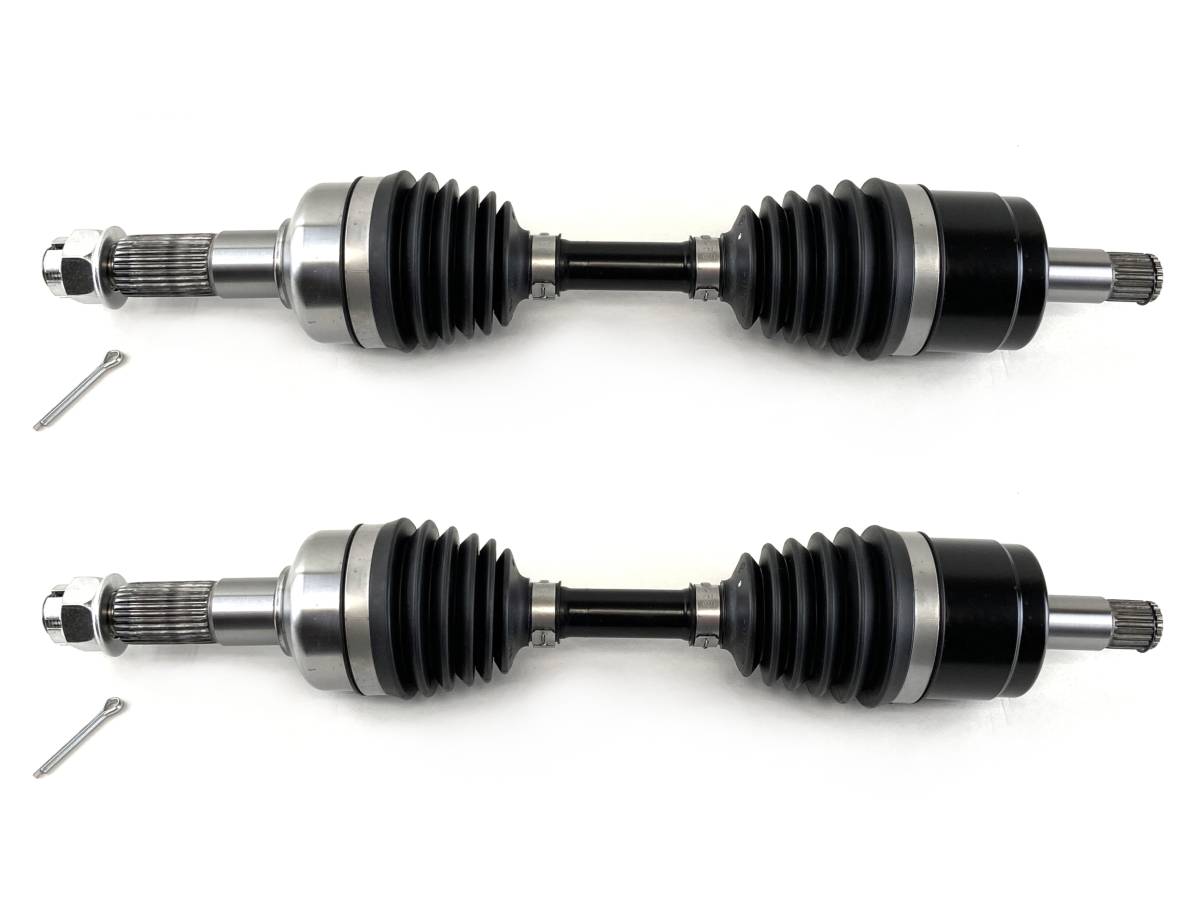

This is a set of 4 new CV axles for a CF-Moto ATV.

They fit the following 4x4 models:

2019-2022 CFORCE 400S (excluding G2 models)

2019-2022 CFORCE 500S (excluding HO & G2 models)

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 21, Rears - 39
  • Outboard CV joint spline count: Fronts - 27, Rears - 27
  • Compressed overall axle length (mm): FL - 464, FR - 464, RL - 504, RR - 504
  • Replaces OEM # (fronts) 9GQA-270300, (rears) 9GQS-280100, 9GQS-280200
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $269.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022CF-MotoCFORCE 400--
2021CF-MotoCFORCE 400--
2020CF-MotoCFORCE 400S
2019CF-MotoCFORCE 400--
2022CF-MotoCFORCE 500EPS
2021CF-MotoCFORCE 500EPS
2021CF-MotoCFORCE 500S
2020CF-MotoCFORCE 500S
2019CF-MotoCFORCE 500S EPS
2018CF-MotoCFORCE 500S EPS

Product Notes

  • Fits the following CF-Moto ATVs: 2019-2022 CFORCE 400S (excluding G2 models), 2019-2022 CF Moto CFORCE 500S (excluding 500 HO & G2 models). Set includes 4 fully-assembled axles.
  • Features stronger than OEM, 4340 chromoly steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length (mm): FL - 464, FR - 464, RL - 504, RR - 504. Inner spline count: Fronts - 21, Rears - 39. Outer spline count: Fronts - 27, Rears - 27.
  • Replaces OEM # (fronts) 9GQA-270300, (rears) 9GQS-280100, 9GQS-280200.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty
