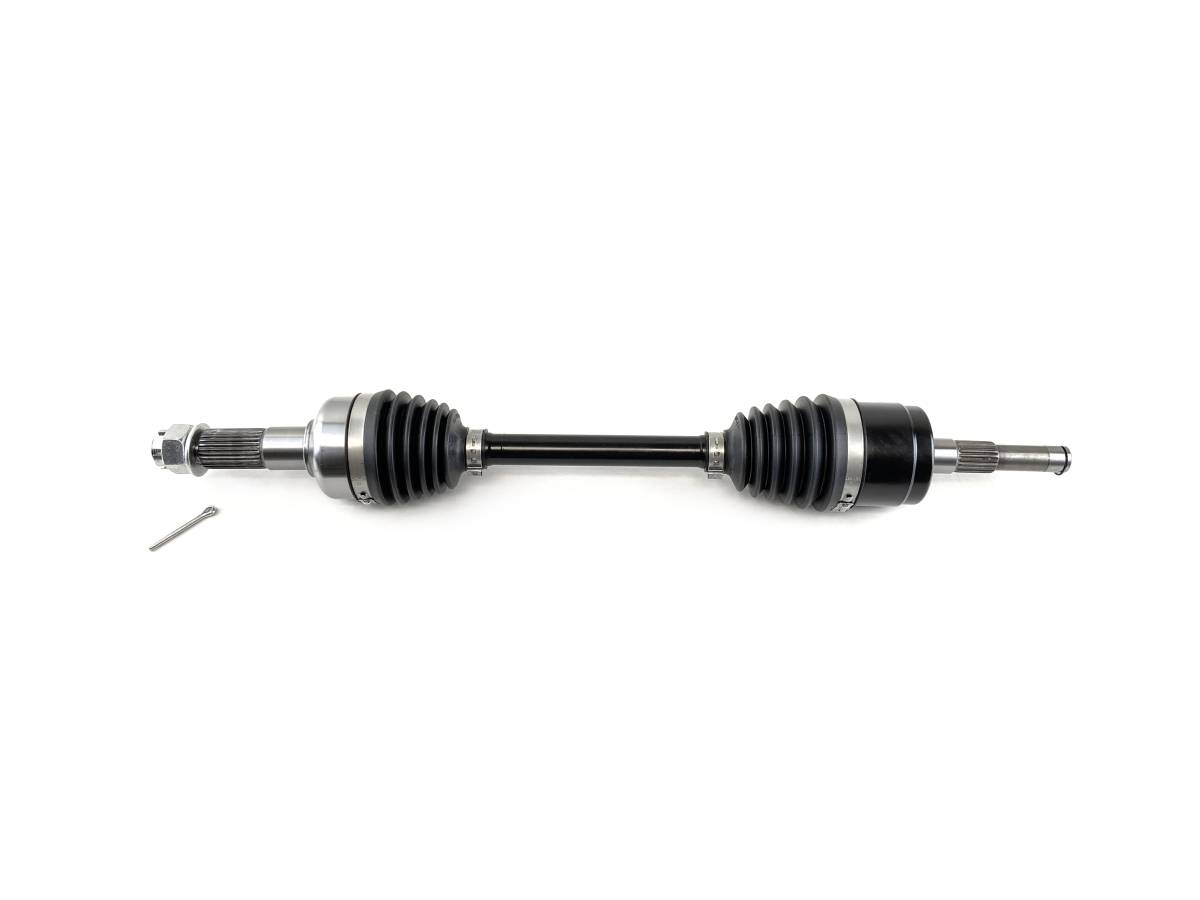

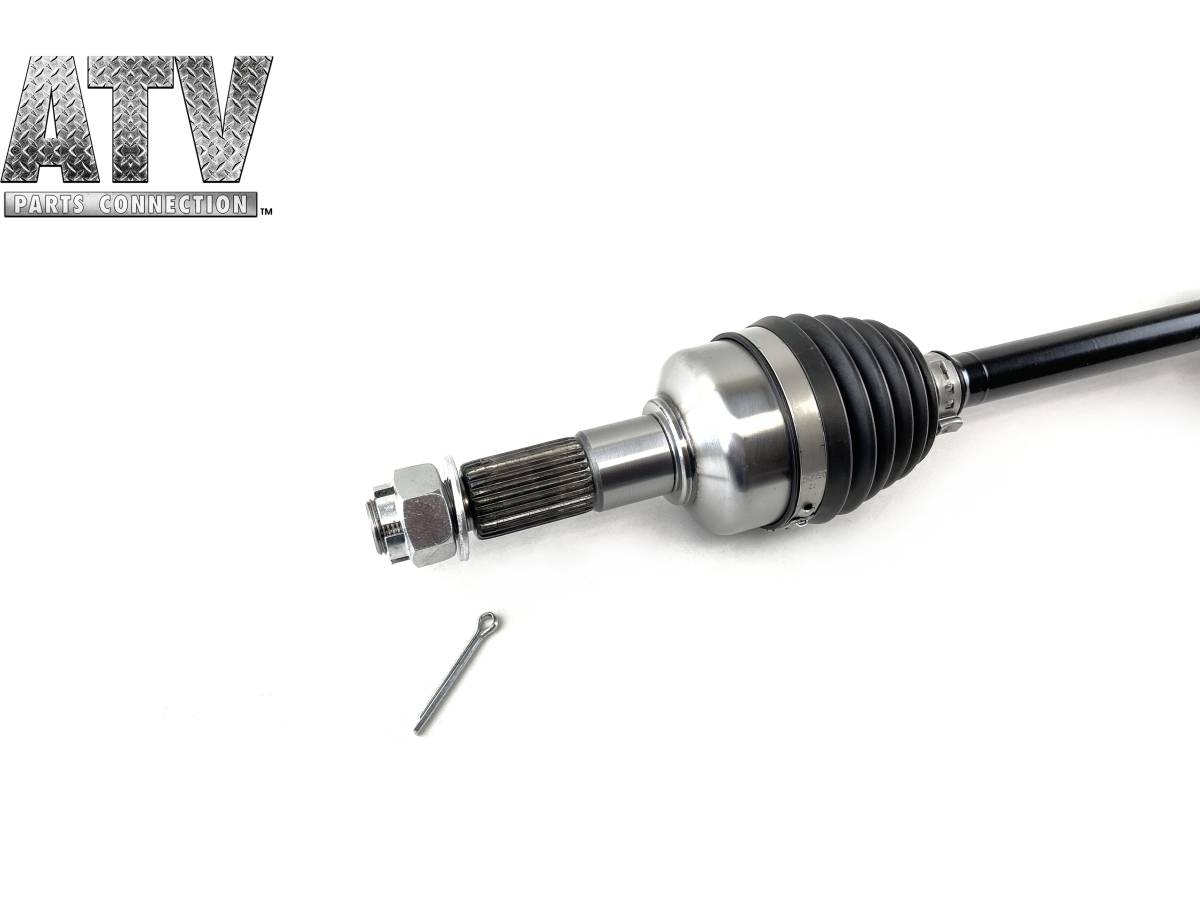

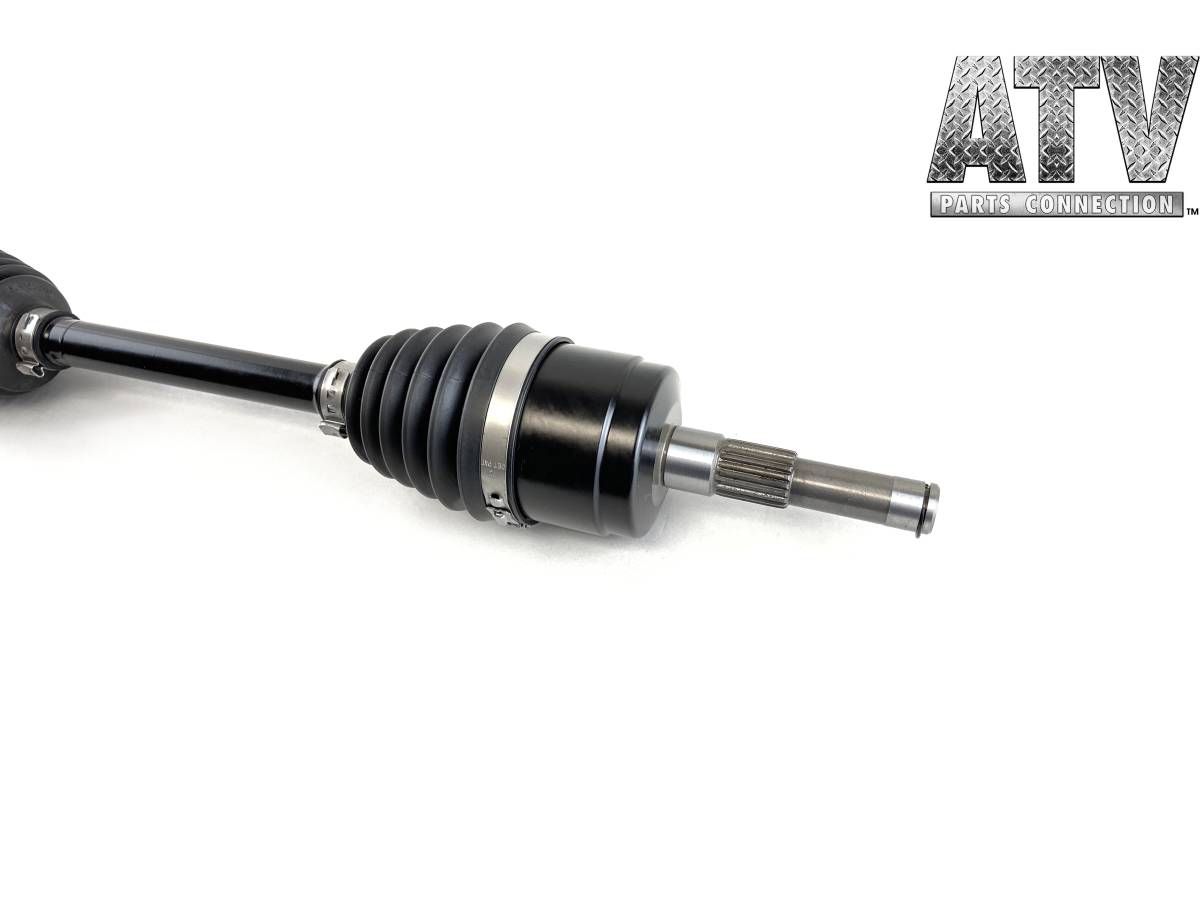

Front Left CV Axle for CF Moto ZFORCE 500 & Trail 800 2018-2022, 5BWC-270100

Location on vehicle: Front,Left

CF-809
This is a new complete CV axle for a CF-Moto 4x4.

It fits FRONT, LEFT (driver side) on the following models:

2018-2022 Z FORCE 500 Snyper SSV

2018-2022 Z FORCE 800 Trail Snyper (does not fit 'EX' models)

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures
  • High-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 596 mm
  • Replaces OEM # 5BWC-270100
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT (driver side) on the following CF Moto models: 2018-2022 Z FORCE 500 Snyper SSV, 2018-2022 Z FORCE 800 Trail Snyper. Please note this will not fit any 800 'EX' models.
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 5BWC-270100.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2022CF-MotoZFORCE 500Trail EPS
    2021CF-MotoZFORCE 500Trail EPS
    2020CF-MotoZFORCE 500Trail
    2020CF-MotoZFORCE 500Trail EPS
    2019CF-MotoZFORCE 500HO Trail EPS
    2018CF-MotoZFORCE 500HO Trail EPS
    2022CF-MotoZFORCE 800Trail EPS
    2021CF-MotoZFORCE 800Trail EPS
    2020CF-MotoZFORCE 800Trail EPS
    2019CF-MotoZFORCE 800Trail EPS
    2018CF-MotoZFORCE 800Trail EPS

    Details

    Shipping Information

    • Item Requires Shipping
    • 10.5 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
