Rear Left CV Axle for CF Moto CFORCE 400S & 500S 2019-2022, 9GQS-280100

Location on vehicle: Rear,Left

(0) Reviews: Write first review
CF-804

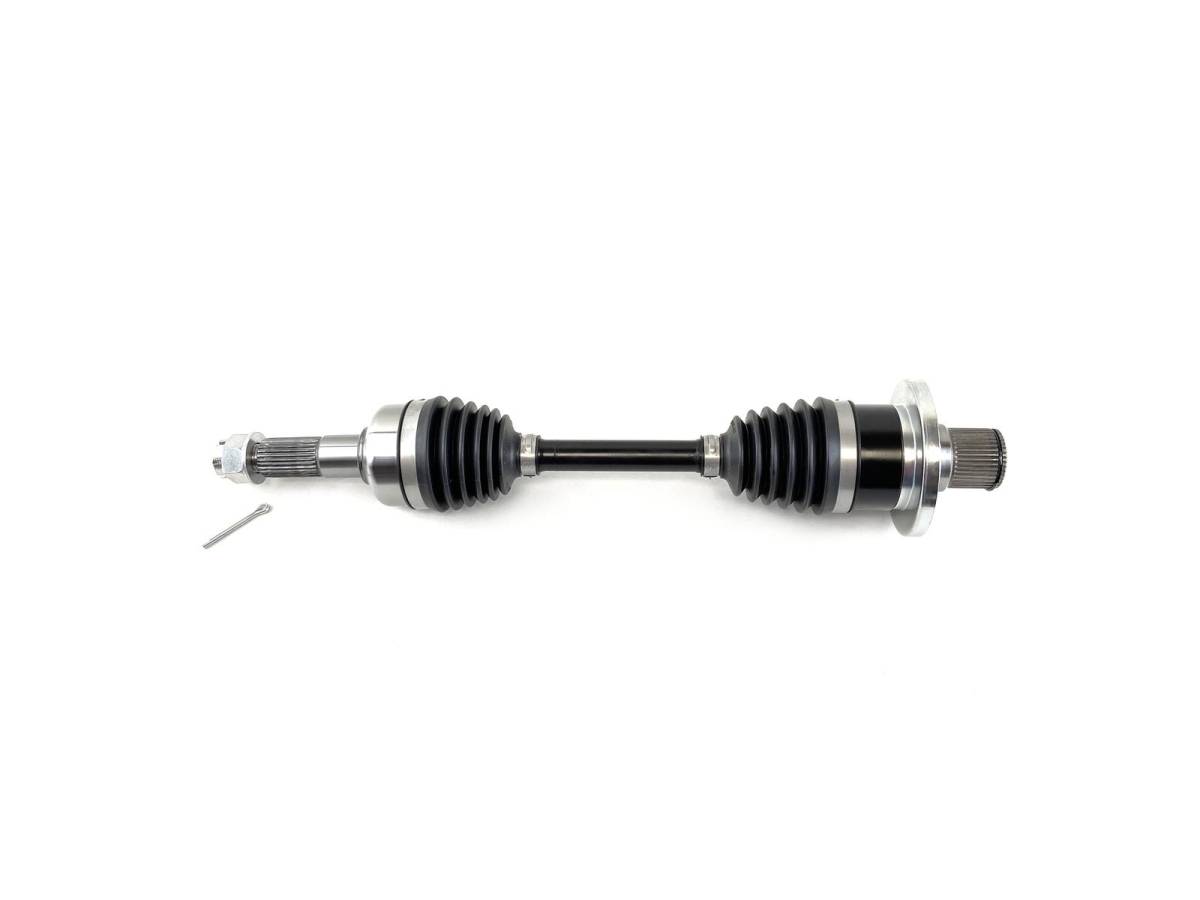

This is a new CV axle for a CF-Moto ATV.

It fits REAR, LEFT (driver side) on the following 4x4 models:

2019-2022 CFORCE 400S (excluding G2 models)

2019-2022 CFORCE 500S (excluding HO & G2 models)

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 39
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 504 mm
  • Replaces OEM # 9GQS-280100
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022CF-MotoCFORCE 400--400S models (excluding G2)
2021CF-MotoCFORCE 400--400S models
2020CF-MotoCFORCE 400S
2019CF-MotoCFORCE 400--400S models
2022CF-MotoCFORCE 500EPS500S models (excluding G2)
2021CF-MotoCFORCE 500S
2020CF-MotoCFORCE 500S
2019CF-MotoCFORCE 500S EPS
2018CF-MotoCFORCE 500S EPS

Product Notes

  • Fits rear, left (driver side) on the following CF-Moto models: 2019-2022 CFORCE 400/400S (excluding G2 models), 2018-2022 CFORCE 500S (excluding HO & G2 models).
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 9GQS-280100. Compressed axle length: 504 mm Inner spline count: 39, Outer spline count: 27.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • CF-804
    • CF-804
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.4 lbs.
    • W5.0000” x H24.0000” x L5.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
