Front CV Axle Pair with Wheel Bearings for Polaris Ranger 400 500 570 & 800 4x4

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-314/PO-314/WB-1424/WB-1424

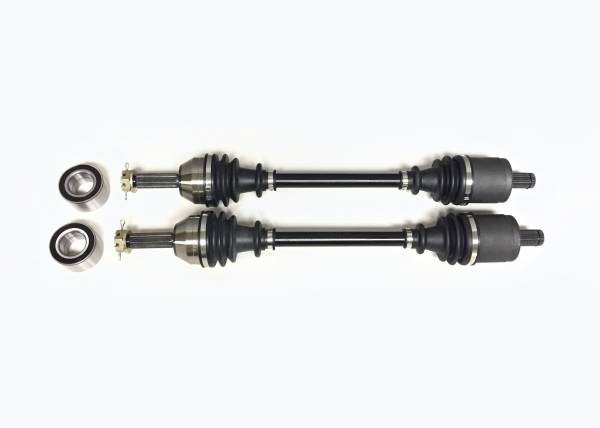

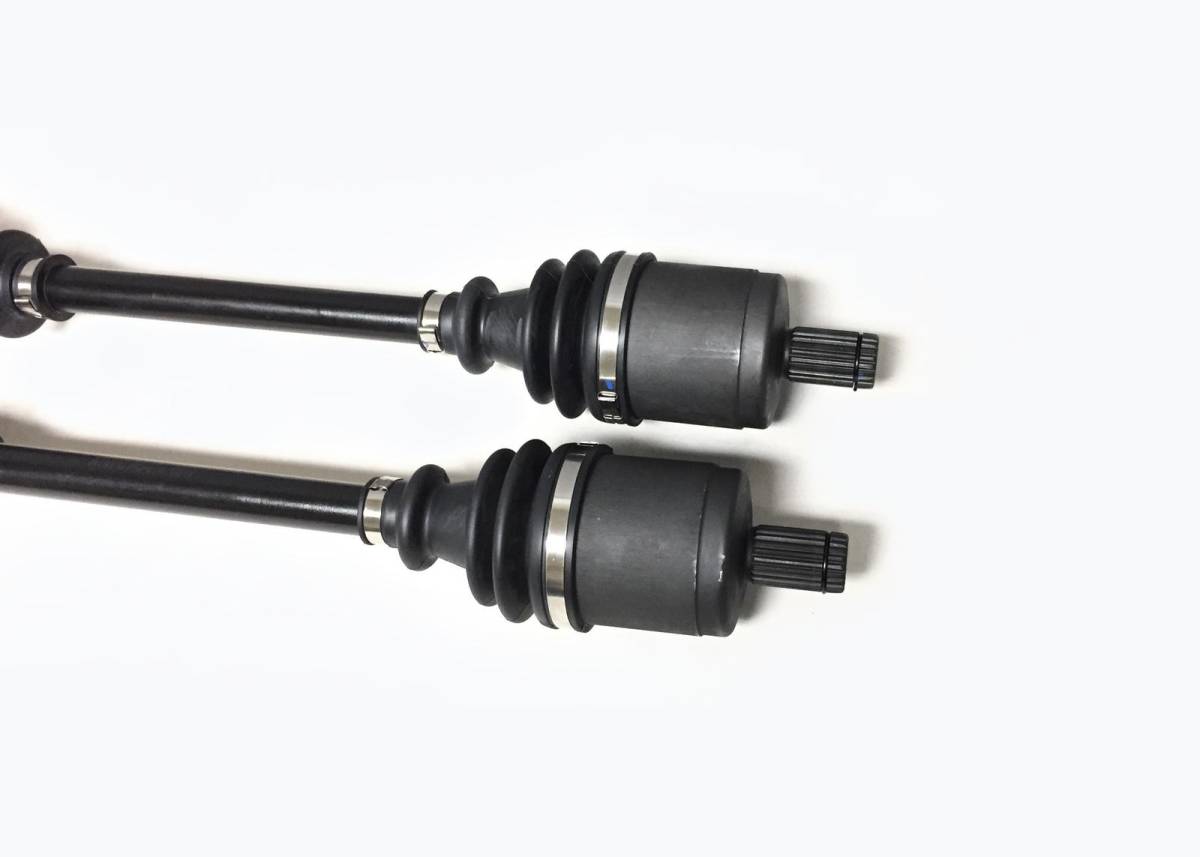

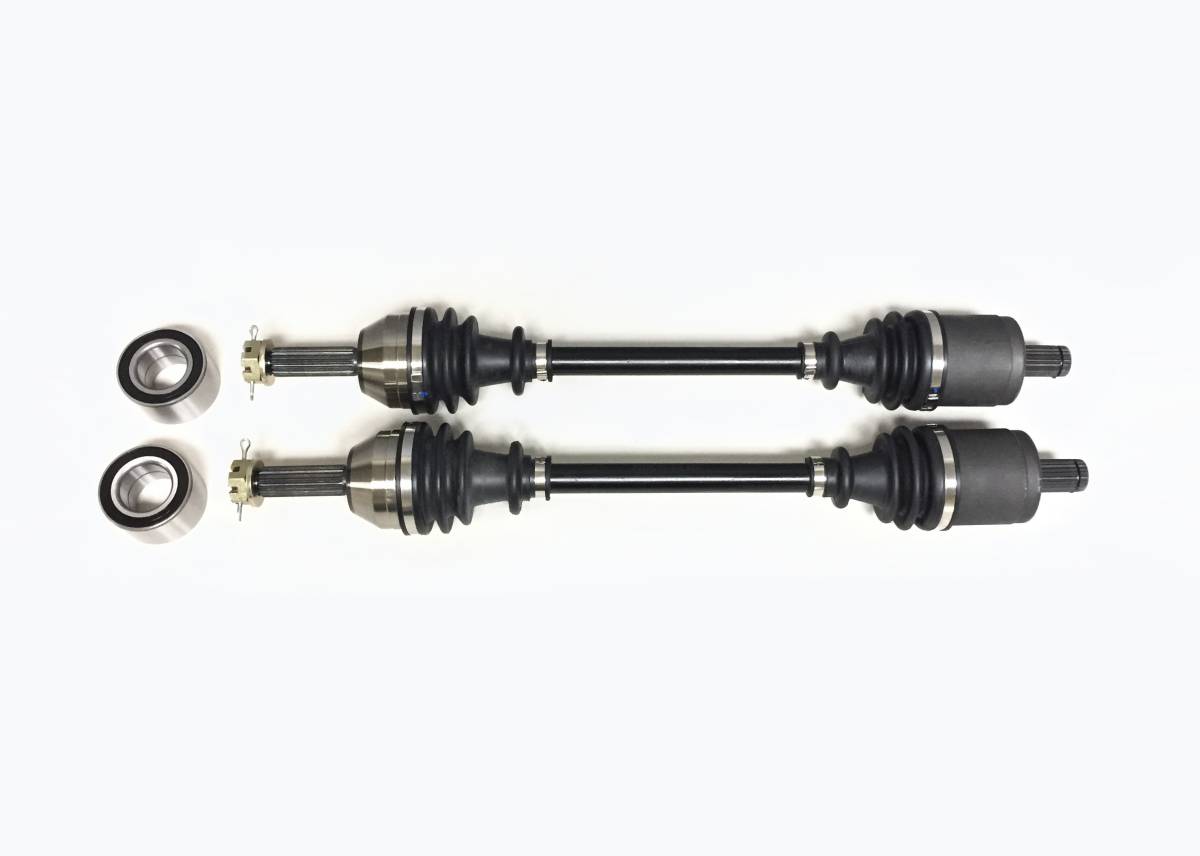

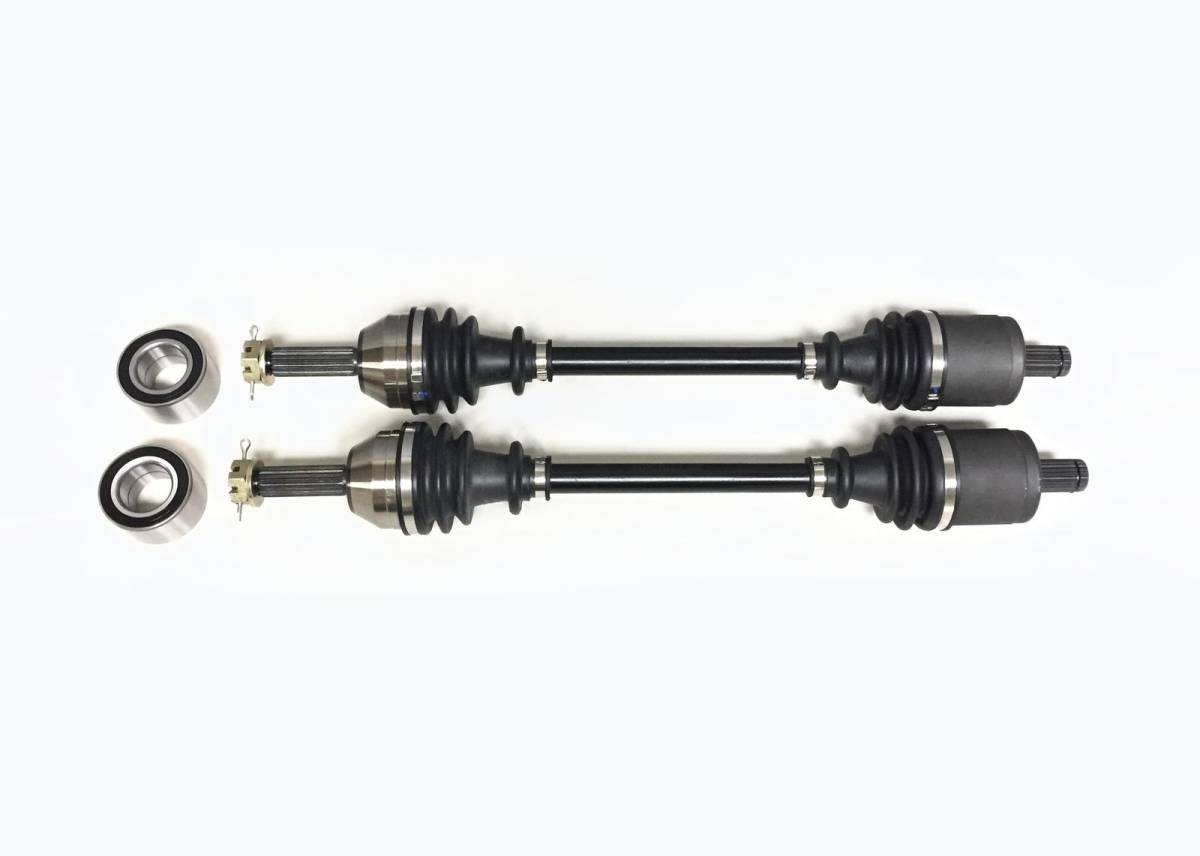

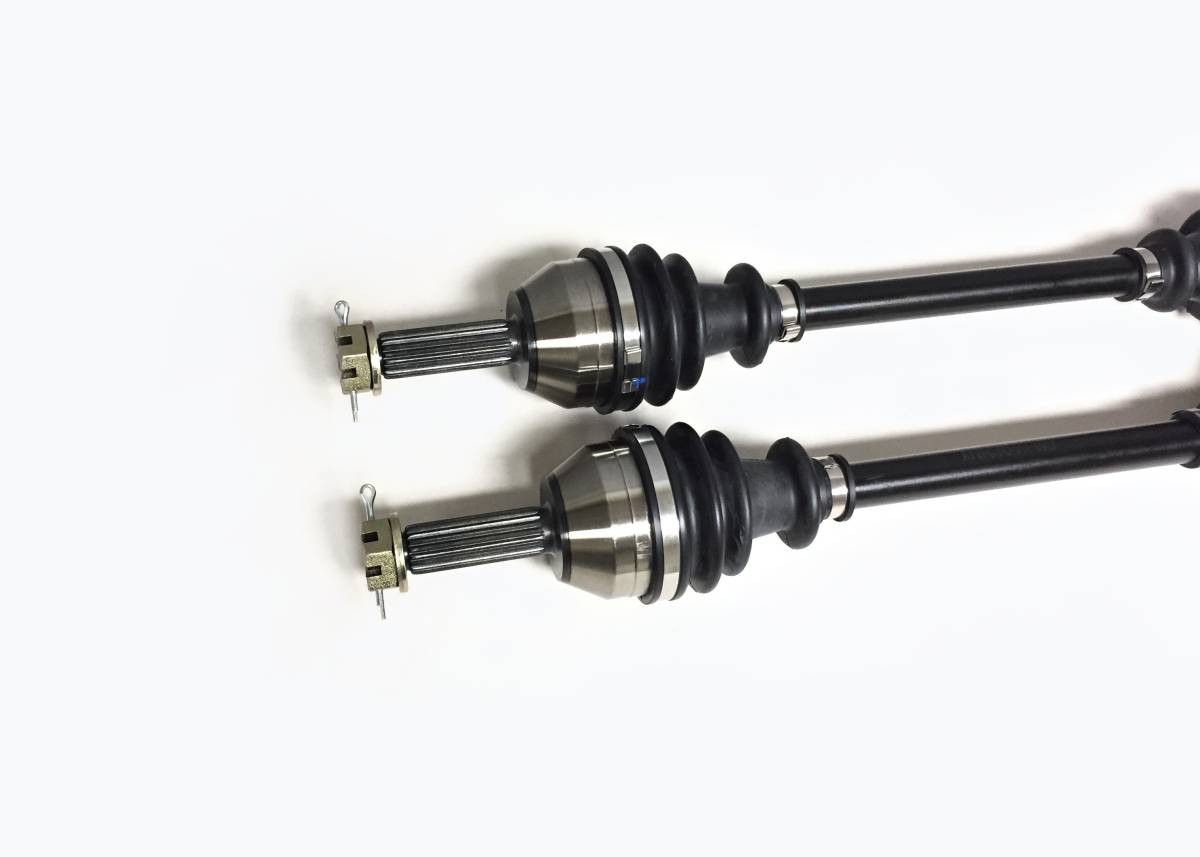

This is a set of new Front CV axles & wheel bearings for a Polaris UTV.

They fit the following 4x4 applications:

2010-2014 ... Ranger 400

2011-2013 ... Ranger 500/Crew 500

2014 ... Ranger 570/Crew 570

2013-2014 ... Ranger Midsize 800

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

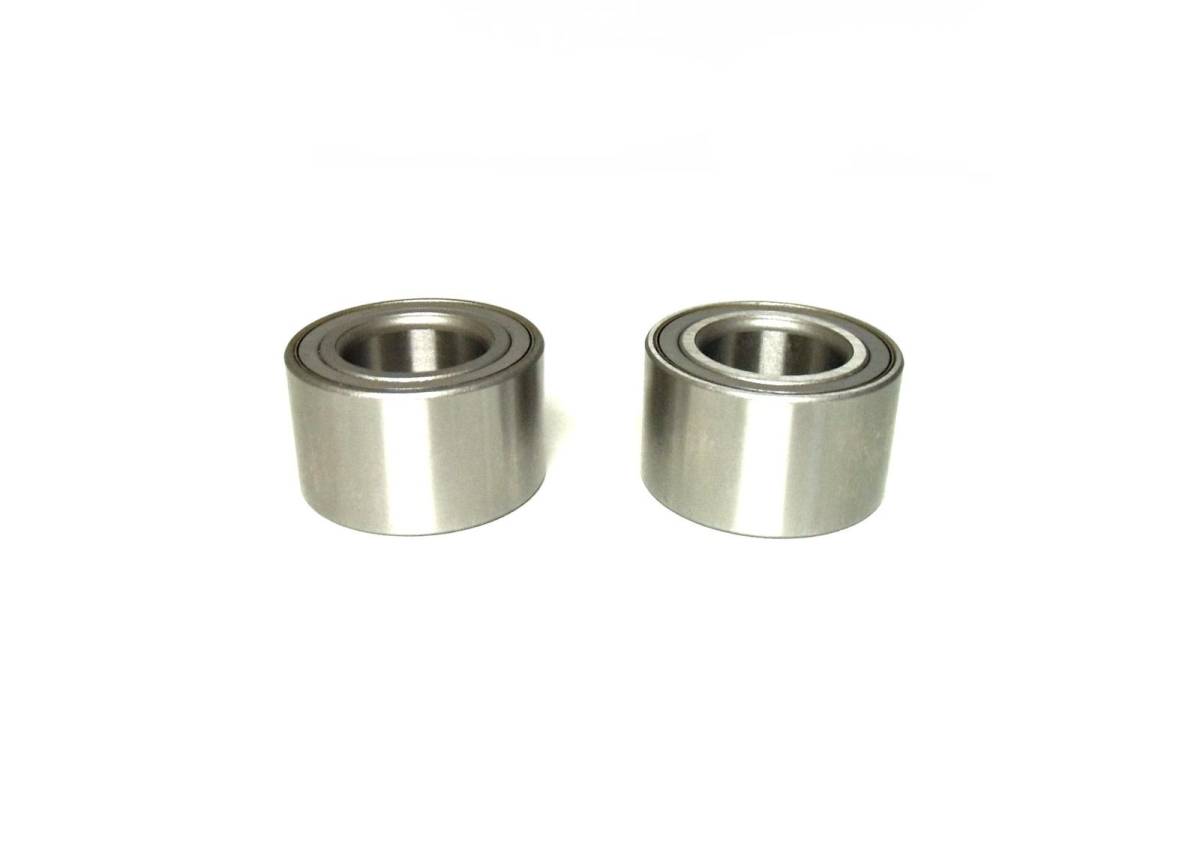

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 594 mm (both)
  • Replaces Polaris OE # (axles) 1333134, 1332690, 2203877, (bearings) 3514342, 3514634
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Polaris UTVs: 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, 2014 Ranger 570/Crew 570, 2013-2014 Ranger Midsize 800. Set includes 2 axles & 2 wheel bearings.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # (axles) 1333134, 1332690, 2203877, (bearings) 3514342, 3514634. Compressed Length - 594 mm (both) * Inboard Spline Count - 22 (both) * Outboard Spline Count - 20 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles & 2 wheel bearings

    • Application List

    YearMakeModelSubmodelNotes
    2014PolarisRanger 4004X4
    2013PolarisRanger 400Midsize
    2012PolarisRanger 4004X4
    2012PolarisRanger 4004x4 Pursuit
    2011PolarisRanger 4004X4
    2011PolarisRanger 400Pursuit HO
    2010PolarisRanger 4004X4
    2013PolarisRanger 500LE Midsize EFI
    2013PolarisRanger 500Midsize EFI
    2012PolarisRanger 5004x4 EFI
    2012PolarisRanger 5004x4 LE EFI
    2011PolarisRanger 5004x4 EFI
    2014PolarisRanger 570EFI
    2014PolarisRanger 570LE EFI EPS
    2014PolarisRanger 570Pursuit EFI
    2014PolarisRanger 800Midsize EFI
    2014PolarisRanger 800Midsize LE EFI EPS
    2014PolarisRanger 800Midsize Pursuit EFI
    2013PolarisRanger 800LE Midsize EFI
    2013PolarisRanger 800Midsize EFI
    2013PolarisRanger Crew 500LE Midsize
    2013PolarisRanger Crew 500Midsize
    2013PolarisRanger Crew 500Pursuit
    2012PolarisRanger Crew 5004X4
    2012PolarisRanger Crew 5004x4 LE
    2011PolarisRanger Crew 5004X4
    2011PolarisRanger Crew 5004x4 Pursuit
    2014PolarisRanger Crew 570EFI
    2014PolarisRanger Crew 570LE EFI EPS
    2014PolarisRanger Crew 570Pursuit EFI

    Details

    • PO-314/PO-314/WB-1424/WB-1424
    • PO-314/PO-314/WB-1424/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
