CV Axle Set for Can-Am Maverick X3 64" Turbo XMR XRC & XDS, 705401634, 705502154

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-227/CA-227/CA-329/CA-329

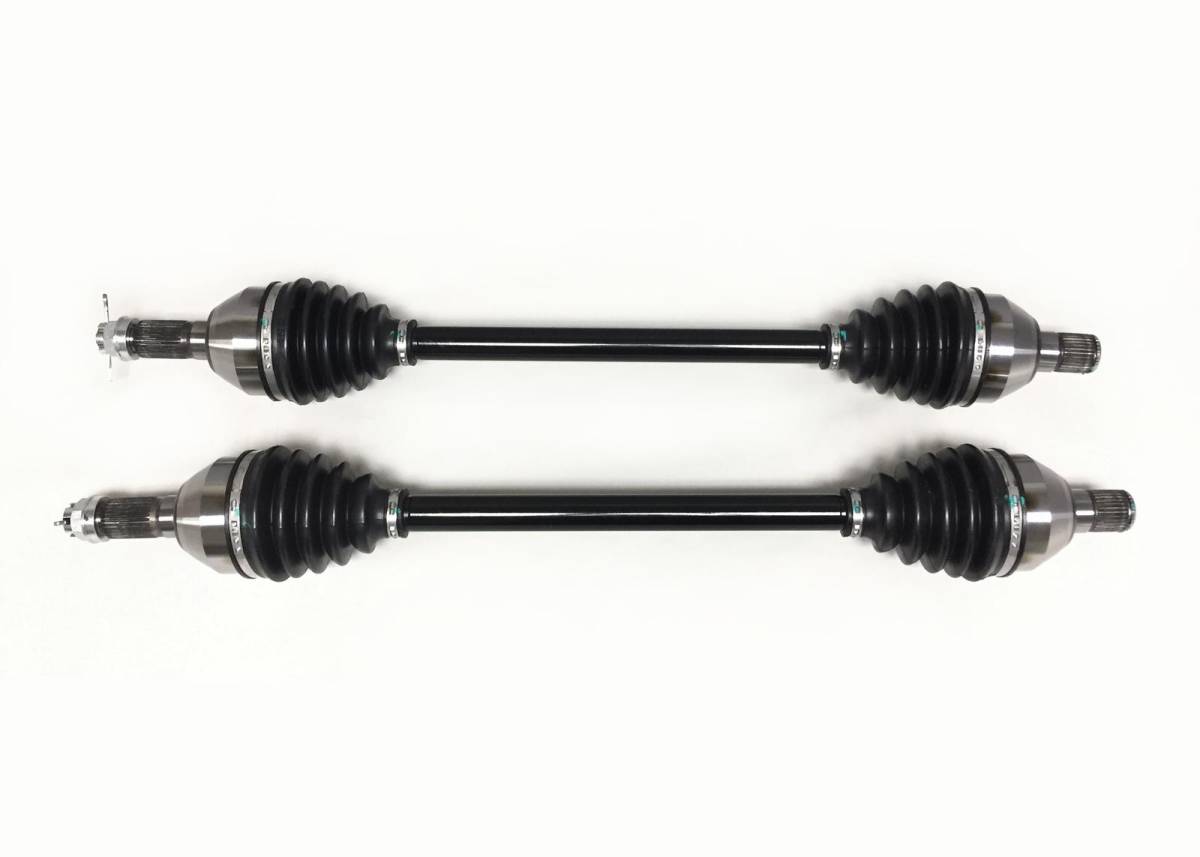

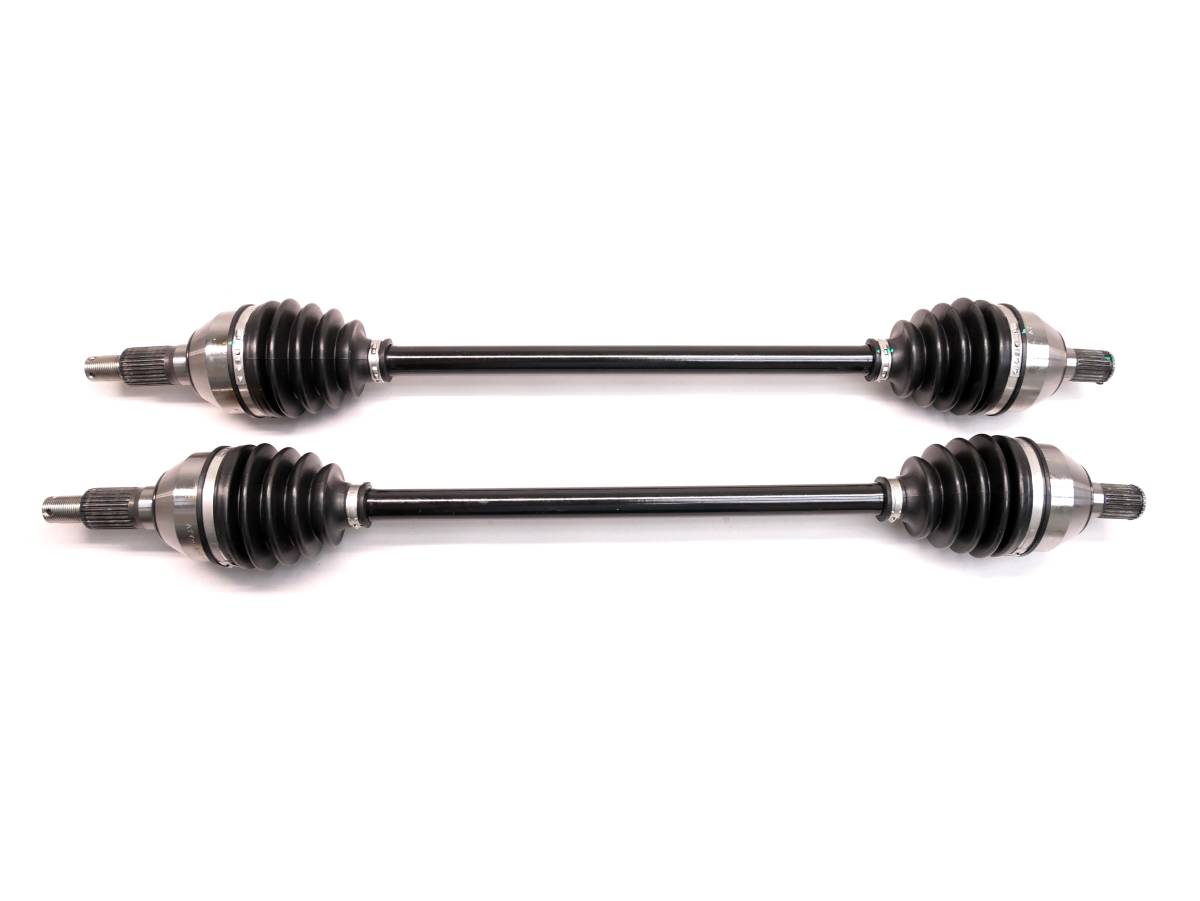

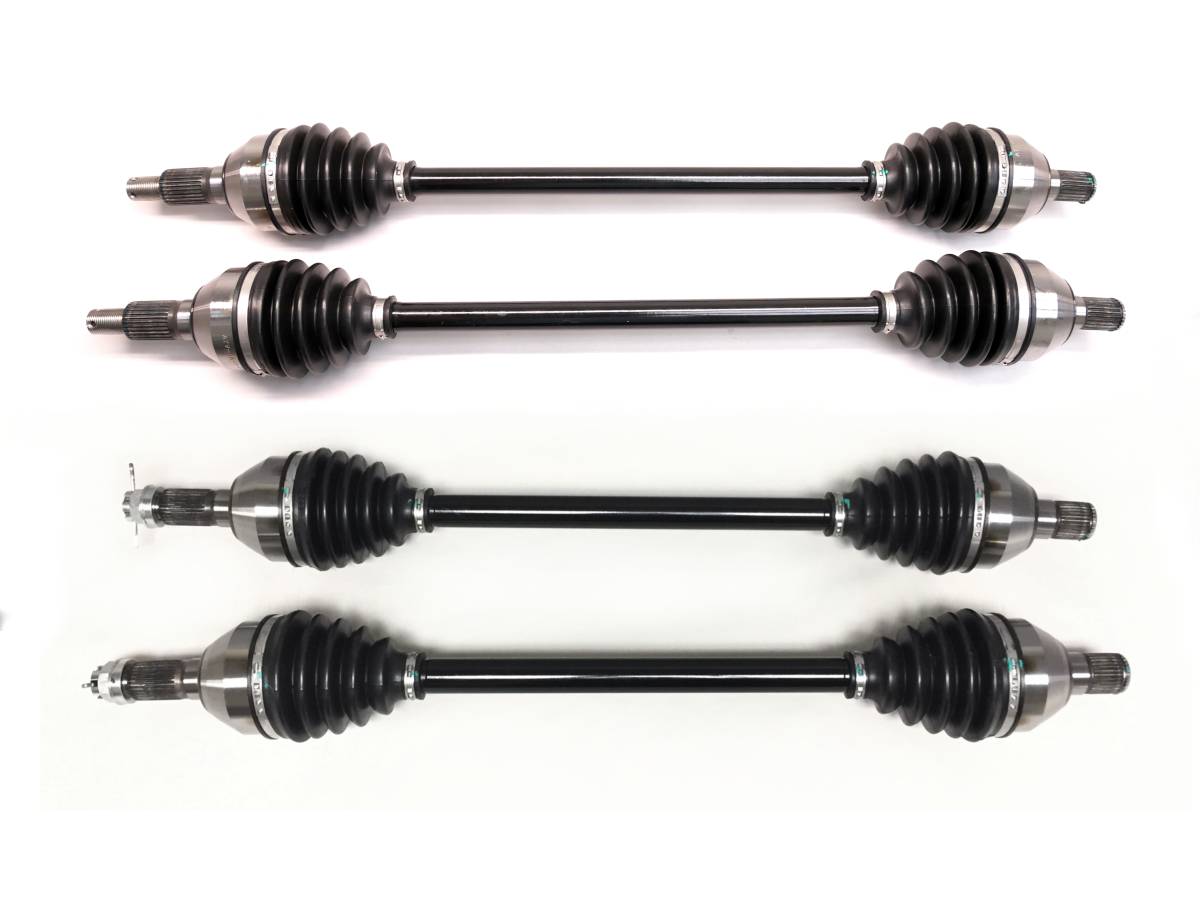

This is a set of new CV axles for a Can-Am Maverick X3.

They fit the following 64" models:

2018-2021 Turbo XMR/XRC

2022 Turbo/Turbo RR - DS

2019-2020 Turbo R/MAX Turbo R XDS

2020-2022 Turbo RR/MAX Turbo RR XDS

2019 MAX Turbo

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM 4340 chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene boots for added wear and puncture resistance
  • Inboard spline count: Fronts - 24, Rears - 30
  • Outboard spline count: Fronts - 29, Rears - 29
  • Compressed axle length: Fronts - 745.5 mm, Rears - 741 mm
  • Replaces OEM # (fronts) 705401634, (rears) 705502154
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $319.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Can-Am Maverick X3 64" models: 2018-2021 Turbo XMR/XRC, 2022 Turbo/Turbo RR - DS, 2019-2020 Turbo R/MAX Turbo R XDS, 2020-2022 Turbo RR/MAX Turbo RR XDS, 2019 MAX Turbo. Set includes 4 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed axle length: Fronts - 745.5 mm, Rears - 741 mm, Inboard spline count: Fronts - 24, Rears - 30, Outboard spline count: Fronts - 29, Rears - 29.
  • Replaces OEM # (fronts) 705401634, (rears) 705502154. Please note these are for 64" models only.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2022Can-AmMaverick X34x4 DS Turbo DPS
    2021Can-AmMaverick X34x4 XMR Turbo DPS
    2021Can-AmMaverick X34x4 XRC Turbo DPS
    2020Can-AmMaverick X34x4 XMR Turbo DPS
    2020Can-AmMaverick X34x4 XRC Turbo DPS
    2019Can-AmMaverick X34x4 XMR Turbo DPS
    2019Can-AmMaverick X34x4 XRC Turbo DPS
    2018Can-AmMaverick X34x4 XMR Turbo DPS
    2018Can-AmMaverick X34x4 XRC Turbo DPS
    2019Can-AmMaverick X3 Max4x4 Turbo DPS
    2020Can-AmMaverick X3 Max R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 R4x4 DS Turbo DPS
    2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 DS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 XDS Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XDS Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XDS Turbo DPS
