Rear Axle Universal Joints for Kawasaki Mule UTV, 49050-1060, 49050-0023

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
ATV704/ATV704

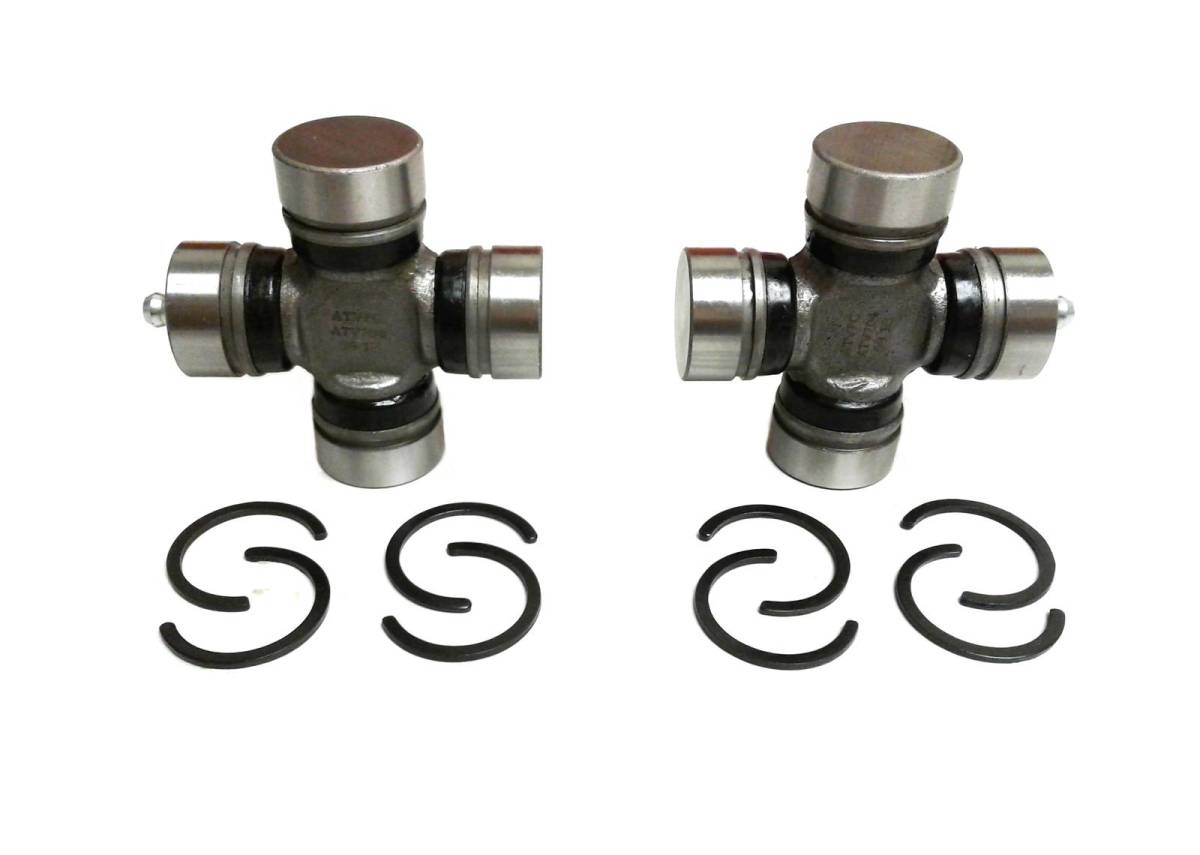

This is a pair of rear axle U-joints for a Kawasaki Mule.

They fit INNER or OUTER (as pictured) on the following models:

1994-2000 Mule 2500, 1993-2002 Mule 2510, 1993-2000 Mule 2520, 2001-2008 Mule 3000, 2001-2008 Mule 3010, 2001-2003 Mule 3020 2x4, 2009-2012 Mule 4000, 2009-2012 Mule 4010.

Product features:

  • Bearing Diameter : 0.985 inches
  • Stack-Up Dimension : 1.728 inches
  • Style of Snap Rings : Inside Snap Rings
  • Snap Ring Thickness : 0.058 inches
  • Cross Span : 2.253 inches
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $34.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Replaces the INNER or OUTER position of the rear axle (as pictured).
  • Fits the following Kawasaki models: 1994-2000 Mule 2500, 1993-2002 Mule 2510, 1993-2000 Mule 2520, 2001-2008 Mule 3000, 2001-2008 Mule 3010, 2001-2003 Mule 3020 2x4, 2009-2012 Mule 4000, 2009-2012 Mule 4010.
  • Bearing Diameter: 0.985 in, Stack-Up Dimension: 1.728 in, Style of Snap Rings: Inside Snap Rings, Snap Ring Thickness: 0.058 in, Cross Span: 2.253 in.
  • Replaces OEM # 49050-1060, 49050-0023, 49050-0034.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modified vehicles will void warranty.

    • What's In The Box

  • 2 universal joints

    • Application List

    YearMakeModelSubmodelNotes
    2000KawasakiMule 2510KAF620A 4x4
    2000KawasakiMule 2510KAF950A 4x4 Diesel
    2008KawasakiMule 3000KAF620G
    2007KawasakiMule 3000KAF620G
    2006KawasakiMule 3000KAF620G
    2005KawasakiMule 3000KAF620G
    2004KawasakiMule 3000KAF620G
    2004KawasakiMule 3000KAF620H 4x4
    2008KawasakiMule 3010KAF620E 4x4
    2008KawasakiMule 3010KAF620H 4x4
    2008KawasakiMule 3010KAF620J 4x4 Trans
    2008KawasakiMule 3010KAF620K 4x4 Trans
    2008KawasakiMule 3010KAF950D 4x4 Diesel
    2008KawasakiMule 3010KAF950E 4x4 Trans Diesel
    2007KawasakiMule 3010KAF620E 4x4
    2007KawasakiMule 3010KAF620H 4x4
    2007KawasakiMule 3010KAF620J 4x4 Trans
    2007KawasakiMule 3010KAF620K 4x4 Trans
    2007KawasakiMule 3010KAF950B 4x4 Diesel
    2007KawasakiMule 3010KAF950C 4x4 Trans Diesel
    2006KawasakiMule 3010KAF620E 4x4
    2006KawasakiMule 3010KAF620H 4x4
    2006KawasakiMule 3010KAF620J 4x4 Trans
    2006KawasakiMule 3010KAF620K 4x4 Trans
    2006KawasakiMule 3010KAF950B 4x4 Diesel
    2005KawasakiMule 3010KAF620E 4x4
    2005KawasakiMule 3010KAF620H 4x4
    2005KawasakiMule 3010KAF620J 4x4 Trans
    2005KawasakiMule 3010KAF620K 4x4 Trans
    2005KawasakiMule 3010KAF950B 4x4 Diesel
    2004KawasakiMule 3010KAF620E 4x4
    2004KawasakiMule 3010KAF950B 4x4 Diesel
    2003KawasakiMule 3010KAF620E 4x4
    2003KawasakiMule 3010KAF620H 4x4
    2003KawasakiMule 3010KAF950B 4x4 Diesel
    2002KawasakiMule 3010KAF620E 4x4
    2001KawasakiMule 3010KAF620E 4x4
    2012KawasakiMule 4000KAF620P
    2011KawasakiMule 4000KAF620P
    2010KawasakiMule 4000KAF620P
    2009KawasakiMule 4000KAF620P
    2012KawasakiMule 4010KAF620M 4x4
    2012KawasakiMule 4010KAF620R 4x4 Trans
    2012KawasakiMule 4010KAF620S 4x4 Trans
    2012KawasakiMule 4010KAF950F 4x4 Diesel
    2012KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2011KawasakiMule 4010KAF620M 4x4
    2011KawasakiMule 4010KAF620R 4x4 Trans
    2011KawasakiMule 4010KAF620S 4x4 Trans
    2011KawasakiMule 4010KAF950F 4x4 Diesel
    2011KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF620M 4x4
    2010KawasakiMule 4010KAF620R 4x4 Trans
    2010KawasakiMule 4010KAF620S 4x4 Trans
    2010KawasakiMule 4010KAF950F 4x4 Diesel
    2010KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF950H 4x4 Trans Diesel
    2009KawasakiMule 4010KAF620M 4x4
    2009KawasakiMule 4010KAF620N 4x4
    2009KawasakiMule 4010KAF620R 4x4 Trans
    2009KawasakiMule 4010KAF620S 4x4 Trans
    2009KawasakiMule 4010KAF950F 4x4 Diesel
    2009KawasakiMule 4010KAF950G 4x4 Trans Diesel
