Rear Inner CV Joint Set for Yamaha Rhino 450 & Rhino 660 4x4 2005-2006 UTV

Placement on halfshaft: Inner - Rear,Left,Right

IJ263/IJ264

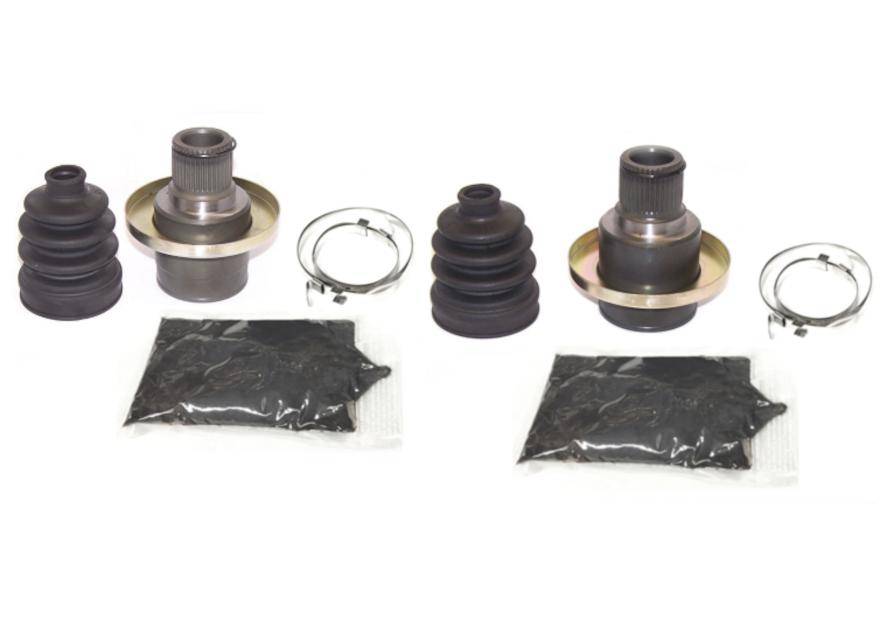

This is a pair of new CV joint and boot kits for a Yamaha UTV.

They fit the REAR, INNER positions on the following 4x4 models:

2006 Yamaha Rhino 450 & 2005-2006 Yamaha Rhino 660 4x4

*Not intended for use in lifted vehicles

Product features:

  • 2 CV joints (1 left inner & 1 right inner) - fully assembled with race, cage, and ball bearings
  • Set also includes 2 CV boots, 2 grease packets, 4 clamps
  • LEFT = Stub Height: 1.69 in, Number of CV housing splines: 39, Inner race spline count: 18, Housing diameter: 2.52 in
  • RIGHT = Stub Height: 1.69 in, Number of CV housing splines: 39, Inner race spline count: 18, Housing diameter: 2.52 in
  • Please note the left/driver side joint is IJ264, and the right/passenger side joint is IJ263
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $62.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the REAR, INNER (differential side) positions on the 2006 Yamaha Rhino 450 & 2005-2006 Yamaha Rhino 660 4x4 UTV.
  • Set includes 2 CV joints (fully assembled with race, cage, and ball bearings), 2 neoprene rubber CV boots, 2 grease packets, 4 boot clamps.
  • Please note the left/driver side joint is IJ264, and the right/passenger side joint is IJ263.
  • LEFT = Stub Height: 1.69 in, CV housing splines: 39, Inner race splines: 18, Housing diameter: 2.52 in. RIGHT = Stub Height: 1.69 in, CV housing splines: 39, Inner race splines: 18, Housing diameter: 2.52 in.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV joints, 2 boots, 2 grease packs, 2 clamps
  • Application List

    YearMakeModelSubmodelNotes
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition

    Details

    • IJ263/IJ264
    • IJ263/IJ264
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 7.0 lbs.
    • W5.0000” x H10.0000” x L8.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
