Front Axle Pair for Polaris Sportsman & Scrambler 55" S 1000 2020-2024, 1334202

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-433/PO-433

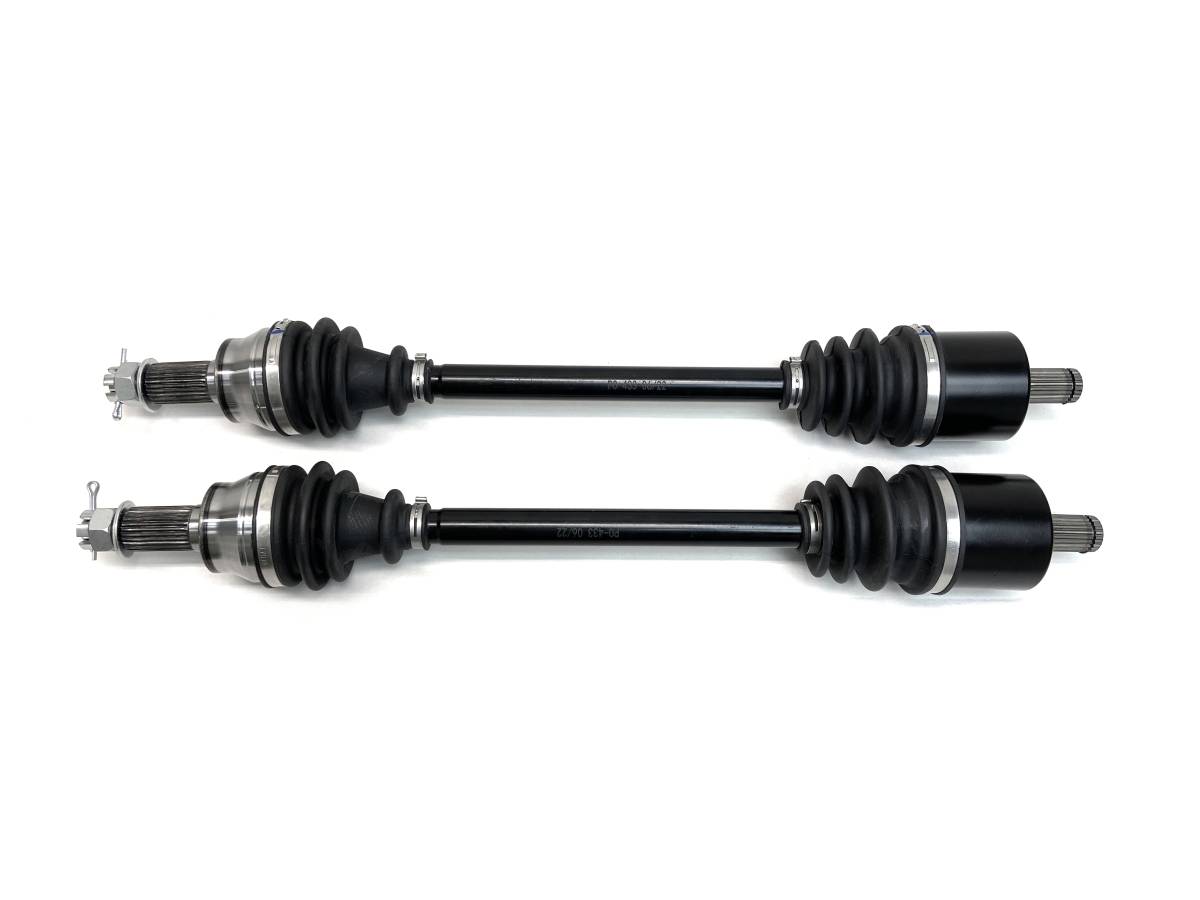

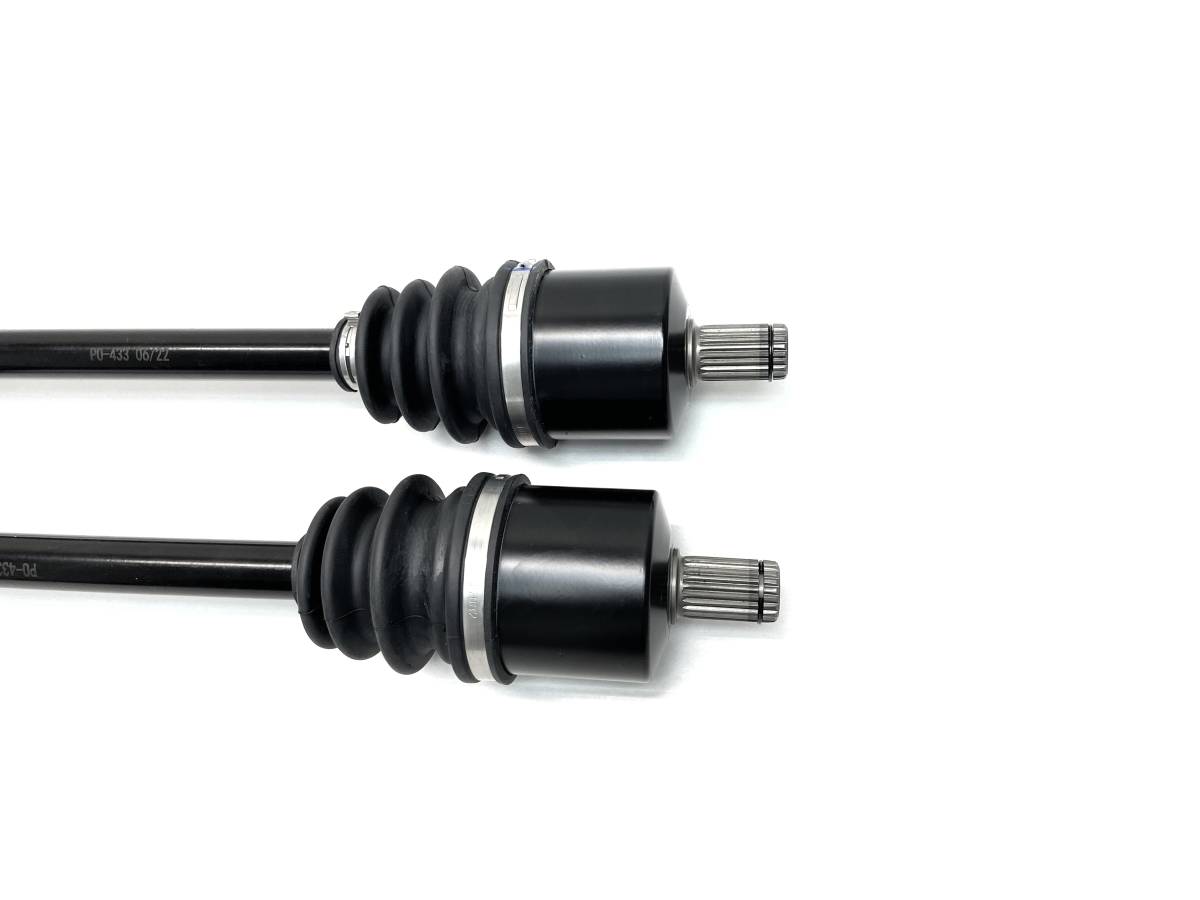

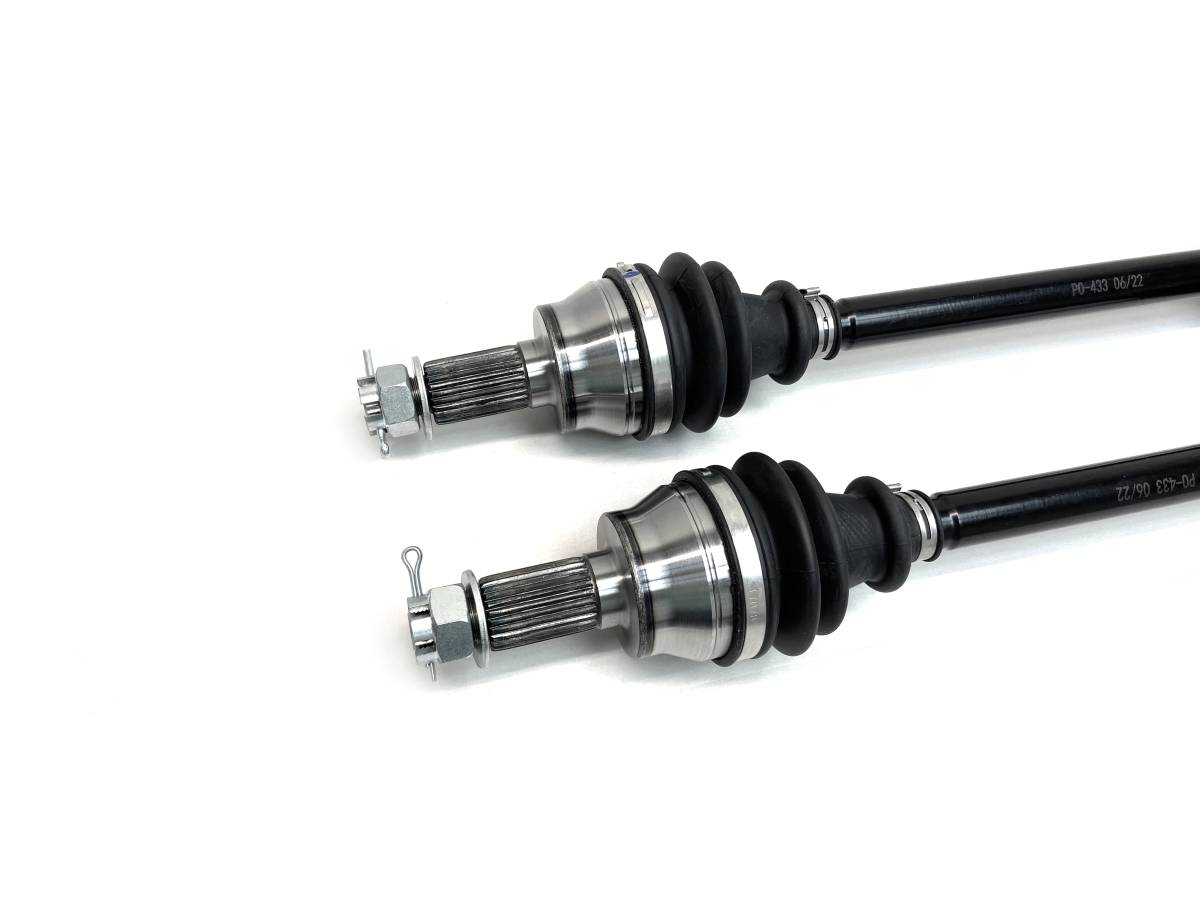

This is a pair of new CV axles for a Polaris 55" ATV.

They fit FRONT, LEFT & RIGHT on the following models:

2020-2024 ... Scrambler XP 1000 S 55"

2020-2024 ... Sportsman XP 1000 S 55"

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 624 mm (both)
  • Replaces OEM # 1334202
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $159.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2024PolarisScrambler XP 1000S
2023PolarisScrambler XP 1000S
2022PolarisScrambler XP 1000S
2022PolarisScrambler XP 1000S Limited Edition
2021PolarisScrambler XP 1000S
2020PolarisScrambler XP 1000S
2024PolarisSportsman XP 1000S55 inch models
2023PolarisSportsman XP 1000S55 inch models
2022PolarisSportsman XP 1000S55 inch models
2021PolarisSportsman XP 1000S55 inch models
2020PolarisSportsman XP 1000S55 inch models

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Polaris 55" ATV models: 2020-2024 Scrambler XP 1000 S 55" & 2020-2024 Sportsman XP 1000 S 55". Set contains 2 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed length: 624 mm (both), Inner splines: 22 (both), Outer splines: 26 (both).
  • Replaces OEM # 1334202.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-433/PO-433
    • PO-433/PO-433
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 24.5 lbs.
    • W6.0000” x H12.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
