Rear CV Axle Pair for Can-Am Maverick XMR 1000 2016-2018, 705502414, 705502351

Location on vehicle: Rear,Left,Right

CA-400/CA-400

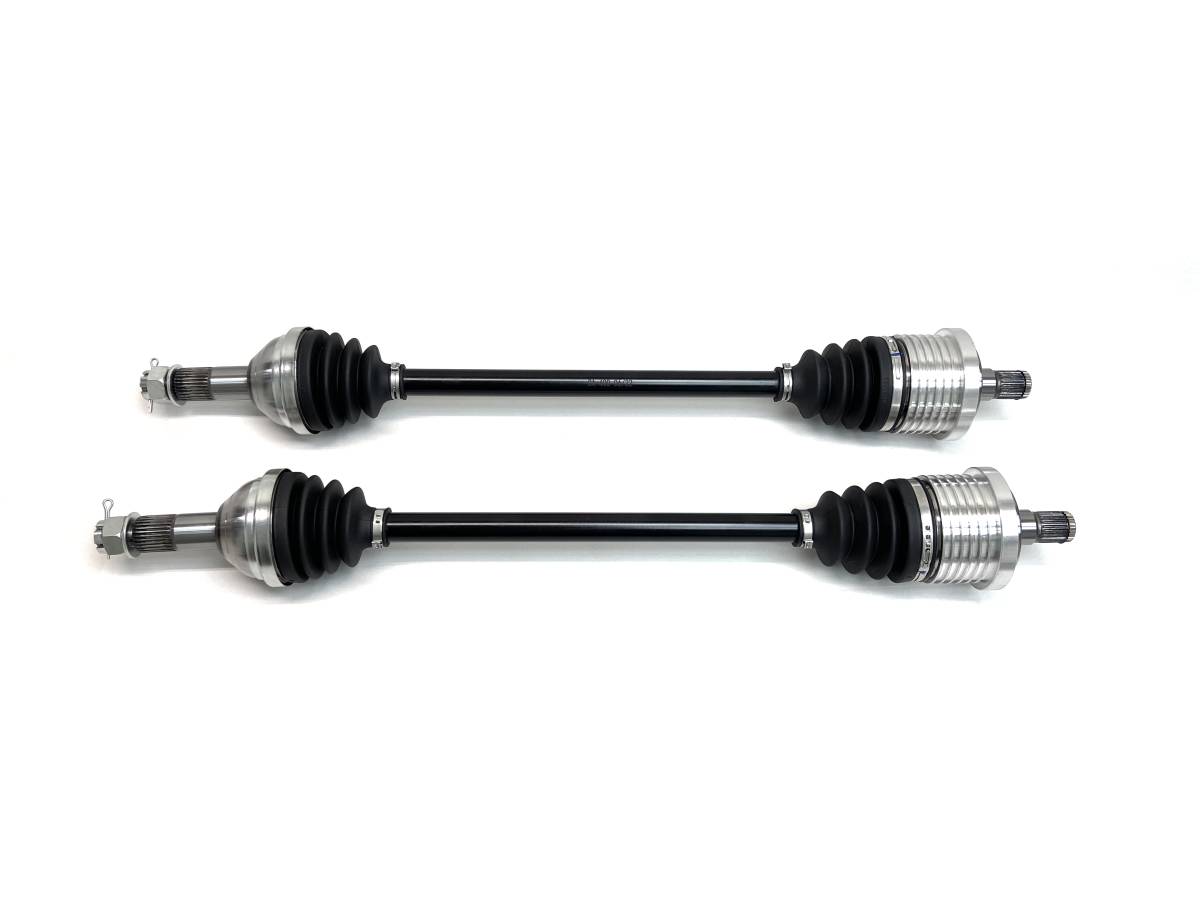

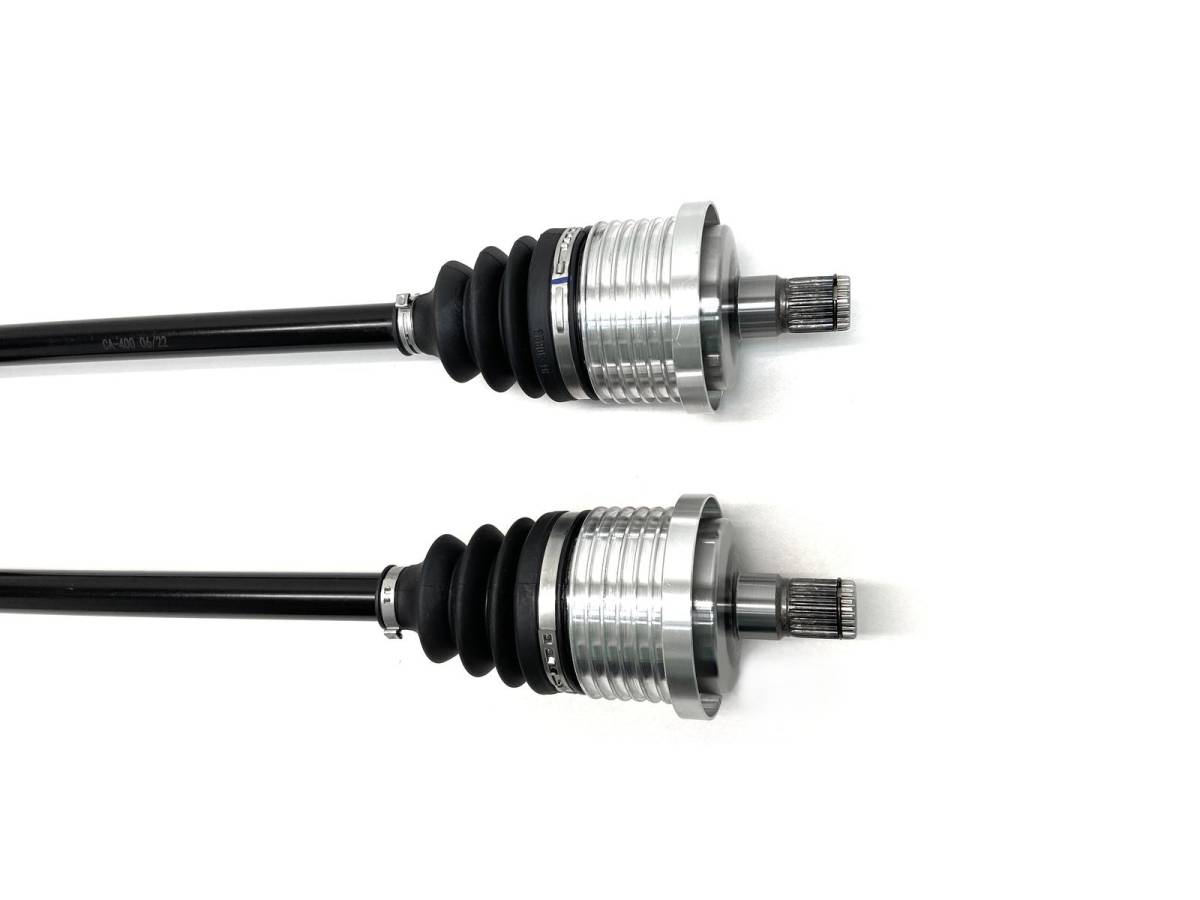

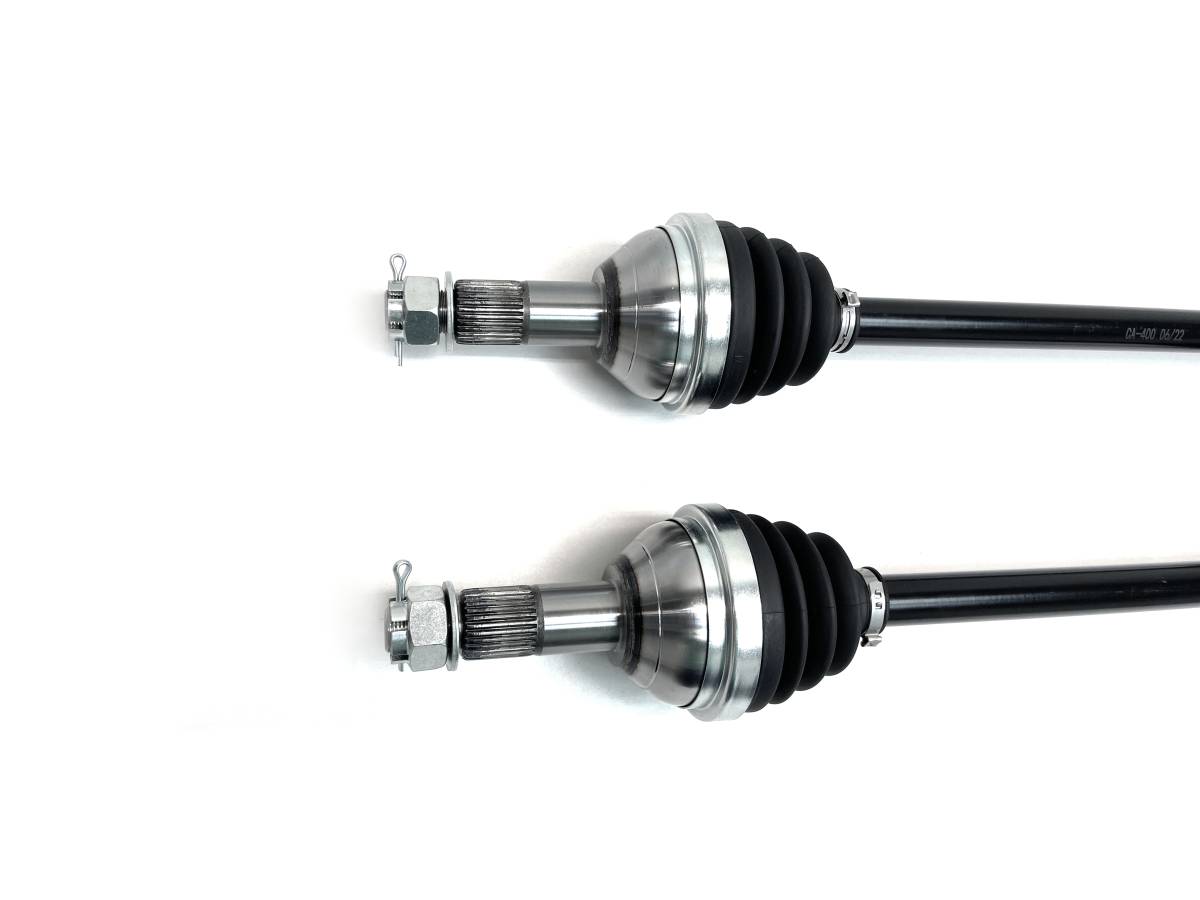

This is a pair of new CV axles for a Can-Am Maverick XMR.

They fit REAR, LEFT & RIGHT on the following models:

2016-2018 Maverick 1000R XMR

2017-2018 Maverick MAX 1000R XMR

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 29 (both)
  • Compressed overall axle length: 760 mm (both)
  • Replaces OEM # 705502351, 705502414
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Can-Am X-MR 'Mud Racer' models: 2016-2018 Maverick XMR 1000 & 2017-2018 Maverick MAX XMR 1000. Please note this will only fit XMR models.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • Fitted with neoprene CV boots for added wear & puncture resistance.
  • Replaces OEM # 705502351, 705502414. Inboard spline count: 24 (both), Outboard spline count: 29 (both), Compressed axle length: 760 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2018Can-AmMaverick 1000R4x4 XMR DPS
    2017Can-AmMaverick 1000R4x4 XMR DPS
    2016Can-AmMaverick 1000R4x4 XMR DPS
    2018Can-AmMaverick Max 1000R4x4 XMR DPS
    2017Can-AmMaverick Max 1000R4x4 XMR DPS

    Details

    • CA-400/CA-400
    • CA-400/CA-400
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 33.0 lbs.
    • W6.0000” x H12.0000” x L32.0000”
