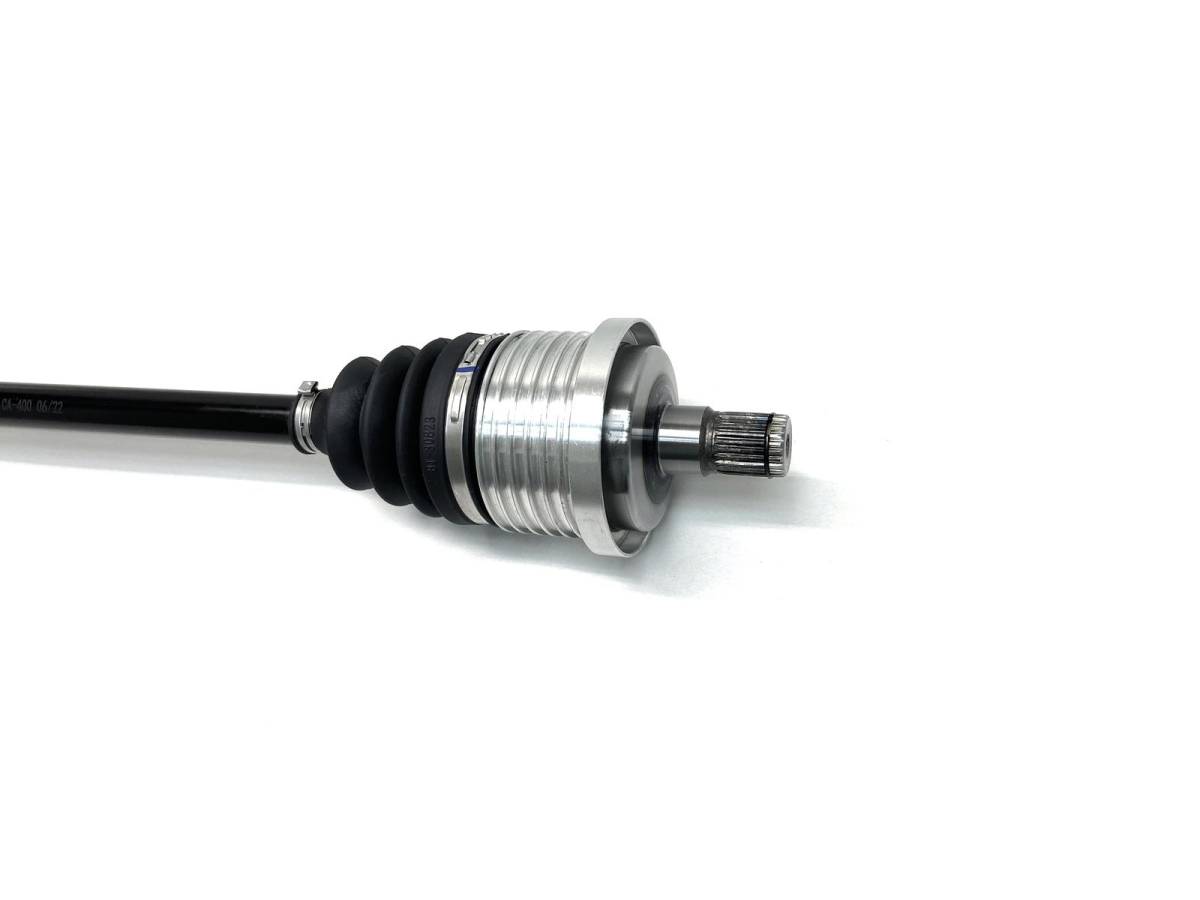

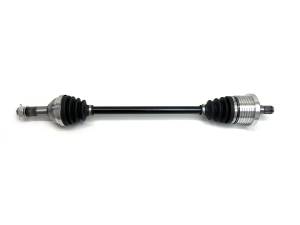

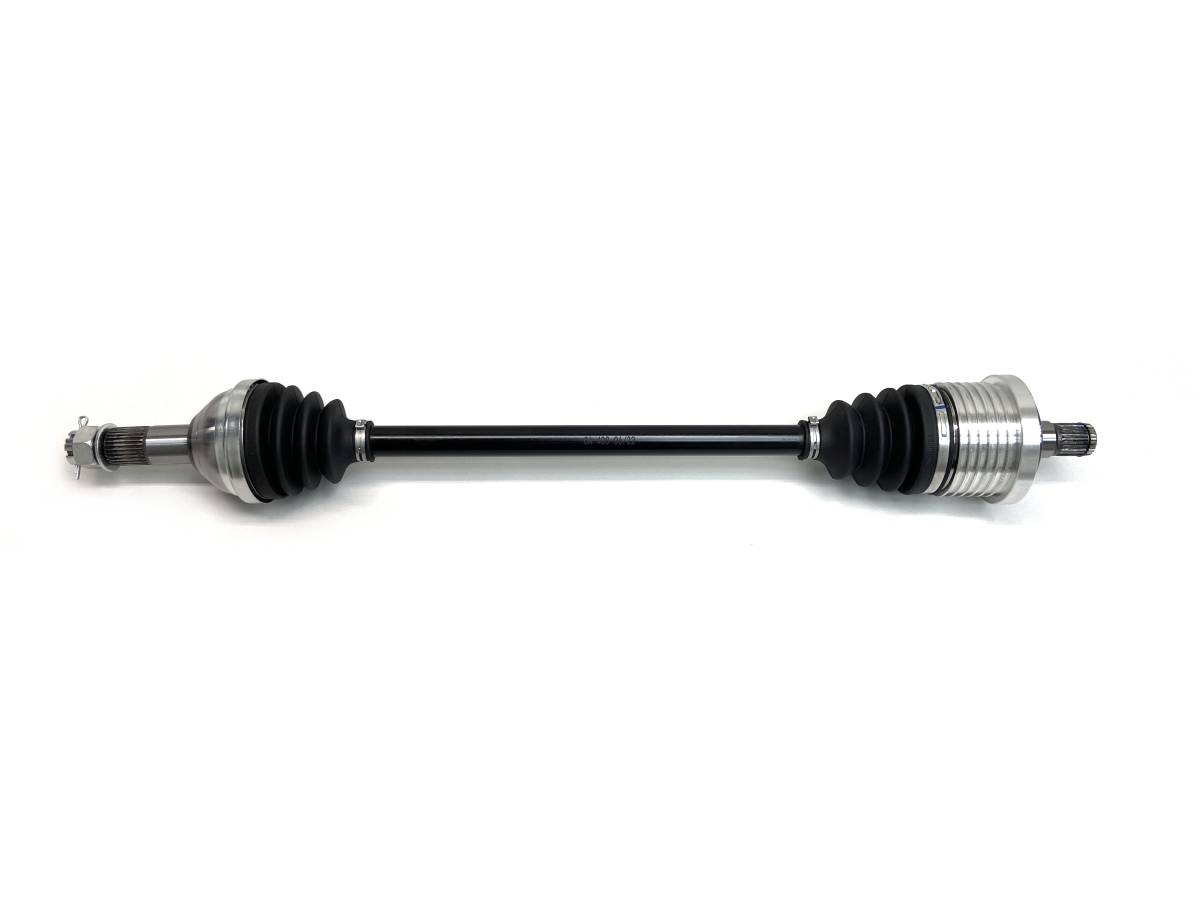

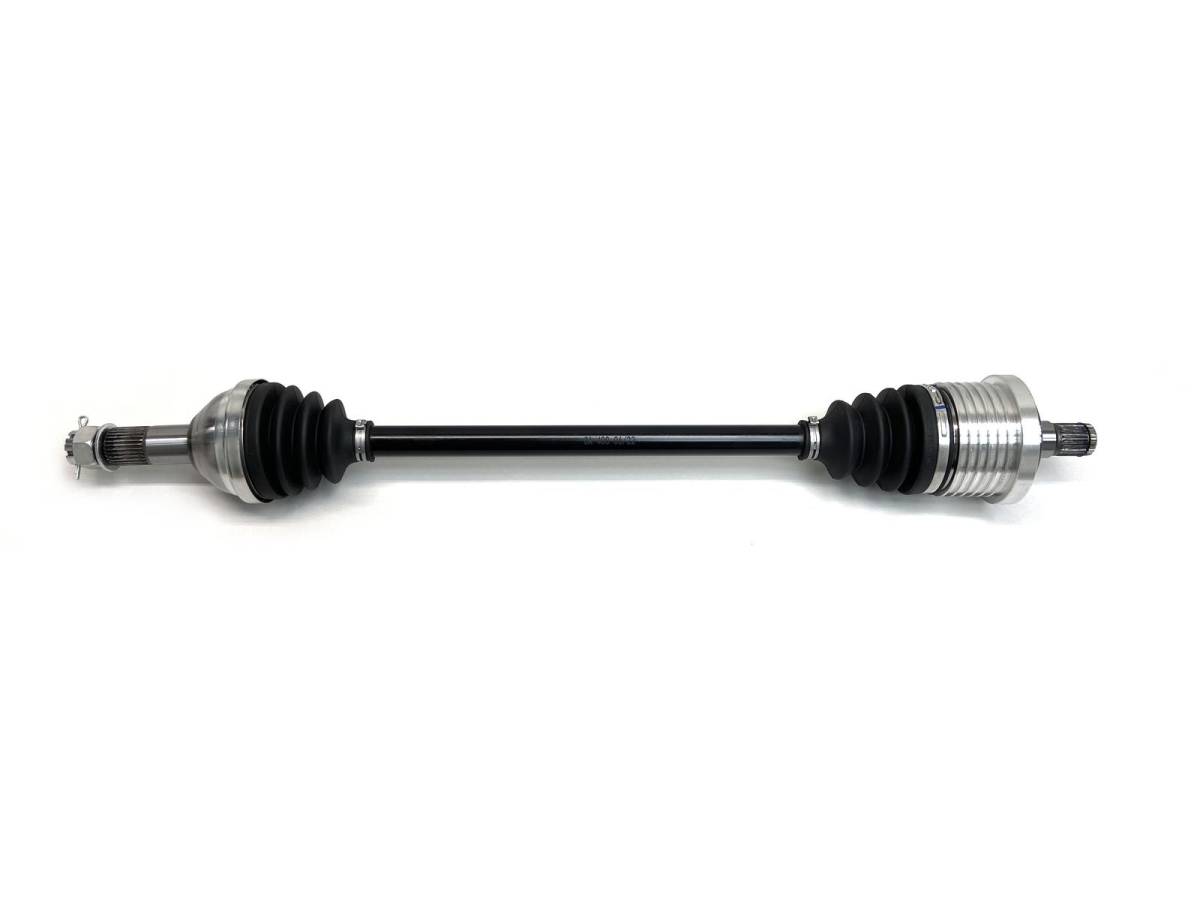

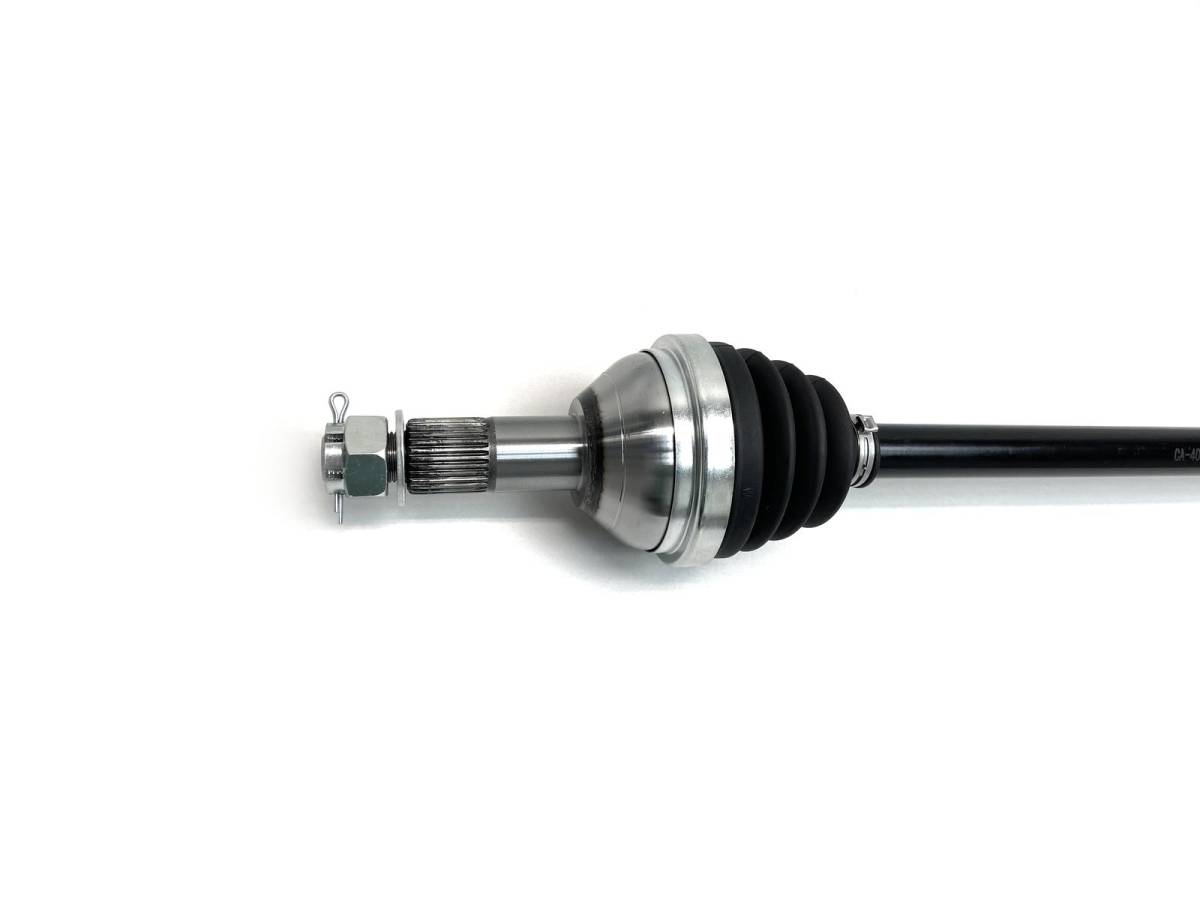

Rear CV Axle for Can-Am Maverick XMR 1000 2016-2018, 705502414, 705502351

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-400
This is a new CV axle for a Can-Am Maverick XMR.

It fits REAR, LEFT or RIGHT on the following models:

2016-2018 Maverick 1000R XMR

2017-2018 Maverick MAX 1000R XMR

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 29
  • Compressed overall axle length: 760 mm
  • Replaces OEM # 705502351, 705502414
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2018Can-AmMaverick 1000R4x4 XMR DPS
2017Can-AmMaverick 1000R4x4 XMR DPS
2016Can-AmMaverick 1000R4x4 XMR DPS
2018Can-AmMaverick Max 1000R4x4 XMR DPS
2017Can-AmMaverick Max 1000R4x4 XMR DPS

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Can-Am X-MR 'Mud Racer' models: 2016-2018 Maverick XMR 1000 & 2017-2018 Maverick MAX XMR 1000. Please note this will only fit XMR models.
  • Features a stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • Fitted with neoprene CV boots for added wear & puncture resistance. Inboard spline count: 24, Outboard spline count: 29, Compressed overall axle length: 760 mm.
  • Replaces OEM # 705502351, 705502414.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-400
    • CA-400
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 16.5 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
