Front Inner CV Boot Kit Pair for Yamaha ATV UTV, Big Bear, Grizzly & Rhino

Placement on halfshaft: Inner - Front,Left,Right

PH156-10/PH156-10
This is a pair of new OE grade neoprene CV joint boot kits for a Yamaha ATV/UTV.

They will fit the following 4x4 models:

2007-2012 Big Bear 400, 2007-2014 Grizzly IRS 350, 2008-2014 Grizzly 450, 2003-2008 Grizzly 660, 2006-2009 Rhino 450, 2004-2007 Rhino 660

Front, Inboard, Left or Right

*Boots not intended for use in lifted vehicles

Product features:

  • Boot material made of O.E. grade neoprene

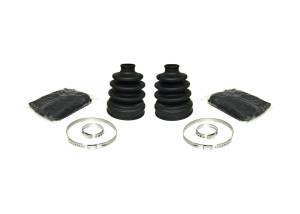

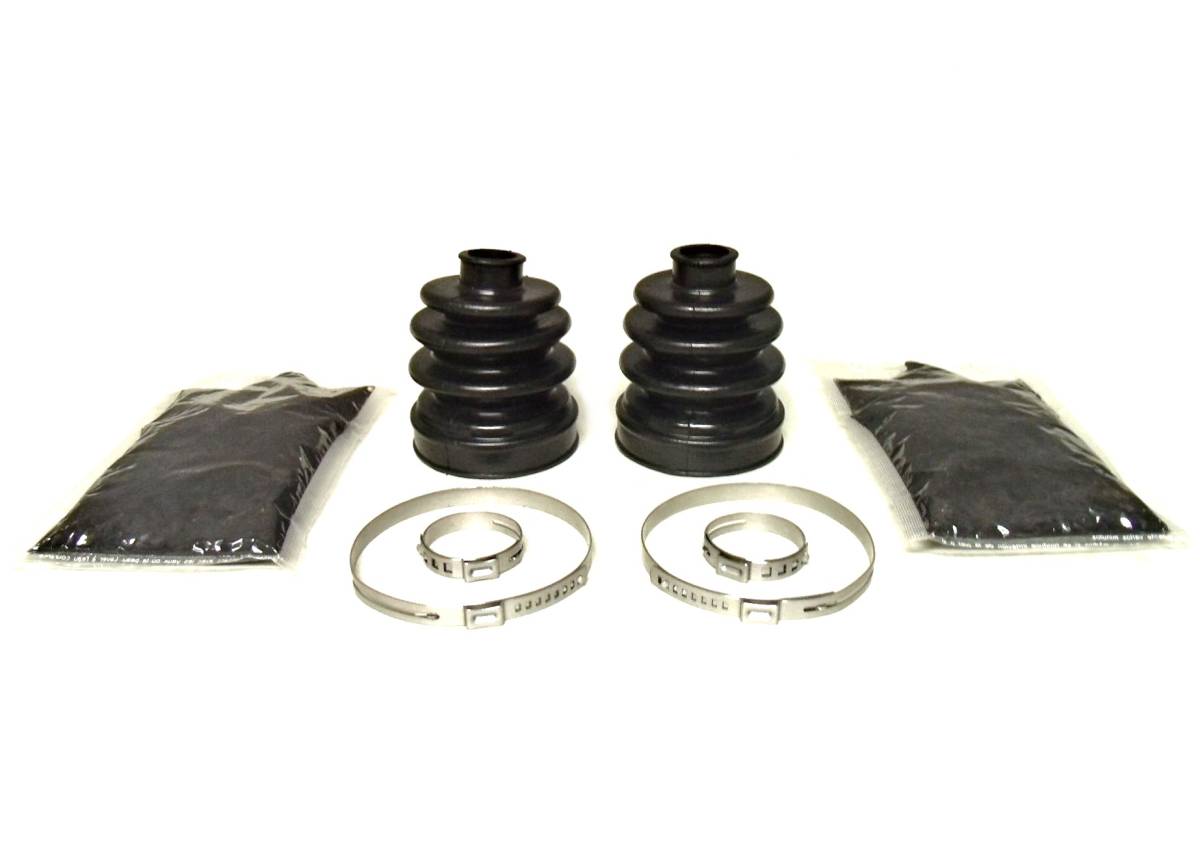

  • Set includes: 2 boots, 2 grease packs, 4 clamps
  • Boot height: 3.00 in
  • Large end inside diameter: 2.24 in
  • Small end inside diameter: 0.73 in
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $27.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

No warranty for boot kits

Product Notes

  • Fits the following Yamaha models: 2007-2012 Big Bear 400, 2007-2014 Grizzly IRS 350, 2008-2014 Grizzly 450, 2003-2008 Grizzly 660, 2006-2009 Rhino 450, 2004-2007 Rhino 660.
  • Replaces the FRONT, INNER (differential side) positions - as pictured. Made with neoprene rubber for added puncture resistance.
  • Height = 3.00 in, Small end inside diameter = 0.73 in, Large end inside diameter = 2.24 in.
  • Set includes: 2 boots, 2 grease packs, 4 clamps. Replaces OEM # 4S1-2510H-00-00, 4S1-2510H-01-00.
  • No warranty available for boot kits.

  • What's In The Box

  • 2 boots, 2 grease packs, 4 clamps
  • Application List

    YearMakeModelSubmodelNotes
    2012YamahaBig Bear 400YFM400FB 4x4 IRS
    2011YamahaBig Bear 400YFM400FB 4x4 IRS
    2010YamahaBig Bear 400YFM400FB 4x4 IRS
    2010YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2009YamahaBig Bear 400YFM400FB 4x4 IRS
    2008YamahaBig Bear 400YFM400FB 4x4 IRS
    2007YamahaBig Bear 400YFM400FB 4x4 IRS
    2007YamahaBig Bear 400YFM400FBE 4x4 Exploring Edition IRS
    2007YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2014YamahaGrizzly 350YFM350 4x4 Auto
    2014YamahaGrizzly 350YFM350D 4x4
    2014YamahaGrizzly 350YFM350DHH 4x4 Hunter Edition
    2013YamahaGrizzly 350YFM350FG 4x4
    2013YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2012YamahaGrizzly 350YFM350FG 4x4
    2012YamahaGrizzly 350YFM350FG 4x4 IRS
    2012YamahaGrizzly 350YFM350FGH 4x4 Hunter Edition
    2012YamahaGrizzly 350YFM350G
    2011YamahaGrizzly 350YFM350FGI 4x4 IRS
    2011YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2010YamahaGrizzly 350YFM350FGI 4x4 IRS
    2010YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2009YamahaGrizzly 350YFM350FGI 4x4 IRS
    2009YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 350YFM350FGI 4x4 IRS
    2008YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2007YamahaGrizzly 350YFM350FGI 4x4 IRS
    2007YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2014YamahaGrizzly 450YFM450D 4x4
    2014YamahaGrizzly 450YFM450DAH 4x4 Hunter Edition
    2014YamahaGrizzly 450YFM450P 4x4 EPS
    2014YamahaGrizzly 450YFM450PHH 4x4 Hunter Edition EPS
    2014YamahaGrizzly 450YFM450RSE 4x4 Special Edition
    2013YamahaGrizzly 450YFM450FG 4x4
    2013YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2013YamahaGrizzly 450YFM450FGP 4x4 EPS
    2013YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2012YamahaGrizzly 450YFM450FG 4x4
    2012YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2012YamahaGrizzly 450YFM450FGP 4x4 EPS
    2012YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2011YamahaGrizzly 450YFM450FG 4x4
    2011YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2011YamahaGrizzly 450YFM450FGP 4x4 EPS
    2011YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2010YamahaGrizzly 450YFM450FG 4x4
    2010YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FG 4x4
    2009YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FGI 4x4 IRS
    2008YamahaGrizzly 450YFM450FG 4x4
    2008YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2008YamahaGrizzly 660YFM660FA 4x4
    2008YamahaGrizzly 660YFM660FG 4x4
    2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2007YamahaGrizzly 660YFM660FG 4x4
    2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2006YamahaGrizzly 660YFM660FA 4x4
    2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
    2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
    2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
    2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2005YamahaGrizzly 660YFM660FA 4x4
    2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
    2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
    2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2004YamahaGrizzly 660YFM660F 4x4
    2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660F 4x4
    2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2009YamahaRhino 450YXR450FA 4x4
    2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FA 4x4
    2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FSE 4x4 Special Edition
    2007YamahaRhino 450YXR450FA 4x4
    2007YamahaRhino 450YXR450FASE 4x4 Special Edition
    2007YamahaRhino 450YXR450FSE 4x4 Special Edition
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FA 4x4
    2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
    2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FSE 4x4 Special Edition
    2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2004YamahaRhino 660YXR660FA 4x4
    2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition
