Axle Set for Yamaha Timberwolf 250 1994-1995 YBF250, Set of 3

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
YA-303/YA-303/YA-809

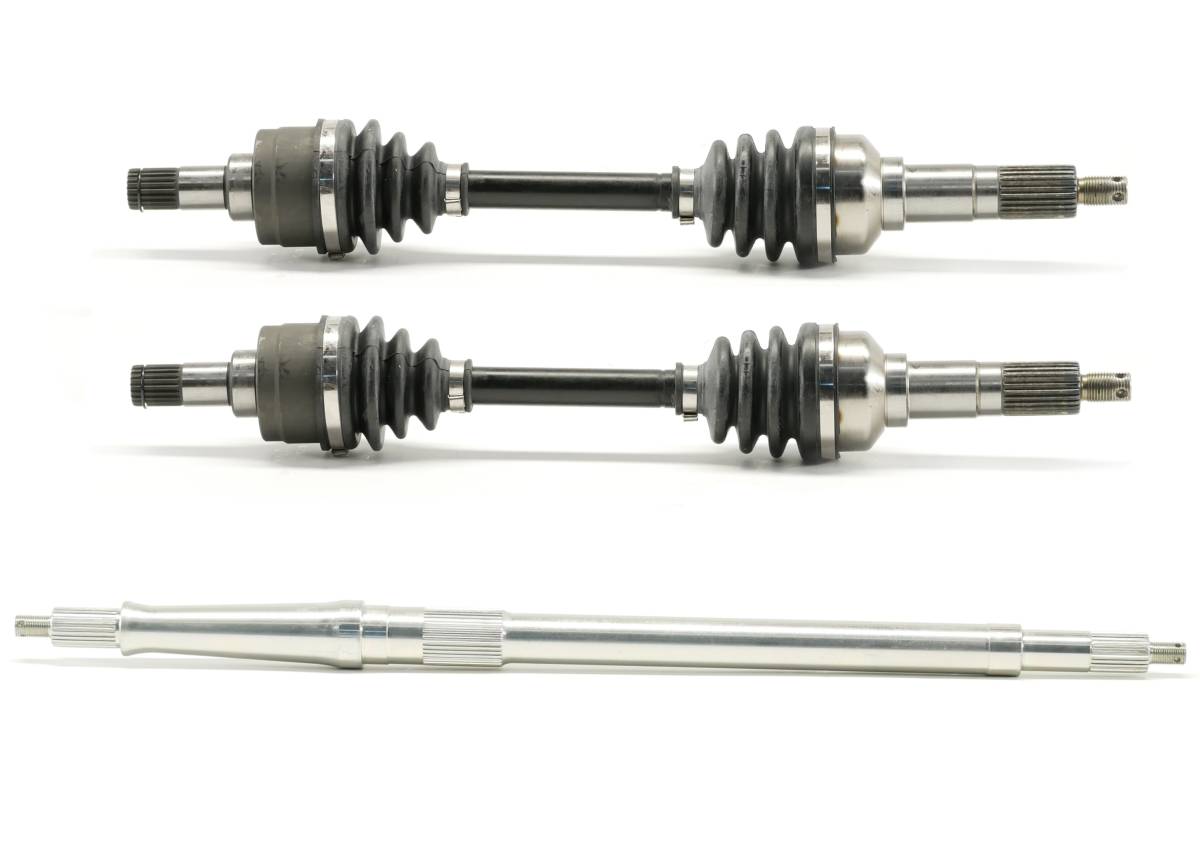

This is a set of new CV axles for a Yamaha ATV.

They fit the following models:

1994-1995 Timberwolf 250

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Joints greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

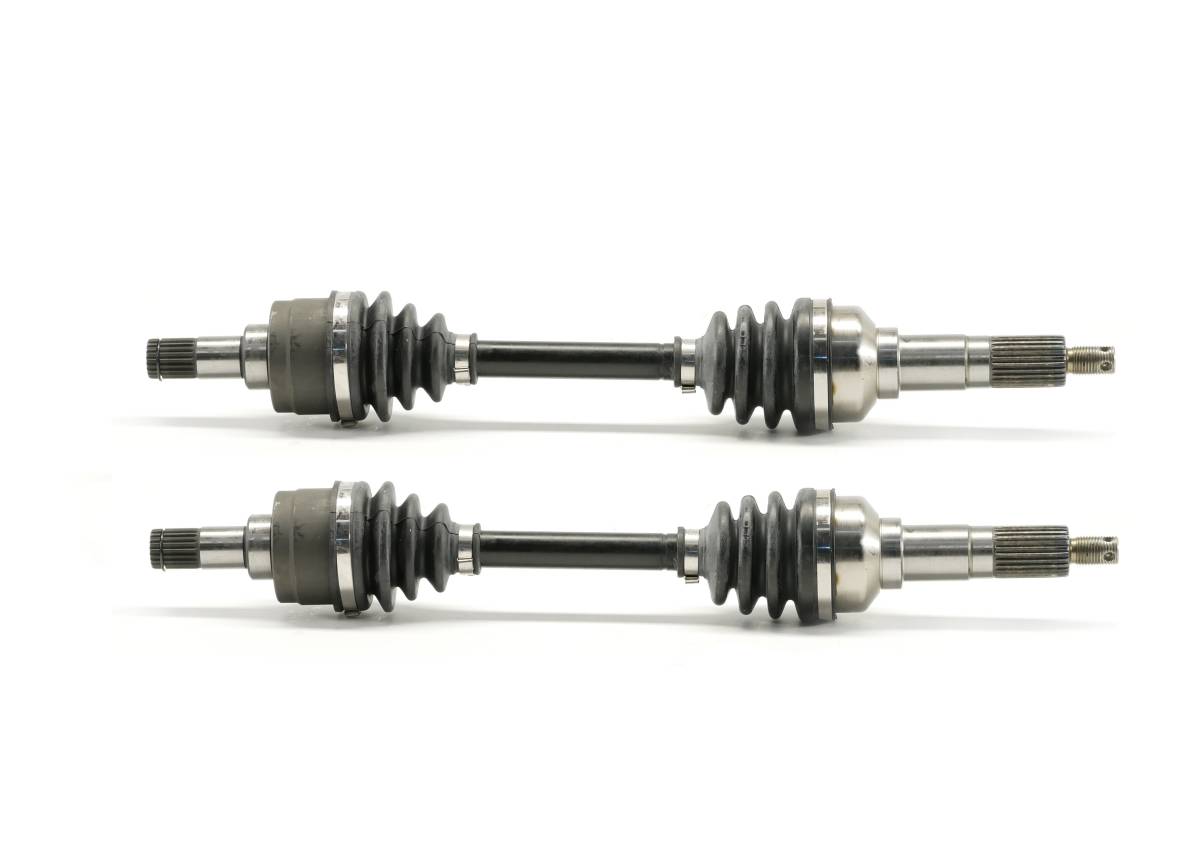

  • (Fronts) Inner splines: 21, Outer splines: 27, Compressed length: 497.5 mm

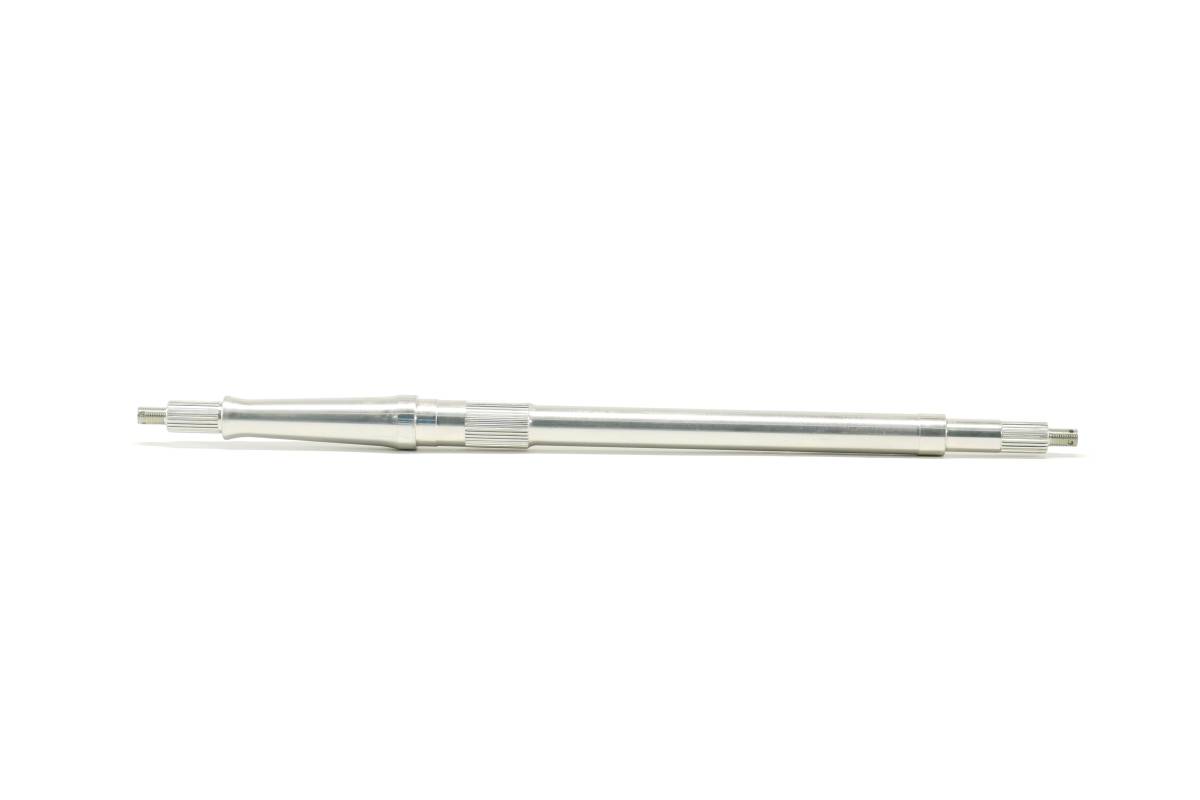

  • (Rear) Outer spline count: 27, Middle spline count: 39
  • Replaces Yamaha OEM # 3HN-2510F-01-00, 3HN-2510H-00-00, 3HN-2510H-00-15, 99999-02853-00, 4BD-25381-00-00.
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $169.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
1995YamahaTimberwolf 250YFB250FW 4x4
1994YamahaTimberwolf 250YFB250FW 4x4

Product Notes

  • Fits the following Yamaha ATV models: 1994-1995 Timberwolf 250 (YBF250).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 3HN-2510F-01-00, 3HN-2510H-00-00, 3HN-2510H-00-15, 99999-02853-00, 4BD-25381-00-00. (fronts) Inner splines: 21, Outer splines: 27, Compressed length: 497.5 mm, (rear) Outer spline count: 27, Middle spline count: 39
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 3 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • YA-303/YA-303/YA-809
    • YA-303/YA-303/YA-809
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 31.0 lbs.
    • W10.0000” x H5.0000” x L40.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
