Rear CV Axle with Wheel Bearing for Can-Am Defender HD10 2020-2024, 705502831

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-313/WB-1516

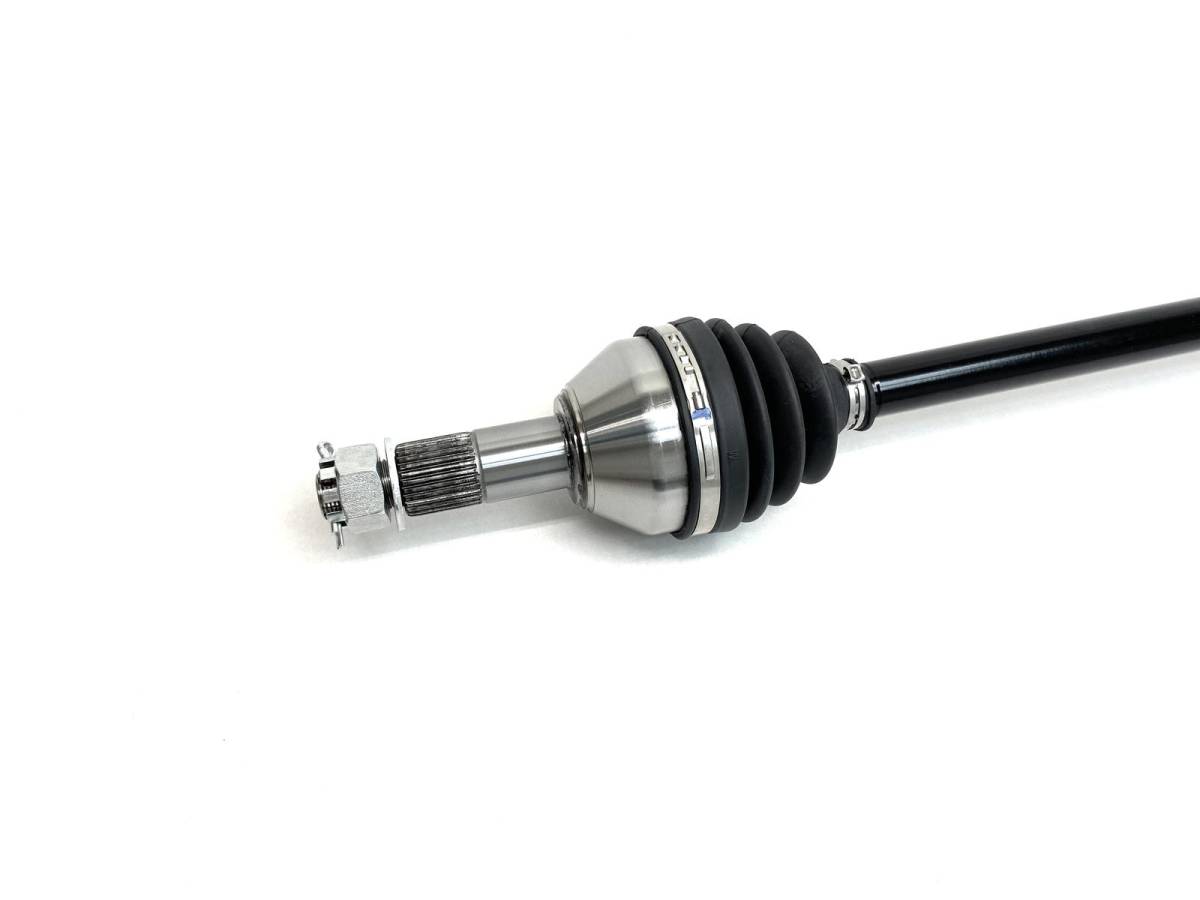

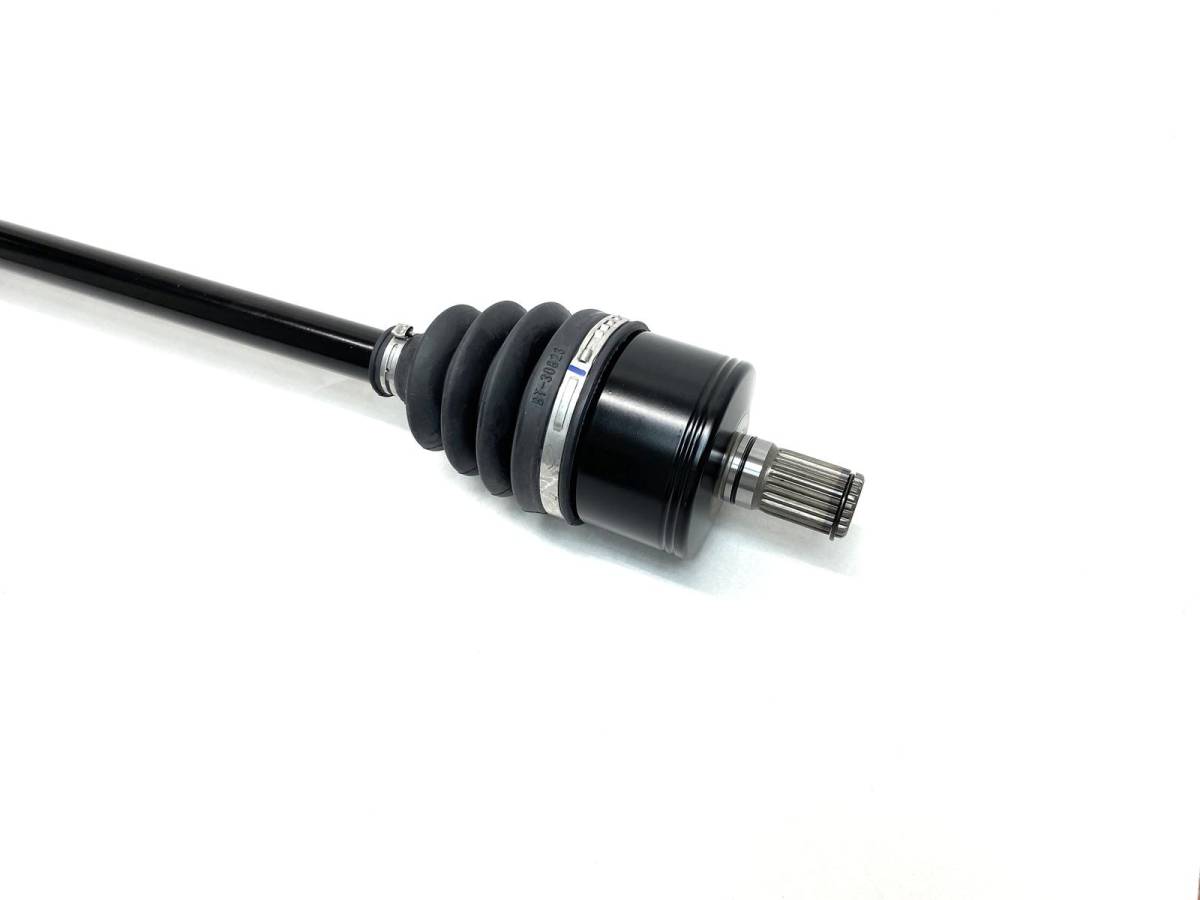

This is a new rear CV axle & wheel bearing for a Can-Am UTV.

They fit REAR, LEFT or RIGHT on the following models:

2020-2024 ... Defender HD10 DPS/XT/64"

2020-2024 ... Defender PRO HD DPS/XT/64"

2020-2024 ... Defender MAX HD10 DPS/XT/64"

*please note this will not fit any CAB, LTD, XMR, Lone Star, or 67"models

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

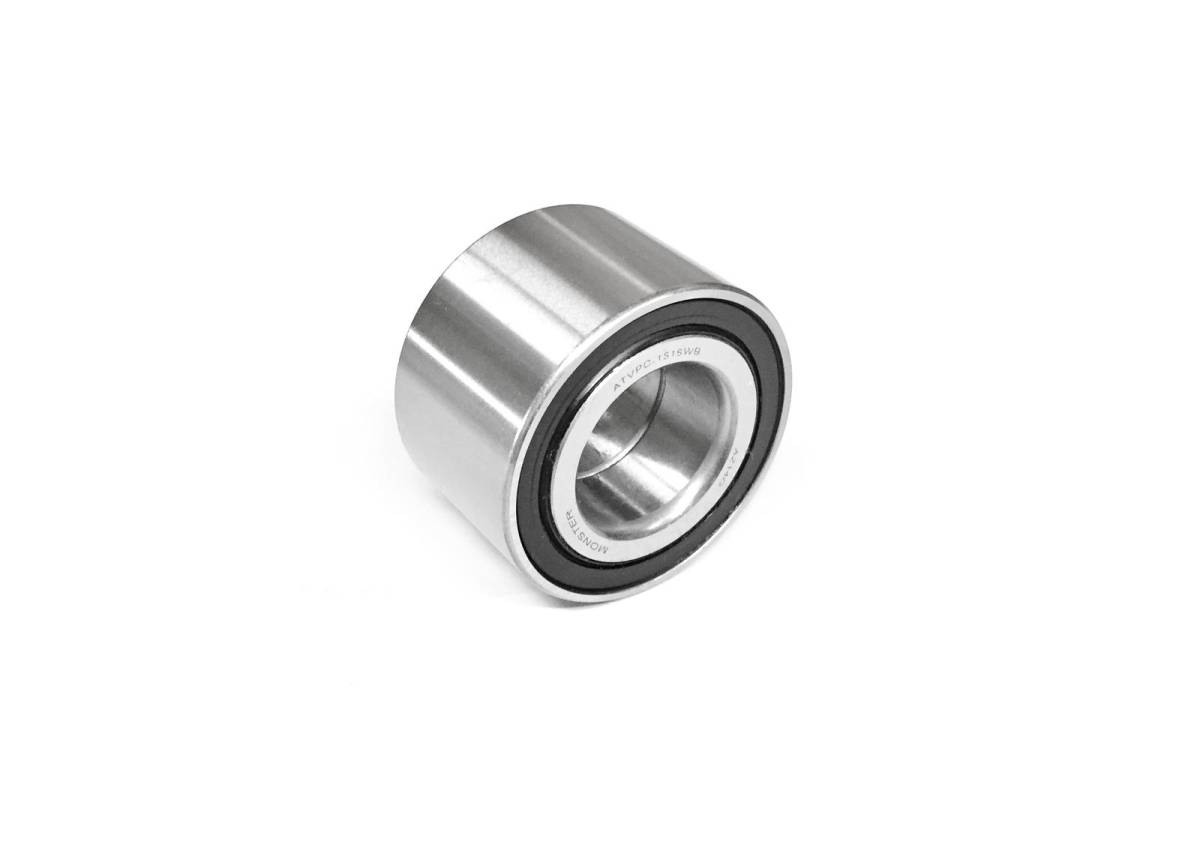

  • High speed bearings manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 704 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $109.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Can-Am models: 2020-2024 Defender HD10 DPS/XT/64", 2020-2024 Defender PRO HD DPS/XT/64", 2020-2024 Defender MAX HD10 DPS/XT/64". Please note this will not fit any CAB, XMR, LTD, Lone Star, or 67" models.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Can-Am OEM # 705502831. Inner spline count: 24, Outer spline count: 27, Compressed overall length: 704 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

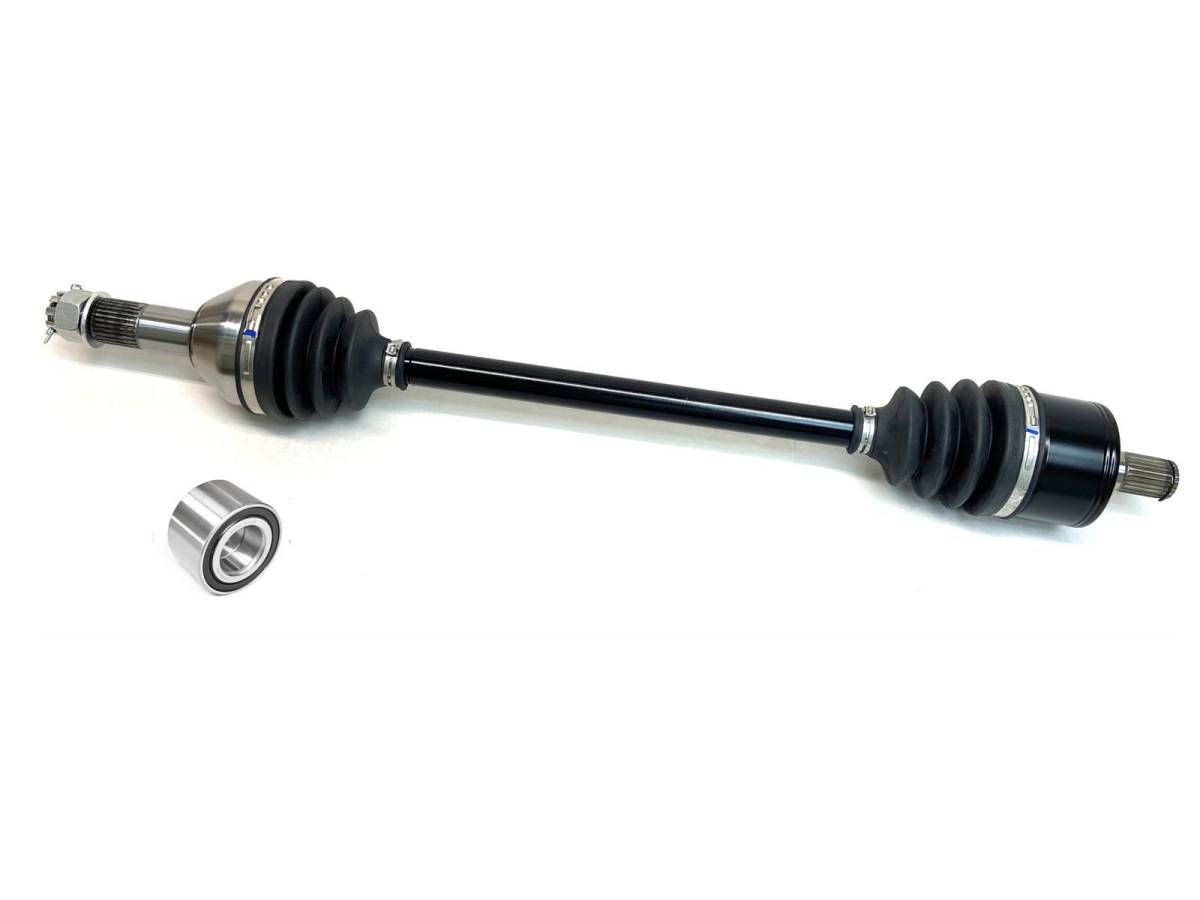

  • 1 axle & 1 wheel bearing

    • Application List

    YearMakeModelSubmodelNotes
    2024Can-AmDefender HD104x4 DPS
    2024Can-AmDefender HD104x4 XT
    2024Can-AmDefender HD104x4 XT DPS
    2023Can-AmDefender HD104x4 DPS
    2023Can-AmDefender HD104x4 XT DPS
    2022Can-AmDefender HD104x4 DPS
    2022Can-AmDefender HD104x4 XT DPS
    2021Can-AmDefender HD104x4 DPS
    2021Can-AmDefender HD104x4 XT DPS
    2020Can-AmDefender HD104x4 DPS
    2020Can-AmDefender HD104x4 Mossy Oak Hunting Edition DPS
    2020Can-AmDefender HD104x4 XT DPS
    2020Can-AmDefender HD104x4 XTP
    2024Can-AmDefender Max HD104x4 DPS
    2024Can-AmDefender Max HD104x4 XT DPS
    2023Can-AmDefender Max HD104x4 DPS
    2023Can-AmDefender Max HD104x4 XT DPS
    2022Can-AmDefender Max HD104x4 DPS
    2022Can-AmDefender Max HD104x4 XT DPS
    2021Can-AmDefender Max HD104x4 DPS
    2021Can-AmDefender Max HD104x4 XT DPS
    2020Can-AmDefender Max HD104x4 DPS
    2020Can-AmDefender Max HD104x4 XT DPS
    2024Can-AmDefender Pro HD104x4 DPS
    2024Can-AmDefender Pro HD104x4 XT DPS
    2023Can-AmDefender Pro HD104x4 DPS
    2023Can-AmDefender Pro HD104x4 XT DPS
    2022Can-AmDefender Pro HD104x4 DPS
    2022Can-AmDefender Pro HD104x4 XT DPS
    2021Can-AmDefender Pro HD104x4 DPS
    2021Can-AmDefender Pro HD104x4 XT DPS
    2020Can-AmDefender Pro HD104x4 DPS
    2020Can-AmDefender Pro HD104x4 XT DPS

    Details

    • CA-313/WB-1516
    • CA-313/WB-1516
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 15.5 lbs.
    • W6.0000” x H6.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
