CV Axle Set for Can-Am Maverick X3 64" STD & XDS 705401686, 705401687, 705502154

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-124/CA-224/CA-329/CA-329

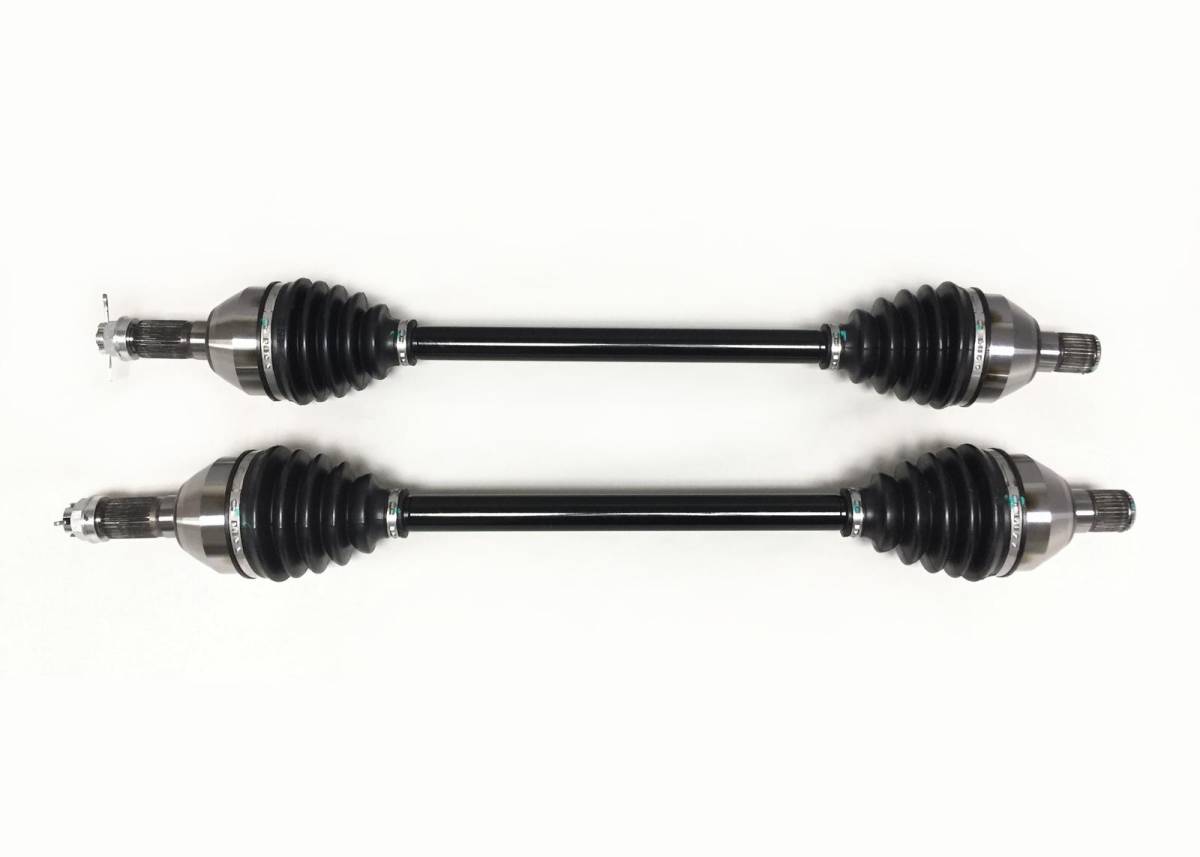

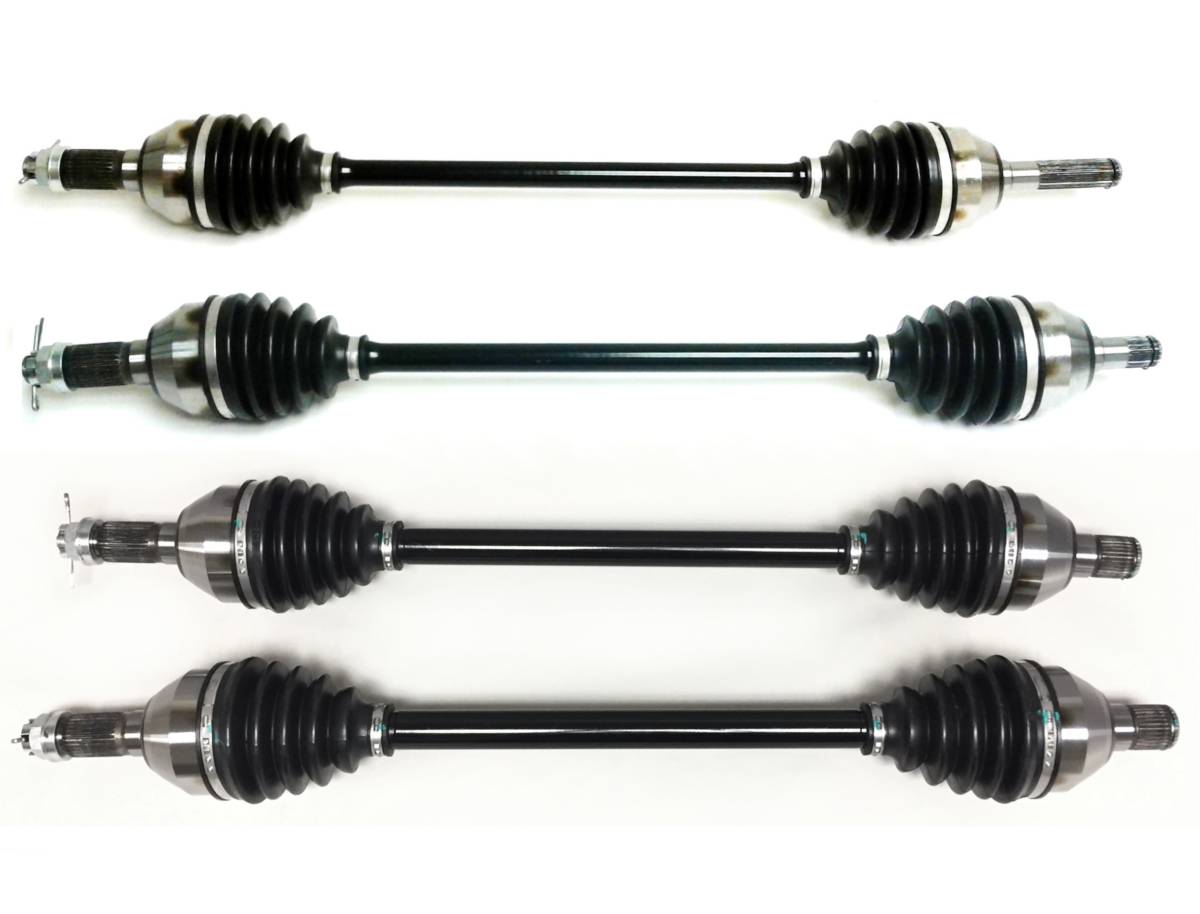

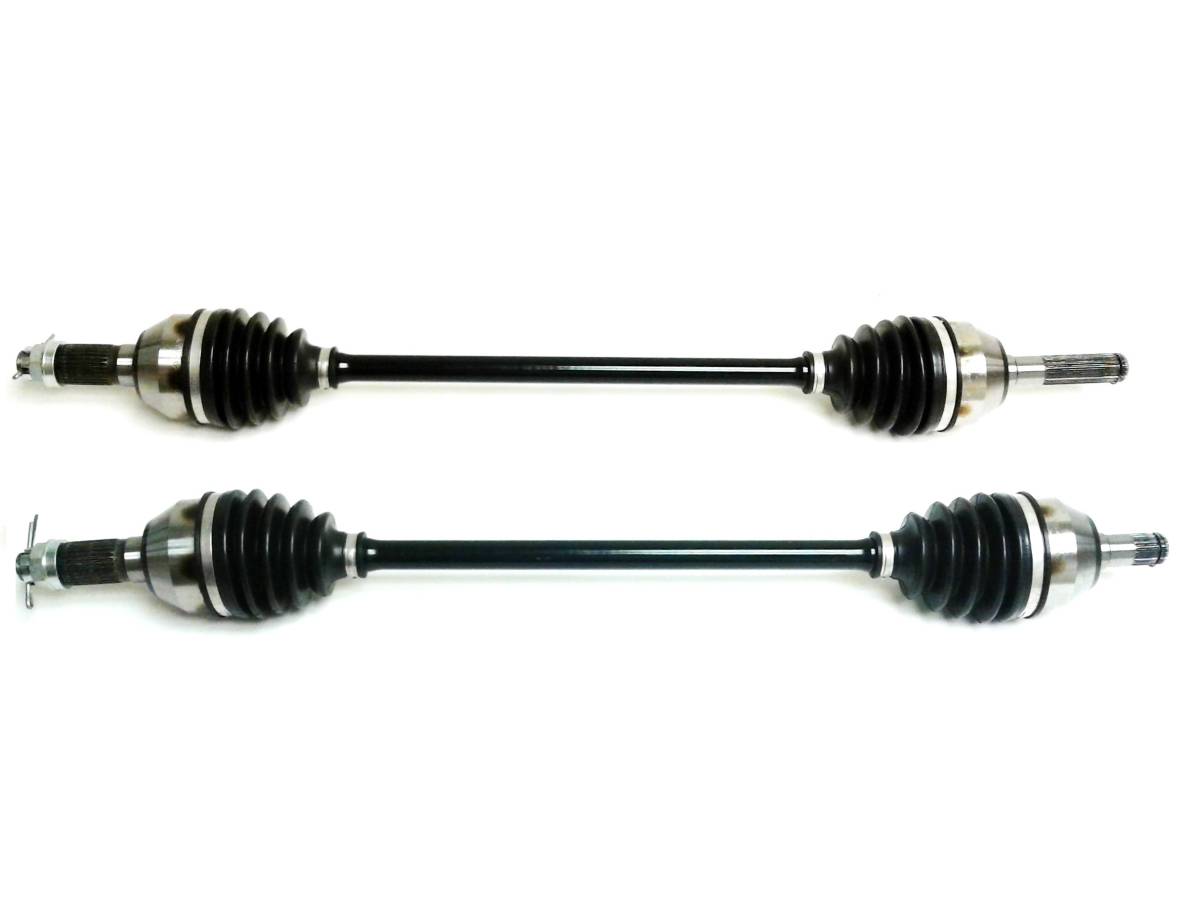

This is a set of Front & Rear CV axles for a Can-Am Maverick X3.

They fit the following 64" models:

2017-2018 ... Maverick X3/X3 Turbo STD & XDS-DPS

2017-2018 ... Maverick X3 Max/X3 Max Turbo STD & XDS-DPS

2018 ... Maverick X3 900 HO

2019 ... Maverick X3 Turbo/Turbo R STD

2019 ... Maverick X3 Max Turbo R

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: Fronts: 21, Rears: 30
  • Outboard CV joint spline count: Fronts: 29, Rears: 29
  • Compressed Length: FL 778, FR 735, RL 741, RR 741
  • Replaces Can-Am OEM # 705401686, 705402097, 705401687, 705402098, 705502154. Please note these are for 64" models and do not fit 72" XRS models
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $299.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2019Can-AmMaverick X34x4 Turbo DPS
2018Can-AmMaverick X34x4 Turbo DPS
2019Can-AmMaverick X3 Max R4x4 Turbo DPS
2017Can-AmMaverick X3 Max R4x4 Turbo DPS
2017Can-AmMaverick X3 Max R4x4 XDS Turbo DPS
2019Can-AmMaverick X3 R4x4 Turbo DPS
2019Can-AmMaverick X3 R4x4 XDS Turbo DPS
2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
2017Can-AmMaverick X3 R4x4 Turbo DPS
2017Can-AmMaverick X3 R4x4 XDS Turbo DPS

Product Notes

  • Fits the following Can-Am models: 2017-2018 Maverick X3/X3 Turbo STD/XDS-DPS, 2017-2018 Maverick X3 MAX/X3 MAX Turbo STD/XDS-DPS, 2018 Maverick X3 900 HO, 2019 Maverick X3 Turbo/Turbo R STD, 2019 Maverick X3 MAX Turbo R. Please note these only fit 64" models.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Ships as a complete set, fully assembled and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces Can-Am OEM # (left) 705401686, 705402097, (right) 705401687, 705402098, (rears) 705502154. Compressed length (mm): FL 778, FR 735, RL 741, RR 741, Inboard spline count - fronts: 21, rears: 30, Outboard spline count - fronts: 29, rears: 29.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-124/CA-224/CA-329/CA-329
    • CA-124/CA-224/CA-329/CA-329
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 62.0 lbs.
    • W10.0000” x H10.0000” x L38.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
